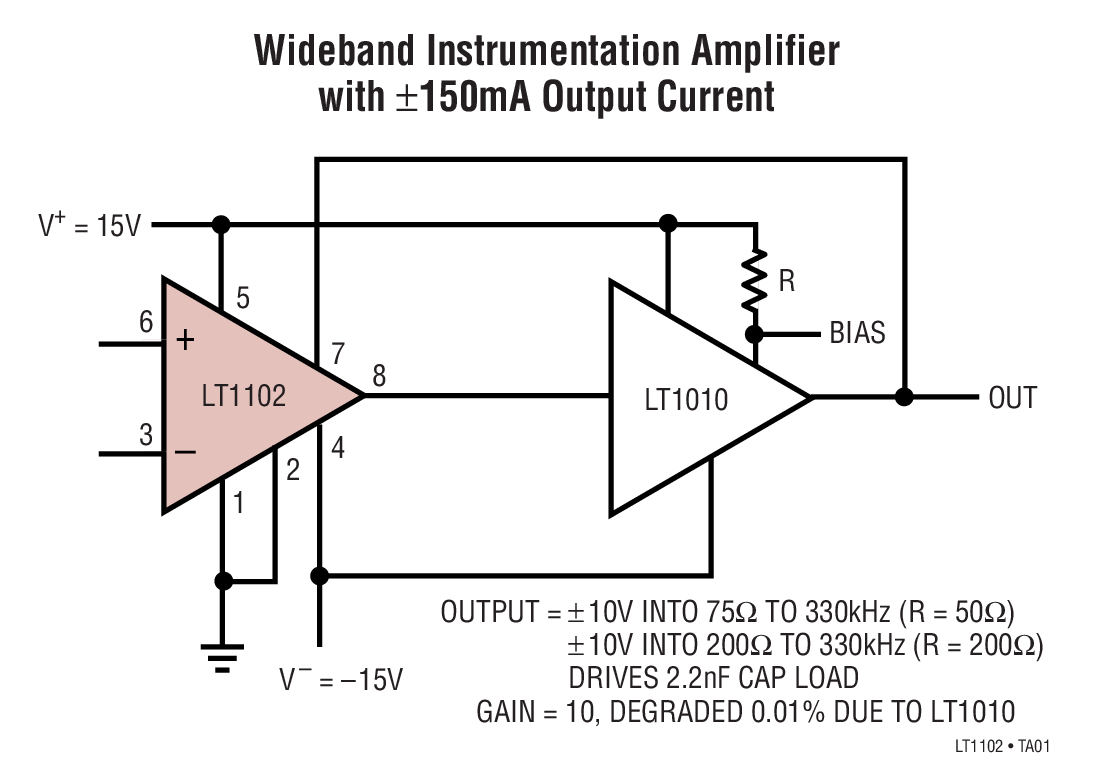

LT1102典型应用图例一

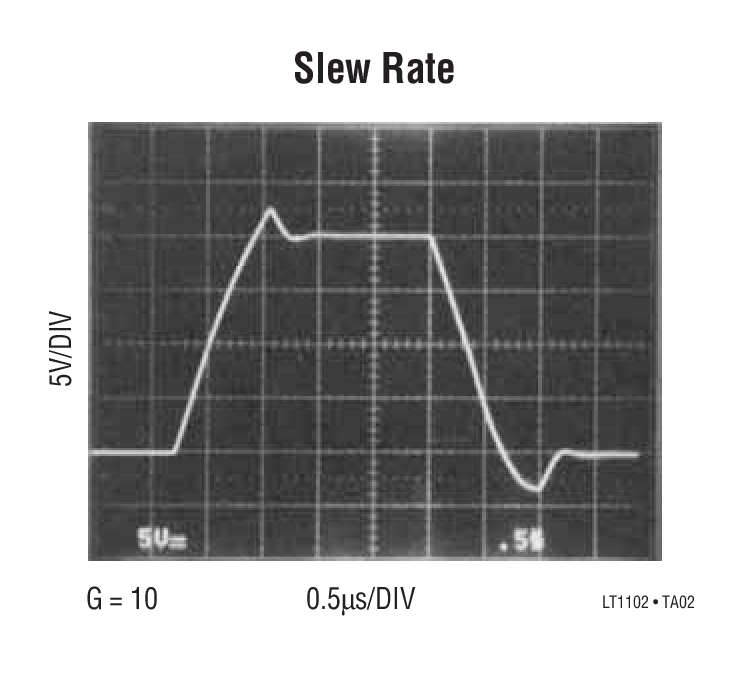

LT1102典型应用图例二
LT1102 - 封装图解：

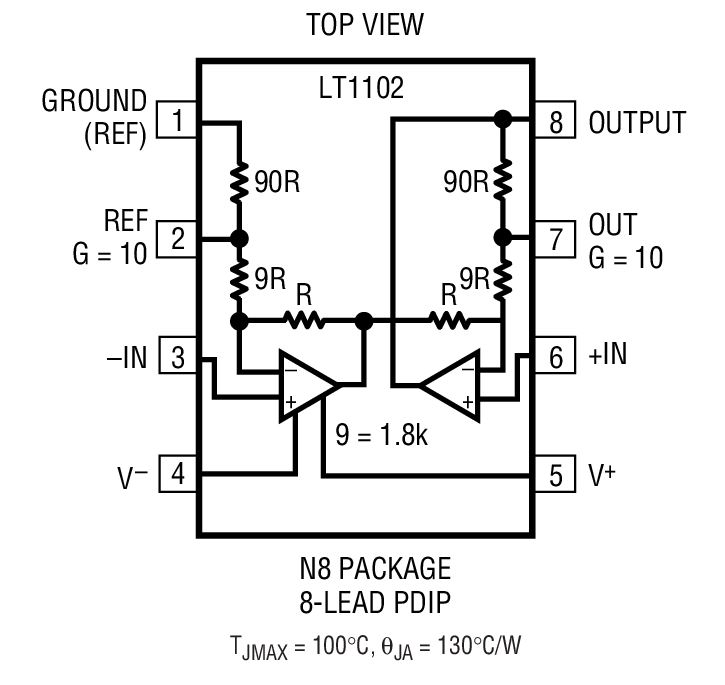

LT1102封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LT1102介绍

LT1102 - LT1102是High Speed, Precision, JFET Input Instrumentation Amplifier (Fixed Gain= 10 or 100)

LT1102是LINEAR凌力尔特公司的一款精准放大器产品，LT1102是LT1102是High Speed, Precision, JFET Input Instrumentation Amplifier (Fixed Gain= 10 or 100)，本站介绍了LT1102的封装应用图解、特点和优点、功能等，并给出了与LT1102相关的LINEAR元器件型号供参考。

LT1102 - LT1102是High Speed, Precision, JFET Input Instrumentation Amplifier (Fixed Gain= 10 or 100) - 精准放大器 - 信号调理 - 凌力尔特

LT1102 - High Speed, Precision, JFET Input Instrumentation Amplifier (Fixed Gain= 10 or 100)

LT1102 - High Speed, Precision, JFET Input Instrumentation Amplifier (Fixed Gain= 10 or 100) - Linear Technology（凌力尔特）

功能描述

The LT1102 is the first fast FET input instrumentation amplifier offered in the low cost, space saving 8-pin packages. Fixed gains of 10 and 100 are provided with excellent gain accuracy (0.01%) and non-linearity (3ppm). No external gain setting resistor is required.

Slew rate, settling time, gain-bandwidth product, overdrive recovery time are all improved compared to competitive high speed instrumentation amplifiers.

Industry best speed performance is combined with impressive precision specifications: less than 10pA input bias and offset currents, 180µV offset voltage. Unlike other FET input instrumentation amplifiers, on the LT1102 there is no output offset voltage contribution to total error, and input bias currents do not double with every 10°C rise in temperature. Indeed, at 70°C ambient temperature the input bias current is only 40pA.

特点
  • Slew Rate: 30V/µs
  • Gain-Bandwidth Product: 35MHz
  • Settling Time (0.01%): 3µs
  • Overdrive Recovery: 0.4µs
  • Gain Error: 0.05% Max
  • Gain Drift: 5ppm/°C
  • Gain Nonlinearity: 16ppm Max
  • Offset Voltage (Input + Output): 600µV Max– Drift with Temperature: 2µV/°C
  • Input Bias Current: 40pA Max
  • Input Offset Current: 40pA Max-Drift with Temperature (to 70°C):0.5pA/°C
    • 应用
  • Fast Settling Analog Signal Processing
  • Multiplexed Input Data Acquisition Systems
  • High Source Impedance Signal Amplification from High Resistance Bridges, Capacitance Sensors, Photodetector Sensors
  • Bridge Amplifier with <1Hz Lowpass Filtering
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT1102ACN8 N-8 C $8.17 $6.60
    LT1102ACN8#PBF N-8 C $8.17 $6.60
    LT1102CN8 N-8 C $5.83 $4.75
    LT1102CN8#PBF N-8 C $5.83 $4.75
    LT1102IN8 N-8 I $7.25 $5.95
    LT1102IN8#PBF N-8 I $7.25 $5.95
