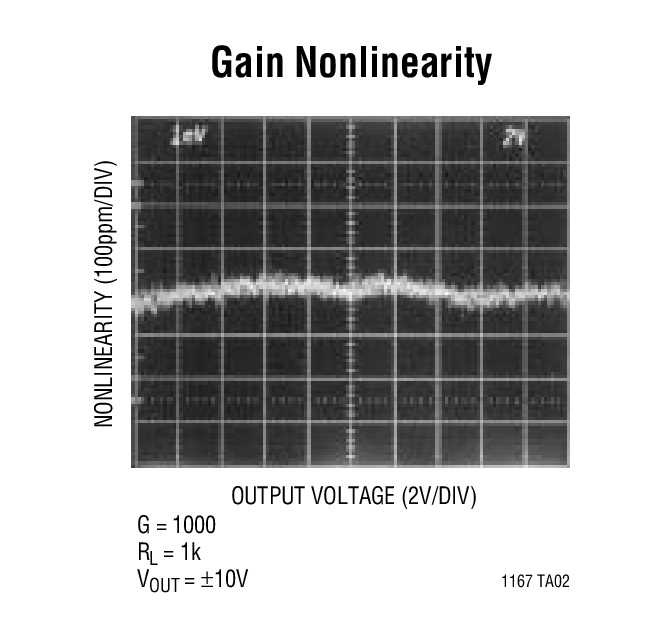

LT1920典型应用图例一

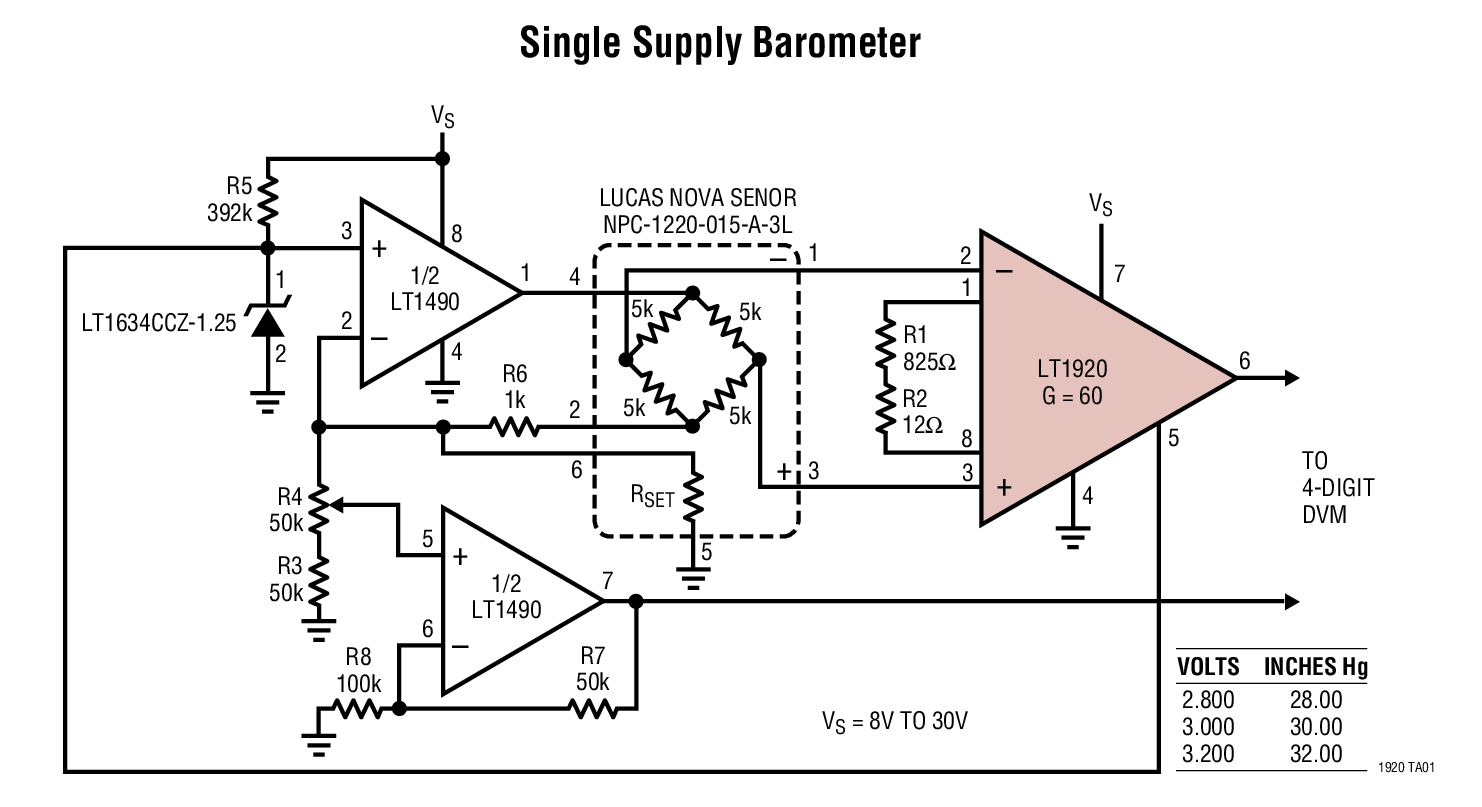

LT1920典型应用图例二
LT1920 - 封装图解:

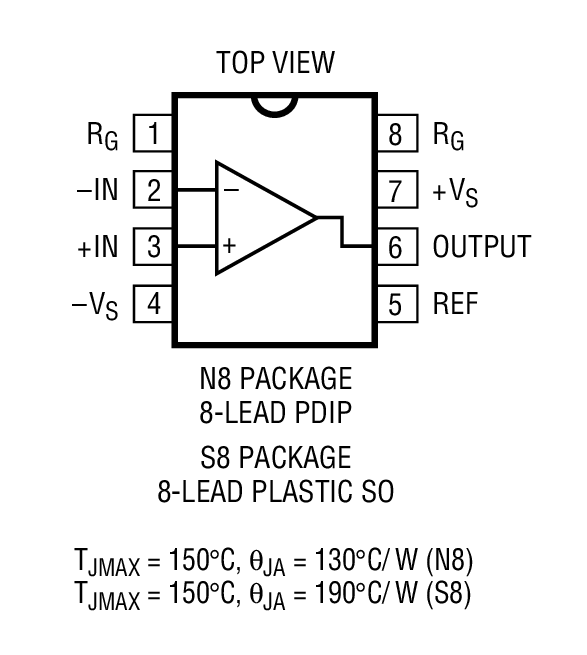

LT1920封装图解一
承诺原装正品
专营Linear,真正优化您的供应链
Linear产品 - LT1920介绍
LT1920 - LT1920是Single Resistor Gain Programmable, Precision Instrumentation Amplifier

LT1920是Linear公司的一款精准放大器产品,LT1920是Single Resistor Gain Programmable, Precision Instrumentation Amplifier,本站介绍了LT1920的封装应用图解、特点和优点、功能等,并给出了与LT1920相关的凌力尔特元器件型号供参考。

LT1920 - Single Resistor Gain Programmable, Precision Instrumentation Amplifier

LT1920 - Single Resistor Gain Programmable, Precision Instrumentation Amplifier - Linear Technology(凌力尔特)

功能描述
The LT1920 is a low power, precision instrumentation amplifier that requires only one external resistor to set gains of 1 to 10,000. The low voltage noise of 7.5nV/rtHz (at 1kHz) is not compromised by low power dissipation (0.9mA typical for ±2.3V to ±15V supplies). The high accuracy of 30ppm maximum nonlinearity and 0.3% max gain error (G = 10) is not degraded even for load resistors as low as 2k (previous monolithic instrumentation amps used 10k for their nonlinearity specifications). The LT1920 is laser trimmed for very low input offset voltage (125µV max), drift (1µV/°C), high CMRR (75dB, G = 1) and PSRR (80dB, G = 1). Low input bias currents of 2nA max are achieved with the use of superbeta processing. The output can handle capacitive loads up to 1000pF in any gain configuration while the inputs are ESD protected up to 13kV (human body). The LT1920 with two external 5k resistors passes the IEC 1000-4-2 level 4 specification. The LT1920, offered in 8-pin PDIP and SO packages, is a pin for pin and spec for spec improved replacement for the AD620. The LT1920 is the most cost effective solution for precision instrumentation amplifier applications. For even better guaranteed performance, see the LT1167.
特点
  • Single Gain Set Resistor: G = 1 to 10,000
  • Gain Error: G = 10, 0.3% Max
  • Gain Nonlinearity: G = 10, 30ppm Max
  • Input Offset Voltage: G = 10, 225µV Max
  • Input Offset Voltage Drift: 1µV/°C Max
  • Input Bias Current: 2nA Max
  • PSRR at G = 1: 80dB Min
  • CMRR at G = 1: 75dB Min
  • Supply Current: 1.3mA Max
  • Wide Supply Range: ±2.3V to ±18V
  • 1kHz Voltage Noise: 7.5nV/rtHz
  • 0.1Hz to 10Hz Noise: 0.28µVP-P
  • Available in 8-Pin PDIP and SO Packages
  • Meets IEC 1000-4-2 Level 4 ESD Tests with Two External 5k Resistors
  • 应用
  • Bridge Amplifiers
  • Strain Gauge Amplifiers
  • Thermocouple Amplifiers
  • Differential to Single-Ended Converters
  • Medical Instrumentation
  • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格(美元)
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT1920CN8 N-8 C $3.60 $3.05
    LT1920CN8#PBF N-8 C $3.60 $3.05
    LT1920CS8 SO-8 C $3.60 $3.05
    LT1920CS8#PBF SO-8 C $3.60 $3.05
    LT1920CS8#TR SO-8 C $3.11
    LT1920CS8#TRPBF SO-8 C $3.11
    LT1920IN8 N-8 I $3.80 $3.25
    LT1920IN8#PBF N-8 I $3.80 $3.25
    LT1920IS8 SO-8 I $3.80 $3.25
    LT1920IS8#PBF SO-8 I $3.80 $3.25
    LT1920IS8#TR SO-8 I $3.31
    LT1920IS8#TRPBF SO-8 I $3.31
