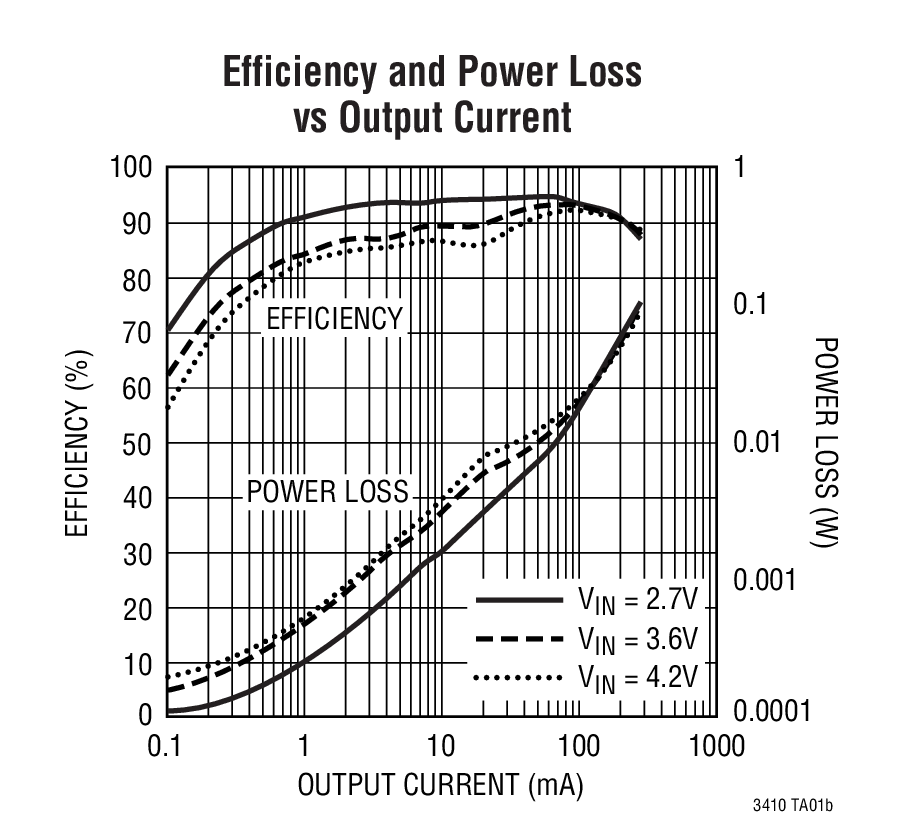

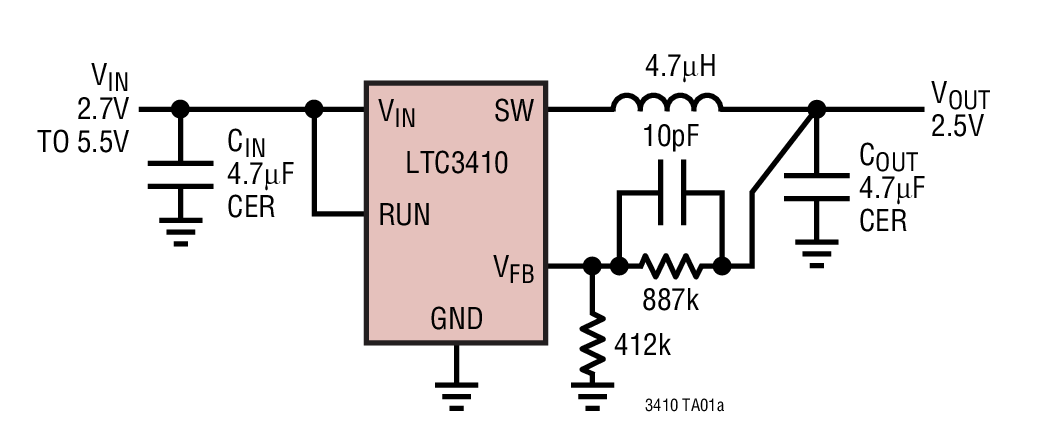

LTC3410典型应用图例一
LTC3410典型应用图例二

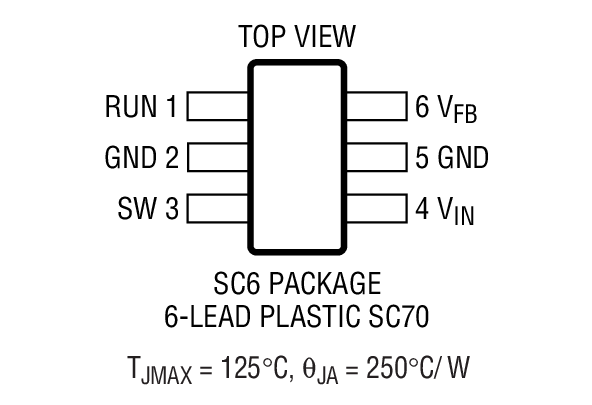

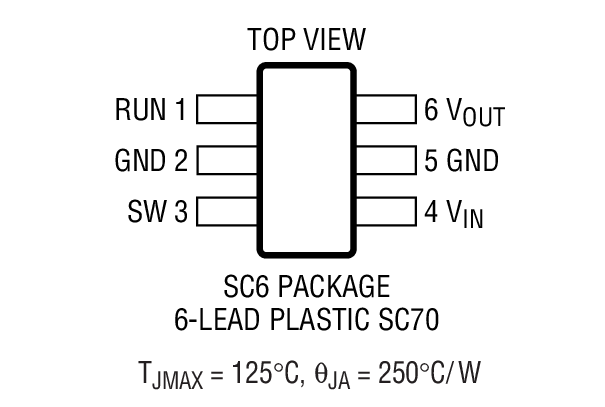

LTC3410 - 封装图解:
LTC3410封装图解一
LTC3410封装图解二
承诺原装正品
专营Linear,真正优化您的供应链
Linear产品 - LTC3410介绍
LTC3410 - LTC3410是2.25MHz, 300mA Synchronous Step-Down Regulator in SC70

LTC3410是Linear公司的一款微功率降压产品,LTC3410是2.25MHz, 300mA Synchronous Step-Down Regulator in SC70,本站介绍了LTC3410的封装应用图解、特点和优点、功能等,并给出了与LTC3410相关的凌力尔特元器件型号供参考。

LTC3410 - 2.25MHz, 300mA Synchronous Step-Down Regulator in SC70

LTC3410 - 2.25MHz, 300mA Synchronous Step-Down Regulator in SC70 - Linear Technology(凌力尔特)

功能描述

The LTC3410 is a high efficiency monolithic synchronous buck regulator using a constant frequency, current mode architecture. The device is available in adjustable and fixed output voltage versions. Supply current during operation is only 26μA, dropping to <1μA in shutdown. The 2.5V to 5.5V input voltage range makes the LTC3410 ideally suited for single Li-Ion battery-powered applications. 100% duty cycle provides low dropout operation, extending battery life in portable systems.

Switching frequency is internally set at 2.25MHz, allowing the use of small surface mount inductors and capacitors. The LTC3410 is specifically designed to work well with ceramic output capacitors, achieving very low output voltage ripple and a small PCB footprint.

The internal synchronous switch increases efficiency and eliminates the need for an external Schottky diode. Low output voltages are easily supported with the 0.8V feedback reference voltage. The LTC3410 is available in a tiny, low profile SC70 package.

特点
  • High Efficiency: Up to 96%
  • Low Ripple (20m Vp-p) Bust Mode Operation: IQ = 26μA
  • Low Output Voltage Ripple
  • 300mA Output Current at VIN = 3V
  • 380mA Minimum Peak Switch Current
  • 2.5V to 5.5V Input Voltage Range
  • 2.25MHz Constant Frequency Operation
  • No Schottky Diode Required
  • Low Dropout Operation: 100% Duty Cycle
  • Stable with Ceramic Capacitors
  • 0.8V Reference Allows Low Output Voltages
  • Shutdown Mode Draws < 1μA Supply Current
  • ±2% Output Voltage Accuracy
  • Current Mode Operation for Excellent Line and Load Transient Response
  • Overtemperature Protected
  • Available in Low Profile SC70 Package
  • 应用
  • Cellular Telephones
  • Wireless and DSL Modems
  • Digital Cameras
  • MP3 Players
  • Portable Instruments
  • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格(美元)
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC3410ESC6 SC-70 E $2.21
    LTC3410ESC6-1.2#PBF SC-70 E $2.21
    LTC3410ESC6-1.2#TR SC-70 E $2.21 $1.56
    LTC3410ESC6-1.2#TRM SC-70 E $2.21 $1.61
    LTC3410ESC6-1.2#TRMPBF SC-70 E $2.21 $1.61
    LTC3410ESC6-1.2#TRPBF SC-70 E $2.21 $1.56
    LTC3410ESC6-1.5#PBF SC-70 E $2.21
    LTC3410ESC6-1.5#TR SC-70 E $2.21 $1.56
    LTC3410ESC6-1.5#TRM SC-70 E $2.21 $1.61
    LTC3410ESC6-1.5#TRMPBF SC-70 E $2.21 $1.61
    LTC3410ESC6-1.5#TRPBF SC-70 E $2.21 $1.56
    LTC3410ESC6-1.65#PBF SC-70 E $2.21
    LTC3410ESC6-1.65#TR SC-70 E $2.21 $1.56
    LTC3410ESC6-1.65#TRM SC-70 E $2.21 $1.61
    LTC3410ESC6-1.65#TRMPBF SC-70 E $2.21 $1.61
    LTC3410ESC6-1.65#TRPBF SC-70 E $2.21 $1.56
    LTC3410ESC6-1.8#PBF SC-70 E $2.21
    LTC3410ESC6-1.8#TR SC-70 E $2.21 $1.56
    LTC3410ESC6-1.8#TRM SC-70 E $2.21 $1.61
    LTC3410ESC6-1.8#TRMPBF SC-70 E $2.21 $1.61
    LTC3410ESC6-1.8#TRPBF SC-70 E $2.21 $1.56
    LTC3410ESC6#PBF SC-70 E $2.21
    LTC3410ESC6#TR SC-70 E $2.21 $1.56
    LTC3410ESC6#TRM SC-70 E $2.21 $1.58
    LTC3410ESC6#TRMPBF SC-70 E $2.21 $1.58
    LTC3410ESC6#TRPBF SC-70 E $2.21 $1.56
