LTC1164-6 - LTC1164-6是Low Power 8th Order Pin Selectable Elliptic or Linear Phase Lowpass Filter
LTC1164-6是Linear公司的一款低通滤波器产品，LTC1164-6是Low Power 8th Order Pin Selectable Elliptic or Linear Phase Lowpass Filter，本站介绍了LTC1164-6的封装应用图解、特点和优点、功能等，并给出了与LTC1164-6相关的凌力尔特元器件型号供参考。
LTC1164-6 - Low Power 8th Order Pin Selectable Elliptic or Linear Phase Lowpass Filter
LTC1164-6 - Low Power 8th Order Pin Selectable Elliptic or Linear Phase Lowpass Filter - Linear Technology（凌力尔特）
功能描述
The LTC1164-6 is a monolithic 8th order elliptic lowpass filter featuring clock-tunable cutoff frequency and low power supply current. Low power operation is achieved without compromising noise or distortion performance. At ±5V supplies the LTC1164-6 uses only 4mA supply current while keeping wideband noise below 110µVRMS. With a single 5V supply, the LTC1164-6 can provide up to 10kHz cutoff frequency and 80dB signal-to-noise ratio while consuming only 2.5mA.

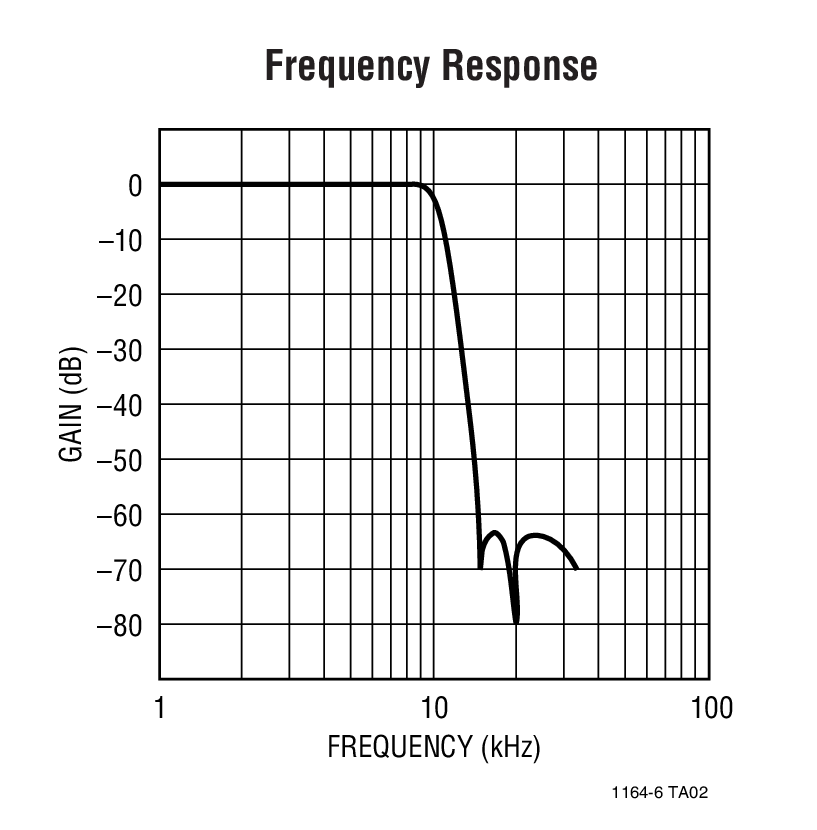

The LTC1164-6 provides an elliptic lowpass rolloff with stopband attenuation of 64dB at 1.44 f CUTOFF and an fCLK-to- fCUTOFF ratio of 100:1 (pin10 to V - ).For a ratio of 100:1, fCUTOFF can be clock-tuned up to 10kHz. For a fCLK-to-fCUTOFF ratio of 50:1 (pin 10 to V + ), the LTC1164-6 provides an elliptic lowpass filter with fCUTOFF frequencies up to 20kHz. When pin 10 is connected to ground, the LTC1164-6 approximates an 8th order linear phase re-sponse with 65dB attenuation at 4.5 f -3dB and fCLK/f-3dB ratio of 160:1. The LTC1164-6 is pin compatible with the LTC1064-1.
特点
8th Order Pin Selectable Elliptic or Bessel Filter in a 14-Pin Package 4mA Supply Current with ±5V Supplies 64dB Attenuation at 1.44 fCUTOFF (Elliptic Response) fCUTOFF up to 30kHz (50:1 fCLK to fCUTOFF Ratio) 110µVRMS Wideband Noise with ±5V Supplies Operates at Single 5V Supply with 1VRMS Input Range Operates up to ±8V Supplies TTL/CMOS Compatible Clock Input No External Components应用

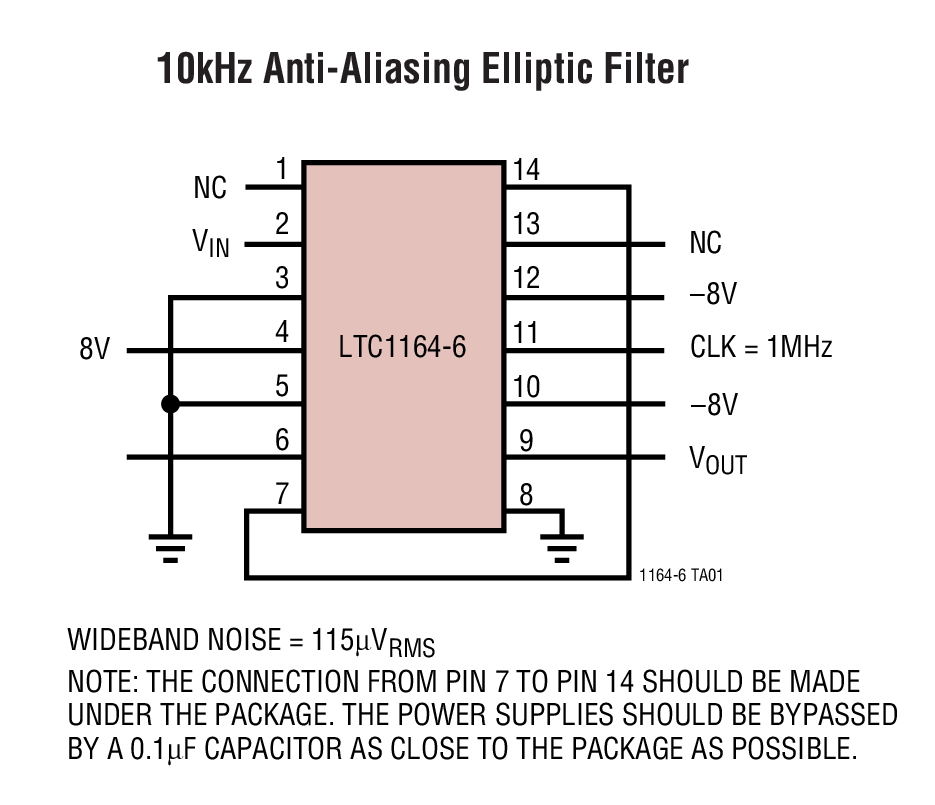

Anti-Aliasing Filters Battery-Operated Instruments Telecommunication Filters以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

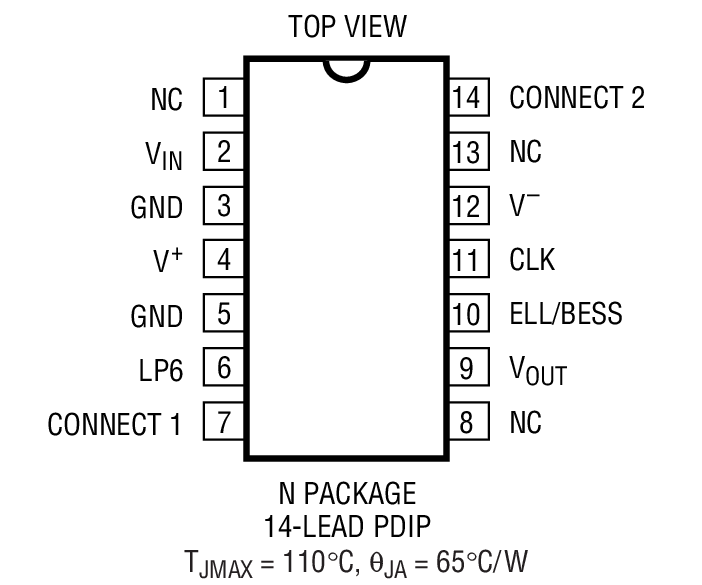

| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) |
| LTC1164-6CN | N-14 | C | $15.00 | $12.35 |
| LTC1164-6CN#PBF | N-14 | C | $15.00 | $12.35 |
| LTC1164-6CSW | SW-16 | C | $18.35 | $14.85 |
| LTC1164-6CSW#PBF | SW-16 | C | $18.35 | $14.85 |
| LTC1164-6CSW#TR | SW-16 | C | | $14.91 |
| LTC1164-6CSW#TRPBF | SW-16 | C | | $14.91 |
