当前位置:Linear公司 > > 凌力尔特芯片 >> LT1762
LT1762技术文档下载:
LT1762技术文档产品手册下载
LT1762 - 典型应用图例:

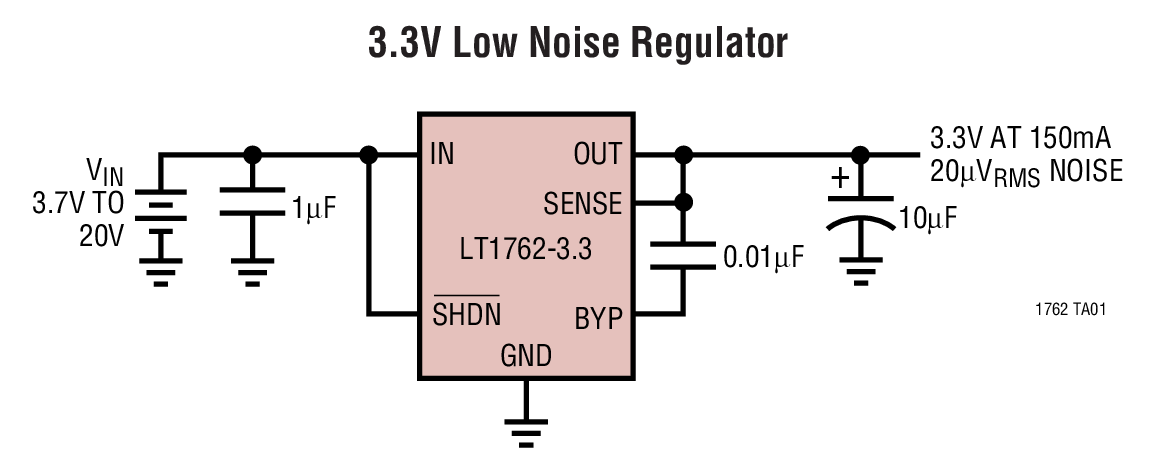

LT1762典型应用图例一

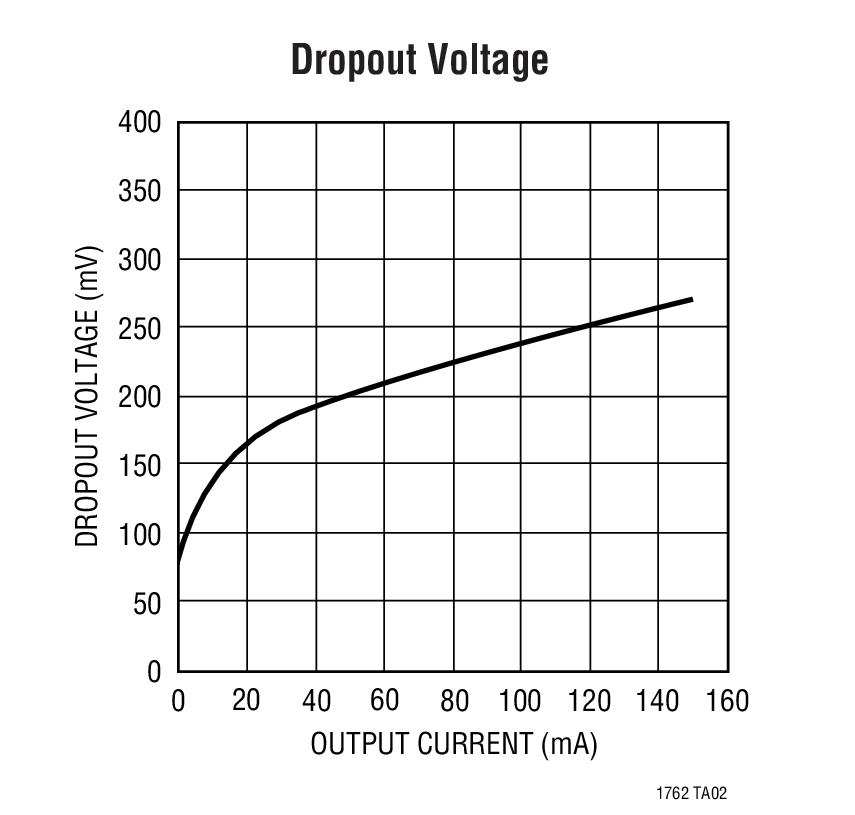

LT1762典型应用图例二
LT1762 - 封装图解:

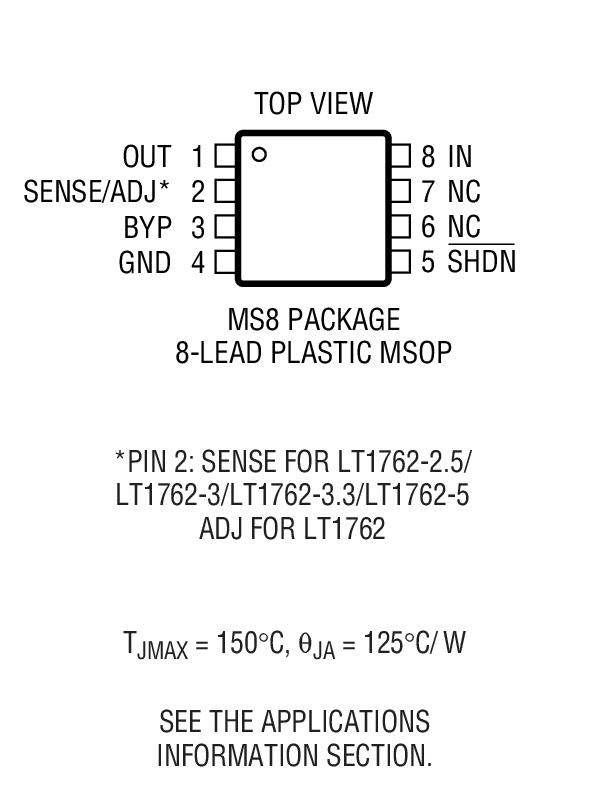

LT1762封装图解一
承诺原装正品
专营Linear,真正优化您的供应链
Linear产品 - LT1762介绍
LT1762 - LT1762是150mA, Low Noise, LDO Micropower Regulators

LT1762是Linear公司的一款正稳压器产品,LT1762是150mA, Low Noise, LDO Micropower Regulators,本站介绍了LT1762的封装应用图解、特点和优点、功能等,并给出了与LT1762相关的凌力尔特元器件型号供参考。

LT1762 - 150mA, Low Noise, LDO Micropower Regulators

LT1762 - 150mA, Low Noise, LDO Micropower Regulators - Linear Technology(凌力尔特)

功能描述
The LT1762 series are micropower, low noise, low dropout regulators. The devices are capable of supplying 150mA of output current with a dropout voltage of 300mV. Designed for use in battery-powered systems, the low 25μA quiescent current makes them an ideal choice. Quiescent current is well controlled; it does not rise in dropout as it does with many other regulators. A key feature of the LT1762 regulators is low output noise. With the addition of an external 0.01μF bypass capacitor, output noise drops to 20μVRMS over a 10Hz to 100kHz bandwidth. The LT1762 regulators are stable with output capacitors as low as 2.2μF. Small ceramic capacitors can be used without the series resistance required by other regulators. Internal protection circuitry includes reverse battery protection, current limiting, thermal limiting and reverse current protection. The parts come in fixed output voltages of 2.5V, 3V, 3.3V and 5V, and as an adjustable device with a 1.22V reference voltage. The LT1762 regulators are available in the 8-lead MSOP package.
特点
  • Low Noise: 20μVRMS(10Hz to 100kHz)
  • Low Quiescent Current: 25μA
  • WideInput Voltage Range: 1.8V to 20V
  • Output Current: 150m
  • Very Low Shutdown Current: < 1μA
  • Low Dropout Voltage: 270mV
  • No Protection Diodes Needed
  • Fixed Output Voltages: 2.5V, 3V, 3.3V, 5V
  • Adjustable Output from 1.22V to 20V
  • Stable with 2.2μF Output Capacitor
  • Stable with Aluminum, Tantalum or Ceramic Capacitors
  • Reverse Battery Protection
  • No Reverse Current
  • Overcurrent and Overtemperature Protected
  • 8-Lead MSOP Package
  • 应用
  • Cellular Phones
  • Battery-Powered Systems
  • Frequency Synthesizers
  • Noise-Sensitive Instrumentation Systems
  • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格(美元)
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT1762EMS8 MS-8 E $1.30 $1.10
    LT1762EMS8-2.5 MS-8 E $1.30 $1.10
    LT1762EMS8-2.5#PBF MS-8 E $1.30 $1.10
    LT1762EMS8-2.5#TR MS-8 E $1.16
    LT1762EMS8-2.5#TRPBF MS-8 E $1.16
    LT1762EMS8-3 MS-8 E $1.30 $1.10
    LT1762EMS8-3.3 MS-8 E $1.30 $1.10
    LT1762EMS8-3.3#PBF MS-8 E $1.30 $1.10
    LT1762EMS8-3.3#TR MS-8 E $1.16
    LT1762EMS8-3.3#TRPBF MS-8 E $1.16
    LT1762EMS8-3#PBF MS-8 E $1.30 $1.10
    LT1762EMS8-3#TR MS-8 E $1.16
    LT1762EMS8-3#TRPBF MS-8 E $1.16
    LT1762EMS8-5 MS-8 E $1.30 $1.10
    LT1762EMS8-5#PBF MS-8 E $1.30 $1.10
    LT1762EMS8-5#TR MS-8 E $1.16
    LT1762EMS8-5#TRPBF MS-8 E $1.16
    LT1762EMS8#PBF MS-8 E $1.30 $1.10
    LT1762EMS8#TR MS-8 E $1.16
    LT1762EMS8#TRPBF MS-8 E $1.16
