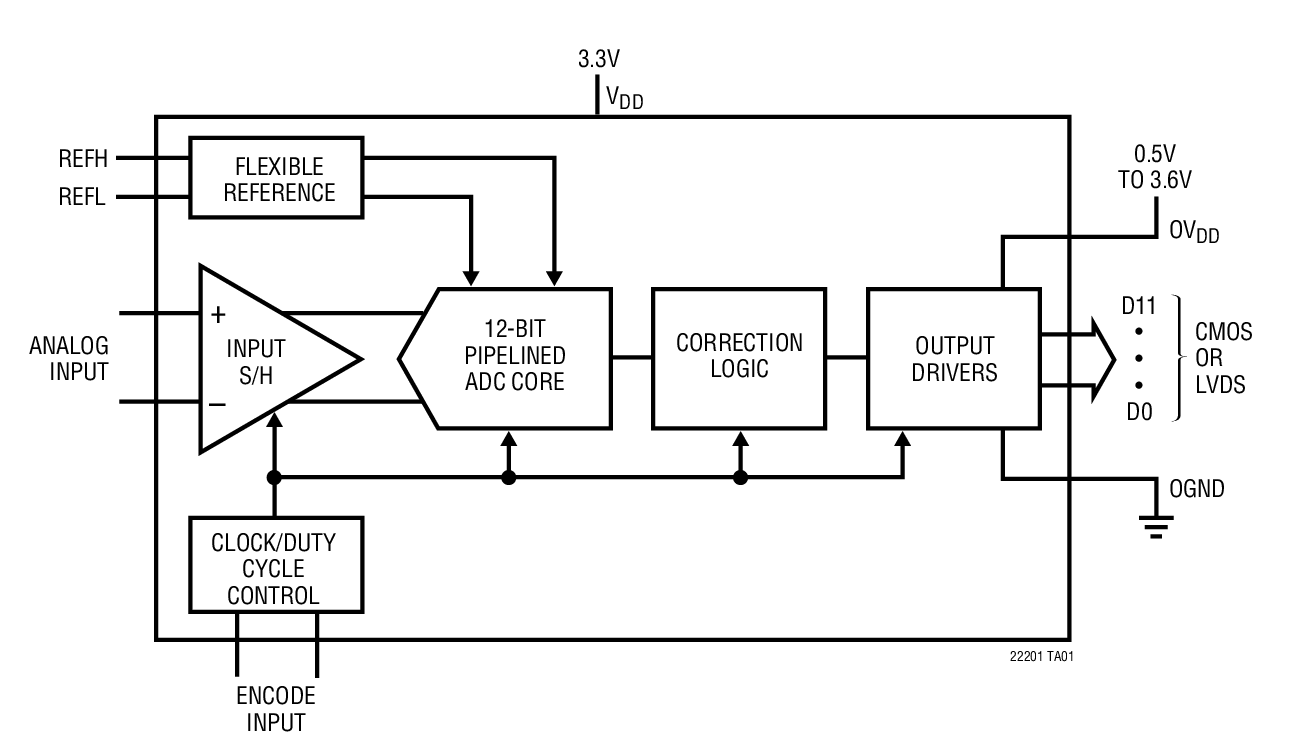

LTC2220 - 典型应用图例：
LTC2220典型应用图例一

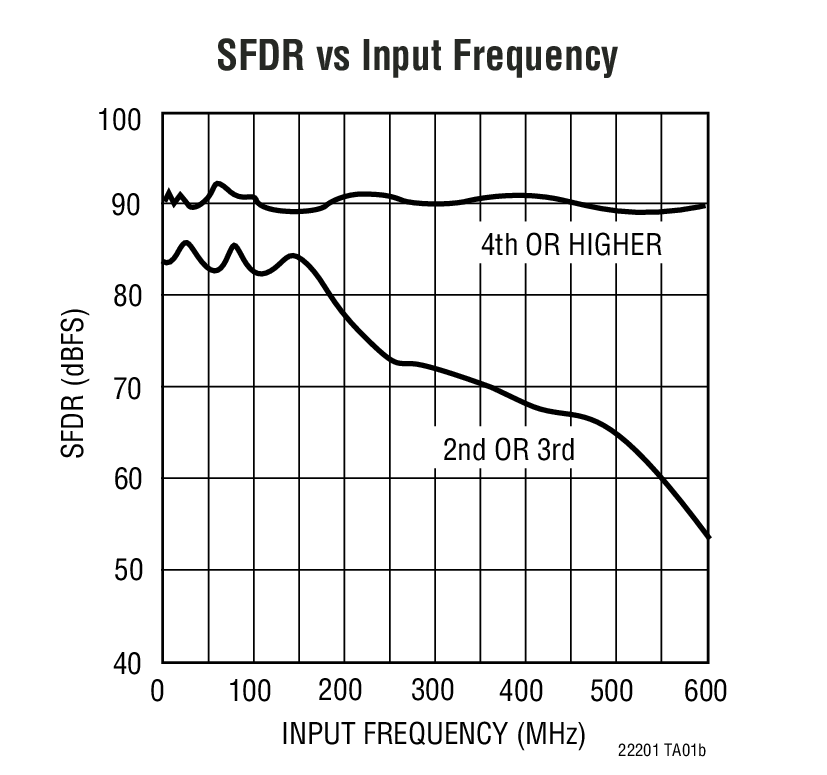

LTC2220典型应用图例二

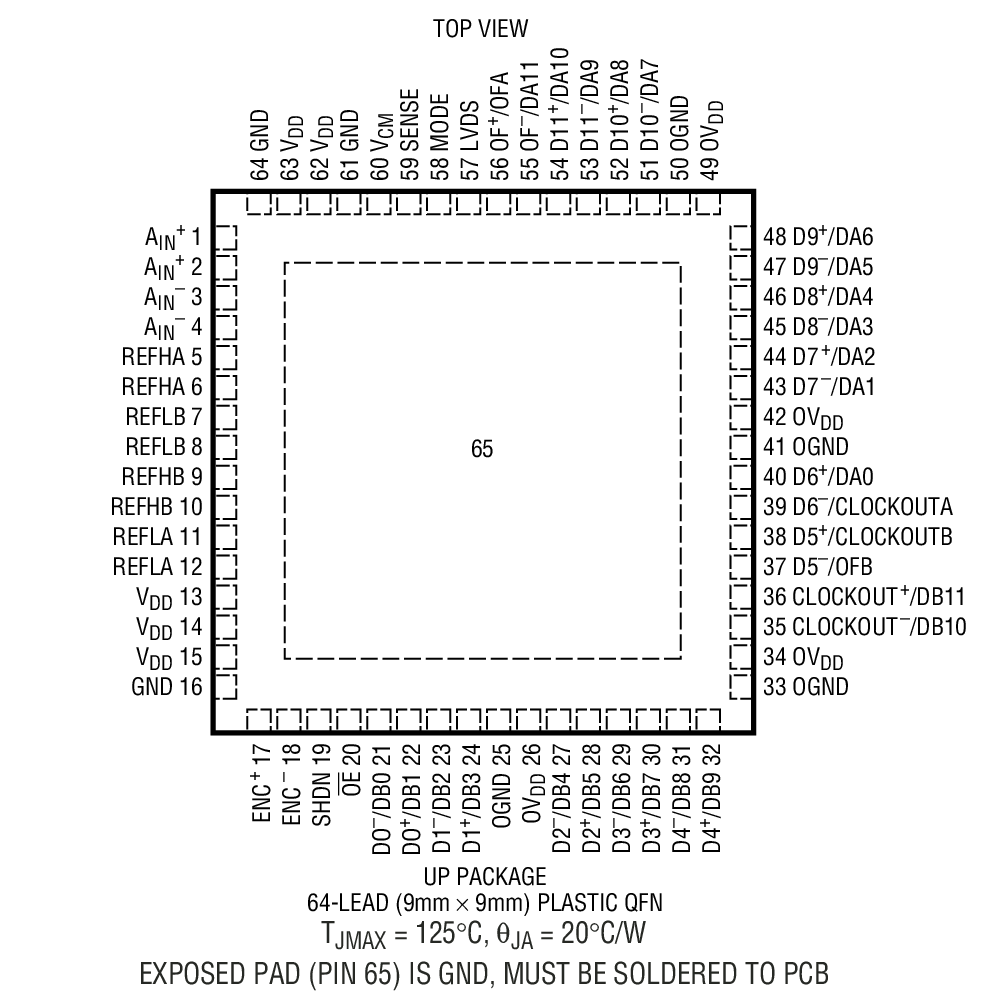

LTC2220 - 封装图解：
LTC2220封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC2220介绍

LTC2220 - LTC2220是12-Bit, 170Msps ADC

LTC2220是LINEAR凌力尔特公司的一款高速 ADC产品，LTC2220是LTC2220是12-Bit, 170Msps ADC，本站介绍了LTC2220的封装应用图解、特点和优点、功能等，并给出了与LTC2220相关的LINEAR元器件型号供参考。

LTC2220 - LTC2220是12-Bit, 170Msps ADC - 高速 ADC - 数据转换 - 凌力尔特

LTC2220 - 12-Bit, 170Msps ADC

LTC2220 - 12-Bit, 170Msps ADC - Linear Technology（凌力尔特）

功能描述

The LTC2220 and LTC2221 are 170Msps/135Msps, sampling 12-bit A/D converters designed for digitizing high frequency, wide dynamic range signals. The LTC2220/LTC2221 are perfect for demanding communications applications with AC performance that includes 67.5dB SNR and 80dB spurious free dynamic range for signals up to 170MHz. Ultralow jitter of 0.15psRMS allows undersampling of IF frequencies with excellent noise performance.

DC specs include ±0.4LSB INL (typ), ±0.3LSB DNL (typ) and no missing codes over temperature. The transition noise is a low 0.5LSBRMS.

The digital outputs can be either differential LVDS, or single-ended CMOS. There are three format options for the CMOS outputs: a single bus running at the full data rate or two demultiplexed buses running at half data rate with either interleaved or simultaneous update. A separate output power supply allows the CMOS output swing to range from 0.5V to 3.6V.

The ENC+ and ENC inputs may be driven differentially or single ended with a sine wave, PECL, LVDS, TTL, or CMOS inputs. An optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.

特点
  • Sample Rate: 170Msps/135Msps
  • 67.5dB SNR up to 140MHz Input
  • 80dB SFDR up to 170MHz Input
  • 775MHz Full Power Bandwidth S/H
  • Single 3.3V Supply
  • Low Power Dissipation: 890mW/660mW
  • LVDS, CMOS, or Demultiplexed CMOS Outputs
  • Selectable Input Ranges: ±0.5V or ±1V
  • No Missing Codes
  • Optional Clock Duty Cycle Stabilizer
  • Shutdown and Nap Modes
  • Data Ready Output Clock
  • Pin Compatible Family185Msps: LTC2220-1 (12-Bit)170Msps: LTC2220 (12-Bit), LTC2230 (10-Bit)135Msps: LTC2221 (12-Bit), LTC2231 (10-Bit)
  • 64-Pin 9mm × 9mm QFN Package
    • 应用
  • Wireless and Wired Broadband Communication
  • Cable Head-End Systems
  • Power Amplifier Linearization
  • Communications Test Equipment
