当前位置:Linear公司 > > 凌力尔特芯片 >> LTC1391
LTC1391技术文档下载:
LTC1391技术文档产品手册下载
LTC1391 - 典型应用图例:

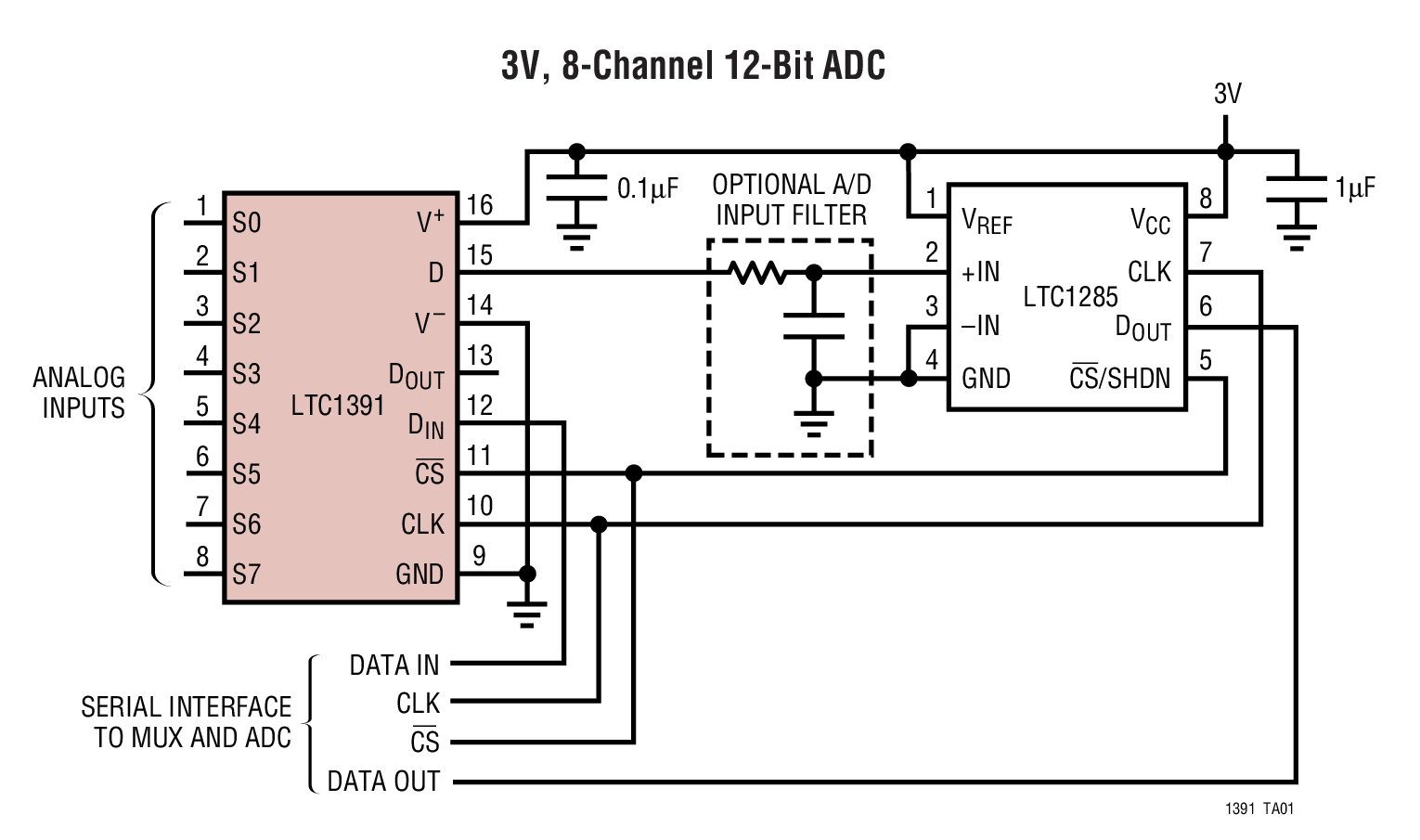

LTC1391典型应用图例一

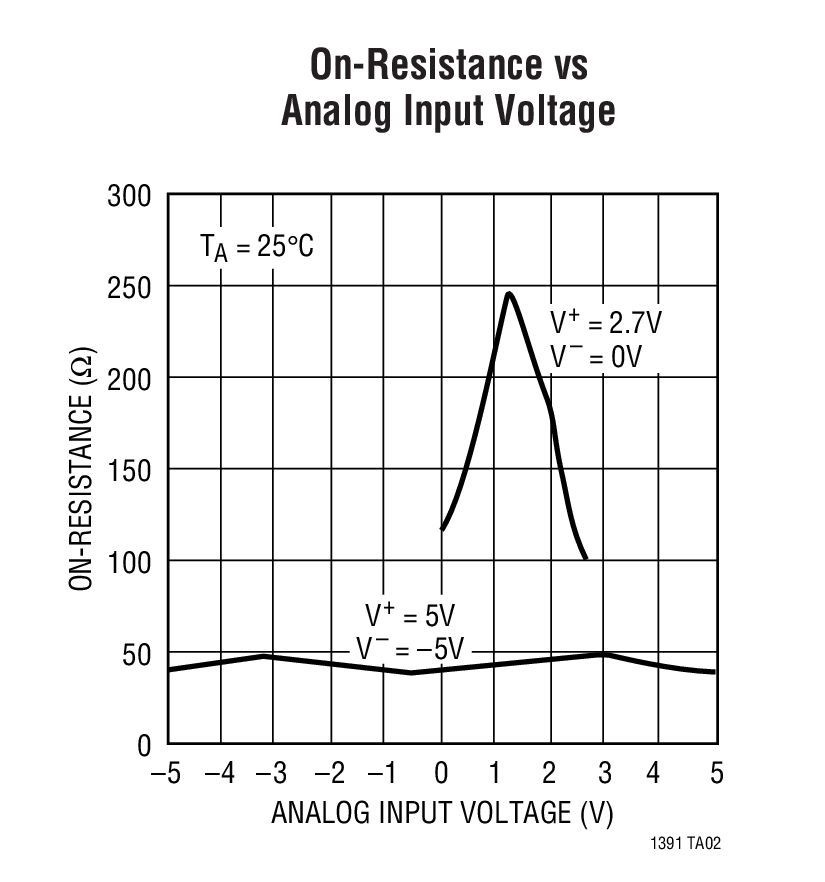

LTC1391典型应用图例二
LTC1391 - 封装图解:

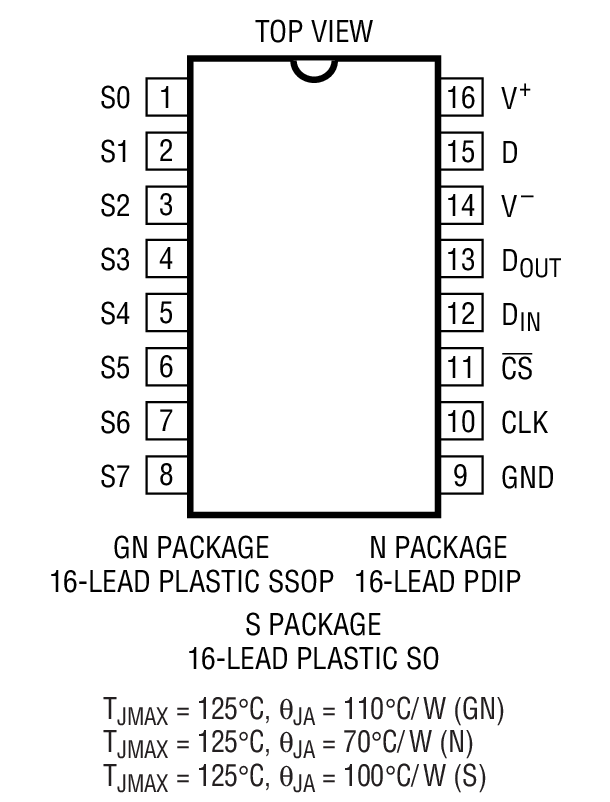

LTC1391封装图解一
承诺原装正品
专营Linear,真正优化您的供应链
Linear产品 - LTC1391介绍
LTC1391 - LTC1391是8-Channel Analog Multiplexer with Cascadable Serial Interface

LTC1391是Linear公司的一款开关和多工器产品,LTC1391是8-Channel Analog Multiplexer with Cascadable Serial Interface,本站介绍了LTC1391的封装应用图解、特点和优点、功能等,并给出了与LTC1391相关的凌力尔特元器件型号供参考。

LTC1391 - 8-Channel Analog Multiplexer with Cascadable Serial Interface

LTC1391 - 8-Channel Analog Multiplexer with Cascadable Serial Interface - Linear Technology(凌力尔特)

功能描述

The LTC1391 is a high performance CMOS 8-to-1 analog multiplexer. It features a serial digital interface that allows several LTC1391s to be daisy-chained together, increasing the number of MUX channels available using a single digital port.

The LTC1391 features a typical RON of 45 Ohm, a typical switch leakage of 50pA and guaranteed break-beforemake operation. Charge injection is ±10pC maximum. All digital inputs are TTL and CMOS compatible when operated from single or dual supplies. The inputs can withstand 100mA fault current.

The LTC1391 is available in 16-pin PDIP, SSOP and narrow SO packages. For applications requiring 2-way serial data transmission, see the LTC1390 data sheet.

特点
  • Low RON: 45 Ohm
  • Single 2.7V to ±5V Supply Operation
  • Low Charge Injection
  • Serial Digital Interface
  • Analog Inputs May Extend to Supply Rails
  • Low Leakage: ±5nA Max
  • Guaranteed Break-Before-Make
  • TTL/CMOS Compatible for All Digital Inputs
  • Cascadable to Allow Additional Channels
  • Can Be Used as a Demultiplexer
  • 应用
  • Data Acquisition Systems
  • Communication Systems
  • Signal Multiplexing/Demultiplexing
  • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格(美元)
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1391CGN SSOP-16 C $3.25 $2.65
    LTC1391CGN#PBF SSOP-16 C $3.25 $2.65
    LTC1391CGN#TR SSOP-16 C $2.71
    LTC1391CGN#TRPBF SSOP-16 C $2.71
    LTC1391CN N-16 C $2.90 $2.30
    LTC1391CN#PBF N-16 C $2.90 $2.30
    LTC1391CS SO-16 C $3.10 $2.40
    LTC1391CS#PBF SO-16 C $3.10 $2.40
    LTC1391CS#TR SO-16 C $2.46
    LTC1391CS#TRPBF SO-16 C $2.46
    LTC1391IGN SSOP-16 I $3.70 $3.05
    LTC1391IGN#PBF SSOP-16 I $3.70 $3.05
    LTC1391IGN#TR SSOP-16 I $3.11
    LTC1391IGN#TRPBF SSOP-16 I $3.11
    LTC1391IS SO-16 I $3.55 $2.85
    LTC1391IS#PBF SO-16 I $3.55 $2.85
    LTC1391IS#TR SO-16 I $2.91
    LTC1391IS#TRPBF SO-16 I $2.91
