LT1351是250μA, 3MHz, 200V/μsOperational Amplifier

Linear（凌力尔特）| Linear产品型号搜索

当前位置：Linear公司 > > 凌力尔特芯片 >> LT1351

LT1351技术文档下载：

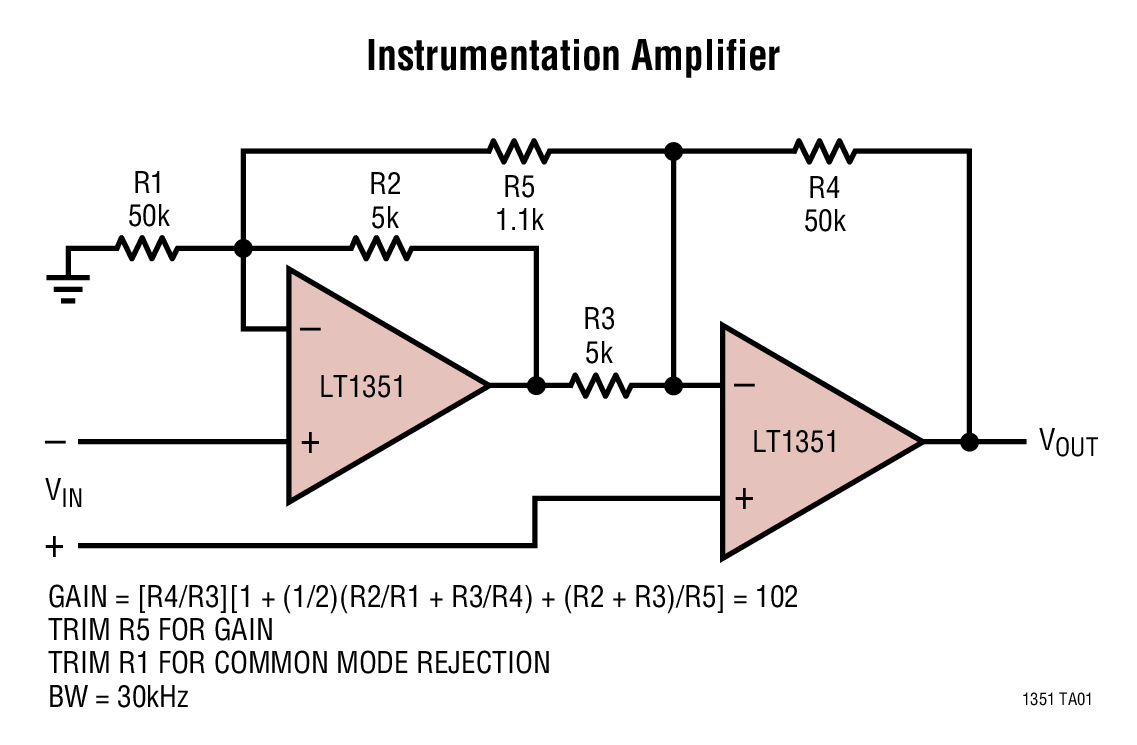

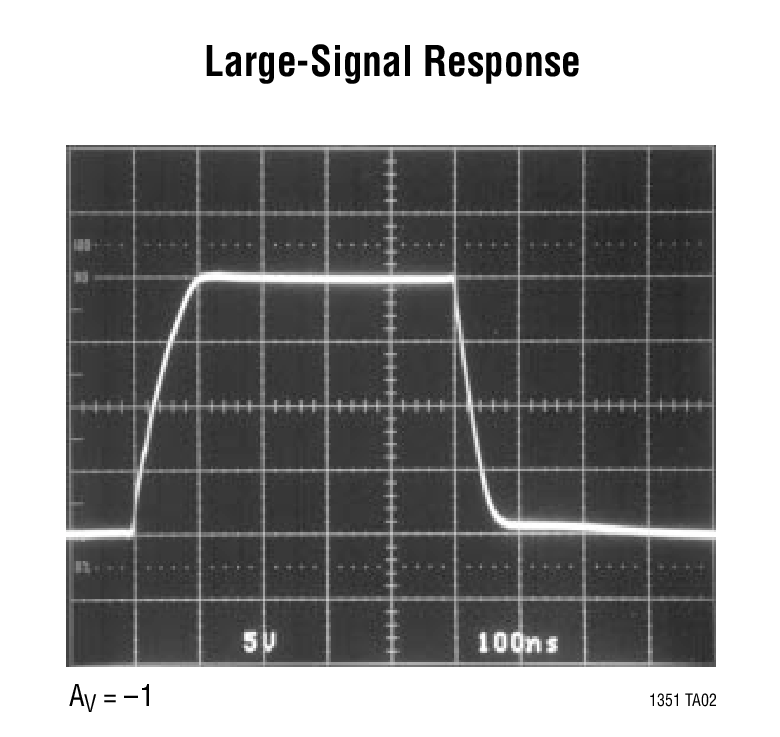

LT1351 - 典型应用图例：

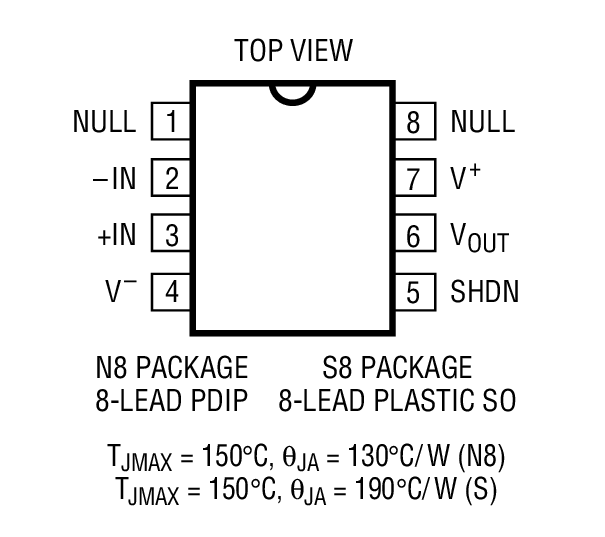

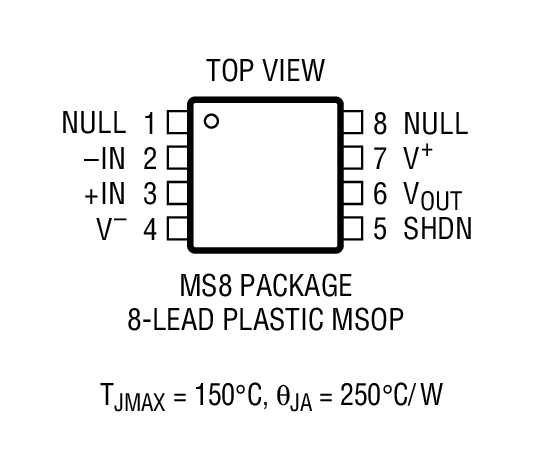

LT1351 - 封装图解：

LT1351 - LT1351是250μA, 3MHz, 200V/μsOperational Amplifier

LT1351是Linear公司的一款低功率放大器产品，LT1351是250μA, 3MHz, 200V/μsOperational Amplifier，本站介绍了LT1351的封装应用图解、特点和优点、功能等，并给出了与LT1351相关的凌力尔特元器件型号供参考。

LT1351 - 250μA, 3MHz, 200V/μsOperational Amplifier

LT1351 - 250μA, 3MHz, 200V/μsOperational Amplifier - Linear Technology（凌力尔特）

功能描述

The LT?1351 is a low power, high speed, high slew rate operational amplifier with outstanding AC and DC performance. The LT1351 features lower supply current, lower input offset voltage, lower input bias current and higher DC gain than devices with comparable bandwidth. The circuit combines the slewing performance of a current feedback amplifier in a true operational amplifier with matched high impedance inputs. The high slew rate ensures that the large-signal bandwidth is not degraded. The amplifier is a single gain stage with outstanding settling characteristics which make the circuit an ideal choice for data acquisition systems. The output drives a 1kohms load to ?13V with ±15V supplies and a 500ohms load to ?3.4V on ±5V supplies. The amplifier is also stable with any capacitive load which makes it useful in buffer or cable driver applications.The LT1351 is a member of a family of fast, high performance amplifiers using this unique topology and employing Linear Technology Corporation’s advanced complementary bipolar processing. For dual and quad amplifier versions of the LT1351 see the LT1352/LT1353 data sheet. For higher bandwidth devices with higher supply current see the LT1354 through LT1365 data sheets. Singles, duals and quads of each amplifier are available.

特点

3MHz Gain Bandwidth

200V/µs Slew Rate

250µA Supply Current

Available in Tiny MSOP Package

C-Load™ Op Amp Drives All Capacitive Loads

Unity-Gain Stable

Power Saving Shutdown Feature

Maximum Input Offset Voltage: 600µV

Maximum Input Bias Current: 50nA

Maximum Input Offset Current: 15nA

Minimum DC Gain, RL = 2k: 30V/µV

Input Noise Voltage: 14nV/rtHz

Settling Time to 0.1%, 10V Step: 700ns

Settling Time to 0.01%, 10V Step: 1.25µs

Minimum Output Swing into 1k ohms: ±13V

Minimum Output Swing into 500 ohms: ±3.4V

Specified at ±2.5V, ±5V and ±15V

应用

Battery-Powered Systems

Wideband Amplifiers

Buffers

Active Filters

Data Acquisition Systems

Photodiode Amplifiers

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LT1351CMS8	MS-8	C	$3.40	$2.70
LT1351CMS8#PBF	MS-8	C	$3.40	$2.70
LT1351CMS8#TR	MS-8	C		$2.76
LT1351CMS8#TRPBF	MS-8	C		$2.76
LT1351CN8	N-8	C	$3.10	$2.45
LT1351CN8#PBF	N-8	C	$3.10	$2.45
LT1351CS8	SO-8	C	$3.15	$2.50
LT1351CS8#PBF	SO-8	C	$3.15	$2.50
LT1351CS8#TR	SO-8	C		$2.56
LT1351CS8#TRPBF	SO-8	C		$2.56
