Linear（凌力尔特）| Linear产品型号搜索
LTC1446L技术文档下载：

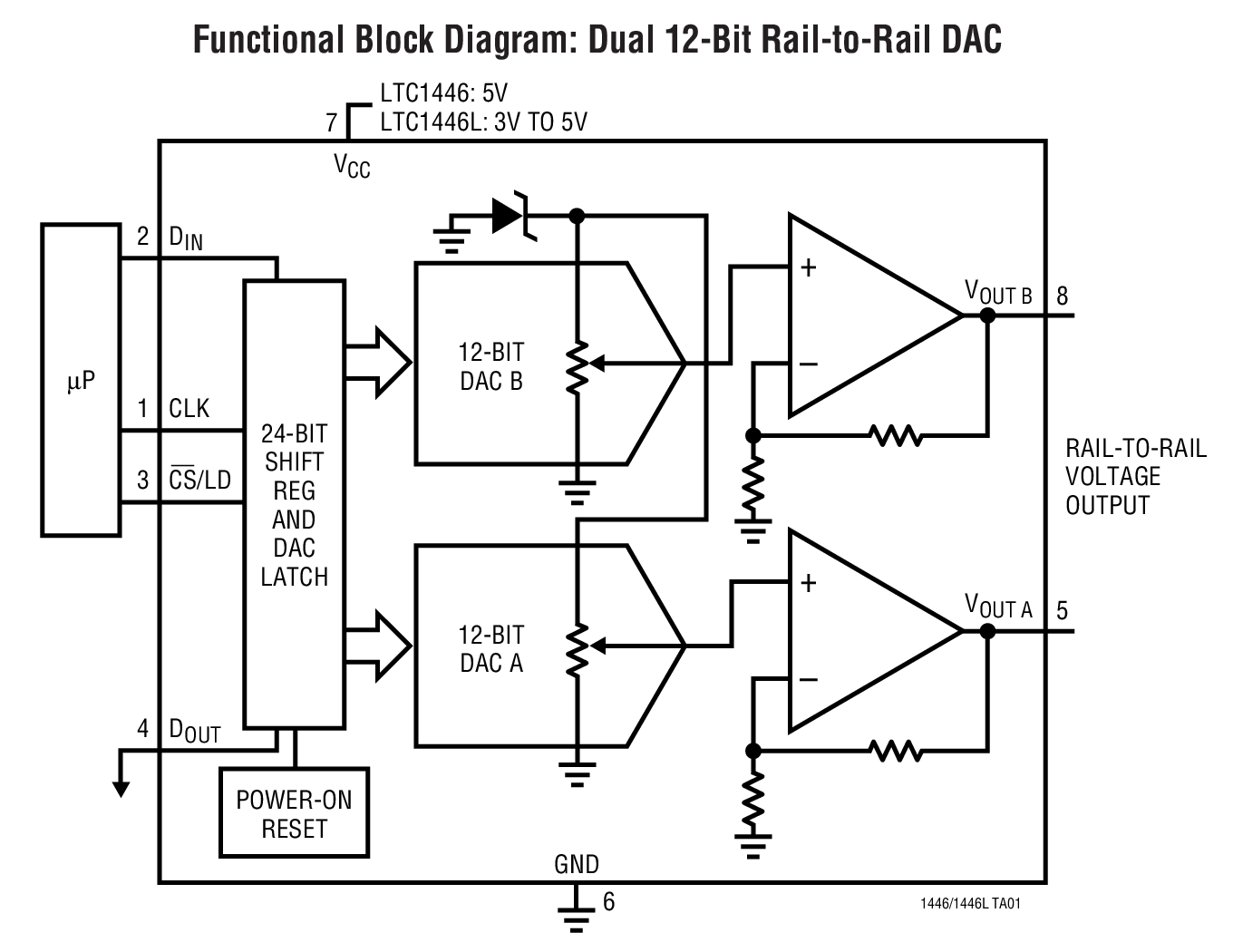

LTC1446L - 典型应用图例：

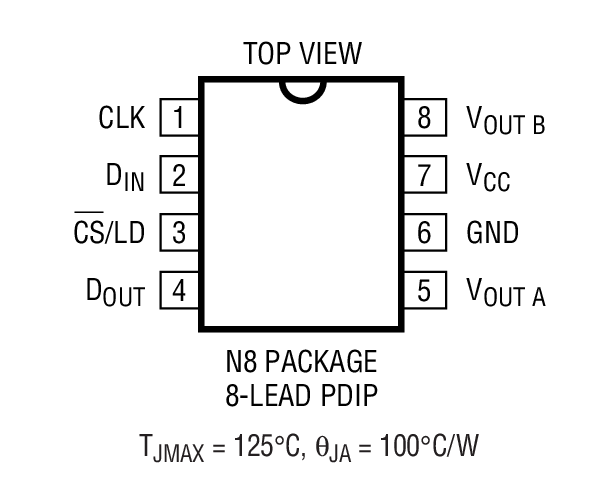

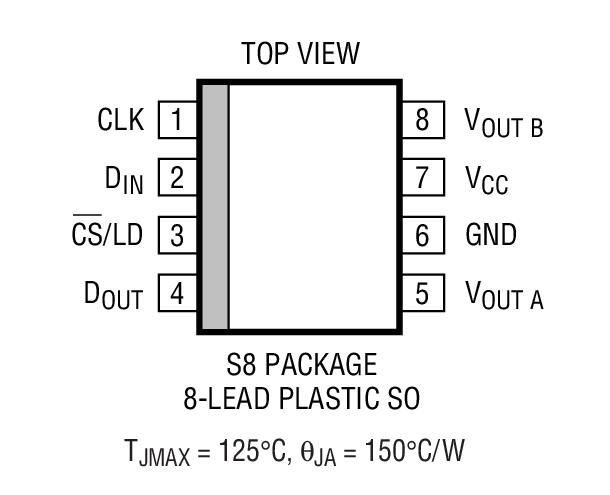

LTC1446L - 封装图解：
LTC1446L - LTC1446L是Dual 12-Bit Rail-to-Rail Micropower DACs in SO-8
LTC1446L是Linear公司的一款电压输出 DAC产品，LTC1446L是Dual 12-Bit Rail-to-Rail Micropower DACs in SO-8，本站介绍了LTC1446L的封装应用图解、特点和优点、功能等，并给出了与LTC1446L相关的凌力尔特元器件型号供参考。
LTC1446L - Dual 12-Bit Rail-to-Rail Micropower DACs in SO-8
LTC1446 - Dual 12-Bit Rail-to-Rail Micropower DACs in SO-8 - Linear Technology（凌力尔特）
功能描述
The LTC1446/LTC1446L are dual 12-bit digital-to-analog converters (DACs) available in an SO-8 package. They are complete with a rail-to-rail voltage output amplifier, an internal reference and an easy-to-use 3-wire cascadable serial interface. The LTC1446 has an internal reference and a full-scale output of 4.095V. It operates from a single 4.5V to 5.5V supply. The LTC1446L has an internal reference and a full-scale output of 2.5V. It operates from a single 2.7V to 5.5V supply. The low power supply current makes the LTC1446 family ideal for battery-powered applications. These DACs are available in space saving 8-pin SO and PDIP packages and require no external components for operation.特点
应用
以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) |
|---|---|---|---|---|
| LTC1446CN8 | N-8 | C | $8.00 | $6.40 |
| LTC1446CN8#PBF | N-8 | C | $8.00 | $6.40 |
| LTC1446CS8 | SO-8 | C | $8.10 | $6.50 |
| LTC1446CS8#PBF | SO-8 | C | $8.10 | $6.50 |
| LTC1446CS8#TR | SO-8 | C | $6.56 | |
| LTC1446CS8#TRPBF | SO-8 | C | $6.56 | |
| LTC1446IN8 | N-8 | I | $9.00 | $7.20 |
| LTC1446IN8#PBF | N-8 | I | $9.00 | $7.20 |
| LTC1446IS8 | SO-8 | I | $9.10 | $7.30 |
| LTC1446IS8#PBF | SO-8 | I | $9.10 | $7.30 |
| LTC1446IS8#TR | SO-8 | I | $7.36 | |
| LTC1446IS8#TRPBF | SO-8 | I | $7.36 | |
| LTC1446LCN8 | N-8 | C | $8.85 | $7.05 |
| LTC1446LCN8#PBF | N-8 | C | $8.85 | $7.05 |
| LTC1446LCS8 | SO-8 | C | $8.90 | $7.15 |
| LTC1446LCS8#PBF | SO-8 | C | $8.90 | $7.15 |
| LTC1446LCS8#TR | SO-8 | C | $7.21 | |
| LTC1446LCS8#TRPBF | SO-8 | C | $7.21 | |
| LTC1446LIN8 | N-8 | I | $9.90 | $7.95 |
| LTC1446LIN8#PBF | N-8 | I | $9.90 | $7.95 |
| LTC1446LIS8 | SO-8 | I | $10.00 | $8.05 |
| LTC1446LIS8#PBF | SO-8 | I | $10.00 | $8.05 |
| LTC1446LIS8#TR | SO-8 | I | $8.11 | |
| LTC1446LIS8#TRPBF | SO-8 | I | $8.11 |
