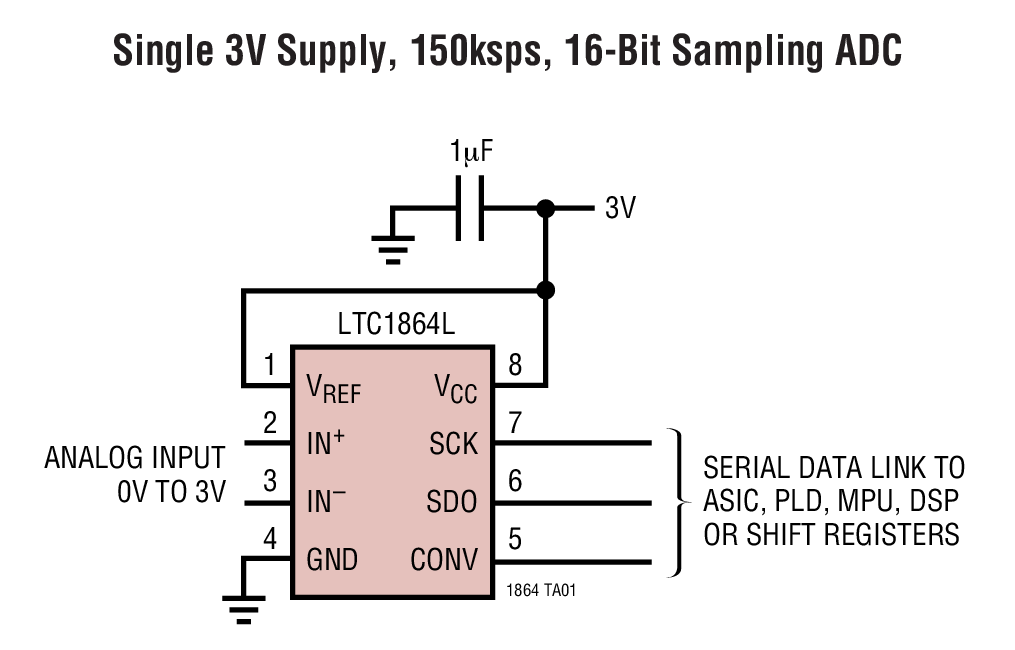

LTC1864L - 典型应用图例：

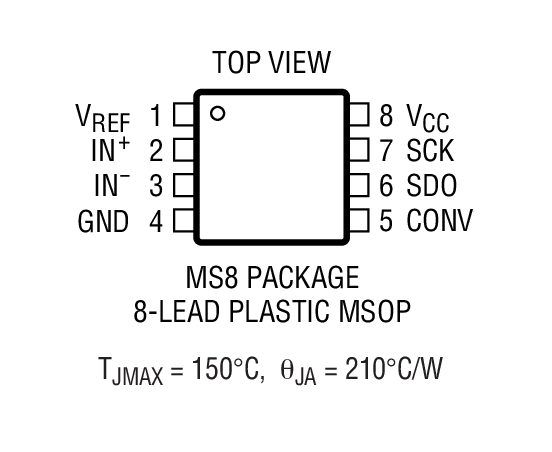

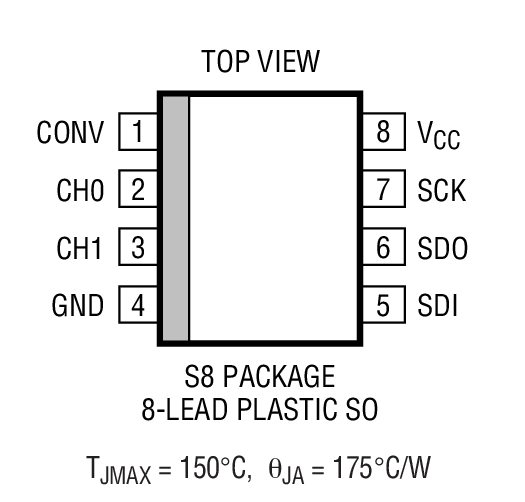

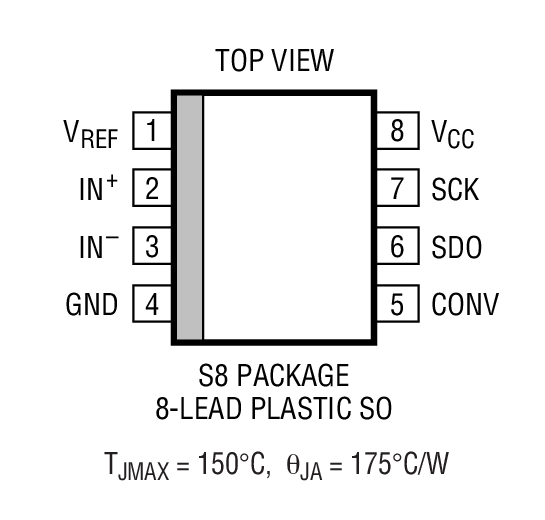

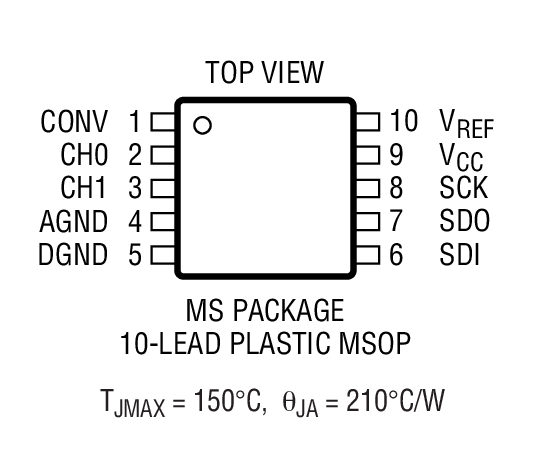

LTC1864L - 封装图解：

LINEAR凌力尔特芯片：

LTC1864L - LTC1864L是μPower, 3V, 16-Bit, 150ksps 1- and 2-Channel ADCs in MSOP

LTC1864L是LINEAR凌力尔特公司的一款通用型 SAR ADC产品，LTC1864L是LTC1864L是μPower, 3V, 16-Bit, 150ksps 1- and 2-Channel ADCs in MSOP，本站介绍了LTC1864L的封装应用图解、特点和优点、功能等，并给出了与LTC1864L相关的LINEAR元器件型号供参考。

LTC1864L - LTC1864L是μPower, 3V, 16-Bit, 150ksps 1- and 2-Channel ADCs in MSOP - 通用型 SAR ADC - 数据转换 - 凌力尔特

LTC1864L - μPower, 3V, 16-Bit, 150ksps 1- and 2-Channel ADCs in MSOP

LTC1864L - μPower, 3V, 16-Bit, 150ksps 1- and 2-Channel ADCs in MSOP - Linear Technology（凌力尔特）

功能描述

The LTC1864L/LTC1865L are 16-bit A/D converters that are offered in MSOP and SO-8 packages and operate on a single 3V supply. At 150ksps, the supply current is only 450μA. The supply current drops at lower speeds because the LTC1864L/LTC1865L automatically power down between conversions. These 16-bit switched capacitor successive approximation ADCs include sample-and-holds. The LTC1864L has a differential analog input with an external reference pin. The LTC1865L offers a software selectable 2-channel MUX and an external reference pin on the MSOP version.

The 3-wire, serial I/O, small MSOP or SO-8 package and extremely high sample rate-to-power ratio make these ADCs ideal choices for compact, low power, high speed systems.

These ADCs can be used in ratiometric applications or with external references. The high impedance analog inputs and the ability to operate with reduced spans down to 1V full scale allow direct connection to signal sources in many applications, eliminating the need for external gain stages.

特点

16-Bit 150ksps ADCs in MSOP Package

Single 3V Supply

Low Supply Current: 450μA (Typ)

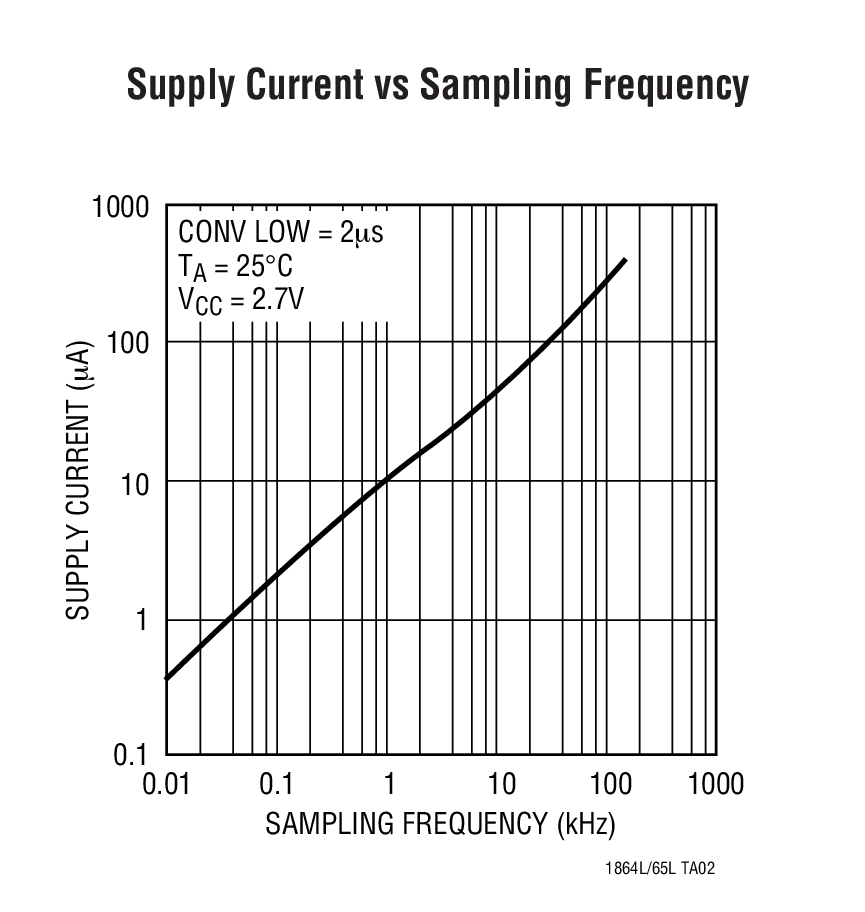

Auto Shutdown Reduces Supply Current to 10μA at 1ksps

True Differential Inputs

1-Channel (LTC1864L) or 2-Channel (LTC1865L) Versions

SPI/MICROWIRE? Compatible Serial I/O

16-Bit Upgrade to 12-Bit LTC1285/LTC1288

Pin Compatible with 12-Bit LTC1860L/LTC1861L

No Minimum Data Transfer Rate

应用

High Speed Data Acquisition

Portable or Compact Instrumentation

Low Power Battery-Operated Instrumentation

Isolated and/or Remote Data Acquisition

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC1864LACMS8	MS-8	C	$8.65	$6.90
LTC1864LACMS8#PBF	MS-8	C	$8.65	$6.90
LTC1864LACMS8#TR	MS-8	C		$6.96
LTC1864LACMS8#TRPBF	MS-8	C		$6.96
LTC1864LACS8	SO-8	C	$8.65	$6.90
LTC1864LACS8#PBF	SO-8	C	$8.65	$6.90
LTC1864LACS8#TR	SO-8	C		$6.96
LTC1864LACS8#TRPBF	SO-8	C		$6.96
LTC1864LAIMS8	MS-8	I	$9.00	$7.20
LTC1864LAIMS8#PBF	MS-8	I	$9.00	$7.20
LTC1864LAIMS8#TR	MS-8	I		$7.26
LTC1864LAIMS8#TRPBF	MS-8	I		$7.26
LTC1864LAIS8	SO-8	I	$9.00	$7.20
LTC1864LAIS8#PBF	SO-8	I	$9.00	$7.20
LTC1864LAIS8#TR	SO-8	I		$7.26
LTC1864LAIS8#TRPBF	SO-8	I		$7.26
LTC1864LCMS8	MS-8	C	$7.40	$5.95
LTC1864LCMS8#PBF	MS-8	C	$7.40	$5.95
LTC1864LCMS8#TR	MS-8	C		$6.01
LTC1864LCMS8#TRPBF	MS-8	C		$6.01
LTC1864LCS8	SO-8	C	$7.40	$5.95
LTC1864LCS8#PBF	SO-8	C	$7.40	$5.95
LTC1864LCS8#TR	SO-8	C		$6.01
LTC1864LCS8#TRPBF	SO-8	C		$6.01
LTC1864LIMS8	MS-8	I	$7.70	$6.15
LTC1864LIMS8#PBF	MS-8	I	$7.70	$6.15
LTC1864LIMS8#TR	MS-8	I		$6.21
LTC1864LIMS8#TRPBF	MS-8	I		$6.21
LTC1864LIS8	SO-8	I	$7.70	$6.15
LTC1864LIS8#PBF	SO-8	I	$7.70	$6.15
LTC1864LIS8#TR	SO-8	I		$6.21
LTC1864LIS8#TRPBF	SO-8	I		$6.21
