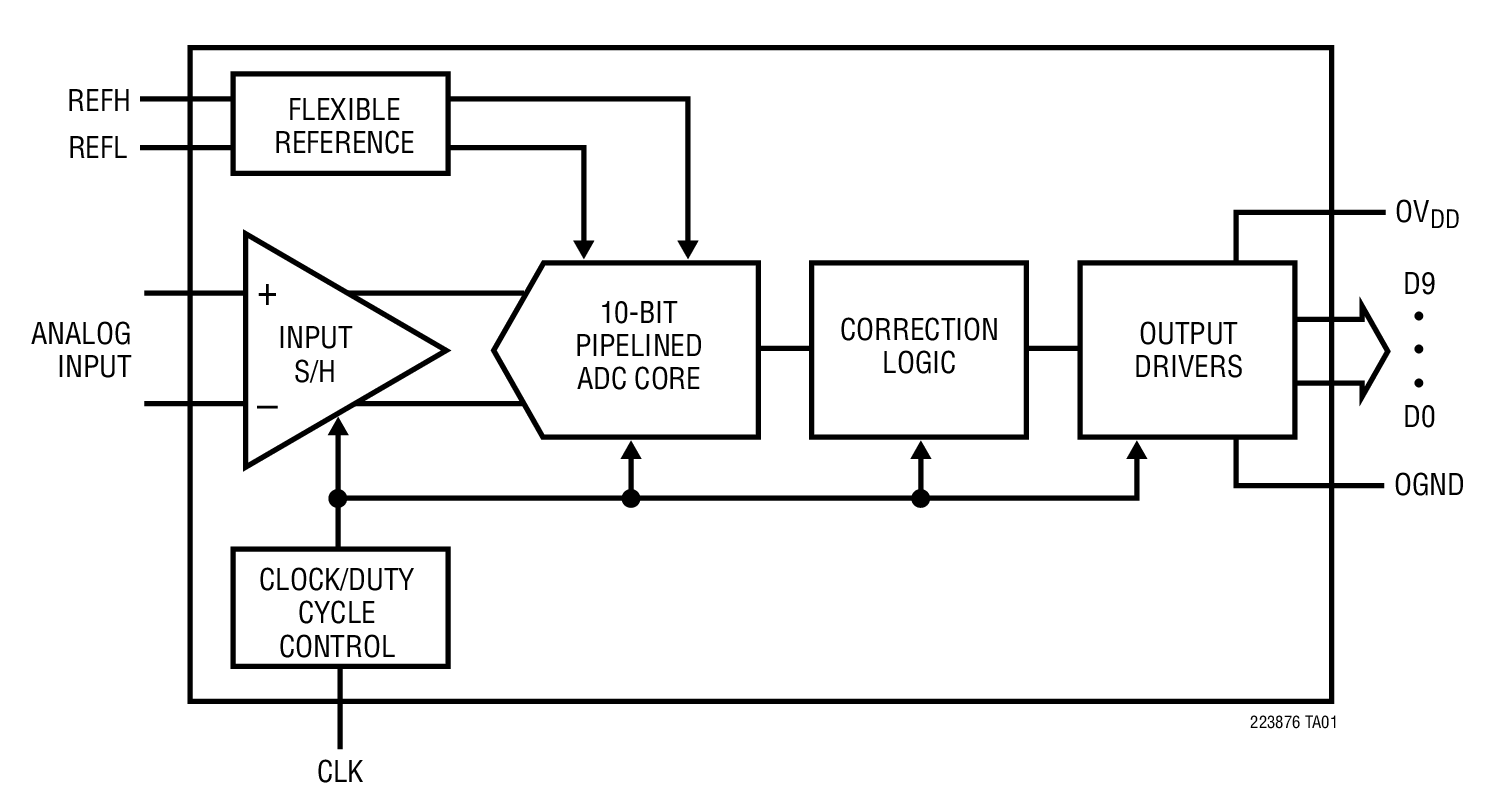

LTC2236 - 典型应用图例：

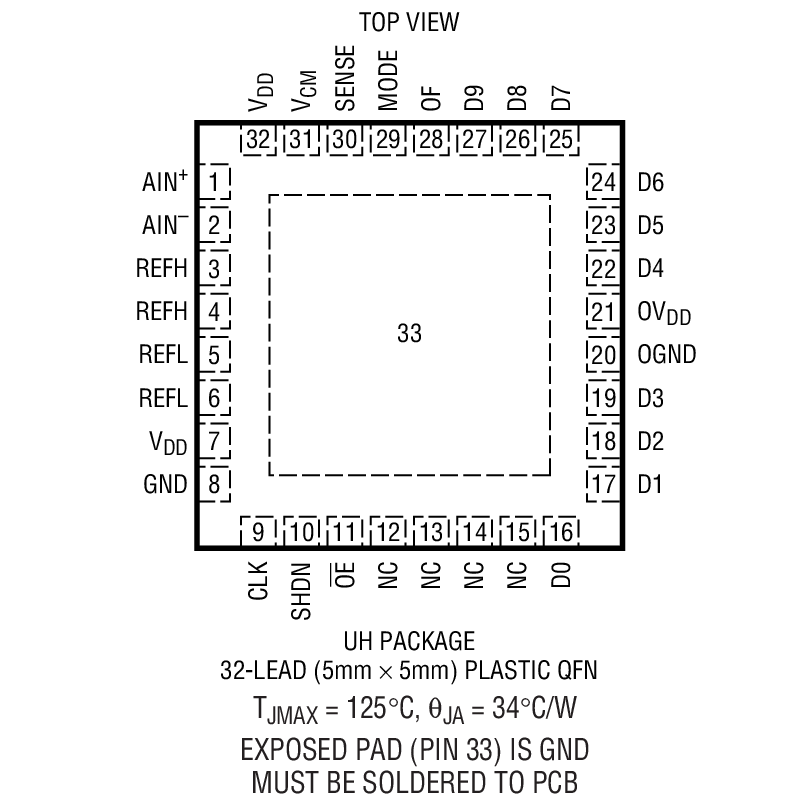

LTC2236 - 封装图解：

LTC2236 - LTC2236是10-Bit, 65/40/25Msps Low Power 3V ADCs

LTC2236是Linear公司的一款高速 ADC产品，LTC2236是10-Bit, 65/40/25Msps Low Power 3V ADCs，本站介绍了LTC2236的封装应用图解、特点和优点、功能等，并给出了与LTC2236相关的凌力尔特元器件型号供参考。

LTC2236 - 10-Bit, 65/40/25Msps Low Power 3V ADCs

LTC2236 - 10-Bit, 65/40/25Msps Low Power 3V ADCs - Linear Technology（凌力尔特）

功能描述

The LTC2238/LTC2237/LTC2236 are 10-bit 65Msps/40Msps/25Msps, low power 3V A/D converters designed for digitizing high frequency, wide dynamic range signals. The LTC2238/LTC2237/LTC2236 are perfect for demanding imaging and communications applications with AC performance that includes 61.6dB SNR and 80dB SFDR for signals well beyond the Nyquist frequency.

DC specs include ±0.1LSB INL (typ), ±0.05LSB DNL (typ) and ±0.5LSB INL, ±0.5LSB DNL over temperature. The transition noise is a low 0.07LSBRMS.

A single 3V supply allows low power operation. A separate output supply allows the outputs to drive 0.5V to 3.3V logic.

A single-ended CLK input controls converter operation. An optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.

特点

Sample Rate: 65Msps/40Msps/25Msps

Single 3V Supply (2.7V to 3.4V)

Low Power: 205mW/120mW/75mW

61.8dB SNR

85dB SFDR

No Missing Codes

Flexible Input: 1VP-P to 2VP-P Range

575MHz Full Power Bandwidth S/H

Clock Duty Cycle Stabilizer

Shutdown and Nap Modes

Pin Compatible Family:125Msps: LTC2251 (10-Bit), LTC2253 (12-Bit)105Msps: LTC2250 (10-Bit), LTC2252 (12-Bit)80Msps: LTC2239 (10-Bit), LTC2229 (12-Bit)65Msps: LTC2238 (10-Bit), LTC2228 (12-Bit)40Msps: LTC2237 (10-Bit), LTC2227 (12-Bit)25Msps: LTC2236 (10-Bit), LTC2226 (12-Bit)

32-Pin (5mm × 5mm) QFN Package

应用

Wireless and Wired Broadband Communication

Imaging Systems

Ultrasound

Spectral Analysis

Portable Instrumentation

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC2236CUH	5x5 QFN-32	C	$4.67	$3.50
LTC2236CUH#PBF	5x5 QFN-32	C	$4.67	$3.50
LTC2236CUH#TR	5x5 QFN-32	C		$3.60
LTC2236CUH#TRPBF	5x5 QFN-32	C		$3.60
LTC2236IUH	5x5 QFN-32	I	$5.60	$4.20
LTC2236IUH#PBF	5x5 QFN-32	I	$5.60	$4.20
LTC2236IUH#TR	5x5 QFN-32	I		$4.30
LTC2236IUH#TRPBF	5x5 QFN-32	I		$4.30
