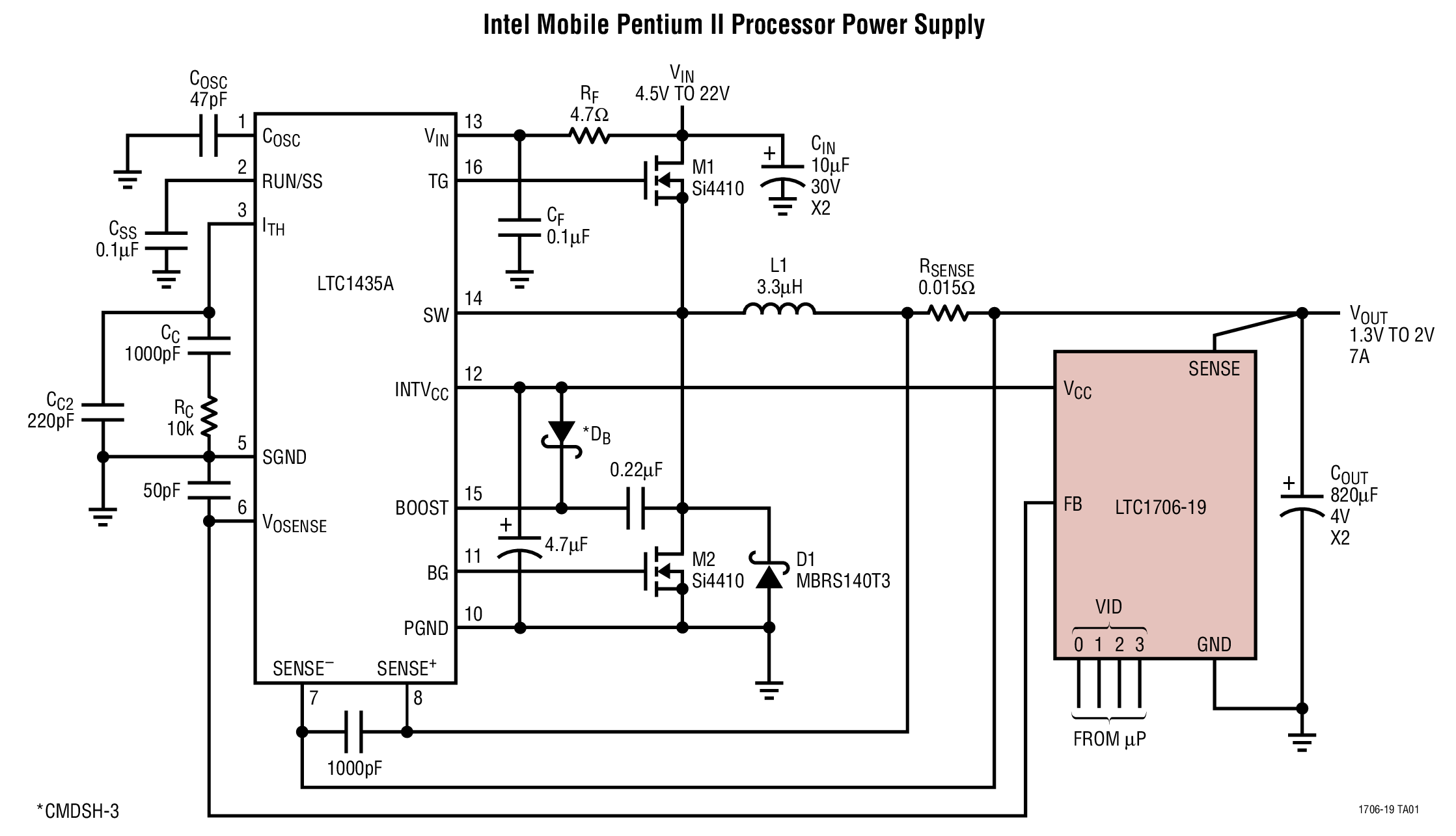

LTC1706-19 - 典型应用图例：

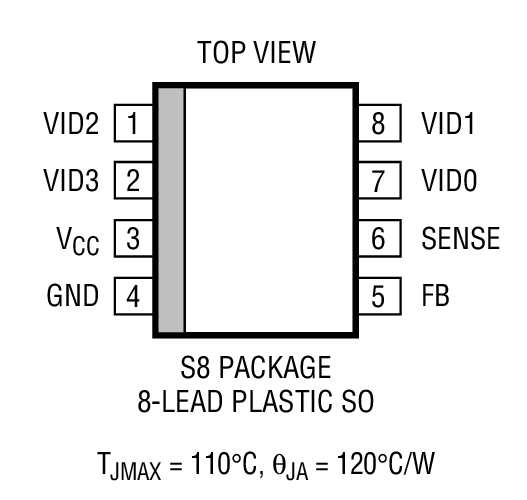

LTC1706-19 - 封装图解：

LTC1706-19 - LTC1706-19是VID Voltage Programmer

LTC1706-19是Linear公司的一款VID 电压编程器产品，LTC1706-19是VID Voltage Programmer，本站介绍了LTC1706-19的封装应用图解、特点和优点、功能等，并给出了与LTC1706-19相关的凌力尔特元器件型号供参考。

LTC1706-19 - VID Voltage Programmer

LTC1706-19 - VID Voltage Programmer - Linear Technology（凌力尔特）

功能描述

The LTC1706-19 is a precision, digitally programmed, resistive ladder which adjusts the output of any 1.19V referenced regulator. Depending on the state of the four VID inputs, an output voltage between 1.3V and 2V is programmed in 50mV increments. The LTC1706-19 is designed specifically to program an entire family of Linear Technology DC/DC converters in full compliance with the Intel Mobile VID specification. The LTC1706-19 programs the following Linear Technology DC/DC converter products: LTC1433, LTC1434, LTC1435, LTC1435A, LTC1436, LTC1437, LTC1438, LTC1439, LTC1538-AUX, LTC1539, LTC1624 and LTC1625. (Consult factory for future compatible DC/DC converter products.)

特点

Programs Regulator Output Voltage from 1.3Vto 2V in 50mV Steps

Programs an Entire Family of Linear TechnologyDC/DC Converters

Fully Compliant with the Intel Mobile VIDSpecification

0.25% Accurate Output Voltage

Built-In 40k Pull-Up Resistors on VID Inputs

Available in SO-8 Packaging

应用

Intel Mobile Pentium® II Processor Power Supply

Notebook and Palmtop Computers, PDAs

Portable Instruments

Battery-Powered Equipment

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC1706CS8-19	SO-8	C	$2.30	$1.95
LTC1706CS8-19#PBF	SO-8	C	$2.30	$1.95
LTC1706CS8-19#TR	SO-8	C		$2.01
LTC1706CS8-19#TRPBF	SO-8	C		$2.01
LTC1706IS8-19	SO-8	I	$2.75	$2.30
LTC1706IS8-19#PBF	SO-8	I	$2.75	$2.30
LTC1706IS8-19#TR	SO-8	I		$2.36
LTC1706IS8-19#TRPBF	SO-8	I		$2.36
