功能描述

The LTC1041 is a monolithic CMOS BANG-BANG controller manufactured using Linear Technology’s enhanced LTCMOS™ silicon gate process. BANG-BANG loops are characterized by turning the control element fully ON or fully OFF to regulate the average value of the parameter to be controlled. The SET POINT input determines the average control value and the DELTA input sets the deadband. The deadband is always 2 x DELTA and is centered around the SET POINT. Independent control of the SET POINT and deadband, with no interaction, is made possible by the unique sampling input structure of the LTC1041.

An external RC connected to the OSC pin sets the sampling rate. At the start of each sample, internal power to the analog section is switched on for approximately 80µs. During this time, the analog inputs are sampled and compared. After the comparison is complete, power is switched off. This achieves extremely low average power consumption at low sampling rates. CMOS logic holds the output continuously while consuming virtually no power.

To keep system power at an absolute minimum, a switched power output (VP-P) is provided. External loads, such as bridge networks and resistive dividers, can be driven by this switched output.

The output logic sense (i.e., ON = V+) can be reversed (i.e., ON = GND) by interchanging the VIN and SET POINT inputs. This has no other effect on the operation of the LTC1041.

特点

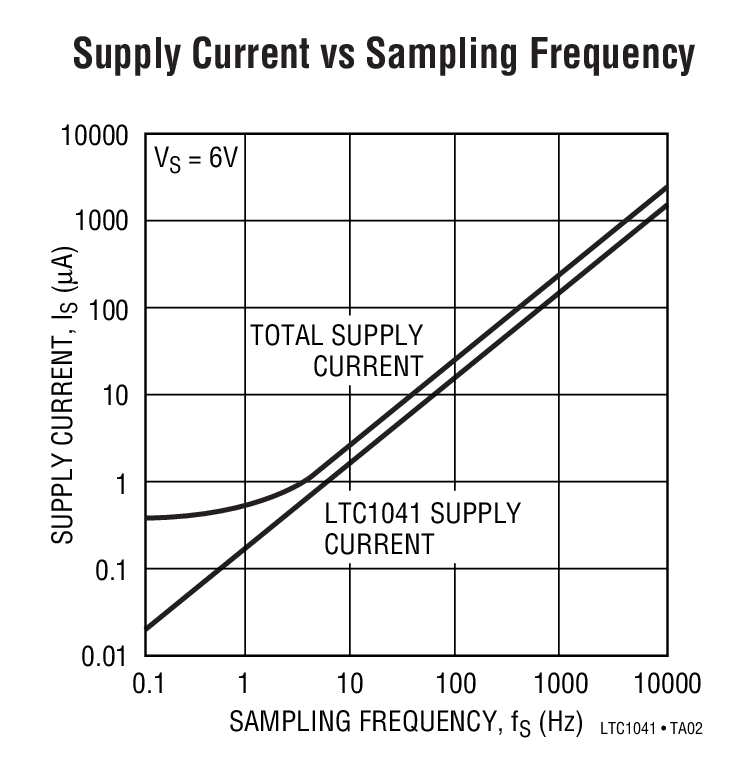

Micropower 1.5µW (1 Sample/Second)

Wide Supply Range 2.8V to 16V

High AccuracyGuaranteed SET POINT Error ±0.5mV MaxGuaranteed Deadband ±0.1% of Value Max

Wide Input Voltage Range V+ to Ground

TTL Outputs with 5V Supply

Two Independent Ground-Referred Control Inputs

Small Size 8-Pin SO

应用

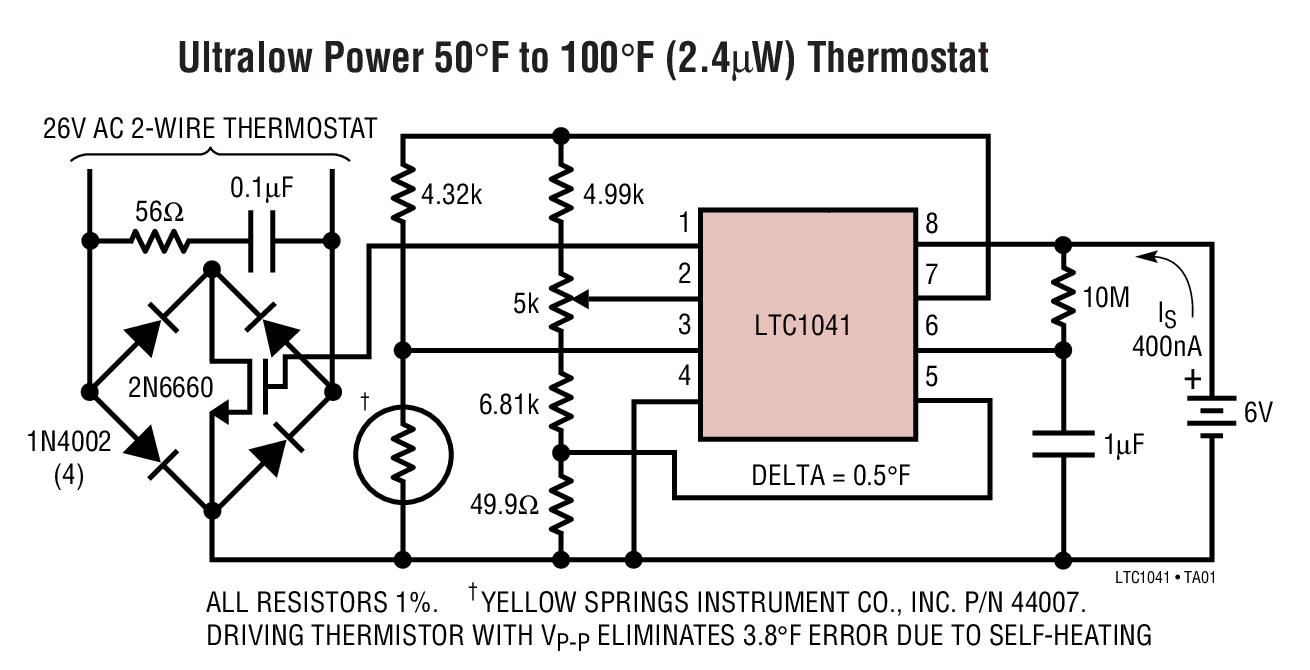

Temperature Control (Thermostats)

Motor Speed Control

Battery Charger

Any ON-OFF Control Loop

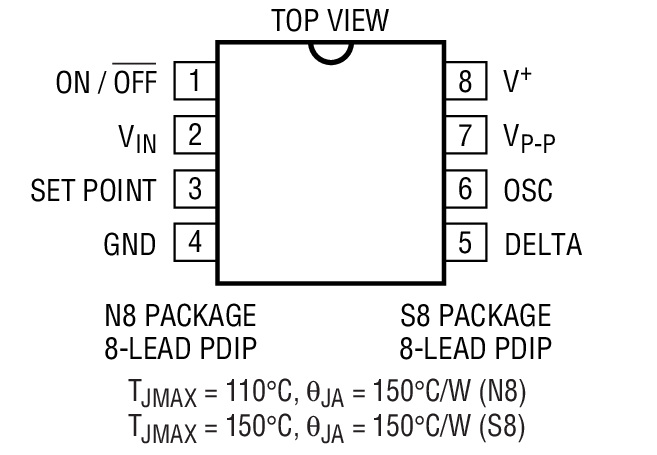

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC1041CN8	N-8	C	$2.25	$1.80
LTC1041CN8#PBF	N-8	C	$2.25	$1.80
LTC1041CS8	SO-8	C	$2.75	$2.35
LTC1041CS8#PBF	SO-8	C	$2.75	$2.35
LTC1041CS8#TR	SO-8	C		$2.41
LTC1041CS8#TRPBF	SO-8	C		$2.41
