LTC1257是Complete Single Supply 12-Bit Voltage Output DAC in SO-8

Linear（凌力尔特）| Linear产品型号搜索

当前位置：Linear公司 > > 凌力尔特芯片 >> LTC1257

LTC1257技术文档下载：

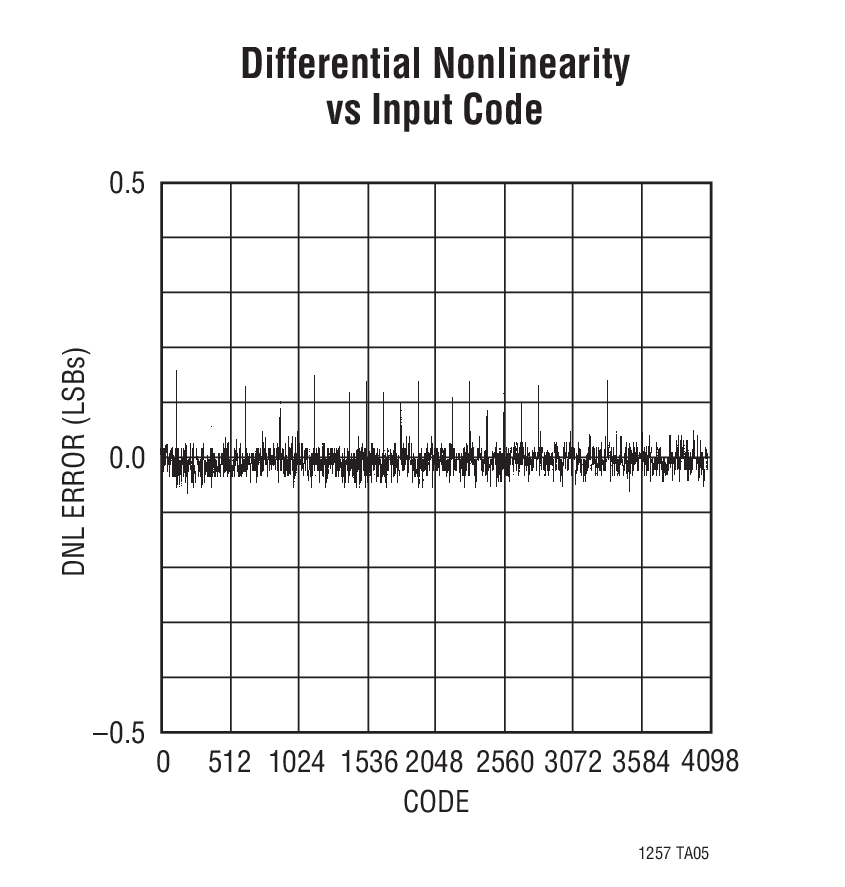

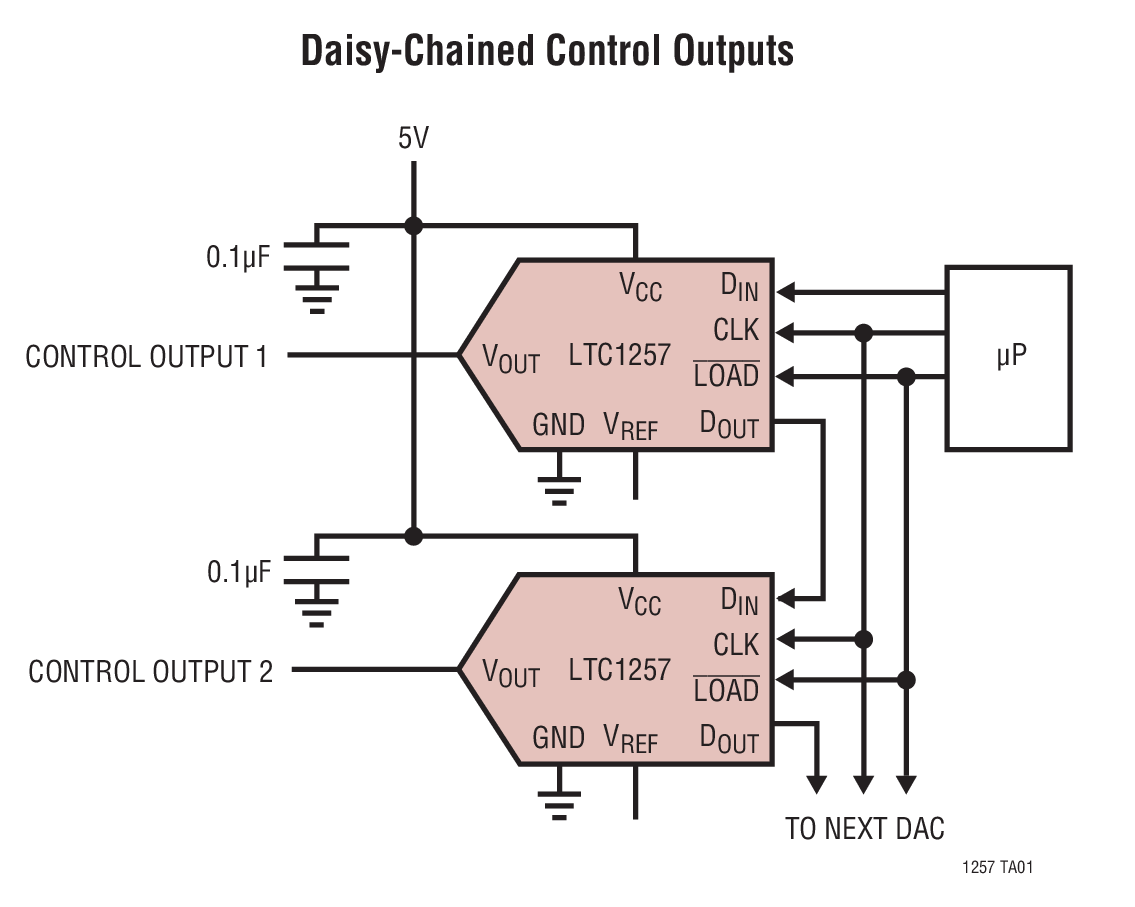

LTC1257 - 典型应用图例：

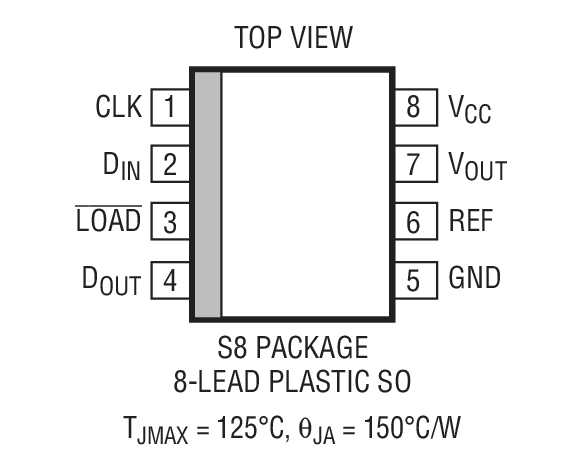

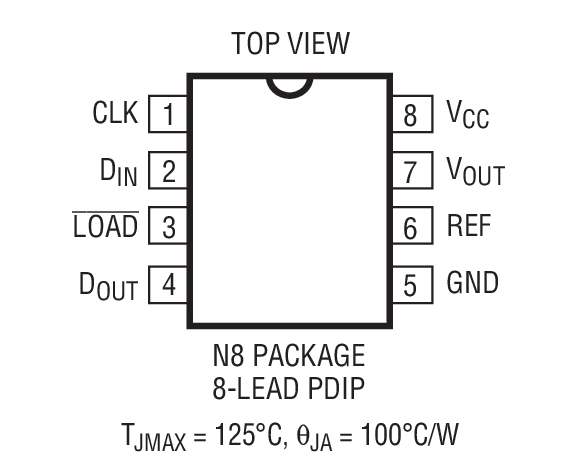

LTC1257 - 封装图解：

LTC1257 - LTC1257是Complete Single Supply 12-Bit Voltage Output DAC in SO-8

LTC1257是Linear公司的一款电压输出 DAC产品，LTC1257是Complete Single Supply 12-Bit Voltage Output DAC in SO-8，本站介绍了LTC1257的封装应用图解、特点和优点、功能等，并给出了与LTC1257相关的凌力尔特元器件型号供参考。

LTC1257 - Complete Single Supply 12-Bit Voltage Output DAC in SO-8

LTC1257 - Complete Single Supply 12-Bit Voltage Output DAC in SO-8 - Linear Technology（凌力尔特）

功能描述

The LTC?1257 is a complete single supply, 12-bit voltage output D/A converter (DAC) in an SO-8 package. The LTC1257 includes an output buffer amplifier, 2.048V voltage reference and an easy to use three-wire cascadable serial interface. An external reference can be used to override the internal reference and extend the output voltage range to 12V. The power supply current is a low 350μA when operating from a 5V supply, making the LTC1257 ideal for battery-powered applications. The space-saving 8-pin SO package and operation with no external components provide the smallest 12-bit D/A system available.

特点

8-Pin SO Package

Buffered Voltage Output

Built-In 2.048V Reference

500µV/LSB with 2.048V Full Scale

1/2 LSB Max DNL Error

Guaranteed 12-Bit Monotonic

Three-Wire Cascadable Serial Interface

Wide Single Supply Range: VCC = 4.75V to 15.75V

Low Power: ICC Typ = 350μA with 5V Supply

应用

Digital Offset/Gain Adjustment

Industrial Process Control

Automatic Test Equipment
