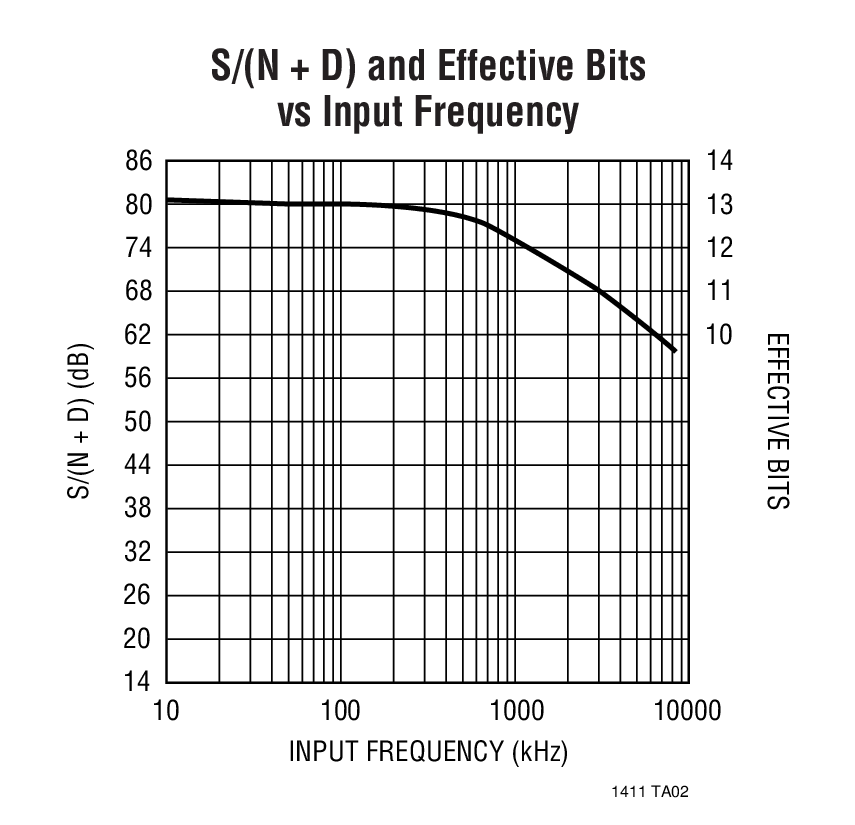

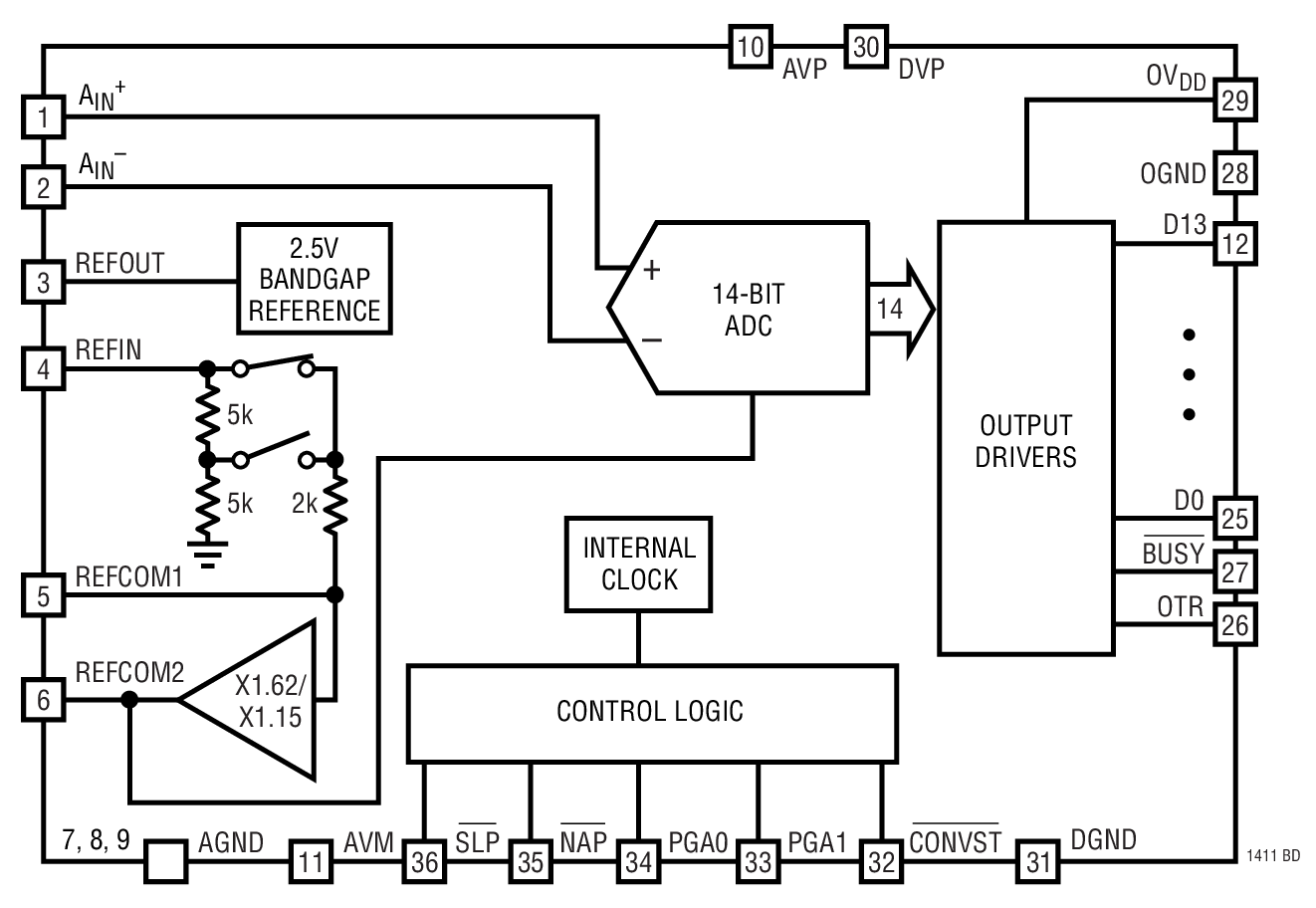

LTC1411 - 典型应用图例：

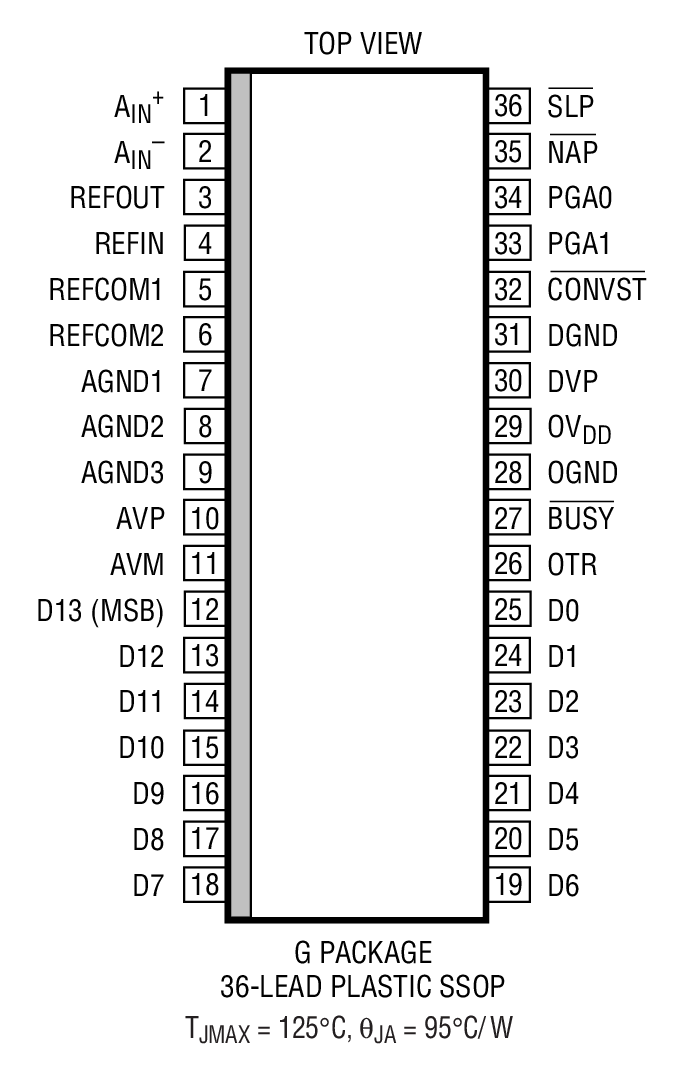

LTC1411 - 封装图解：

LINEAR凌力尔特芯片：

LTC1411 - LTC1411是Single Supply 14-Bit 2.5Msps ADC

LTC1411是LINEAR凌力尔特公司的一款通用型 SAR ADC产品，LTC1411是LTC1411是Single Supply 14-Bit 2.5Msps ADC，本站介绍了LTC1411的封装应用图解、特点和优点、功能等，并给出了与LTC1411相关的LINEAR元器件型号供参考。

LTC1411 - LTC1411是Single Supply 14-Bit 2.5Msps ADC - 通用型 SAR ADC - 数据转换 - 凌力尔特

LTC1411 - Single Supply 14-Bit 2.5Msps ADC

LTC1411 - Single Supply 14-Bit 2.5Msps ADC - Linear Technology（凌力尔特）

功能描述

The LTC1411 is a 2.5Msps sampling 14-bit A/D converter in a 36-pin SSOP package, which typically dissipates only 195mW from a single 5V supply. This device comes complete with a high bandwidth sample-and-hold, a precision reference, programmable input ranges and an internally trimmed clock. The ADC can be powered down with either the Nap or Sleep mode for low power applications.

The LTC1411 converts either differential or single-ended inputs and presents data in 2’s complement format. Maximum DC specs include ±2LSB INL and 14-bit no missing code over temperature. Outstanding dynamic performance includes 80dB S/(N + D) and 90dB THD at 100kHz input frequency.

The LTC1411 has four programmable input ranges selected by two digital input pins, PGA0 and PGA1. This provides input spans of ±1.8V, ±1.27V, ±0.9V and ±0.64V. An out-of-the-range signal together with the D13 (MSB) will indicate whether a signal is over or under the ADC’s input range. A simple conversion start input and a data ready signal ease connections to FIFOs, DSPs and microprocessors.

特点

Sample Rate: 2.5Msps

80dB S/(N + D) and 90dB THD at 100kHz fIN

Single 5V Operation

No Pipeline Delay

Programmable Input Ranges

Low Power Dissipation: 195mW (Typ)

True Differential Inputs Reject Common Mode Noise

Out-of-Range Indicator

Internal or External Reference

Sleep (1µA) and Nap (2mA) Shutdown Modes

36-Pin SSOP Package

应用

Telecommunications

High Speed Data Acquisition

Digital Signal Processing

Multiplexed Data Acquisition Systems

Spectrum Analysis

Imaging Systems

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC1411CG	SSOP-36	C	$25.50	$18.00
LTC1411CG#PBF	SSOP-36	C	$25.50	$18.00
LTC1411CG#TR	SSOP-36	C		$18.10
LTC1411CG#TRPBF	SSOP-36	C		$18.10
LTC1411IG	SSOP-36	I	$28.35	$20.00
LTC1411IG#PBF	SSOP-36	I	$28.35	$20.00
LTC1411IG#TR	SSOP-36	I		$20.10
LTC1411IG#TRPBF	SSOP-36	I		$20.10
