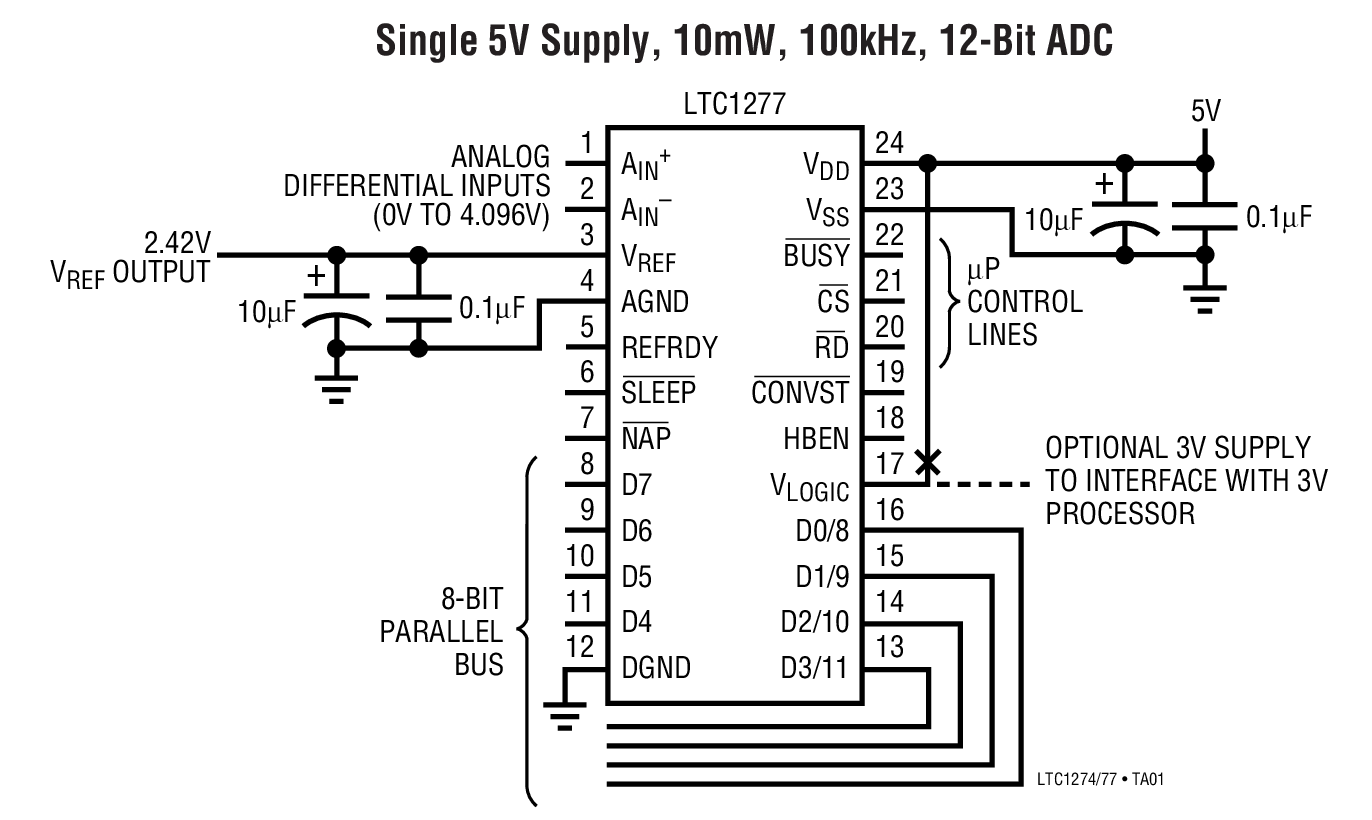

LTC1274典型应用图例一

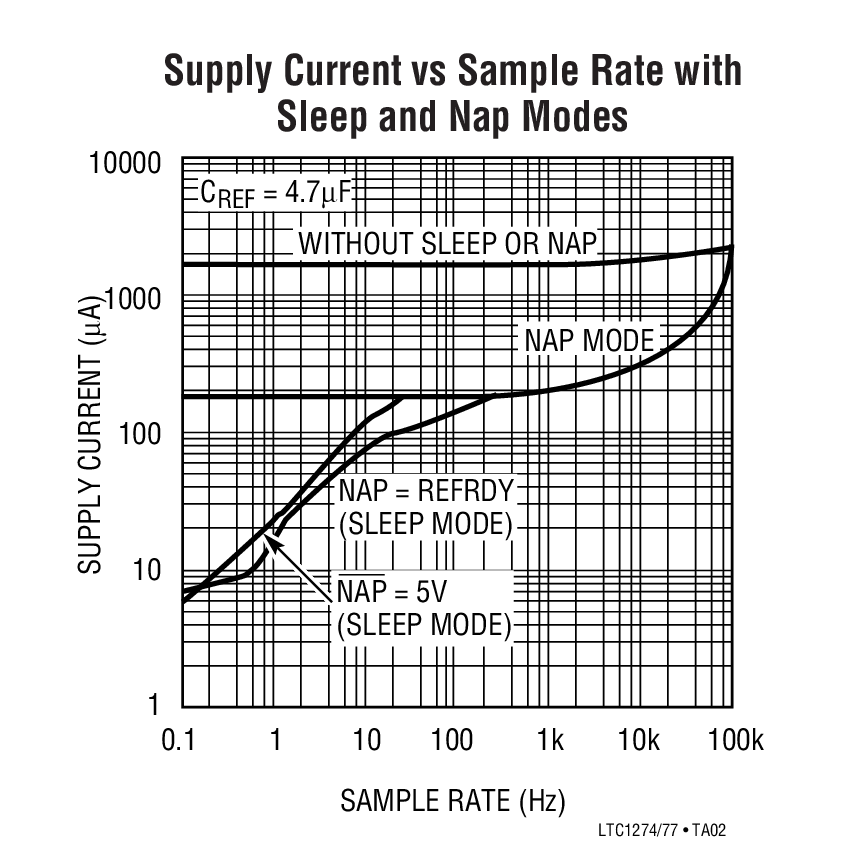

LTC1274典型应用图例二
LTC1274 - 封装图解：

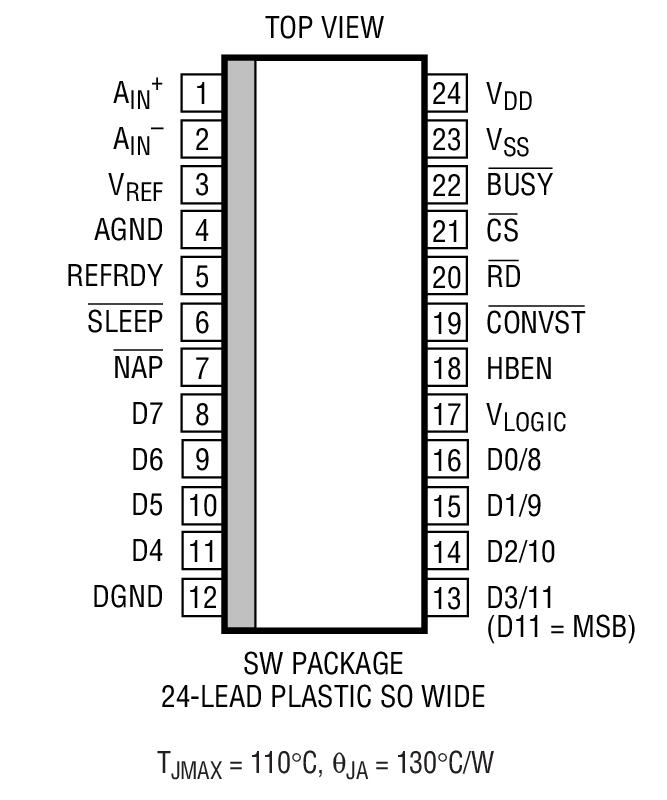

LTC1274封装图解一

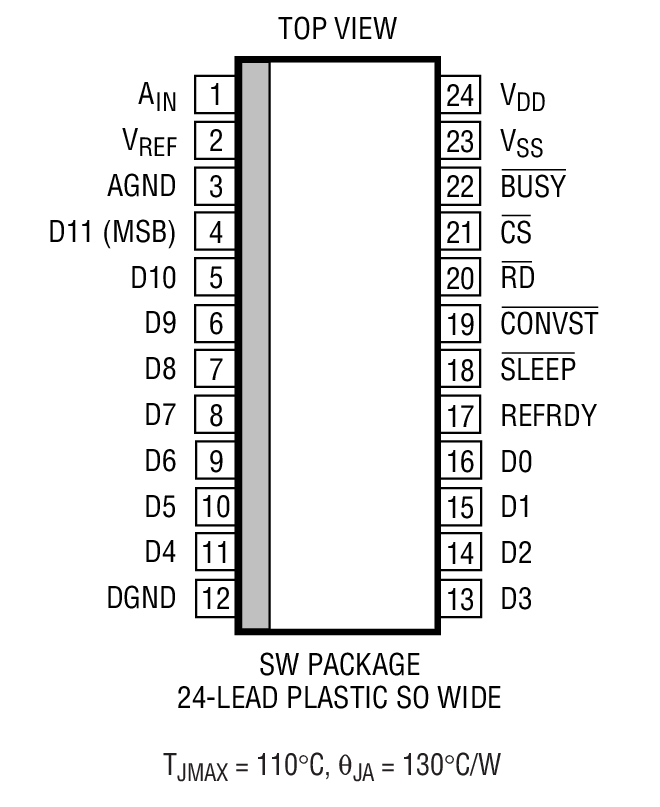

LTC1274封装图解二
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1274介绍

LTC1274 - LTC1274是12-Bit, 10mW, 100ksps ADCs with 1μA Shutdown

LTC1274是LINEAR凌力尔特公司的一款通用型 SAR ADC产品，LTC1274是LTC1274是12-Bit, 10mW, 100ksps ADCs with 1μA Shutdown，本站介绍了LTC1274的封装应用图解、特点和优点、功能等，并给出了与LTC1274相关的LINEAR元器件型号供参考。

LTC1274 - LTC1274是12-Bit, 10mW, 100ksps ADCs with 1μA Shutdown - 通用型 SAR ADC - 数据转换 - 凌力尔特

LTC1274 - 12-Bit, 10mW, 100ksps ADCs with 1μA Shutdown

LTC1274 - 12-Bit, 10mW, 100ksps ADCs with 1μA Shutdown - Linear Technology（凌力尔特）

功能描述

The LTC1274/LTC1277 are 8µs sampling 12-bit A/D converters which draw only 2mA (typ) from single 5V or ±5V supplies. These easy-to-use devices come complete with a 2ms sample-and-hold, a precision reference and an internally trimmed clock. Unipolar and bipolar conversion modes add to the flexibility of the ADCs.

Two power-down modes are available in the LTC1277. In Napmode, the LTC1277 draws only 180µA and the instant wake-up from Nap mode allows the LTC1277 to be powered down even during brief inactive periods. In Sleep mode only 1µA will be drawn. A REFRDY signal is used to show the ADC is ready to sample after waking up from Sleep mode. The LTC1274 also provides the Sleep mode and REFRDY signal.

The A/D converters convert 0V to 4.096V unipolar inputs from a single 5V supply or ±2.048V bipolar inputs from ±5V supplies.

The LTC1274 has a single-ended input and a 12-bit parallel data format. The LTC1277 offers a differential input and a 2-byte read format. The bipolar mode is formatted as 2’s complement for the LTC1274 and offset binary for the LTC1277.

特点
  • Low Power Dissipation: 10mW
  • Sample Rate: 100ksps
  • Samples Inputs Beyond Nyquist, 72dB S/(N D) and 82dB THD at fIN = 100kHz
  • Single Supply 5V or ±5V Operation
  • Power Shutdown to 1µA in Sleep Mode
  • 180µA Nap Mode (LTC1277) with Instant Wake-Up
  • Internal Reference Can Be Overdriven
  • Internal Synchronized Clock
  • 0V to 4.096V or ±2.048V Input Ranges (1mV/LSB)
  • 24-Lead SOL Package
    • 应用
  • Battery-Powered Portable Systems
  • High Speed Data Acquisition for PCs
  • Digital Signal Processing
  • Multiplexed Data Acquisition Systems
  • Audio and Telecom Processing
  • Spectrum Analysis
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1274CSW SW-24 C $9.90 $7.60
    LTC1274CSW#PBF SW-24 C $9.90 $7.60
    LTC1274CSW#TR SW-24 C $7.70
    LTC1274CSW#TRPBF SW-24 C $7.70
    LTC1274ISW SW-24 I $10.80 $8.45
    LTC1274ISW#PBF SW-24 I $10.80 $8.45
    LTC1274ISW#TR SW-24 I $8.55
    LTC1274ISW#TRPBF SW-24 I $8.55
