LT6656BCS6-5技术文档下载:
LT6656BCS6-5技术文档产品手册下载
LT6656BCS6-5 - 典型应用图例:

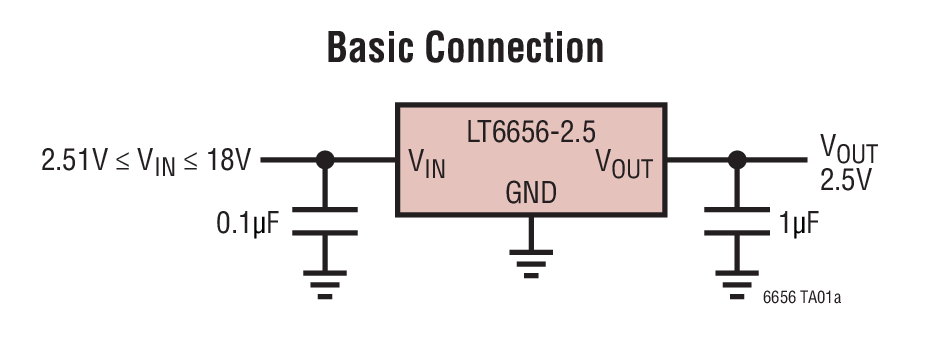

LT6656BCS6-5典型应用图例一

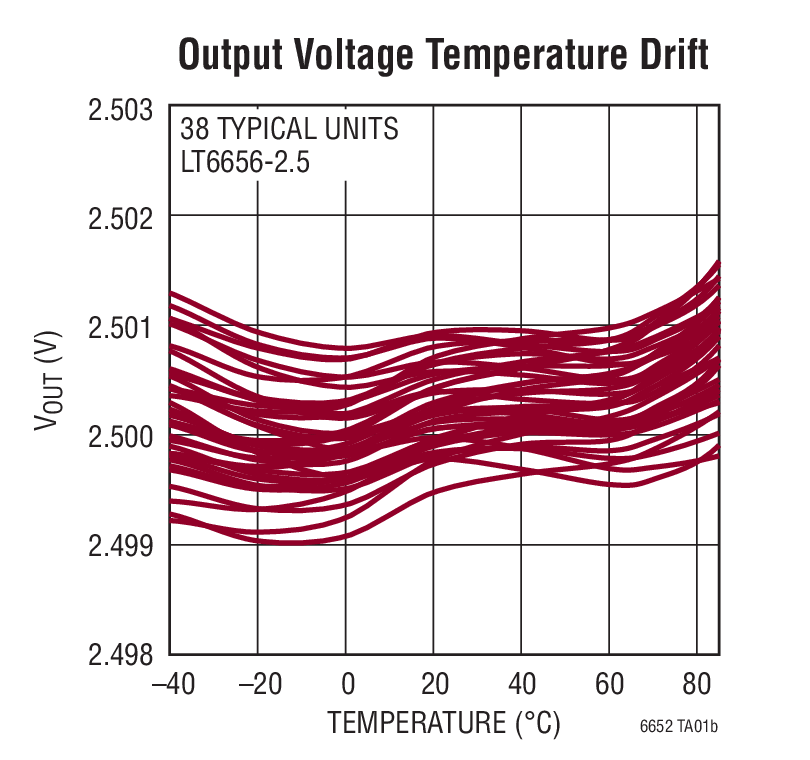

LT6656BCS6-5典型应用图例二
LT6656BCS6-5 - 封装图解:

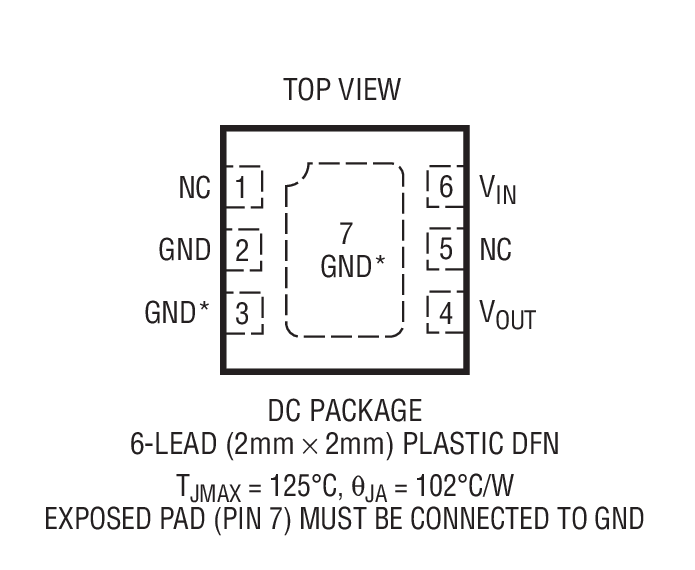

LT6656BCS6-5封装图解一
LT6656BCS6-5封装图解二
LT6656BCS6-5LT6656BCS6-5
承诺原装正品
专营Linear,真正优化您的供应链
Linear产品 - LT6656BCS6-5介绍
LT6656BCS6-5 - LT6656BCS6-5是1μA 精准串联电压基准

LT6656BCS6-5是Linear公司的一款串联基准产品,LT6656BCS6-5是1μA 精准串联电压基准,本站介绍了LT6656BCS6-5的封装应用图解、特点和优点、功能等,并给出了与LT6656BCS6-5相关的凌力尔特元器件型号供参考。

LT6656BCS6-5 - 1μA 精准串联电压基准

LT6656 - 1μA 精准串联电压基准 - Linear Technology(凌力尔特)

功能描述

LT6656 是一款小型精准电压基准,所吸收的电源电流小于 1μA,并能够采用一个位于输出电压的 10mV 以内之工作电源电压。LT6656 提供了一个 0.05% 的初始准确度和 10ppm/ºC 的温度漂移。由于兼具低功率和精准特性,因此该器件非常适合于便携式和电池供电型仪表。

LT6656 能够提供高达 5mA 的输出驱动电流和 65ppm/mA 的负载调整率,从而使其可被用作一个低功率 ADC 的电源电压和基准输入。LT6656 可接受一个高达 18V 的电源电压,并安全地承受输入反接。

LT6656 的输出能够在采用 1μF 或更大的输出电容时保持稳定,并可在多种输出电容器 ESR 条件下运作。

该基准的技术规格针对 –40ºC 至 85ºC 的工作温度范围,并能够在 -55ºC 至 125ºC 的极限温度范围内运行。通过运用先进的设计、工艺和封装技术实现了低迟滞和一致的温度漂移。

LT6656 可提供 6 引脚 SOT-23、(2mm x 2mm) DFN 和8 引脚 LS8 封装。LS8 是一个5mm x 5mm 表面贴装密封式封装,能提供卓越的稳定性。

特点
  • 超低电源电流:850nA
  • 低漂移 A 级:10ppm/ºC (最大值) B 级:20ppm/ºC (最大值)
  • 高准确度 A 级:0.05% (最大值) B 级:0.1% (最大值)
  • 长期漂移:15ppm/√kHr (LS8 封装)
  • 无湿度灵敏度 (LS8 封装)
  • 高输出驱动电流:5mA (最小值)
  • 低压差电压:10mV (最大值)
  • 技术规格针对 -40ºC 至 85ºC 的温度范围
  • 可在 -55ºC 至 125ºC 的温度范围内运作
  • 宽电源范围至 18V
  • 反向输入 / 输出保护
  • 可提供的输出电压选项: 1.25V、2.048V、2.5V、3V、3.3V、4.096V 和 5V
  • 可提供扁平 (高度 1mm) ThinSOTTM 、(2mm x 2mm) DFN 和具高稳定性的密封式 (5mm x 5mm) LS8 封装
  • 应用
  • 精准 A/D 和 D/A 转换器
  • 便携式气体检测仪
  • 电池或太阳能供电型系统
  • 精准稳压器
  • 低电压信号处理
  • 微功率远端采样
  • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格(美元)
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT6656ACDC-1.25#PBF 2x2 DFN-6 C $3.76
    LT6656ACDC-1.25#TRMPBF 2x2 DFN-6 C $3.76 $2.75
    LT6656ACDC-1.25#TRPBF 2x2 DFN-6 C $3.76 $2.70
    LT6656ACDC-2.048#PBF 2x2 DFN-6 C $3.76
    LT6656ACDC-2.048#TRMPBF 2x2 DFN-6 C $3.76 $2.75
    LT6656ACDC-2.048#TRPBF 2x2 DFN-6 C $3.76 $2.70
    LT6656ACDC-2.5#PBF 2x2 DFN-6 C $3.76
    LT6656ACDC-2.5#TRMPBF 2x2 DFN-6 C $3.76 $2.75
    LT6656ACDC-2.5#TRPBF 2x2 DFN-6 C $3.76 $2.70
    LT6656ACDC-3.3#PBF 2x2 DFN-6 C $3.76
    LT6656ACDC-3.3#TRMPBF 2x2 DFN-6 C $3.76 $2.75
    LT6656ACDC-3.3#TRPBF 2x2 DFN-6 C $3.76 $2.70
    LT6656ACDC-3#PBF 2x2 DFN-6 C $3.76
    LT6656ACDC-3#TRMPBF 2x2 DFN-6 C $3.76 $2.75
    LT6656ACDC-3#TRPBF 2x2 DFN-6 C $3.76 $2.70
    LT6656ACDC-4.096#PBF 2x2 DFN-6 C $3.76
    LT6656ACDC-4.096#TRMPBF 2x2 DFN-6 C $3.76 $2.75
    LT6656ACDC-4.096#TRPBF 2x2 DFN-6 C $3.76 $2.70
    LT6656ACDC-5#PBF 2x2 DFN-6 C $3.76
    LT6656ACDC-5#TRMPBF 2x2 DFN-6 C $3.76 $2.75
    LT6656ACDC-5#TRPBF 2x2 DFN-6 C $3.76 $2.70
    LT6656ACS6-1.25#PBF SOT-23 C $3.42
    LT6656ACS6-1.25#TRMPBF SOT-23 C $3.42 $2.50
    LT6656ACS6-1.25#TRPBF SOT-23 C $3.42 $2.45
    LT6656ACS6-2.048#PBF SOT-23 C $3.42
    LT6656ACS6-2.048#TRMPBF SOT-23 C $3.42 $2.50
    LT6656ACS6-2.048#TRPBF SOT-23 C $3.42 $2.45
    LT6656ACS6-2.5#PBF SOT-23 C $3.42
    LT6656ACS6-2.5#TRMPBF SOT-23 C $3.42 $2.50
    LT6656ACS6-2.5#TRPBF SOT-23 C $3.42 $2.45
    LT6656ACS6-3.3#PBF SOT-23 C $3.42
    LT6656ACS6-3.3#TRMPBF SOT-23 C $3.42 $2.50
    LT6656ACS6-3.3#TRPBF SOT-23 C $3.42 $2.45
    LT6656ACS6-3#PBF SOT-23 C $3.42
    LT6656ACS6-3#TRMPBF SOT-23 C $3.42 $2.50
    LT6656ACS6-3#TRPBF SOT-23 C $3.42 $2.45
    LT6656ACS6-4.096#PBF SOT-23 C $3.42
    LT6656ACS6-4.096#TRMPBF SOT-23 C $3.42 $2.50
    LT6656ACS6-4.096#TRPBF SOT-23 C $3.42 $2.45
    LT6656ACS6-5#PBF SOT-23 C $3.42
    LT6656ACS6-5#TRMPBF SOT-23 C $3.42 $2.50
    LT6656ACS6-5#TRPBF SOT-23 C $3.42 $2.45
    LT6656AIDC-1.25#PBF 2x2 DFN-6 I $4.21
    LT6656AIDC-1.25#TRMPBF 2x2 DFN-6 I $4.21 $3.07
    LT6656AIDC-1.25#TRPBF 2x2 DFN-6 I $4.21 $3.02
    LT6656AIDC-2.048#PBF 2x2 DFN-6 I $4.21
    LT6656AIDC-2.048#TRMPBF 2x2 DFN-6 I $4.21 $3.07
    LT6656AIDC-2.048#TRPBF 2x2 DFN-6 I $4.21 $3.02
    LT6656AIDC-2.5#PBF 2x2 DFN-6 I $4.21
    LT6656AIDC-2.5#TRMPBF 2x2 DFN-6 I $4.21 $3.07
    LT6656AIDC-2.5#TRPBF 2x2 DFN-6 I $4.21 $3.02
    LT6656AIDC-3.3#PBF 2x2 DFN-6 I $4.21
    LT6656AIDC-3.3#TRMPBF 2x2 DFN-6 I $4.21 $3.07
    LT6656AIDC-3.3#TRPBF 2x2 DFN-6 I $4.21 $3.02
    LT6656AIDC-3#PBF 2x2 DFN-6 I $4.21
    LT6656AIDC-3#TRMPBF 2x2 DFN-6 I $4.21 $3.07
    LT6656AIDC-3#TRPBF 2x2 DFN-6 I $4.21 $3.02
    LT6656AIDC-4.096#PBF 2x2 DFN-6 I $4.21
    LT6656AIDC-4.096#TRMPBF 2x2 DFN-6 I $4.21 $3.07
    LT6656AIDC-4.096#TRPBF 2x2 DFN-6 I $4.21 $3.02
    LT6656AIDC-5#PBF 2x2 DFN-6 I $4.21
    LT6656AIDC-5#TRMPBF 2x2 DFN-6 I $4.21 $3.07
    LT6656AIDC-5#TRPBF 2x2 DFN-6 I $4.21 $3.02
    LT6656AILS8-1.25#PBF LS-8 I $4.88 $3.50
    LT6656AIS6-1.25#PBF SOT-23 I $3.42
    LT6656AIS6-1.25#TRMPBF SOT-23 I $3.83 $2.80
    LT6656AIS6-1.25#TRPBF SOT-23 I $3.83 $2.75
    LT6656AIS6-2.048#PBF SOT-23 I $3.83
    LT6656AIS6-2.048#TRMPBF SOT-23 I $3.83 $2.80
    LT6656AIS6-2.048#TRPBF SOT-23 I $3.83 $2.75
    LT6656AIS6-2.5#PBF SOT-23 I $3.83
    LT6656AIS6-2.5#TRMPBF SOT-23 I $3.83 $2.80
    LT6656AIS6-2.5#TRPBF SOT-23 I $3.83 $2.75
    LT6656AIS6-3.3#PBF SOT-23 I $3.83
    LT6656AIS6-3.3#TRMPBF SOT-23 I $3.83 $2.80
    LT6656AIS6-3.3#TRPBF SOT-23 I $3.83 $2.75
    LT6656AIS6-3#PBF SOT-23 I $3.83
    LT6656AIS6-3#TRMPBF SOT-23 I $3.83 $2.80
    LT6656AIS6-3#TRPBF SOT-23 I $3.83 $2.75
    LT6656AIS6-4.096#PBF SOT-23 I $3.83
    LT6656AIS6-4.096#TRMPBF SOT-23 I $3.83 $2.80
    LT6656AIS6-4.096#TRPBF SOT-23 I $3.83 $2.75
    LT6656AIS6-5#PBF SOT-23 I $3.83
    LT6656AIS6-5#TRMPBF SOT-23 I $3.83 $2.80
    LT6656AIS6-5#TRPBF SOT-23 I $3.83 $2.75
    LT6656BCDC-1.25#PBF 2x2 DFN-6 C $2.44
    LT6656BCDC-1.25#TRMPBF 2x2 DFN-6 C $2.44 $1.79
    LT6656BCDC-1.25#TRPBF 2x2 DFN-6 C $2.44 $1.74
    LT6656BCDC-2.048#PBF 2x2 DFN-6 C $2.44
    LT6656BCDC-2.048#TRMPBF 2x2 DFN-6 C $2.44 $1.79
    LT6656BCDC-2.048#TRPBF 2x2 DFN-6 C $2.44 $1.74
    LT6656BCDC-2.5#PBF 2x2 DFN-6 C $2.44
    LT6656BCDC-2.5#TRMPBF 2x2 DFN-6 C $2.44 $1.79
    LT6656BCDC-2.5#TRPBF 2x2 DFN-6 C $2.44 $1.74
    LT6656BCDC-3.3#PBF 2x2 DFN-6 C $2.44
    LT6656BCDC-3.3#TRMPBF 2x2 DFN-6 C $2.44 $1.79
    LT6656BCDC-3.3#TRPBF 2x2 DFN-6 C $2.44 $1.74
    LT6656BCDC-3#PBF 2x2 DFN-6 C $2.44
    LT6656BCDC-3#TRMPBF 2x2 DFN-6 C $2.44 $1.79
    LT6656BCDC-3#TRPBF 2x2 DFN-6 C $2.44 $1.74
    LT6656BCDC-4.096#PBF 2x2 DFN-6 C $2.44
    LT6656BCDC-4.096#TRMPBF 2x2 DFN-6 C $2.44 $1.79
    LT6656BCDC-4.096#TRPBF 2x2 DFN-6 C $2.44 $1.74
    LT6656BCDC-5#PBF 2x2 DFN-6 C $2.44
    LT6656BCDC-5#TRMPBF 2x2 DFN-6 C $2.44 $1.79
    LT6656BCDC-5#TRPBF 2x2 DFN-6 C $2.44 $1.74
    LT6656BCS6-1.25#PBF SOT-23 C $2.44
    LT6656BCS6-1.25#TRMPBF SOT-23 C $2.44 $1.79
    LT6656BCS6-1.25#TRPBF SOT-23 C $2.44 $1.74
    LT6656BCS6-2.048#PBF SOT-23 C $2.44
    LT6656BCS6-2.048#TRMPBF SOT-23 C $2.44 $1.79
    LT6656BCS6-2.048#TRPBF SOT-23 C $2.44 $1.74
    LT6656BCS6-2.5#PBF SOT-23 C $2.44
    LT6656BCS6-2.5#TRMPBF SOT-23 C $2.44 $1.79
    LT6656BCS6-2.5#TRPBF SOT-23 C $2.44 $1.74
    LT6656BCS6-3.3#PBF SOT-23 C $2.44
    LT6656BCS6-3.3#TRMPBF SOT-23 C $2.44 $1.79
    LT6656BCS6-3.3#TRPBF SOT-23 C $2.44 $1.74
    LT6656BCS6-3#PBF SOT-23 C $2.44
    LT6656BCS6-3#TRMPBF SOT-23 C $2.44 $1.79
    LT6656BCS6-3#TRPBF SOT-23 C $2.44 $1.74
    LT6656BCS6-4.096#PBF SOT-23 C $2.44
    LT6656BCS6-4.096#TRMPBF SOT-23 C $2.44 $1.79
    LT6656BCS6-4.096#TRPBF SOT-23 C $2.44 $1.74
    LT6656BCS6-5#PBF SOT-23 C $2.44
    LT6656BCS6-5#TRMPBF SOT-23 C $2.44 $1.79
    LT6656BCS6-5#TRPBF SOT-23 C $2.44 $1.74
    LT6656BIDC-1.25#PBF 2x2 DFN-6 I $2.79
    LT6656BIDC-1.25#TRMPBF 2x2 DFN-6 I $2.79 $2.03
    LT6656BIDC-1.25#TRPBF 2x2 DFN-6 I $2.79 $1.98
    LT6656BIDC-2.048#PBF 2x2 DFN-6 I $2.79
    LT6656BIDC-2.048#TRMPBF 2x2 DFN-6 I $2.79 $2.03
    LT6656BIDC-2.048#TRPBF 2x2 DFN-6 I $2.79 $1.98
    LT6656BIDC-2.5#PBF 2x2 DFN-6 I $2.79
    LT6656BIDC-2.5#TRMPBF 2x2 DFN-6 I $2.79 $2.03
    LT6656BIDC-2.5#TRPBF 2x2 DFN-6 I $2.79 $1.98
    LT6656BIDC-3.3#PBF 2x2 DFN-6 I $2.79
    LT6656BIDC-3.3#TRMPBF 2x2 DFN-6 I $2.79 $2.03
    LT6656BIDC-3.3#TRPBF 2x2 DFN-6 I $2.79 $1.98
    LT6656BIDC-3#PBF 2x2 DFN-6 I $2.79
    LT6656BIDC-3#TRMPBF 2x2 DFN-6 I $2.79 $2.03
    LT6656BIDC-3#TRPBF 2x2 DFN-6 I $2.79 $1.98
    LT6656BIDC-4.096#PBF 2x2 DFN-6 I $2.79
    LT6656BIDC-4.096#TRMPBF 2x2 DFN-6 I $2.79 $2.03
    LT6656BIDC-4.096#TRPBF 2x2 DFN-6 I $2.79 $1.98
    LT6656BIDC-5#PBF 2x2 DFN-6 I $2.79
    LT6656BIDC-5#TRMPBF 2x2 DFN-6 I $2.79 $2.03
    LT6656BIDC-5#TRPBF 2x2 DFN-6 I $2.79 $1.98
    LT6656BILS8-1.25#PBF LS-8 I $3.80 $2.73
    LT6656BIS6-1.25#PBF SOT-23 I $2.79
    LT6656BIS6-1.25#TRMPBF SOT-23 I $2.79 $2.03
    LT6656BIS6-1.25#TRPBF SOT-23 I $2.79 $1.98
    LT6656BIS6-2.048#PBF SOT-23 I $2.79
    LT6656BIS6-2.048#TRMPBF SOT-23 I $2.79 $2.03
    LT6656BIS6-2.048#TRPBF SOT-23 I $2.79 $1.98
    LT6656BIS6-2.5#PBF SOT-23 I $2.79
    LT6656BIS6-2.5#TRMPBF SOT-23 I $2.79 $2.03
    LT6656BIS6-2.5#TRPBF SOT-23 I $2.79 $1.98
    LT6656BIS6-3.3#PBF SOT-23 I $2.79
    LT6656BIS6-3.3#TRMPBF SOT-23 I $2.79 $2.03
    LT6656BIS6-3.3#TRPBF SOT-23 I $2.79 $1.98
    LT6656BIS6-3#PBF SOT-23 I $2.79
    LT6656BIS6-3#TRMPBF SOT-23 I $2.79 $2.03
    LT6656BIS6-3#TRPBF SOT-23 I $2.79 $1.98
    LT6656BIS6-4.096#PBF SOT-23 I $2.79
    LT6656BIS6-4.096#TRMPBF SOT-23 I $2.79 $2.03
    LT6656BIS6-4.096#TRPBF SOT-23 I $2.79 $1.98
    LT6656BIS6-5#PBF SOT-23 I $2.79
    LT6656BIS6-5#TRMPBF SOT-23 I $2.79 $2.03
    LT6656BIS6-5#TRPBF SOT-23 I $2.79 $1.98
