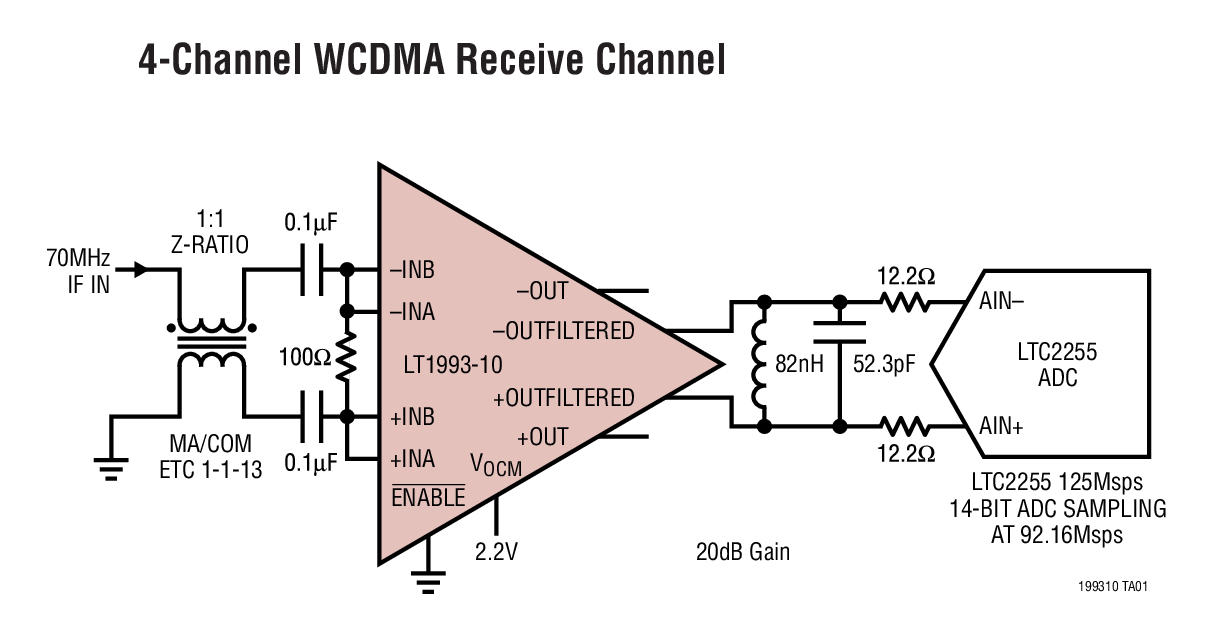

LT1993-10典型应用图例一

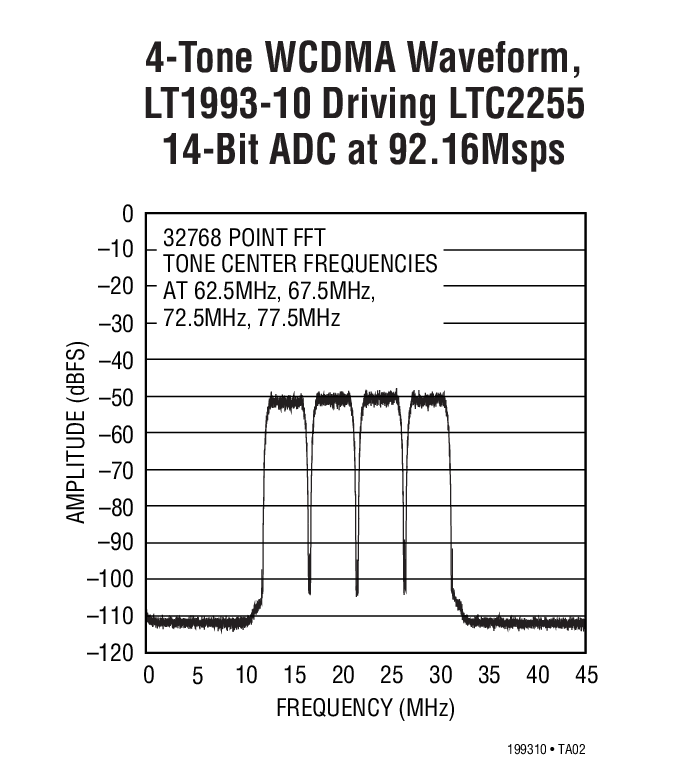

LT1993-10典型应用图例二
LT1993-10 - 封装图解：

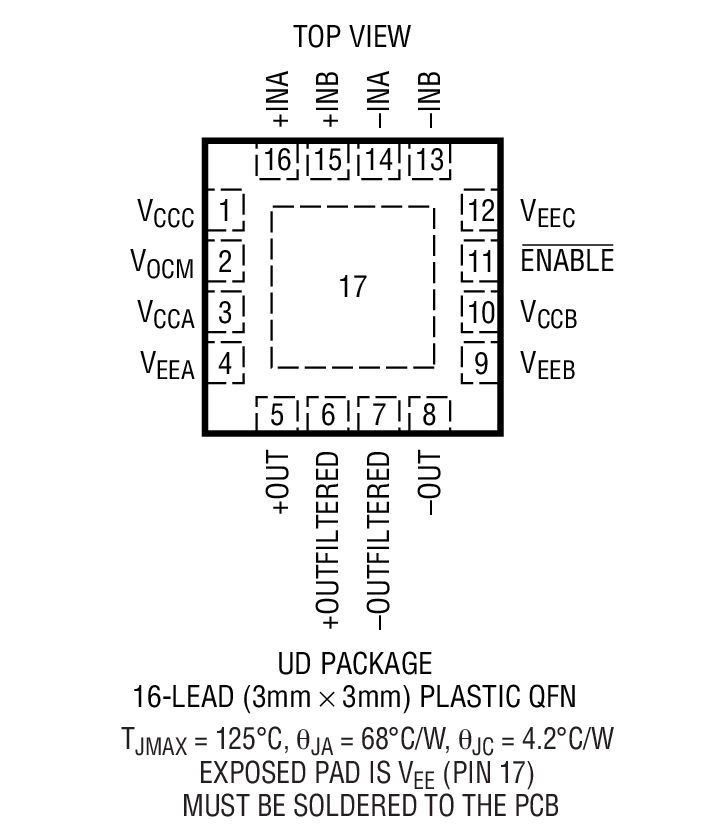

LT1993-10封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LT1993-10介绍

LT1993-10 - LT1993-10是700MHz Low Distortion, Low Noise Differential Amplifier/ADC Driver (AV = 10V/V)

LT1993-10是LINEAR凌力尔特公司的一款高速放大器产品，LT1993-10是LT1993-10是700MHz Low Distortion, Low Noise Differential Amplifier/ADC Driver (AV = 10V/V)，本站介绍了LT1993-10的封装应用图解、特点和优点、功能等，并给出了与LT1993-10相关的LINEAR元器件型号供参考。

LT1993-10 - LT1993-10是700MHz Low Distortion, Low Noise Differential Amplifier/ADC Driver (AV = 10V/V) - 高速放大器 - RF和无线 - 凌力尔特

LT1993-10 - 700MHz Low Distortion, Low Noise Differential Amplifier/ADC Driver (AV = 10V/V)

LT1993-10 - 700MHz Low Distortion, Low Noise Differential Amplifier/ADC Driver (AV = 10V/V) - Linear Technology（凌力尔特）

功能描述
The LT1993-10 is a low distortion, low noise Differential Amplifier/ADC driver for use in applications from DC to 700MHz. The LT1993-10 has been designed for ease of use, with minimal support circuitry required. Exceptionally low input-referred noise and low distortion products (with either single-ended or differential inputs) make the LT1993-10 an excellent solution for driving high speed 12-bit and 14-bit ADCs. In addition to the normal unfiltered outputs (+OUT and -OUT), the LT1993-10 has a built-in 175MHz differential lowpass filter and an additional pair of filtered outputs (+OUTFILTERED, -OUTFILTERED) to reduce external filtering components when driving high speed ADCs. The output common mode voltage is easily set via the VOCM pin, eliminating either an output transformer or AC-coupling capacitors in many applications.

The LT1993-10 is designed to meet the demanding requirements of communications transceiver applications. It can be used as a differential ADC driver, a general-purpose differential gain block, or in any other application requiring differential drive. The LT1993-10 can be used in data acquisition systems required to function at frequencies down to DC.

The LT1993-10 operates on a 5V supply and consumes 100mA. It comes in a compact 16-lead 3 × 3 QFN package and operates over a -40°C to 85°C temperature range.

特点
  • 700MHz -3dB Bandwidth
  • Fixed Gain of 10V/V (20dB)
  • Low Distortion:40dBm OIP3, -70dBc HD3 (70MHz 2VP-P)50.5dBm OIP3, -91dBc (10MHz 2VP-P)
  • Low Noise: 12.7dB NF, en = 1.9nV/√Hz
  • Differential Inputs and Outputs
  • Additional Filtered Outputs
  • Adjustable Output Common Mode Voltage
  • DC- or AC-Coupled Operation
  • Minimal Support Circuitry Required
  • Small 0.75mm Tall 16-Lead 3 × 3 QFN Package
    • 应用
  • Differential ADC Driver for:ImagingCommunications
  • Differential Driver/Receiver
  • Single Ended to Differential Conversion
  • Differential to Single Ended Conversion
  • Level Shifting
  • IF Sampling Receivers
  • SAW Filter Interfacing/Buffering
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT1993CUD-10 3x3 QFN-16 C $4.20 $2.95
    LT1993CUD-10#PBF 3x3 QFN-16 C $4.20 $2.95
    LT1993CUD-10#TR 3x3 QFN-16 C $3.01
    LT1993CUD-10#TRPBF 3x3 QFN-16 C $3.01
    LT1993IUD-10 3x3 QFN-16 I $4.65 $3.40
    LT1993IUD-10#PBF 3x3 QFN-16 I $4.65 $3.40
    LT1993IUD-10#TR 3x3 QFN-16 I $3.46
    LT1993IUD-10#TRPBF 3x3 QFN-16 I $3.46
