LT1993-2 - 800MHz Low Distortion, Low Noise Differential Amplifier ADC Driver (Av = 2V/V)

LT1993-2 - 800MHz Low Distortion, Low Noise Differential Amplifier ADC Driver (Av = 2V/V) - Linear Technology（凌力尔特）

The LT1993-2 is a low distortion, low noise Differential Ampli?er/ADC driver for use in applications from DC to 800MHz. The LT1993-2 has been designed for ease of use, with minimal support circuitry required. Exceptionally low input-referred noise and low distortion products (with either single-ended or differential inputs) make the LT1993-2 an excellent solution for driving high speed 12- bit and 14-bit ADCs. In addition to the normal un? ltered outputs (+OUT and OUT), the LT1993-2 has a built-in 175MHz differential low pass ? lter and an additional pair of ?ltered outputs (+OUTFILTERED, OUTFILTERED) to reduce external ? ltering components when driving high speed ADCs. The output common mode voltage is easily set via the VOCM pin, eliminating either an output transformer or AC-coupling capacitors in many applications.

The LT1993-2 is designed to meet the demanding requirements of communications transceiver applications. It can be used as a differential ADC driver, a general-purpose differential gain block, or in any other application requiring differential drive. The LT1993-2 can be used in data acquisition systems required to function at frequencies down to DC.

The LT1993-2 operates on a 5V supply and consumes 100mA. It comes in a compact 16-lead 3 × 3 QFN package and operates over a 40°C to 85°C temperature range.

?

800MHz 3dB Bandwidth

Fixed Gain of 2V/V (6dB)

Low Distortion:?? 38dBm OIP3, 70dBc HD3 (70MHz, 2VP-P)?? 51dBm OIP3, 94dBc HD3 (10MHz, 2VP-P)

Low Noise: 12.3dB NF, en = 3.8nV/√Hz (70MHz)

Differential Inputs and Outputs

Additional Filtered Outputs

Adjustable Output Common Mode Voltage

DC- or AC-Coupled Operation

Minimal Support Circuitry Required

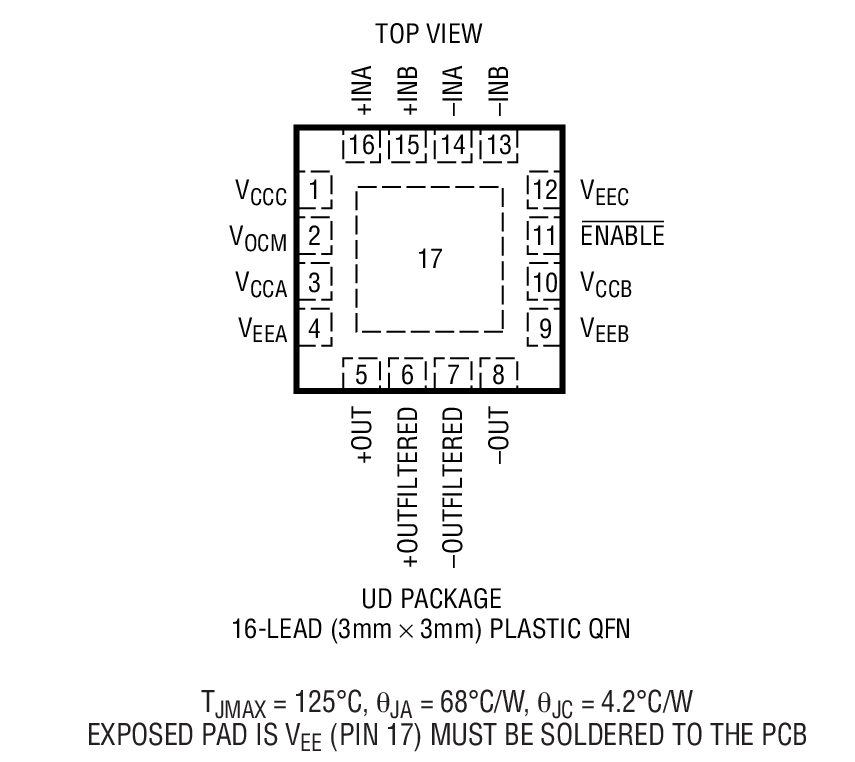

Small 0.75mm Tall 16-Lead 3 × 3 QFN Package

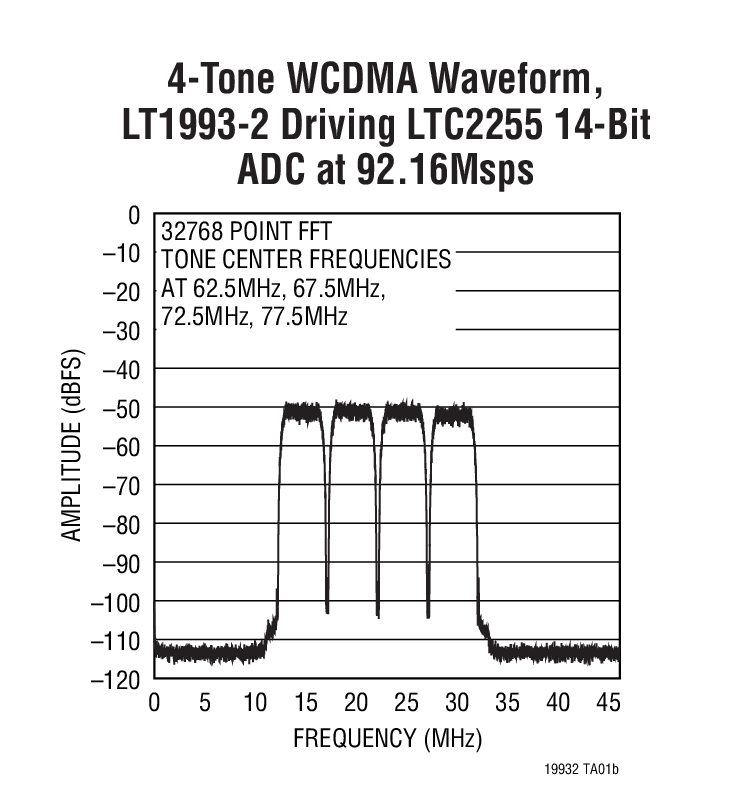

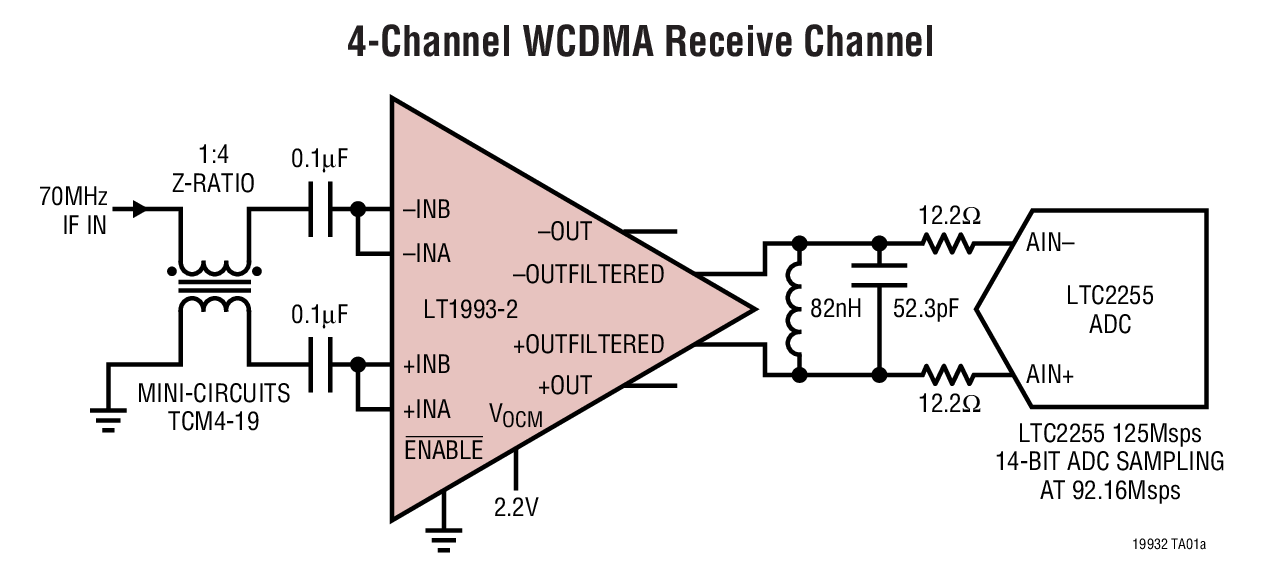

Differential ADC Driver for:

Imaging

Communications

Differential Driver/Receiver

Single Ended to Differential Conversion

Differential to Single Ended Conversion

Level Shifting

IF Sampling Receivers

SAW Filter Interfacing/Buffering

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LT1993CUD-2	3x3 QFN-16	C	$4.20	$2.95
LT1993CUD-2#PBF	3x3 QFN-16	C	$4.20	$2.95
LT1993CUD-2#TR	3x3 QFN-16	C		$3.01
LT1993CUD-2#TRPBF	3x3 QFN-16	C		$3.01
LT1993IUD-2	3x3 QFN-16	I	$4.65	$3.40
LT1993IUD-2#PBF	3x3 QFN-16	I	$4.65	$3.40
LT1993IUD-2#TR	3x3 QFN-16	I		$3.46
LT1993IUD-2#TRPBF	3x3 QFN-16	I		$3.46
