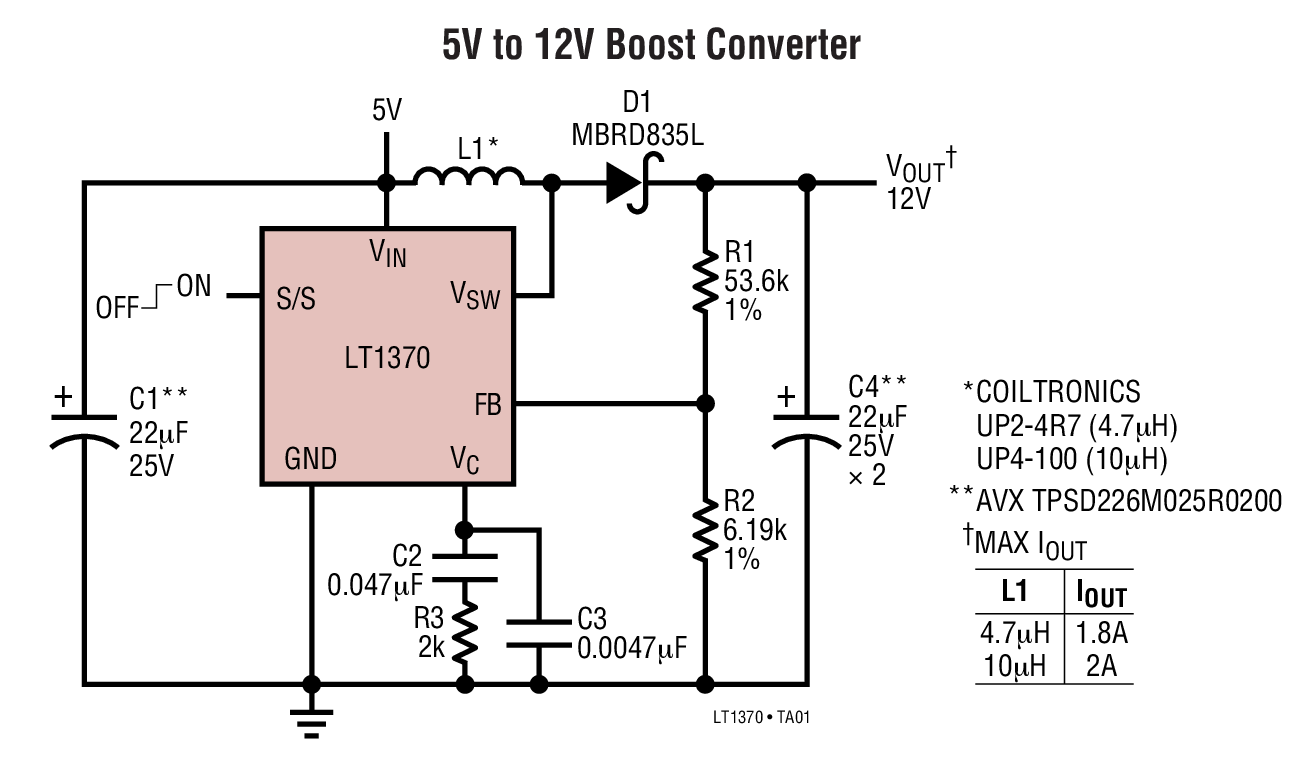

LT1370HV典型应用图例一

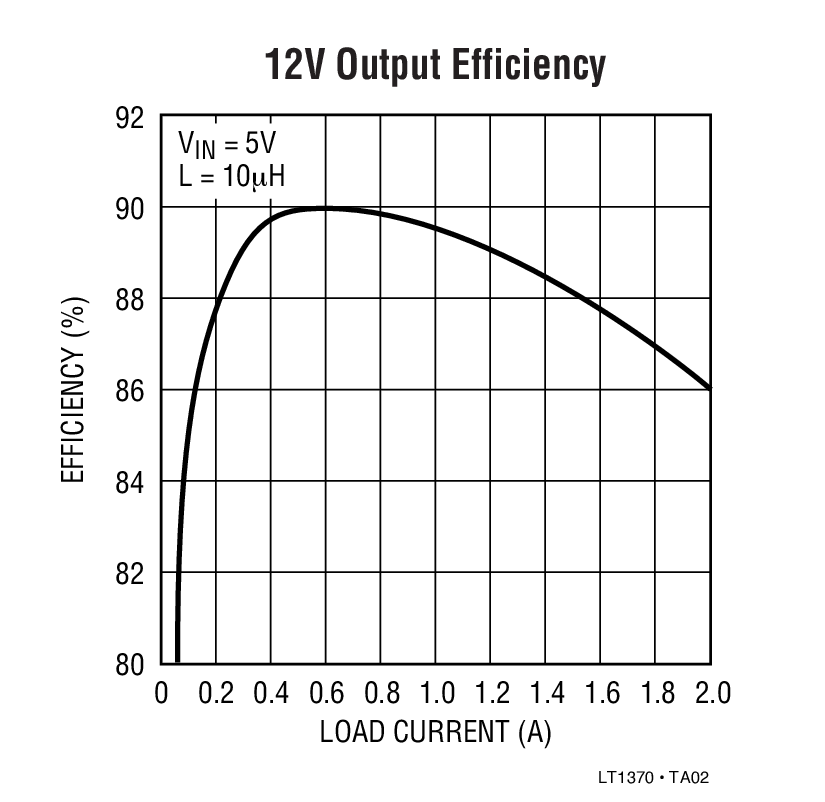

LT1370HV典型应用图例二
LT1370HV - 封装图解：

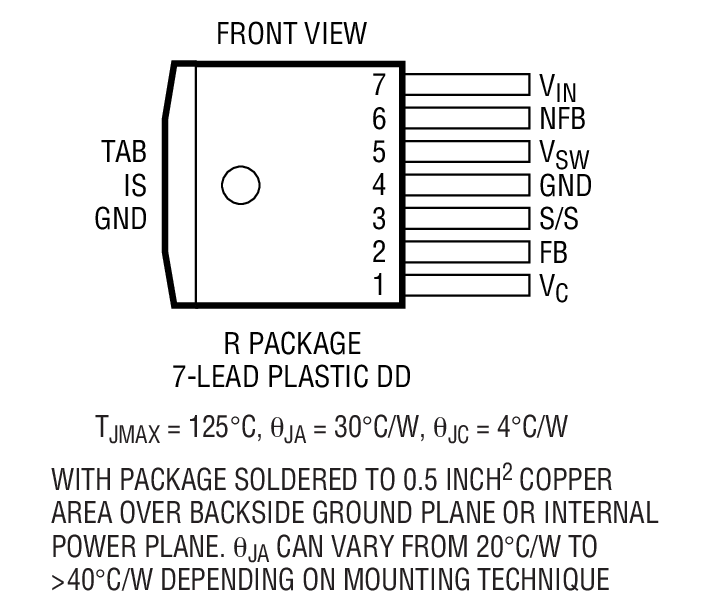

LT1370HV封装图解一

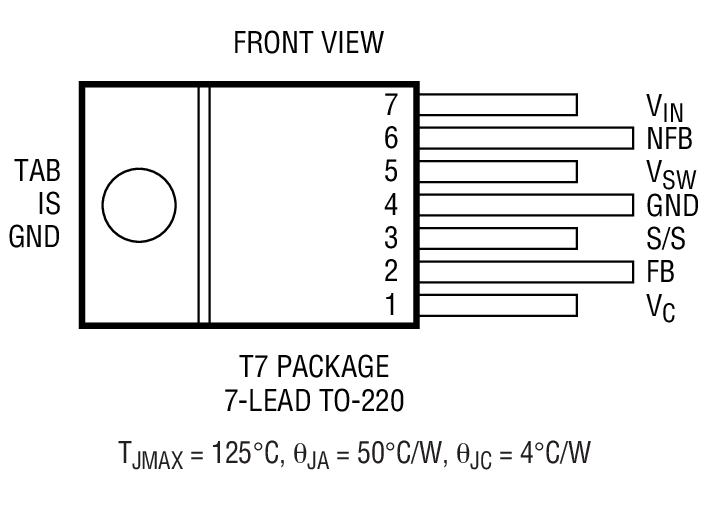

LT1370HV封装图解二
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LT1370HV介绍

LT1370HV - LT1370HV是500kHz High Efficiency 6A Switching Regulator

LT1370HV是LINEAR凌力尔特公司的一款SEPIC 稳压器产品，LT1370HV是LT1370HV是500kHz High Efficiency 6A Switching Regulator，本站介绍了LT1370HV的封装应用图解、特点和优点、功能等，并给出了与LT1370HV相关的LINEAR元器件型号供参考。

LT1370HV - LT1370HV是500kHz High Efficiency 6A Switching Regulator - SEPIC 稳压器 - 电源管理 - 凌力尔特

LT1370HV - 500kHz High Efficiency 6A Switching Regulator

LT1370 - 500kHz High Efficiency 6A Switching Regulator - Linear Technology（凌力尔特）

功能描述
The LT1370 is a monolithic high frequency current mode switching regulator. It can be operated in all standard switching configurations including boost, buck, flyback, forward, inverting and “Cuk.” A 6A high efficiency switch is included on the die, along with all oscillator, control and protection circuitry.

The LT1370 typically consumes only 4.5mA quiescent current and has higher efficiency than previous parts. High frequency switching allows for very small inductors to be used.

New design techniques increase flexibility and maintain ease of use. Switching is easily synchronized to an external logic level source. A logic low on the Shutdown pin reduces supply current to 12µA. Unique error amplifier circuitry can regulate positive or negative output voltage while maintaining simple frequency compensation techniques. Nonlinear error amplifier transconductance reduces output overshoot on start-up or overload recovery. Oscillator frequency shifting protects external components during overload conditions.

特点
  • Faster Switching with Increased Efficiency
  • Uses Small Inductors: 4.7µH
  • All Surface Mount Components
  • Low Minimum Supply Voltage: 2.7V
  • Quiescent Current: 4.5mA Typ
  • Current Limited Power Switch: 6A
  • Regulates Positive or Negative Outputs
  • Shutdown Supply Current: 12µA Typ
  • Easy External Synchronization
  • Switch Resistance: 0.065Ω Typ
    • 应用
  • Boost Regulators
  • Laptop Computer Supplies
  • Multiple Output Flyback Supplies
  • Inverting Supplies
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT1370CR DDPAK-7 C $7.40 $6.15
    LT1370CR#PBF DDPAK-7 C $7.40 $6.15
    LT1370CR#TR DDPAK-7 C $6.27
    LT1370CR#TRPBF DDPAK-7 C $6.27
    LT1370CT7 TO-220 C $7.25 $6.05
    LT1370CT7#PBF TO-220 C $7.25 $6.05
    LT1370HVCR DDPAK-7 C $8.45 $7.00
    LT1370HVCR#PBF DDPAK-7 C $8.45 $7.00
    LT1370HVCR#TR DDPAK-7 C $7.12
    LT1370HVCR#TRPBF DDPAK-7 C $7.12
    LT1370HVCT7 TO-220 C $8.30 $6.85
    LT1370HVCT7#PBF TO-220 C $8.30 $6.85
    LT1370HVIR DDPAK-7 I $10.10 $8.35
    LT1370HVIR#PBF DDPAK-7 I $10.10 $8.35
    LT1370HVIR#TR DDPAK-7 I $8.47
    LT1370HVIR#TRPBF DDPAK-7 I $8.47
    LT1370HVIT7 TO-220 I $9.95 $8.25
    LT1370HVIT7#PBF TO-220 I $9.95 $8.25
    LT1370IR DDPAK-7 I $8.90 $7.35
    LT1370IR#PBF DDPAK-7 I $8.90 $7.35
    LT1370IR#TR DDPAK-7 I $7.47
    LT1370IR#TRPBF DDPAK-7 I $7.47
    LT1370IT7 TO-220 I $8.75 $7.25
    LT1370IT7#PBF TO-220 I $8.75 $7.25
