LTC1264技术文档下载：

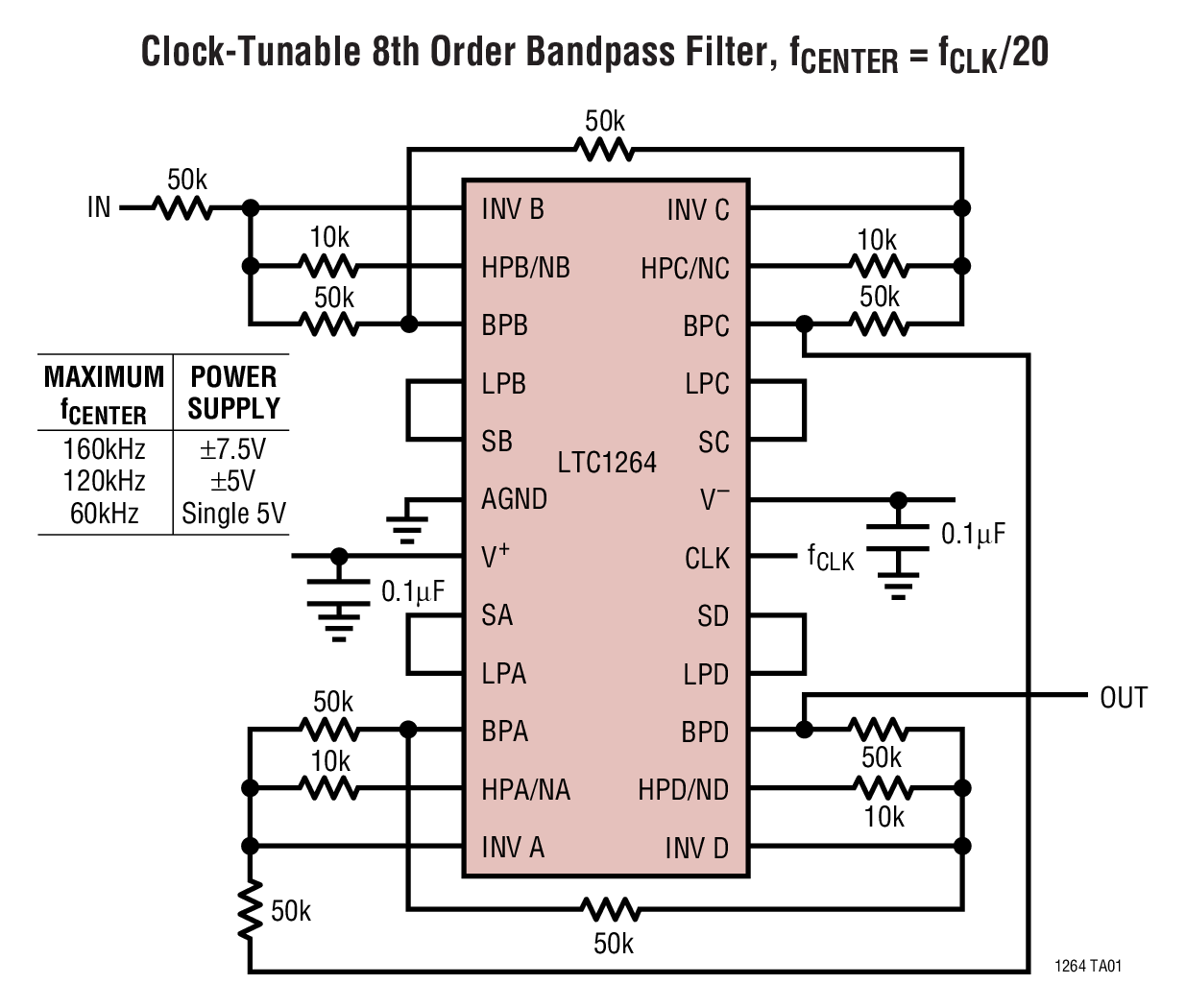

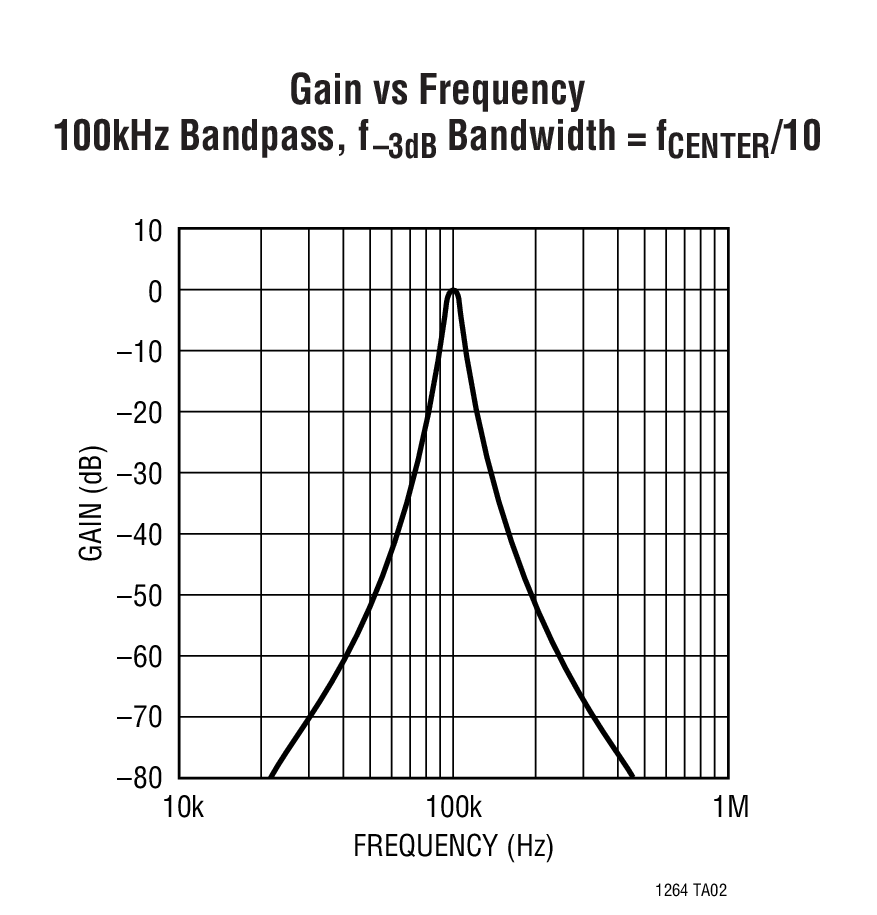

LTC1264 - 典型应用图例：

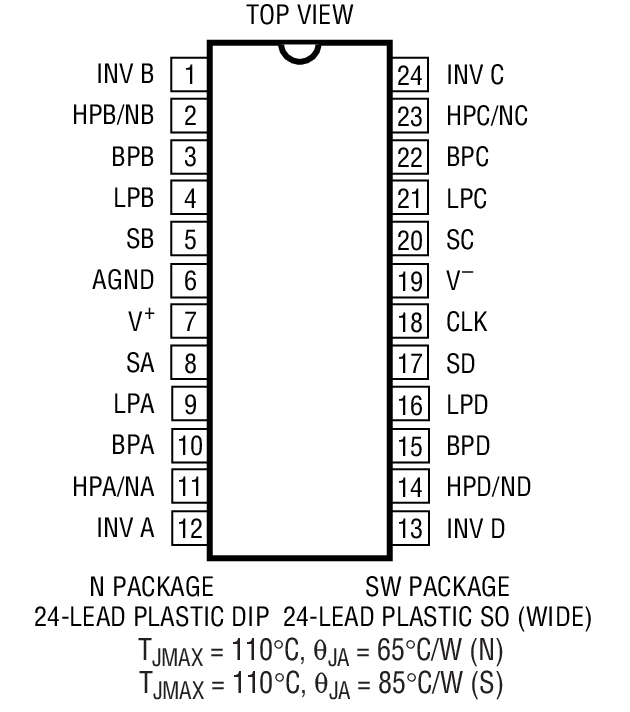

LTC1264 - 封装图解：

LTC1264 - LTC1264是High Speed, Quad Universal Filter Building Block

LTC1264是Linear公司的一款滤波器单元式部件产品，LTC1264是High Speed, Quad Universal Filter Building Block，本站介绍了LTC1264的封装应用图解、特点和优点、功能等，并给出了与LTC1264相关的凌力尔特元器件型号供参考。

LTC1264 - High Speed, Quad Universal Filter Building Block

LTC1264 - High Speed, Quad Universal Filter Building Block - Linear Technology（凌力尔特）

功能描述

The H (Metal Can), J (Ceramic), and K (Metal Can) Packages From Linear Technology Are Now Obsolete

The aliasing performance of the LTC1264 is improved by double-sampling each 2nd order section. Input signal frequencies can reach up to twice the clock frequency before any alias products will be detectable.

For Q A customized monolithic version of the LTC1264 including internal thin film resistors can be obtained.

特点

High Speed, Up to 250kHz Center Frequency

Four Identical Filters in a 0.3

Clock-to-Center Frequency Ratio of 20:1

Double-Sampling, Improved Aliasing

Operates from ±2.37V to ±8V Power Supplies

Customized Version with Internal Resistors Available

Low Noise

Low Harmonic Distortion

应用

Digital Communications

Spread Spectrum Communications

Spectral Analysis

Loran Receivers

Instrumentation

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC1264CN	N-24	C	$11.70	$9.45
LTC1264CN#PBF	N-24	C	$11.70	$9.45
LTC1264CSW	SW-24	C	$13.70	$10.80
LTC1264CSW#PBF	SW-24	C	$13.70	$10.80
LTC1264CSW#TR	SW-24	C		$10.90
LTC1264CSW#TRPBF	SW-24	C		$10.90
