LTC1448技术文档下载：

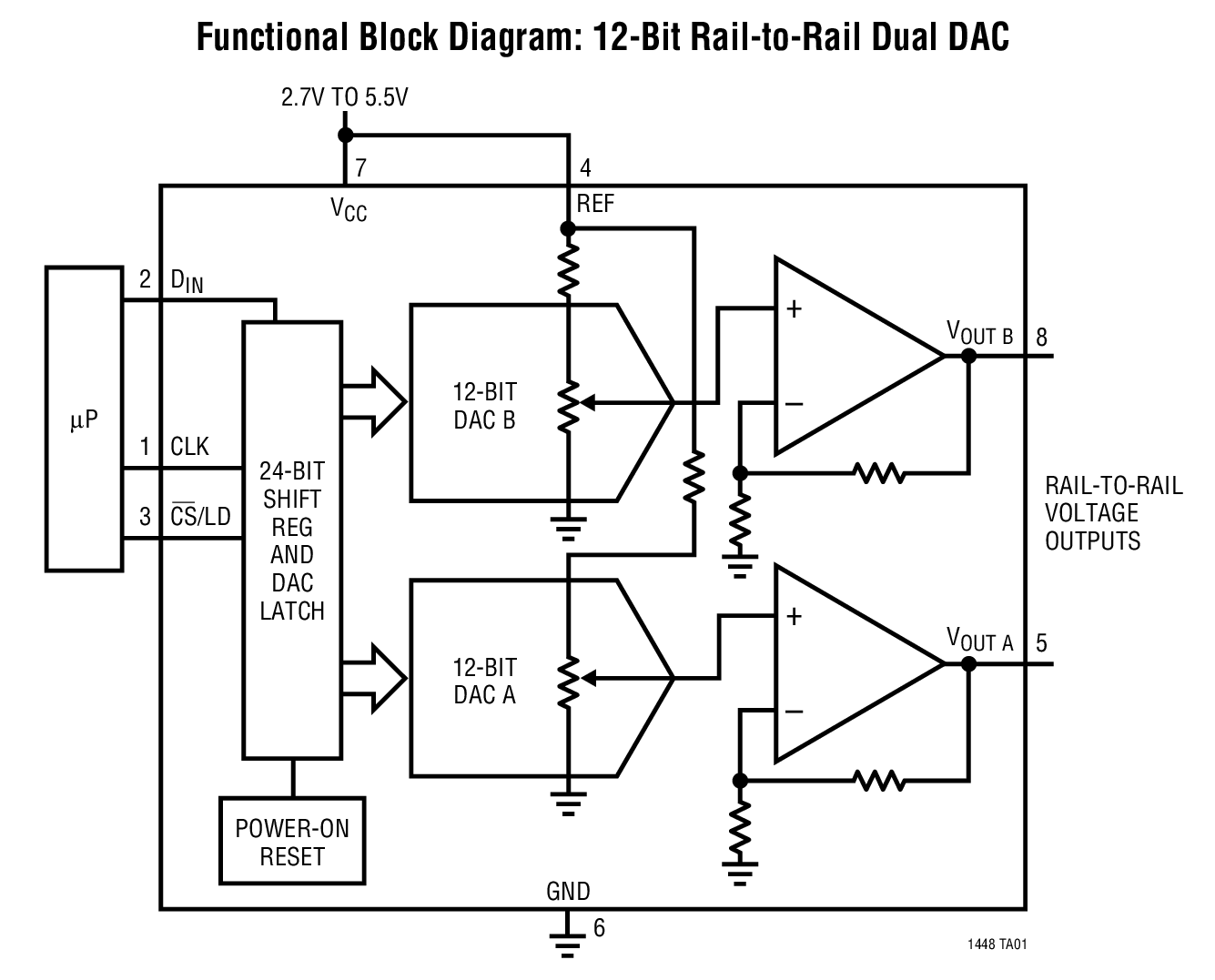

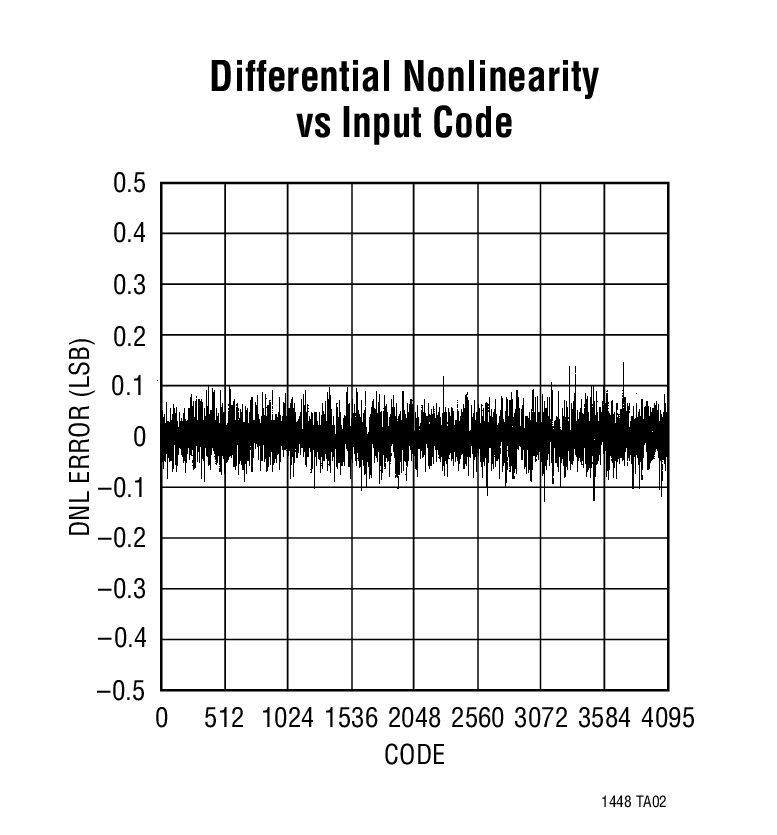

LTC1448 - 典型应用图例：

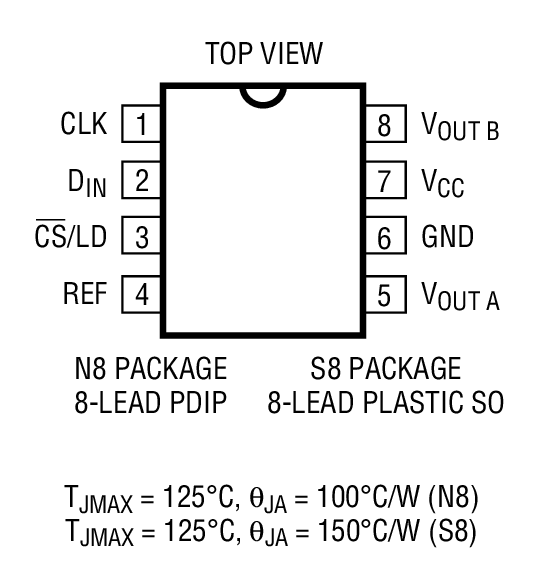

LTC1448 - 封装图解：
LTC1448 - LTC1448是Dual 12-Bit Rail-to-Rail Micropower DAC
LTC1448是Linear公司的一款电压输出 DAC产品，LTC1448是Dual 12-Bit Rail-to-Rail Micropower DAC，本站介绍了LTC1448的封装应用图解、特点和优点、功能等，并给出了与LTC1448相关的凌力尔特元器件型号供参考。
LTC1448 - Dual 12-Bit Rail-to-Rail Micropower DAC
LTC1448 - Dual 12-Bit Rail-to-Rail Micropower DAC - Linear Technology（凌力尔特）
功能描述
The LTC?1448 is a dual rail-to-rail voltage output, 12-bit digital-to-analog converter (DAC). It includes rail-to-rail output buffer amplifiers and an easy-to-use 3-wire serial interface. It is available in 8-pin SO and PDIP packages and provides the smallest footprint of any dual 12-bit DAC.The LTC1448 has an external reference input pin (REF) and its outputs swing from 0V to REF. The REF input can be tied to VCC providing rail-to-rail operation from supplies of 2.7V to 5.5V. (For devices with internal reference see the LTC1446 data sheet.) The LTC1448 dissipates 2.5mW from a 5V supply.The low power supply current and the small SO-8 package make the LTC1448 ideal for battery-powered applications. 特点
应用
以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) |
|---|---|---|---|---|
| LTC1448CN8 | N-8 | C | $8.00 | $6.40 |
| LTC1448CN8#PBF | N-8 | C | $8.00 | $6.40 |
| LTC1448CS8 | SO-8 | C | $8.10 | $6.50 |
| LTC1448CS8#PBF | SO-8 | C | $8.10 | $6.50 |
| LTC1448CS8#TR | SO-8 | C | $6.56 | |
| LTC1448CS8#TRPBF | SO-8 | C | $6.56 | |
| LTC1448IN8 | N-8 | I | $9.00 | $7.20 |
| LTC1448IN8#PBF | N-8 | I | $9.00 | $7.20 |
| LTC1448IS8 | SO-8 | I | $9.10 | $7.30 |
| LTC1448IS8#PBF | SO-8 | I | $9.10 | $7.30 |
| LTC1448IS8#TR | SO-8 | I | $7.36 | |
| LTC1448IS8#TRPBF | SO-8 | I | $7.36 |
