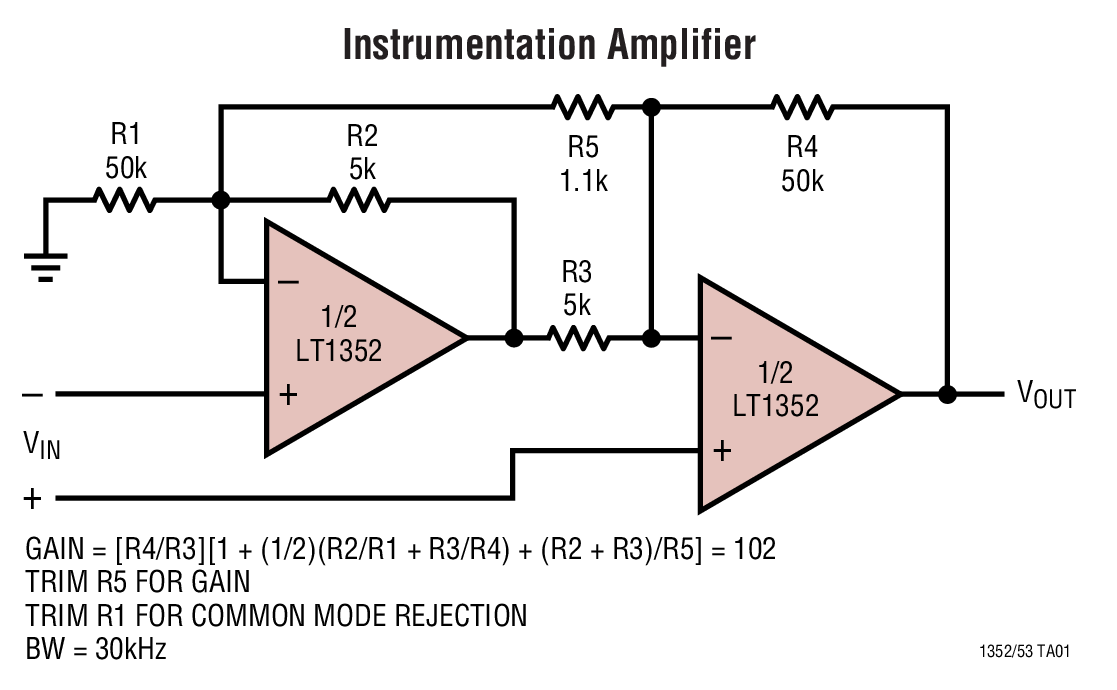

LT1352典型应用图例一

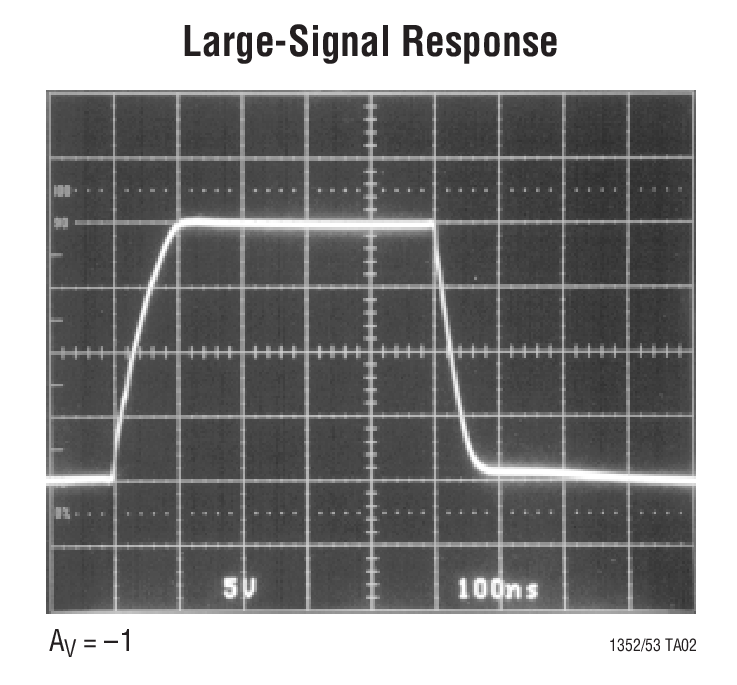

LT1352典型应用图例二
LT1352 - 封装图解：

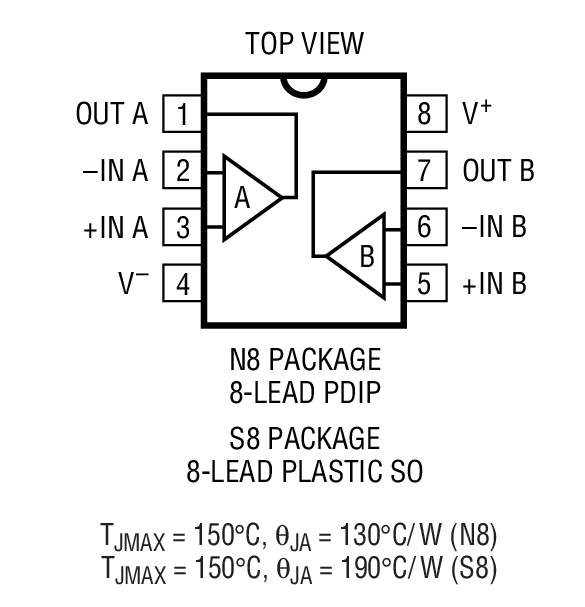

LT1352封装图解一
LT1352封装图解二
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LT1352介绍

LT1352 - LT1352是Dual and Quad 250μA, 3MHz, 200V/μs Operational Amplifier

LT1352是LINEAR凌力尔特公司的一款低功率放大器产品，LT1352是LT1352是Dual and Quad 250μA, 3MHz, 200V/μs Operational Amplifier，本站介绍了LT1352的封装应用图解、特点和优点、功能等，并给出了与LT1352相关的LINEAR元器件型号供参考。

LT1352 - LT1352是Dual and Quad 250μA, 3MHz, 200V/μs Operational Amplifier - 低功率放大器 - 信号调理 - 凌力尔特

LT1352 - Dual and Quad 250μA, 3MHz, 200V/μs Operational Amplifier

LT1352 - Dual and Quad 250μA, 3MHz, 200V/μs Operational Amplifier - Linear Technology（凌力尔特）

功能描述

The LT?1352/LT1353 are dual and quad, very low power,high speed operational amplifiers with outstanding ACand DC performance. The amplifiers feature much lowersupply current and higher slew rate than devices withcomparable bandwidth. The circuit combines the slewingperformance of a current feedback amplifier in a trueoperational amplifier with matched high impedanceinputs. The high slew rate ensures that the large-signalbandwidth is not degraded. Each output is capable ofdriving a 1k Ohm load to ?13V with ±15V supplies and a 500Wload to ?3.4V on ±5V supplies.

The LT1352/LT1353 are members of a family of fast, highperformance amplifiers using this unique topology andemploying Linear Technology Corporation’s advancedcomplementary bipolar processing. For higher bandwidthdevices with higher supply current see the LT1354 throughLT1365 data sheets. Bandwidths of 12MHz, 25MHz, 50MHzand 70MHz are available with 1mA, 2mA, 4mA and 6mA ofsupply current per amplifier. Singles, duals and quads ofeach amplifier are available. The LT1352 is available in an8-lead SO package. The LT1353 is offered in a 14-leadnarrow surface mount package.

特点
  • 3MHz Gain Bandwidth
  • 200V/µs Slew Rate
  • 250µA Supply Current per Amplifier
  • C-Load™ Op Amp Drives All Capacitive Loads
  • Unity-Gain Stable
  • Maximum Input Offset Voltage: 600µV
  • Maximum Input Bias Current: 50nA
  • Maximum Input Offset Current: 15nA
  • Minimum DC Gain, RL = 2k: 30V/mV
  • Input Noise Voltage: 14nV/rt Hz
  • Settling Time to 0.1%, 10V Step: 700ns
  • Settling Time to 0.01%, 10V Step: 1.25µs
  • Minimum Output Swing into 1k: ±13V
  • Minimum Output Swing into 500 ohms: ±3.4V
  • Specified at ±2.5V, ±5V and ±15V
  • Available in SO-8 Package
  • LT1353 in Narrow Surface Mount Package
    • 应用
  • Battery-Powered Systems
  • Wideband Amplifiers
  • Buffers
  • Active Filters
  • Data Acquisition Systems
  • Photodiode Amplifiers
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT1352CN8 N-8 C $4.65 $3.80
    LT1352CN8#PBF N-8 C $4.65 $3.80
    LT1352CS8 SO-8 C $5.10 $4.10
    LT1352CS8#PBF SO-8 C $5.10 $4.10
    LT1352CS8#TR SO-8 C $4.16
    LT1352CS8#TRPBF SO-8 C $4.16
    LT1352IN8 N-8 I $5.98 $4.55
    LT1352IN8#PBF N-8 I $5.98 $4.55
    LT1352IS8 SO-8 I $6.52 $4.90
    LT1352IS8#PBF SO-8 I $6.52 $4.90
    LT1352IS8#TR SO-8 I $4.96
    LT1352IS8#TRPBF SO-8 I $4.96
