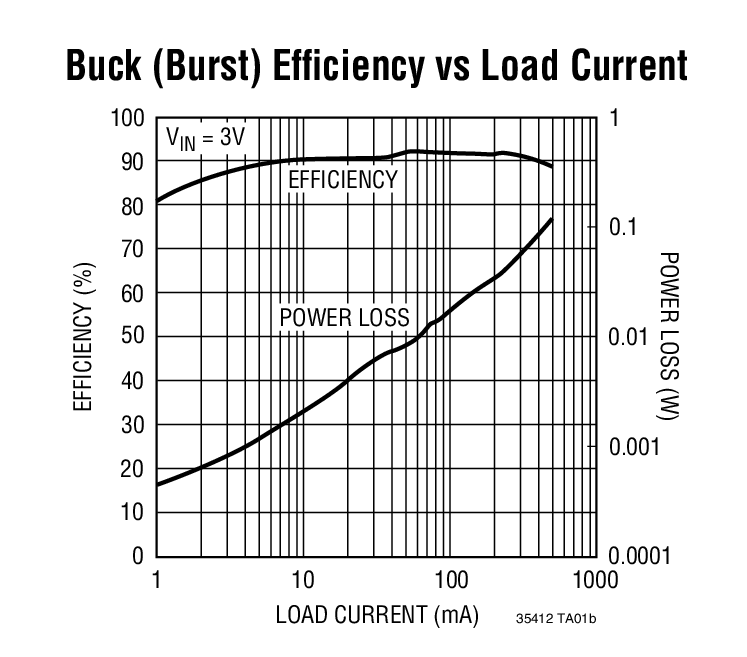

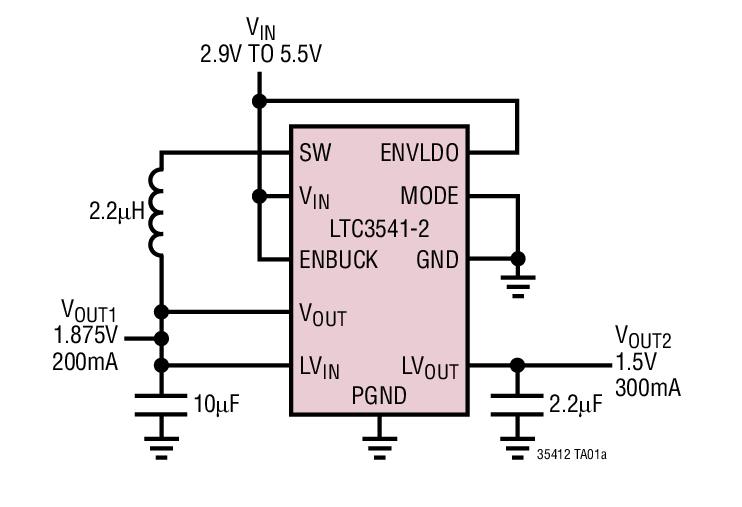

LTC3541-2典型应用图例一
LTC3541-2典型应用图例二
LTC3541-2 - 封装图解:

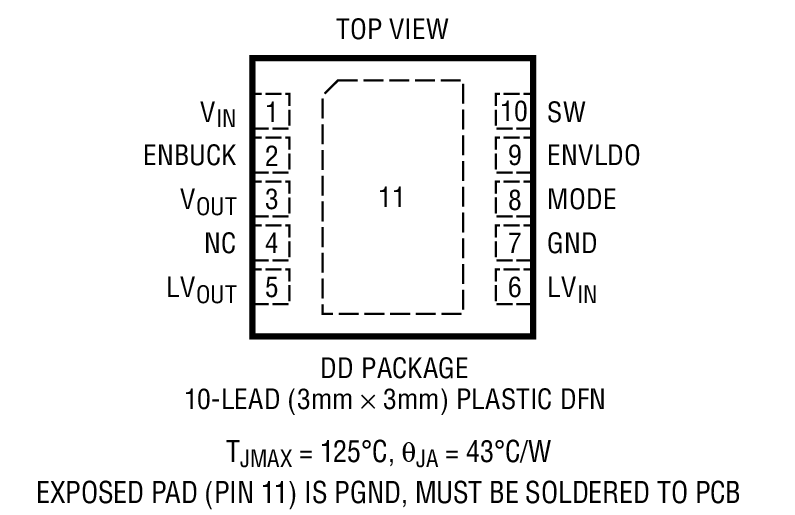

LTC3541-2封装图解一
承诺原装正品
专营Linear,真正优化您的供应链
Linear产品 - LTC3541-2介绍
LTC3541-2 - LTC3541-2是High Efficiency Buck + VLDO Regulator

LTC3541-2是Linear公司的一款内部开关电源降压产品,LTC3541-2是High Efficiency Buck + VLDO Regulator,本站介绍了LTC3541-2的封装应用图解、特点和优点、功能等,并给出了与LTC3541-2相关的凌力尔特元器件型号供参考。

LTC3541-2 - High Efficiency Buck + VLDO Regulator

LTC3541-2 - High Efficiency Buck + VLDO Regulator - Linear Technology(凌力尔特)

功能描述
The LTC3541-2 combines a synchronous buck DC/ DC converter with a very low dropout linear regulator (VLDO regulator) and internal feedback resistor networks to provide two output voltages from a single input voltage with minimal external components. When configured for dual output operation, the LTC3541-2’s auto start-up feature will bring the 1.875V buck output into regulation in a controlled manner, prior to enabling the 1.5V VLDO output without the need for external pin control. The 1.5V VLDO/linear regulator output prior to 1.875V buck output sequencing may also be obtained via external pin control. The input voltage range is ideally suited for Li-Ion battery applications powering sub-3.3V logic from 5V or 3.3V rails.

The synchronous buck converter provides a high effi ciency output, typically 90%. It can provide up to 500mA of output current while switching at 2.25MHz, allowing the use of small surface mount inductors and capacitors. A mode select pin allows Burst Mode operation to be enabled for higher effi ciency at light load currents, or disabled for lower noise, constant frequency operation.

The VLDO regulator provides a low noise, low voltage output capable of providing up to 300mA of output current using only a 2.2μF ceramic capacitor. The input supply voltage of the VLDO regulator (LVIN) may come from the buck regulator output or a separate supply.

特点
  • High Efficiency, 500mA Buck Plus 300mA VLDO Regulator
  • Auto Start-Up Powers Buck Output Prior to VLDO/ Linear Regulator Output
  • Independent 500mA High Efficiency Buck (VIN: 2.7V to 5.5V)
  • 300mA VLDO Regulator with 30mA Standalone Mode
  • No External Schottky Diodes Required
  • Fixed Buck Output Voltage: 1.875V
  • VLDO Input Voltage Range (LVIN: 1.6V to 5.5V)
  • Fixed VLDO Output Voltage: 1.5V
  • Selectable Fixed Frequency, Pulse-Skip Operation or Burst Mode Operation
  • Short-Circuit Protected
  • Current Mode Operation for Excellent Line and Load Transient Response
  • Shutdown Current: <3μA
  • Constant Frequency Operation: 2.25MHz
  • Low Dropout Buck Operation: 100% Duty Cycle
  • Small, Thermally Enhanced, 10-Lead (3mm × 3mm) DFN Package
  • 应用
  • Digital Cameras
  • Cellular Phones
  • PC Cards
  • Wireless and DSL Modems
  • Other Portable Power Systems
  • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格(美元)
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC3541EDD-2#PBF 3x3 DFN-10 E $2.70 $1.89
    LTC3541EDD-2#TRPBF 3x3 DFN-10 E $1.95
