LTC1344A - Software-Selectable Cable Terminator
LTC1344A - Software-Selectable Cable Terminator - Linear Technology（凌力尔特）

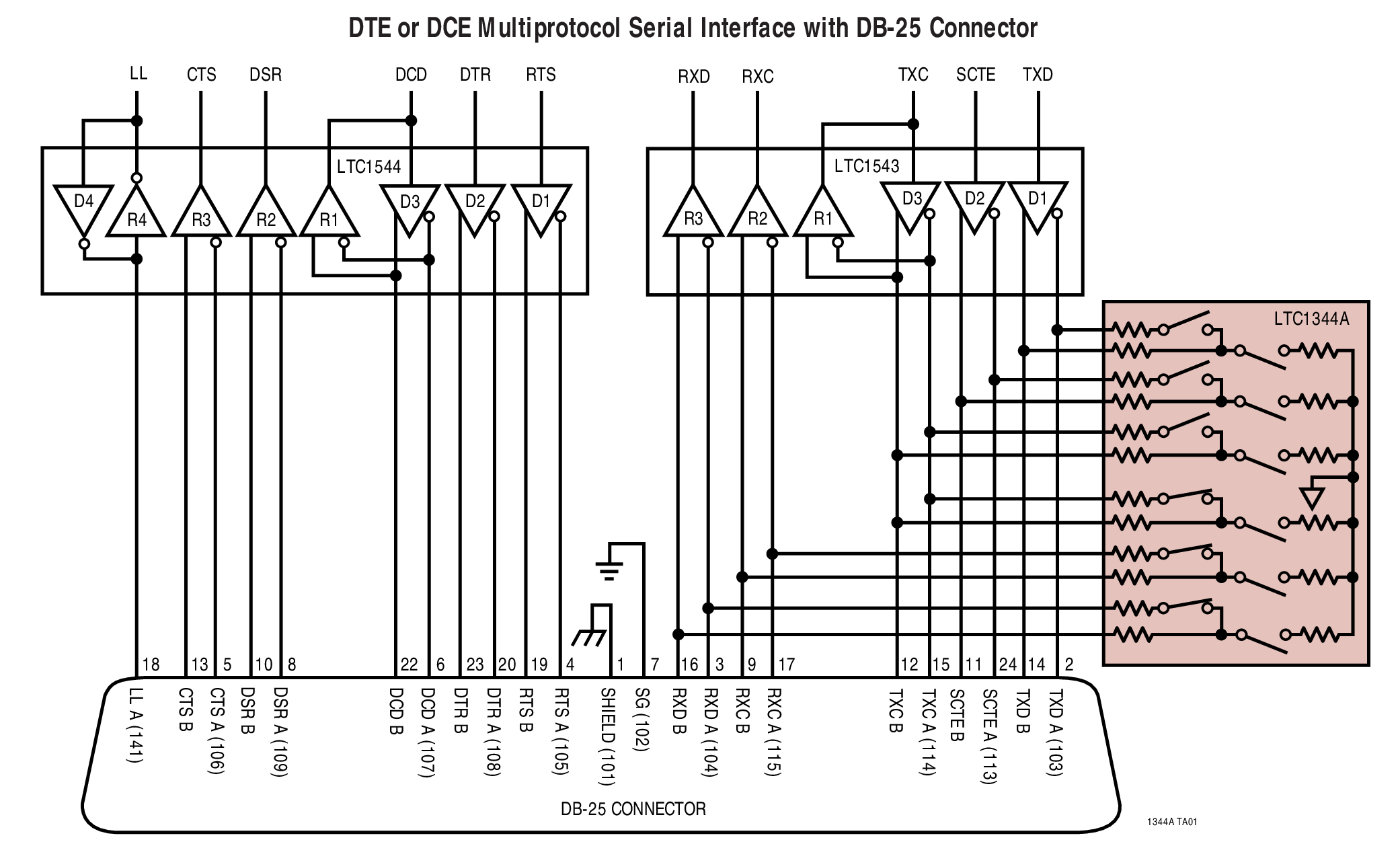

The LTC1344A features six software-selectable multiprotocol cable terminators. Each terminator can be configured as an RS422 (V.11) 100ohms minimum differential load, V.35 T-network load or an open circuit for use with RS232 (V.28) or RS423 (V.10) transceivers that provide their own termination. When combined with the LTC1543 and LTC1544, the LTC1344A forms a complete software-selectable multiprotocol serial port. A data bus latch feature allows sharing of the select lines between multiple interface ports.
The LTC1344A is similar to the LTC1344 except for a difference in the Mode Selection table.

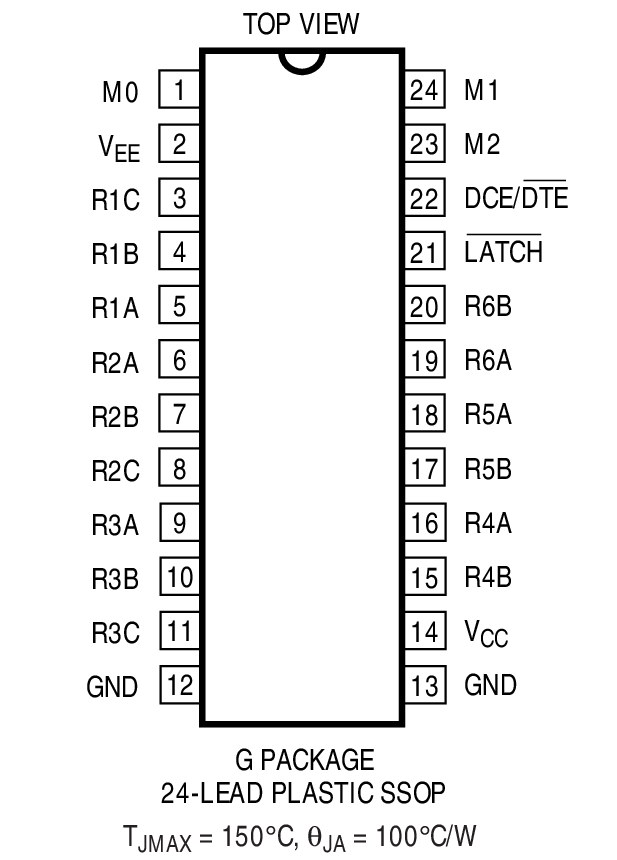

The LTC1344A is available in a 24-lead SSOP.
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) |
|---|---|---|---|---|
| LTC1344ACG | SSOP-24 | C | $7.80 | $6.40 |
| LTC1344ACG#PBF | SSOP-24 | C | $7.80 | $6.40 |
| LTC1344ACG#TR | SSOP-24 | C | $6.50 | |
| LTC1344ACG#TRPBF | SSOP-24 | C | $6.50 | |
| LTC1344AIG | SSOP-24 | I | $9.05 | $7.65 |
| LTC1344AIG#PBF | SSOP-24 | I | $9.05 | $7.65 |
| LTC1344AIG#TR | SSOP-24 | I | $7.75 | |
| LTC1344AIG#TRPBF | SSOP-24 | I | $7.75 |
