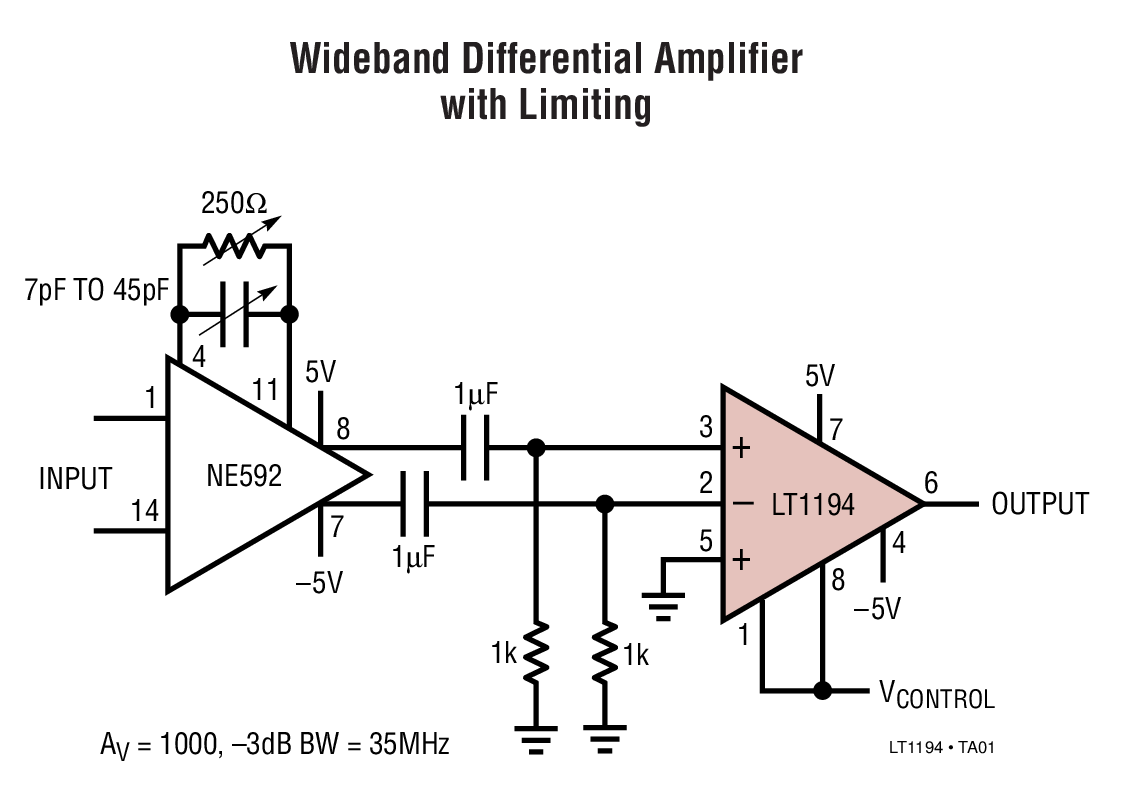

The LT1194 is a video difference amplifier optimized for operation on ±5V and a single 5V supply. The amplifier has a fixed gain of 20dB and features adjustable input limiting to control tough overdrive applications. It has uncommitted high input impedance (+) and (–) inputs, and can be used in differential or single-ended configurations.

The LT1194’s high slew rate 500V/µs, wide bandwidth 35MHz, and ±50mA output current make it ideal for driving cables directly. This versatile amplifier is easy to use for video or applications requiring speed, accuracy and low cost.

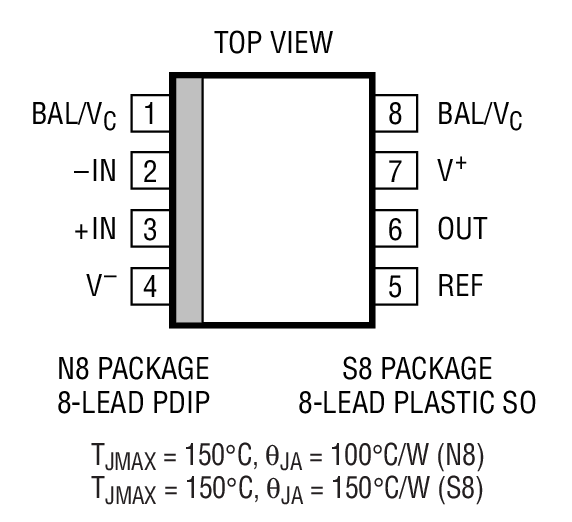

The LT1194 is available in 8-pin PDIP and SO packages.

特点

Differential or Single-Ended Gain Block ±10(20dB)

-3dB Bandwidth 35MHz

Slew Rate 500V/µs

Low Cost

Output Current ±50mA

Settling Time 200ns to 0.1%

CMRR @ 10MHz 45dB

Differential Gain Error 0.2%

Differential Phase Error 0.08°

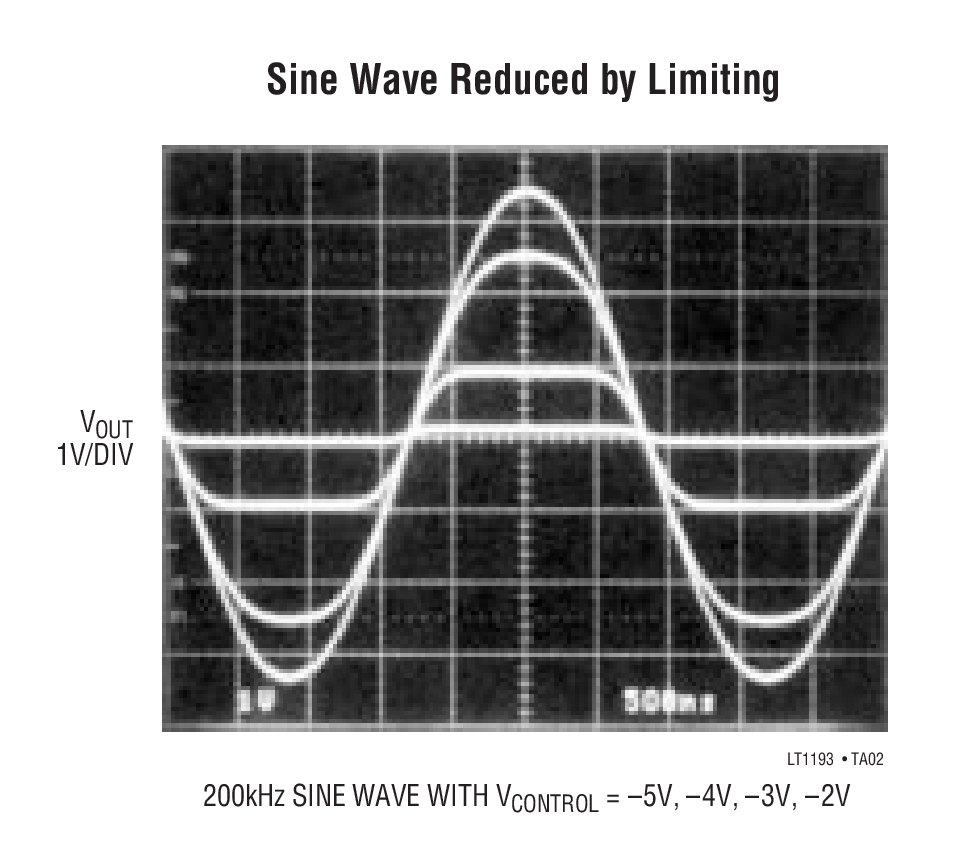

Input Amplitude Limiting
