LTC2296 - LTC2296 是Dual 14-Bit, 65/40/25Msps Low Power 3V ADCs
LTC2296是Linear公司的一款高速 ADC产品，LTC2296 是Dual 14-Bit, 65/40/25Msps Low Power 3V ADCs，本站介绍了LTC2296的封装应用图解、特点和优点、功能等，并给出了与LTC2296相关的凌力尔特元器件型号供参考。
LTC2296 - Dual 14-Bit, 65/40/25Msps Low Power 3V ADCs
LTC2296 - Dual 14-Bit, 65/40/25Msps Low Power 3V ADCs - Linear Technology（凌力尔特）
功能描述

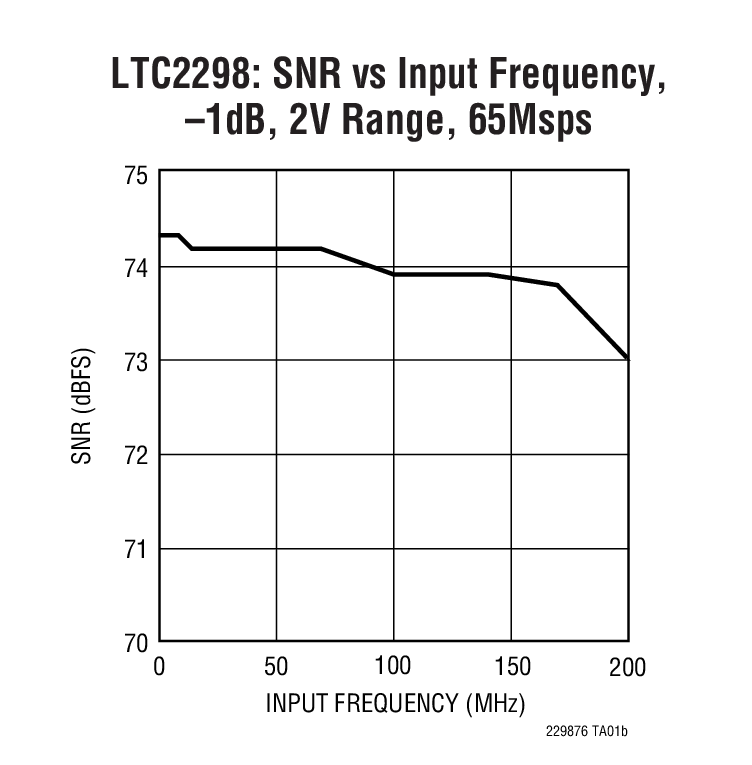

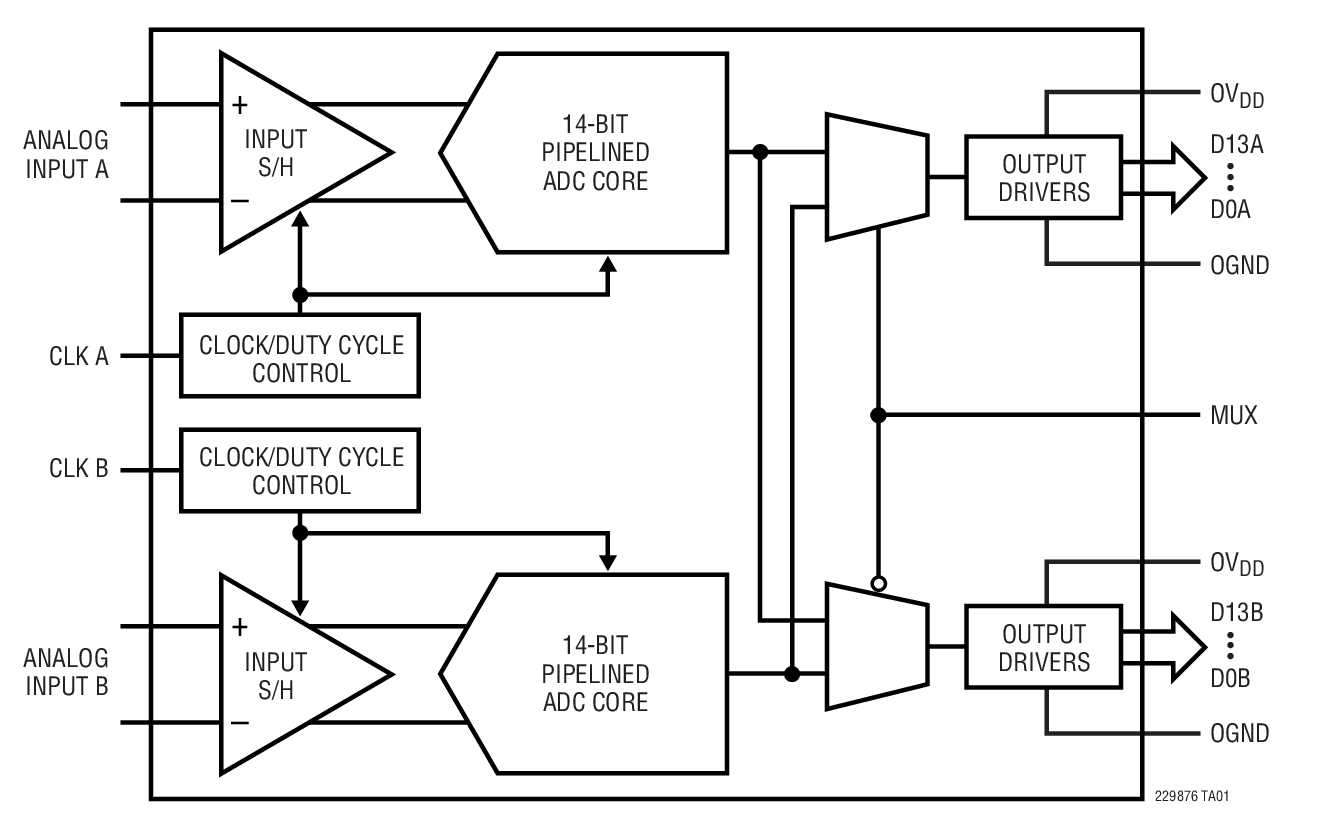

The LTC2298/LTC2297/LTC2296 are 14-bit 65Msps/40Msps/25Msps, low power dual 3V A/D converters designed for digitizing high frequency, wide dynamic range signals. The LTC2298/LTC2297/LTC2296 are perfect for demanding imaging and communications applications with AC performance that includes 74dB SNR and 85dB SFDR for signals well beyond the Nyquist frequency.
DC specs include ±1.2LSB INL (typ), ±0.5LSB DNL (typ) and no missing codes over temperature. The transition noise is a low 1LSBRMS.
A single 3V supply allows low power operation. A separate output supply allows the outputs to drive 0.5V to 3.3V logic. An optional multiplexer allows both channels to share a digital output bus.
A single-ended CLK input controls converter operation. An optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.
特点

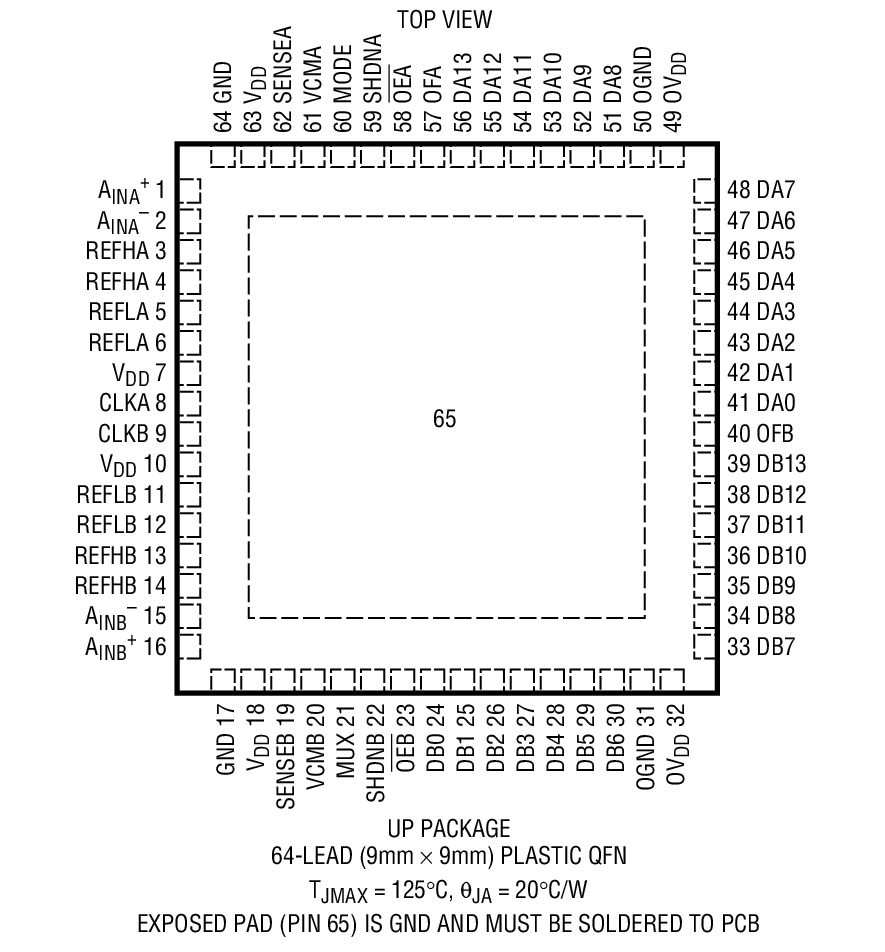

Integrated Dual 14-Bit ADCs Sample Rate: 65Msps/40Msps/25Msps Single 3V Supply (2.7V to 3.4V) Low Power: 400mW/235mW/150mW 74.3dB SNR 90dB SFDR 110dB Channel Isolation at 100MHz Multiplexed or Separate Data Bus Flexible Input: 1VP-P to 2VP-P Range 575MHz Full Power Bandwidth S/H Clock Duty Cycle Stabilizer Shutdown and Nap Modes Pin Compatible Family105Msps: LTC2282 (12-Bit), LTC2284 (14-Bit)80Msps: LTC2294 (12-Bit), LTC2299 (14-Bit)65Msps: LTC2293 (12-Bit), LTC2298 (14-Bit)40Msps: LTC2292 (12-Bit), LTC2297 (14-Bit)25Msps: LTC2291 (12-Bit), LTC2296 (14-Bit) 64-Pin (9mm × 9mm) QFN Package应用
Wireless and Wired Broadband Communication Imaging Systems Spectral Analysis Portable Instrumentation以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) |
| LTC2296CUP | 9x9 QFN-64 | C | $25.93 | $18.75 |
| LTC2296CUP#PBF | 9x9 QFN-64 | C | $25.93 | $18.75 |
| LTC2296CUP#TR | 9x9 QFN-64 | C | | $18.85 |
| LTC2296CUP#TRPBF | 9x9 QFN-64 | C | | $18.85 |
| LTC2296IUP | 9x9 QFN-64 | I | $31.13 | $22.50 |
| LTC2296IUP#PBF | 9x9 QFN-64 | I | $31.13 | $22.50 |
| LTC2296IUP#TR | 9x9 QFN-64 | I | | $22.60 |
| LTC2296IUP#TRPBF | 9x9 QFN-64 | I | | $22.60 |
