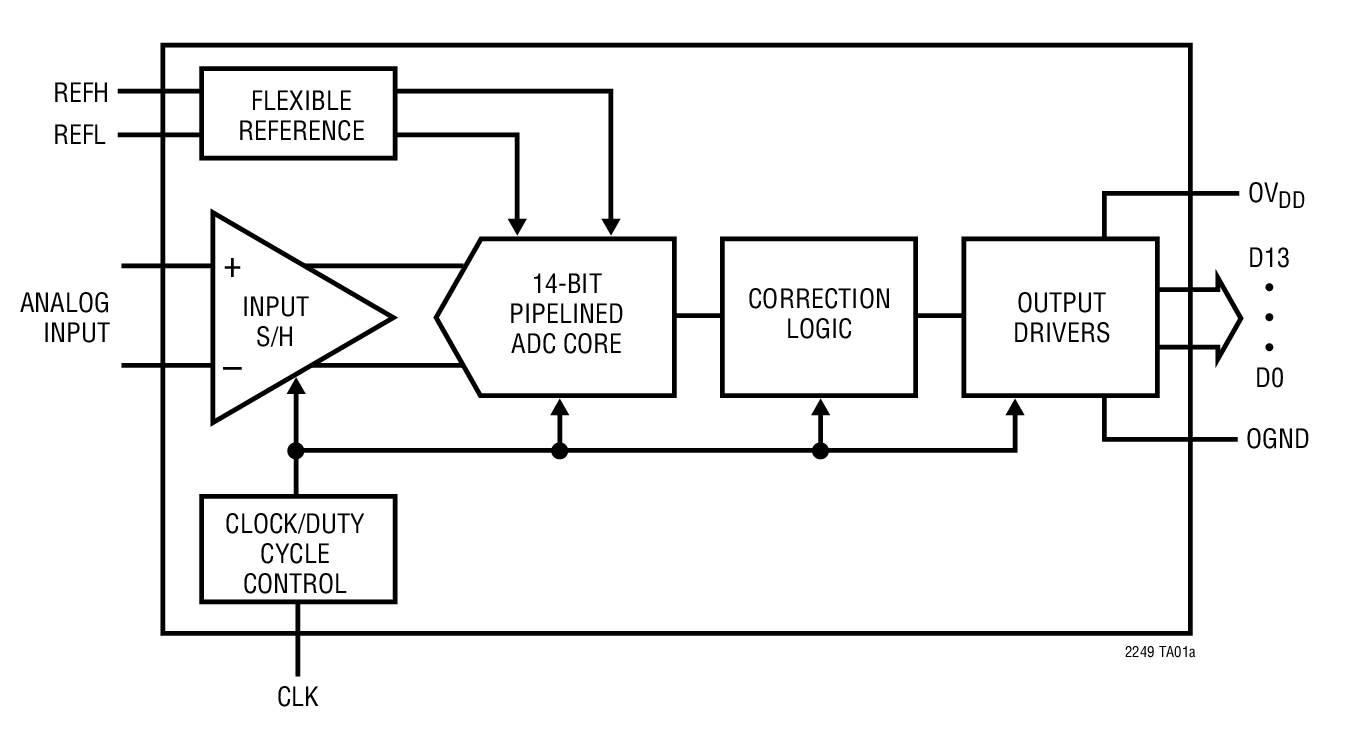

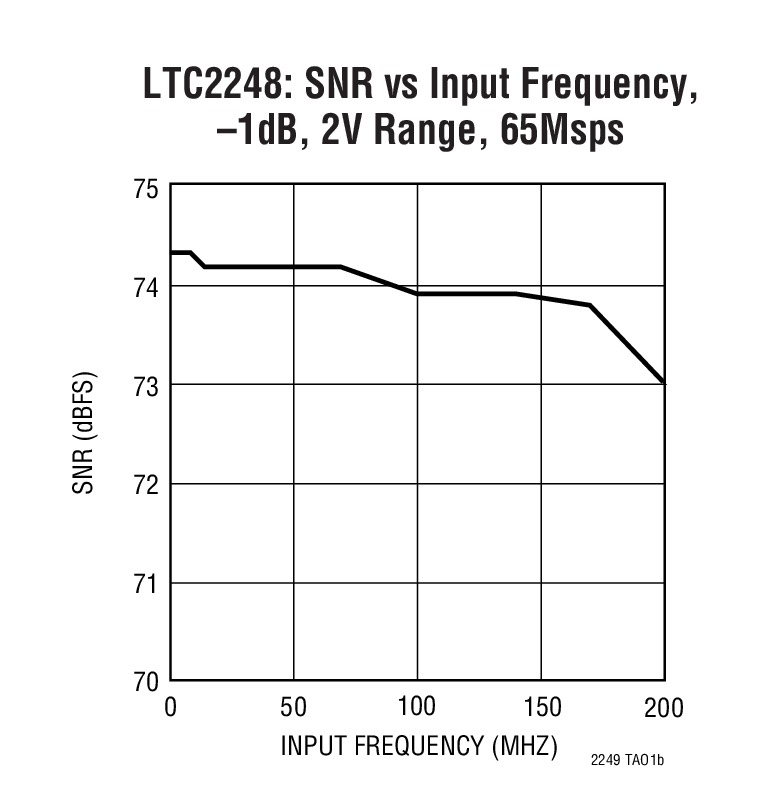

LTC2246 - 典型应用图例：

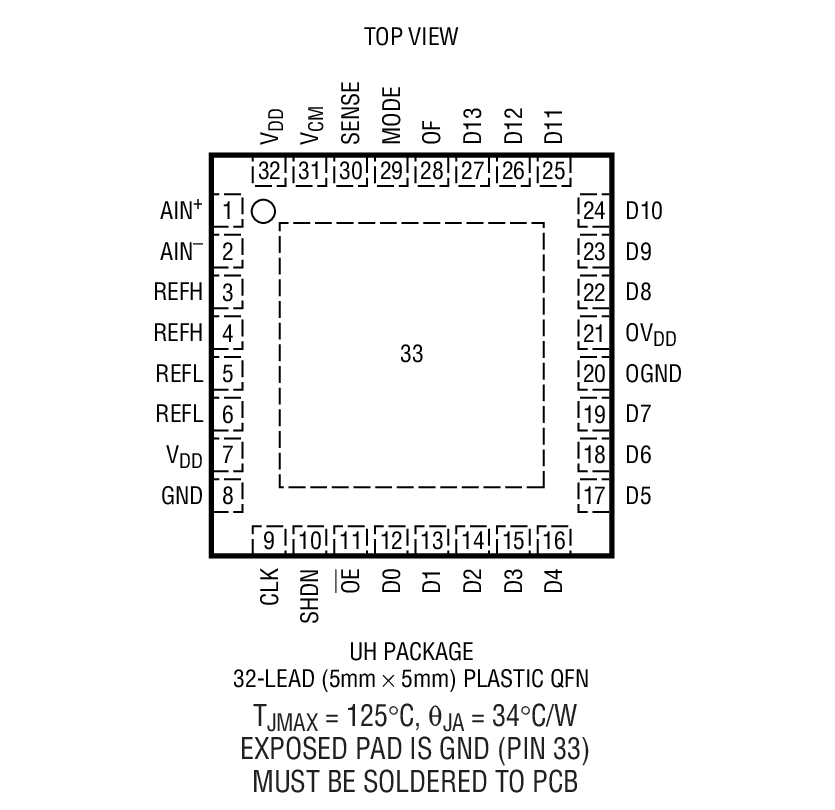

LTC2246 - 封装图解：

LTC2246 - LTC2246是14-Bit, 25Msps Low Power 3V ADC

LTC2246是Linear公司的一款高速 ADC产品，LTC2246是14-Bit, 25Msps Low Power 3V ADC，本站介绍了LTC2246的封装应用图解、特点和优点、功能等，并给出了与LTC2246相关的凌力尔特元器件型号供参考。

LTC2246 - 14-Bit, 25Msps Low Power 3V ADC

LTC2246 - 14-Bit, 25Msps Low Power 3V ADC - Linear Technology（凌力尔特）

功能描述

The LTC2248/LTC2247/LTC2246 are 14-bit 65Msps/40Msps/25Msps, low power 3V A/D converters designed for digitizing high frequency, wide dynamic range signals. The LTC2248/LTC2247/LTC2246 are perfect for demanding imaging and communications applications with AC performance that includes 74dB SNR and 80dB SFDR for signals well beyond the Nyquist frequency.

DC specs include ±1LSB INL (typ), ±0.5LSB DNL (typ) and no missing codes over temperature. The transition noise is a low 1LSBRMS.

A single 3V supply allows low power operation. A separate output supply allows the outputs to drive 0.5V to 3.6V logic.

A single-ended CLK input controls converter operation. An optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.

特点

Sample Rate: 65Msps/40Msps/25Msps

Single 3V Supply (2.7V to 3.4V)

Low Power: 205mW/120mW/75mW

74.3dB SNR

90dB SFDR

No Missing Codes

Flexible Input: 1VP-P to 2VP-P Range

575MHz Full Power Bandwidth S/H

Clock Duty Cycle Stabilizer

Shutdown and Nap Modes

Pin Compatible Family125Msps: LTC2253 (12-Bit), LTC2255 (14-Bit)105Msps: LTC2252 (12-Bit), LTC2254 (14-Bit)80Msps: LTC2229 (12-Bit), LTC2249 (14-Bit)65Msps: LTC2228 (12-Bit), LTC2248 (14-Bit)40Msps: LTC2227 (12-Bit), LTC2247 (14-Bit)25Msps: LTC2226 (12-Bit), LTC2246 (14-Bit)10Msps: LTC2225 (12-Bit), LTC2245 (14-Bit)

32-Pin (5mm × 5mm) QFN Package

应用

Wireless and Wired Broadband Communication

Imaging Systems

Ultrasound

Spectral Analysis

Portable Instrumentation
