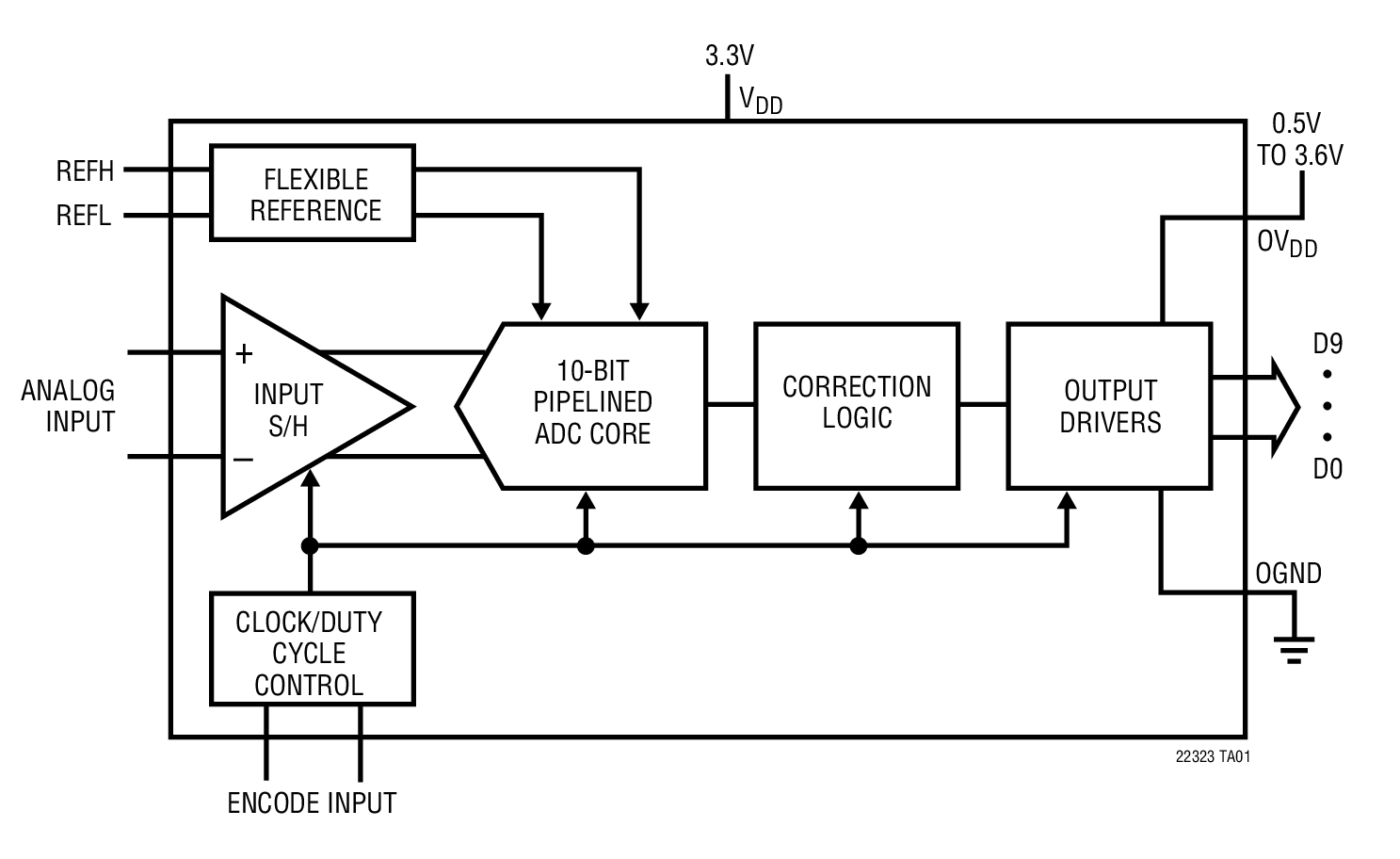

LTC2232典型应用图例一

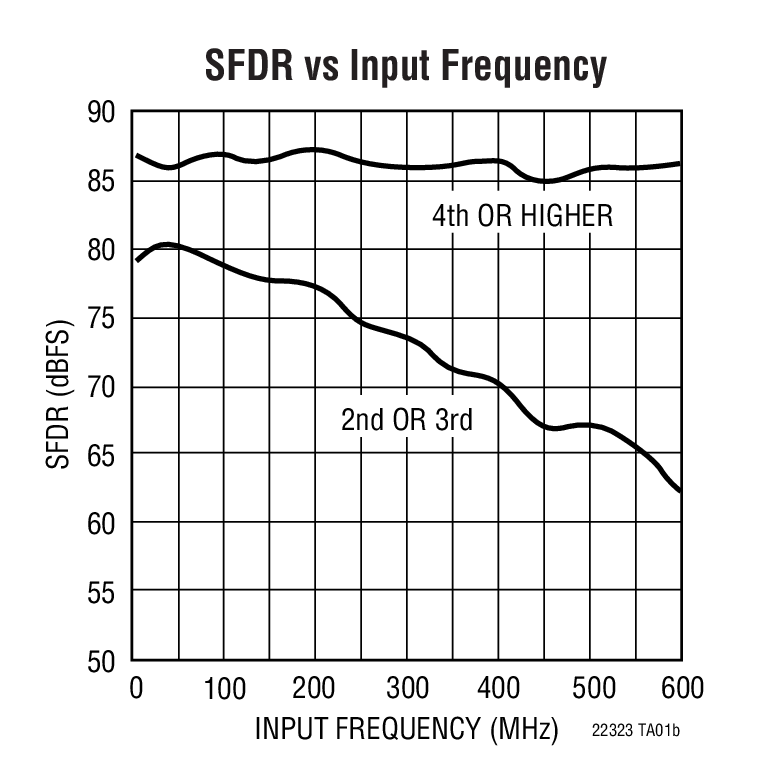

LTC2232典型应用图例二

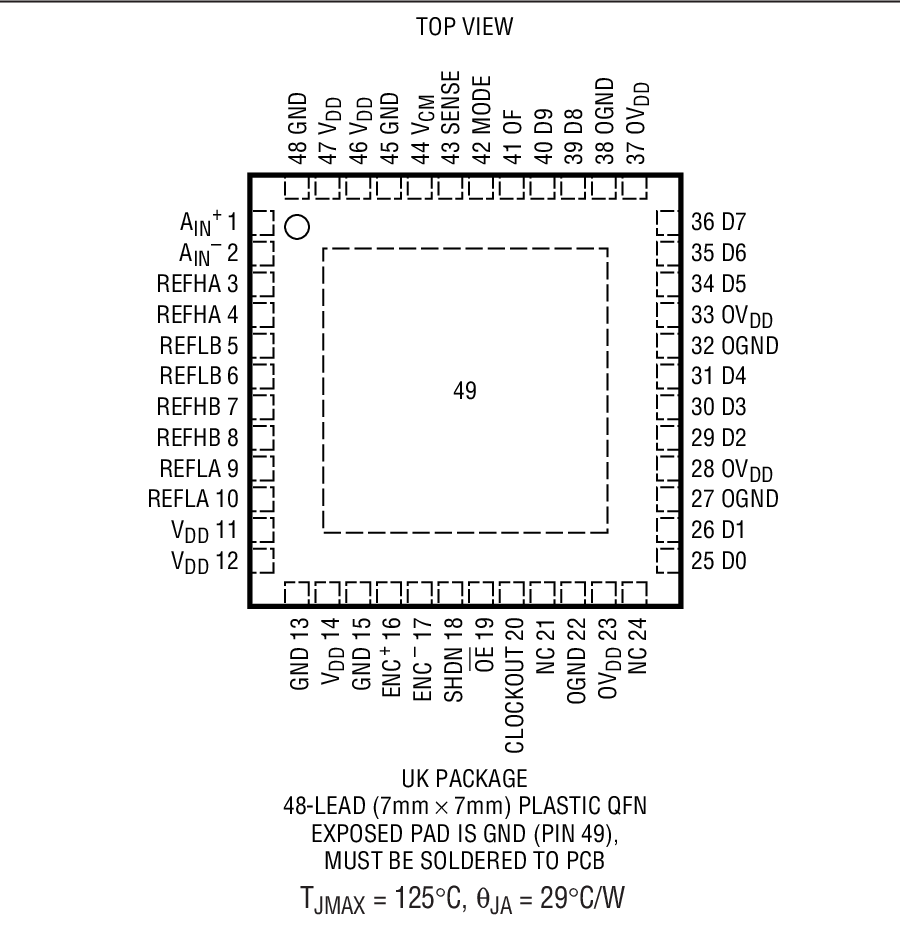

LTC2232 - 封装图解：
LTC2232封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC2232介绍

LTC2232 - LTC2232是10-Bit,105Msps/80Msps ADCs

LTC2232是LINEAR凌力尔特公司的一款高速 ADC产品，LTC2232是LTC2232是10-Bit,105Msps/80Msps ADCs，本站介绍了LTC2232的封装应用图解、特点和优点、功能等，并给出了与LTC2232相关的LINEAR元器件型号供参考。

LTC2232 - LTC2232是10-Bit,105Msps/80Msps ADCs - 高速 ADC - 数据转换 - 凌力尔特

LTC2232 - 10-Bit,105Msps/80Msps ADCs

LTC2232 - 10-Bit,105Msps/80Msps ADCs - Linear Technology（凌力尔特）

功能描述
The LTC2232 and LTC2233 are 105Msps/80Msps, sampling? 10-bit A/D converters designed for digitizing high frequency, wide dynamic range signals. The LTC2232/ LTC2233 are perfect for demanding communications applications with AC performance that includes 61dB SNR and 75dB spurious free dynamic range for signals up to 200MHz. Ultralow jitter of 0.15psRMS allows undersampling of IF frequencies with excellent noise performance.

DC specs include ±0.15LSB INL (typ), ±0.1LSB DNL (typ) and ±0.8LSB INL, ±0.6LSB DNL over temperature. The transition noise is a low 0.12LSBRMS.

A separate output power supply allows the outputs to drive 0.5V to 3.6V logic.

The ENC+ and ENC inputs may be driven differentially or single ended with a sine wave, PECL, LVDS, TTL, or CMOS inputs. An optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.

特点
  • Sample Rate: 105Msps/80Msps
  • 61dB SNR up to 140MHz Input
  • 75dB SFDR up to 200MHz Input
  • 775MHz Full Power Bandwidth S/H
  • Single 3.3V Supply
  • Low Power Dissipation: 475mW/366mW
  • Selectable Input Ranges: ±0.5V or ±1V
  • No Missing Codes
  • Optional Clock Duty Cycle Stabilizer
  • Shutdown and Nap Modes
  • Data Ready Output Clock
  • Pin Compatible Family135Msps: LTC2224 (12-Bit), LTC2234 (10-Bit)105Msps:LTC2222 (12-Bit), LTC2232 (10-Bit)?80Msps: LTC2223 (12-Bit), LTC2233 (10-Bit)
  • 48-Pin 7mm x 7mm QFN Package
    • 应用
  • Wireless and Wired Broadband Communication
  • Cable Head-End Systems
  • Power Amplifier Linearization
  • Communications Test Equipment
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC2232CUK 7x7 QFN-48 C $11.42 $8.35
    LTC2232CUK#PBF 7x7 QFN-48 C $11.42 $8.35
    LTC2232CUK#TR 7x7 QFN-48 C $8.45
    LTC2232CUK#TRPBF 7x7 QFN-48 C $8.45
    LTC2232IUK 7x7 QFN-48 I $13.67 $10.00
    LTC2232IUK#PBF 7x7 QFN-48 I $13.67 $10.00
    LTC2232IUK#TR 7x7 QFN-48 I $10.10
    LTC2232IUK#TRPBF 7x7 QFN-48 I $10.10
