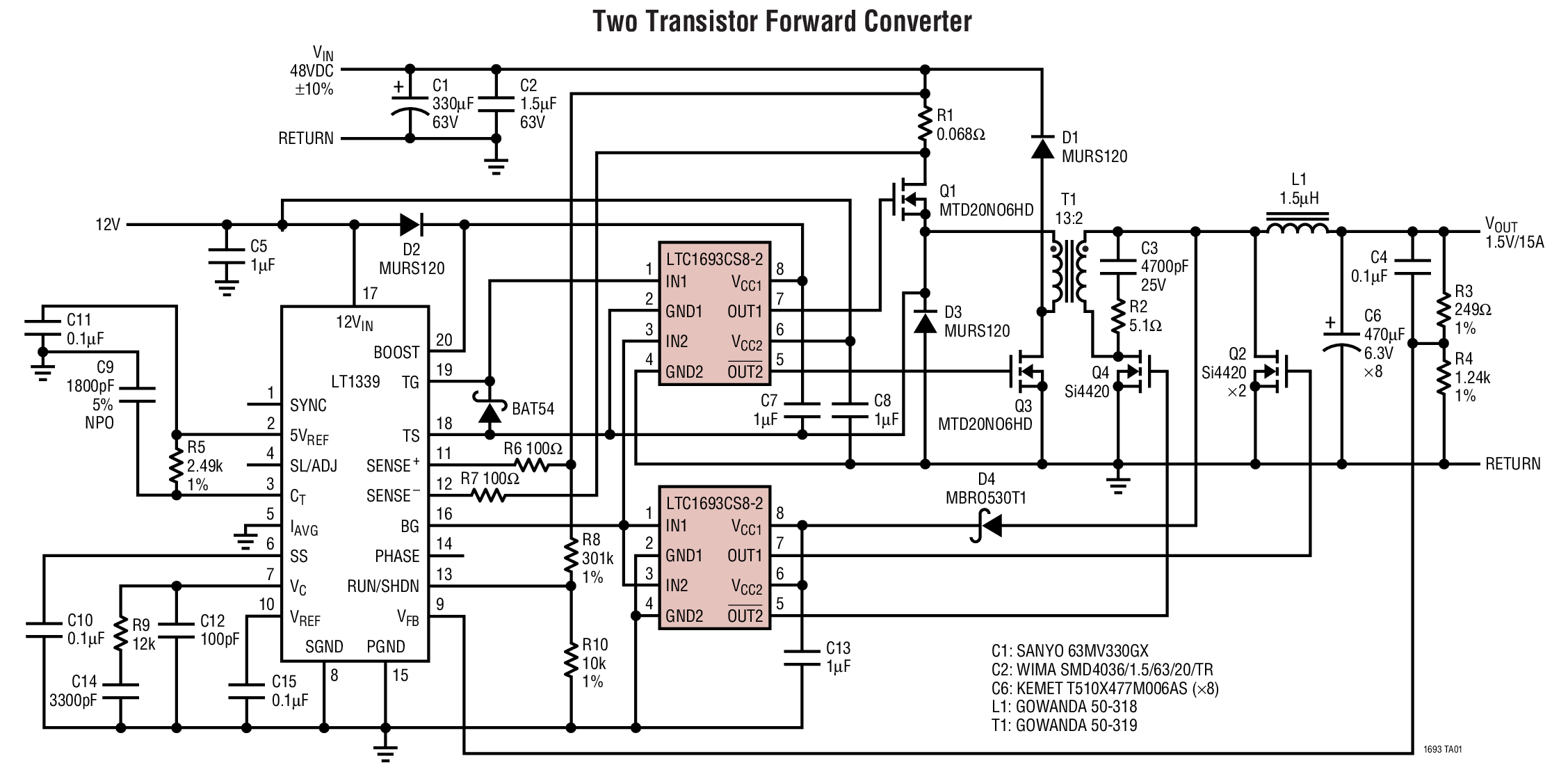

LTC1693 - 典型应用图例：
LTC1693典型应用图例一

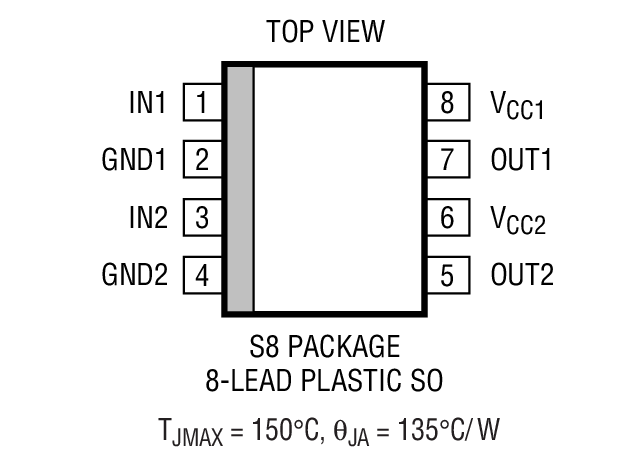

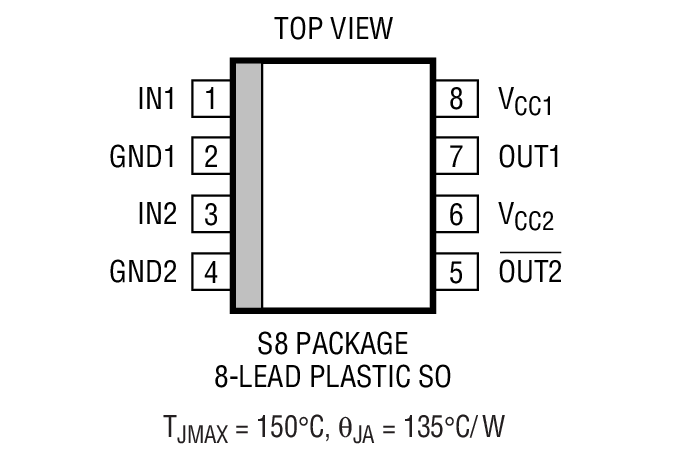

LTC1693 - 封装图解：
LTC1693封装图解一
LTC1693封装图解二
LTC1693LTC1693
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1693介绍

LTC1693 - LTC1693是High Speed Single/Dual N-Channel MOSFET Drivers

LTC1693是LINEAR凌力尔特公司的一款高压侧开关和 MOSFET 驱动器产品，LTC1693是LTC1693是High Speed Single/Dual N-Channel MOSFET Drivers，本站介绍了LTC1693的封装应用图解、特点和优点、功能等，并给出了与LTC1693相关的LINEAR元器件型号供参考。

LTC1693 - LTC1693是High Speed Single/Dual N-Channel MOSFET Drivers - 高压侧开关和 MOSFET 驱动器 - 监视、控制和保护 - 凌力尔特

LTC1693 - High Speed Single/Dual N-Channel MOSFET Drivers

LTC1693 - High Speed Single/Dual N-Channel MOSFET Drivers - Linear Technology（凌力尔特）

功能描述
The LTC1693 family drives power N-channel MOSFETs at high speed. The 1.5A peak output current reduces switching losses in MOSFETs with high gate capacitance. The LTC1693-1 contains two noninverting drivers while the LTC1693-2 contains one noninverting and one inverting driver. These dual drivers are electrically isolated and independent. The LTC1693-3 is a single driver with an output polarity select pin. All MOSFET drivers offer VCC independent CMOS input thresholds with 1.2V of typical hysteresis. They can level-shift the input logic signal up or down to the rail-to-rail VCC drive for the external MOSFET. The LTC1693 contains an undervoltage lockout circuit and a thermal shutdown circuit that disable the external N-channel MOSFET gate drive when activated. The LTC1693-1 and LTC1693-2 come in an 8-lead SO package. The LTC1693-3 comes in an 8-lead MSOP package.
特点
  • Dual MOSFET Drivers in SO-8 Package or Single MOSFET Driver in MSOP Package
  • 1G Ohms Electrical Isolation Between the Dual Drivers Permits High/Low Side Gate Drive
  • 1.5A Peak Output Current
  • 16ns Rise/Fall Times at Vcc = 12V, CL = 1nF
  • Wide Vcc Range: 4.5V to 13.2V
  • CMOS Compatible Inputs with Hysteresis, Input Thresholds are Independent of Vcc
  • Driver Input Can Be Driven Above Vcc
  • Undervoltage Lockout
  • Thermal Shutdown
    • 应用
  • Power Supplies
  • High/Low Side Drivers
  • Motor/Relay Control
  • Line Drivers
  • Charge Pumps
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1693-1CS8 SO-8 C $1.89 $1.60
    LTC1693-1CS8#PBF SO-8 C $1.89 $1.60
    LTC1693-1CS8#TR SO-8 C $1.66
    LTC1693-1CS8#TRPBF SO-8 C $1.66
    LTC1693-1IS8 SO-8 I $2.25 $1.85
    LTC1693-1IS8#PBF SO-8 I $2.25 $1.85
    LTC1693-1IS8#TR SO-8 I $1.91
    LTC1693-1IS8#TRPBF SO-8 I $1.91
    LTC1693-2CS8 SO-8 C $2.00 $1.60
    LTC1693-2CS8#PBF SO-8 C $2.00 $1.60
    LTC1693-2CS8#TR SO-8 C $1.66
    LTC1693-2CS8#TRPBF SO-8 C $1.66
    LTC1693-2IS8 SO-8 I $2.25 $1.85
    LTC1693-2IS8#PBF SO-8 I $2.25 $1.85
    LTC1693-2IS8#TR SO-8 I $1.91
    LTC1693-2IS8#TRPBF SO-8 I $1.91
    LTC1693-3CMS8 MS-8 C $1.93 $1.70
    LTC1693-3CMS8#PBF MS-8 C $1.93 $1.70
    LTC1693-3CMS8#TR MS-8 C $1.76
    LTC1693-3CMS8#TRPBF MS-8 C $1.76
