当前位置:Linear公司 > > 凌力尔特芯片 >> LTC1666
LTC1666技术文档下载:
LTC1666技术文档产品手册下载
LTC1666 - 典型应用图例:

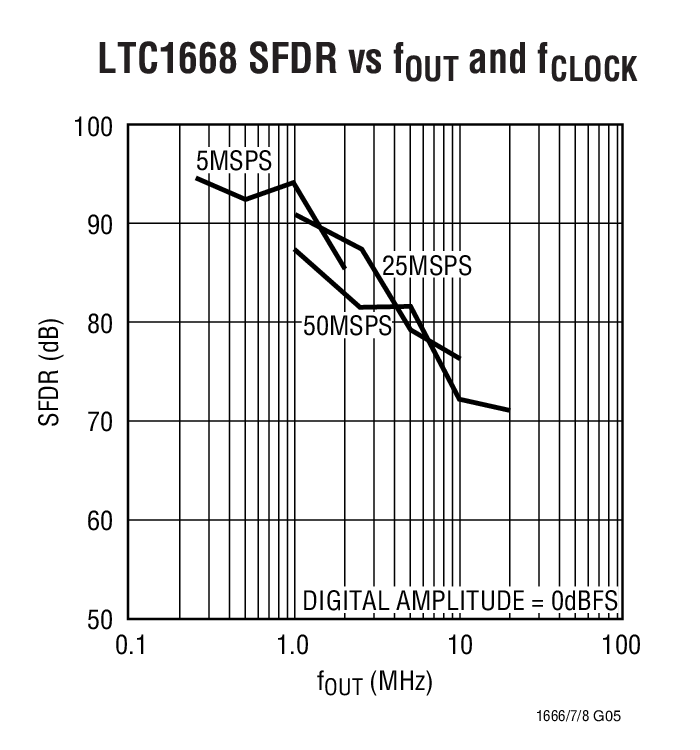

LTC1666典型应用图例一

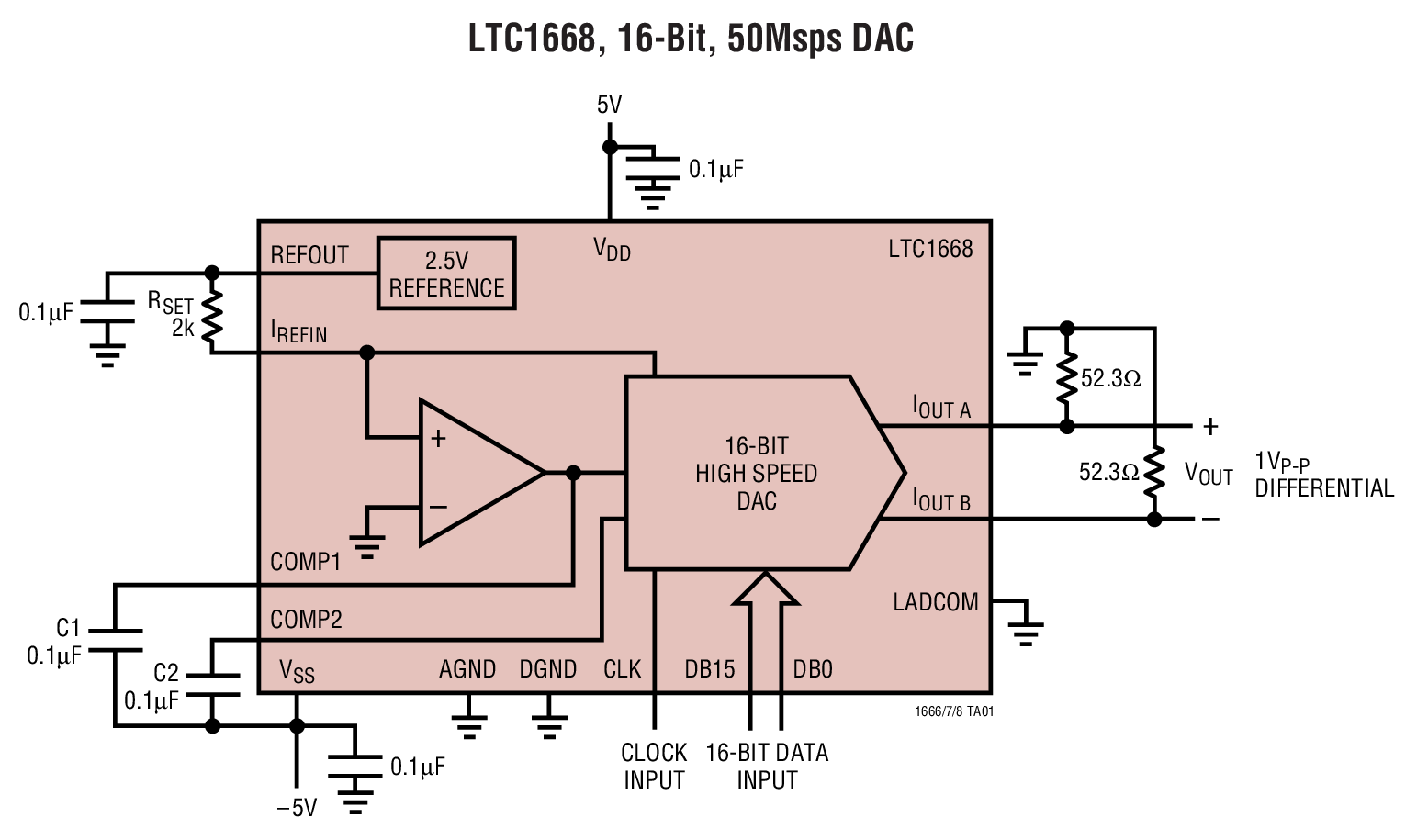

LTC1666典型应用图例二
LTC1666 - 封装图解:

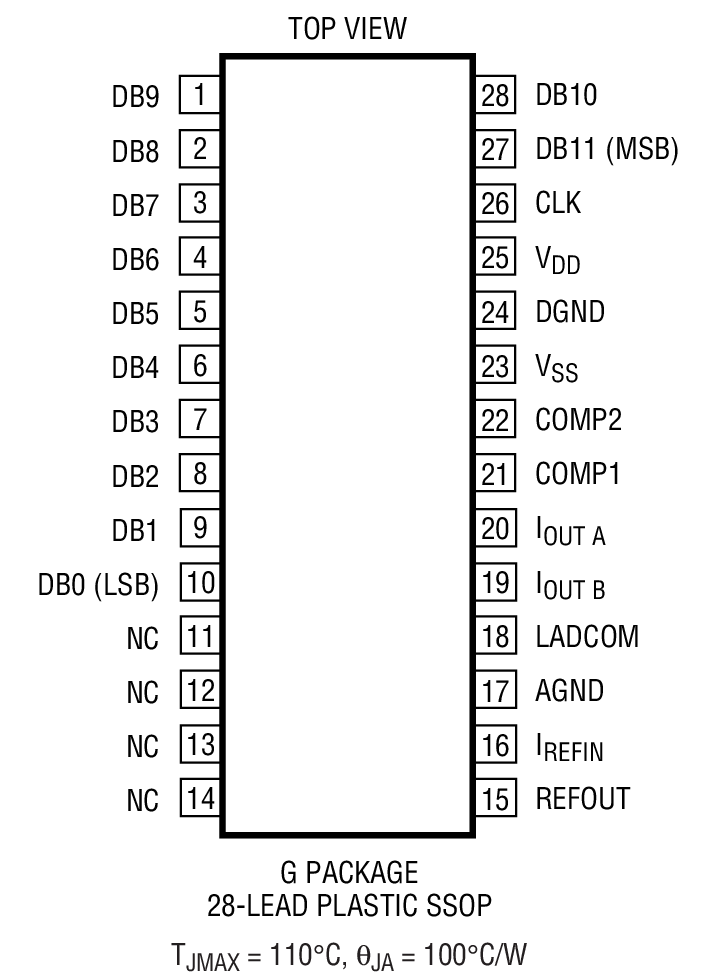

LTC1666封装图解一

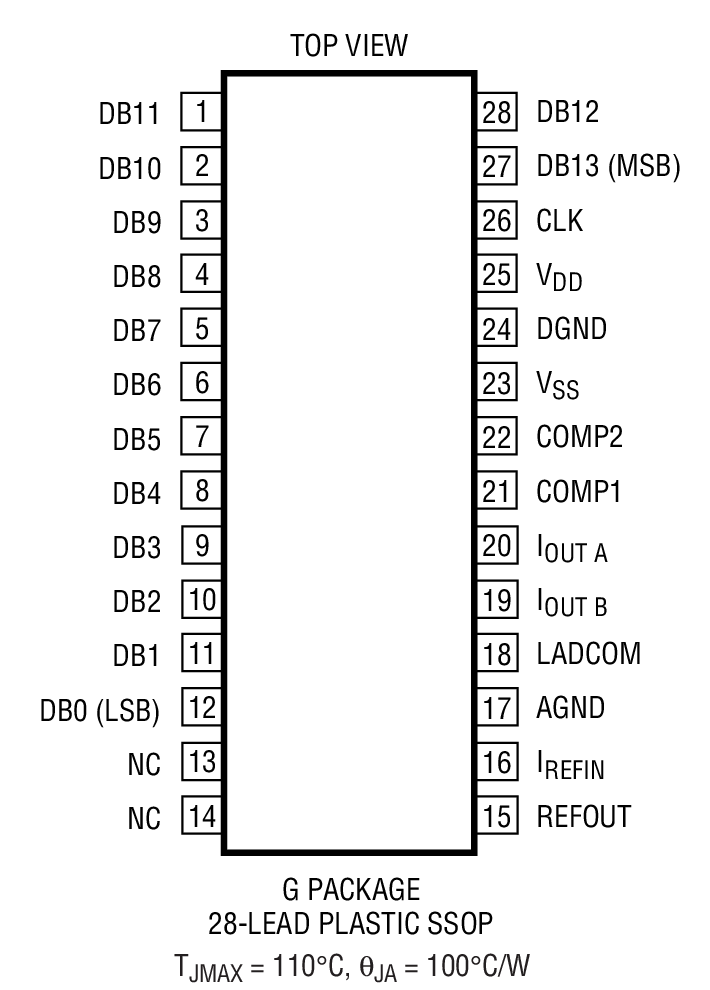

LTC1666封装图解二
LTC1666LTC1666
承诺原装正品
专营Linear,真正优化您的供应链
Linear产品 - LTC1666介绍
LTC1666 - LTC1666是12-Bit, 50Msps DAC

LTC1666是Linear公司的一款高速 DAC产品,LTC1666是12-Bit, 50Msps DAC,本站介绍了LTC1666的封装应用图解、特点和优点、功能等,并给出了与LTC1666相关的凌力尔特元器件型号供参考。

LTC1666 - 12-Bit, 50Msps DAC

LTC1666 - 12-Bit, 50Msps DAC - Linear Technology(凌力尔特)

功能描述
The LTC1666/LTC1667/LTC1668 are 12-/14-/16-bit, 50Msps differential current output DACs implemented on a high performance BiCMOS process with laser trimmed, thin-film resistors. The combination of a novel current-steering architecture and a high performance process produces DACs with exceptional AC and DC performance. The LTC1668 is the first 16-bit DAC in the marketplace to exhibit an SFDR (spurious free dynamic range) of 87dB for an output signal frequency of 1MHz.

Operating from ±5V supplies, the LTC1666/LTC1667/LTC1668 can be configured to provide full-scale output currents up to 10mA. The differential current outputs of the DACs allow single-ended or true differential operation. The –1V to 1V output compliance of the LTC1666/LTC1667/LTC1668 allows the outputs to be connected directly to external resistors to produce a differential output voltage without degrading the converter’s linearity. Alternatively, the outputs can be connected to the summing junction of a high speed operational amplifier, or to a transformer.

The LTC1666/LTC1667/LTC1668 are pin compatible and are available in a 28-pin SSOP and are fully specified over the industrial temperature range.

?

特点
  • 50Msps Update Rate
  • Pin Compatible 12-Bit, 14-Bit and 16-Bit Devices
  • High Spectral Purity: 87dB SFDR at 1MHz fOUT
  • 5pV-s Glitch Impulse
  • Differential Current Outputs
  • 20ns Settling Time
  • Low Power: 180mW from ±5V Supplies
  • TTL/CMOS (3.3V or 5V) Inputs
  • Small Package: 28-Pin SSOP
  • 应用
  • Cellular Base Stations
  • Multicarrier Base Stations
  • Wireless Communication
  • Direct Digital Synthesis (DDS)
  • xDSL Modems
  • Arbitrary Waveform Generation
  • Automated Test Equipment
  • Instrumentation
  • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格(美元)
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1666CG SSOP-28 C $10.25 $8.05
    LTC1666CG#PBF SSOP-28 C $10.25 $8.05
    LTC1666CG#TR SSOP-28 C $8.15
    LTC1666CG#TRPBF SSOP-28 C $8.15
    LTC1666IG SSOP-28 I $11.15 $8.75
    LTC1666IG#PBF SSOP-28 I $11.15 $8.75
    LTC1666IG#TR SSOP-28 I $8.85
    LTC1666IG#TRPBF SSOP-28 I $8.85
