当前位置:Linear公司 > > 凌力尔特芯片 >> LTC2431
LTC2431技术文档下载:
LTC2431技术文档产品手册下载
LTC2431 - 典型应用图例:

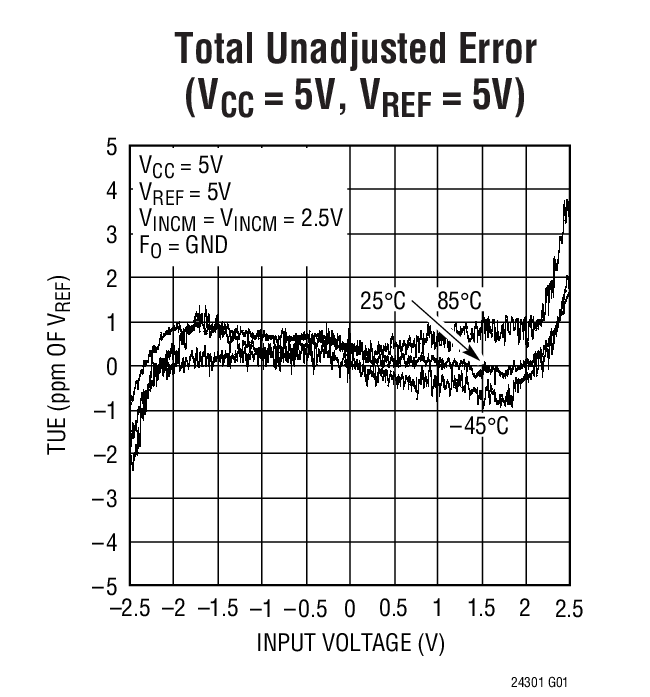

LTC2431典型应用图例一

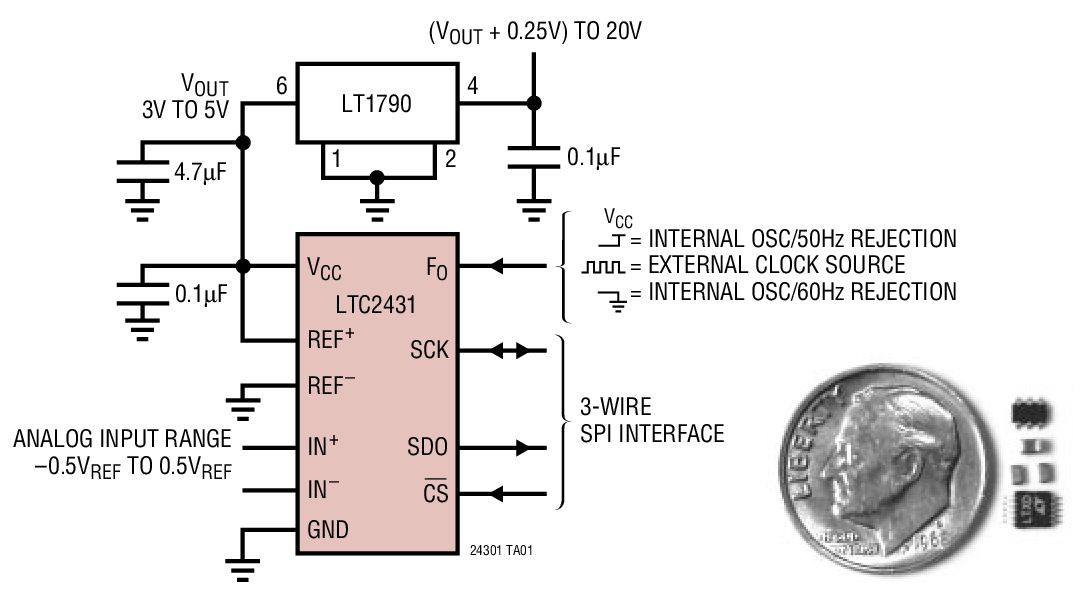

LTC2431典型应用图例二
LTC2431 - 封装图解:

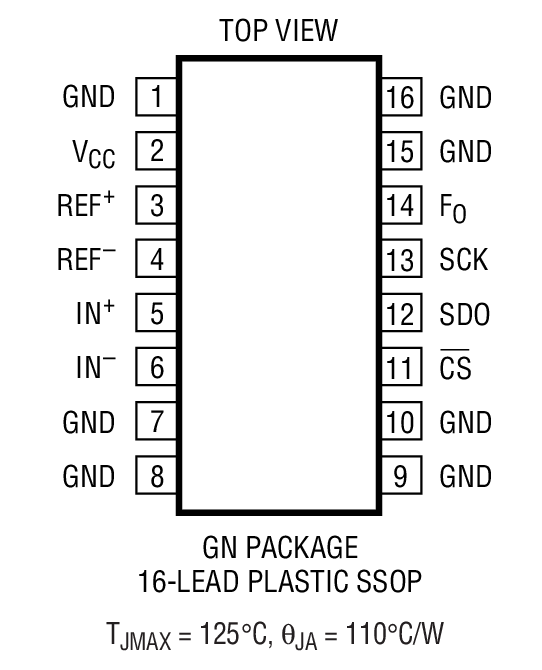

LTC2431封装图解一

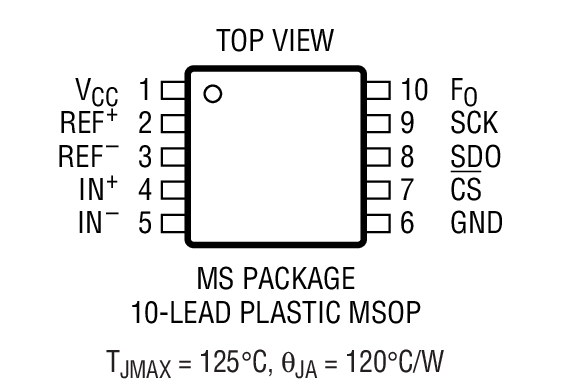

LTC2431封装图解二
承诺原装正品
专营Linear,真正优化您的供应链
Linear产品 - LTC2431介绍
LTC2431 - LTC2431是20-Bit No Latency Delta Sigma? ADC with Differential Input and Differential Reference

LTC2431是Linear公司的一款无延迟增量累加 ADC产品,LTC2431是20-Bit No Latency Delta Sigma? ADC with Differential Input and Differential Reference,本站介绍了LTC2431的封装应用图解、特点和优点、功能等,并给出了与LTC2431相关的凌力尔特元器件型号供参考。

LTC2431 - 20-Bit No Latency Delta Sigma? ADC with Differential Input and Differential Reference

LTC2431 - 20-Bit No Latency Delta Sigma? ADC with Differential Input and Differential Reference - Linear Technology(凌力尔特)

功能描述

The LTC2430/LTC2431 are 2.7V to 5.5V micropower 20-bit differential Delta Sigma analog-to-digital converters with an integrated oscillator, 3ppm INL and 0.56ppm RMS noise. They use delta-sigma technology and provide single cycle settling time for multiplexed applications. Through a single pin, the LTC2430/LTC2431 can be configured for better than 110dB differential mode rejection at 50Hz or 60Hz ±2%, or they can be driven by an external oscillator for a user-defined rejection frequency. The internal oscillator requires no external frequency setting components.

The converters accept any external differential reference voltage from 0.1V to VCC for flexible ratiometric and remote sensing measurement configurations. The fullscale differential input range is from –0.5VREF to 0.5VREF. The reference common mode voltage, VREFCM, and the input common mode voltage, VINCM, may be independently set anywhere within GND to VCC. The DC common mode input rejection is better than 120dB.

The LTC2430/LTC2431 communicate through a flexible 3-wire digital interface that is compatible with SPI and MICROWIRE? protocols.

特点
  • Low Supply Current (200μA in Conversion Mode and 4μA in Autosleep Mode)
  • Differential Input and Differential Reference with GND to VCC Common Mode Range
  • 3ppm INL, No Missing Codes
  • 10ppm Full-Scale Error and 1ppm Offset
  • 0.56ppm Noise, 20.8 ENOBs
  • No Latency: Digital Filter Settles in a Single Cycle. Each Conversion Is Accurate, Even After an Input Step
  • Single Supply 2.7V to 5.5V Operation
  • Internal Oscillator—No External Components Required
  • 110dB Min, 50Hz/60Hz Notch Filter
  • Pin Compatible with 24-Bit LTC2410/LTC2411
  • 应用
  • Direct Sensor Digitizer
  • Weight Scales
  • Direct Temperature Measurement
  • Gas Analyzers
  • Strain Gauge Transducers
  • Instrumentation
  • Data Acquisition
  • Industrial Process Control
  • DVMs and Meters
  • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格(美元)
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC2431CMS MS-10 C $4.55 $3.70
    LTC2431CMS#PBF MS-10 C $4.55 $3.70
    LTC2431CMS#TR MS-10 C $3.76
    LTC2431CMS#TRPBF MS-10 C $3.76
    LTC2431IMS MS-10 I $4.95 $4.00
    LTC2431IMS#PBF MS-10 I $4.95 $4.00
    LTC2431IMS#TR MS-10 I $4.06
    LTC2431IMS#TRPBF MS-10 I $4.06
