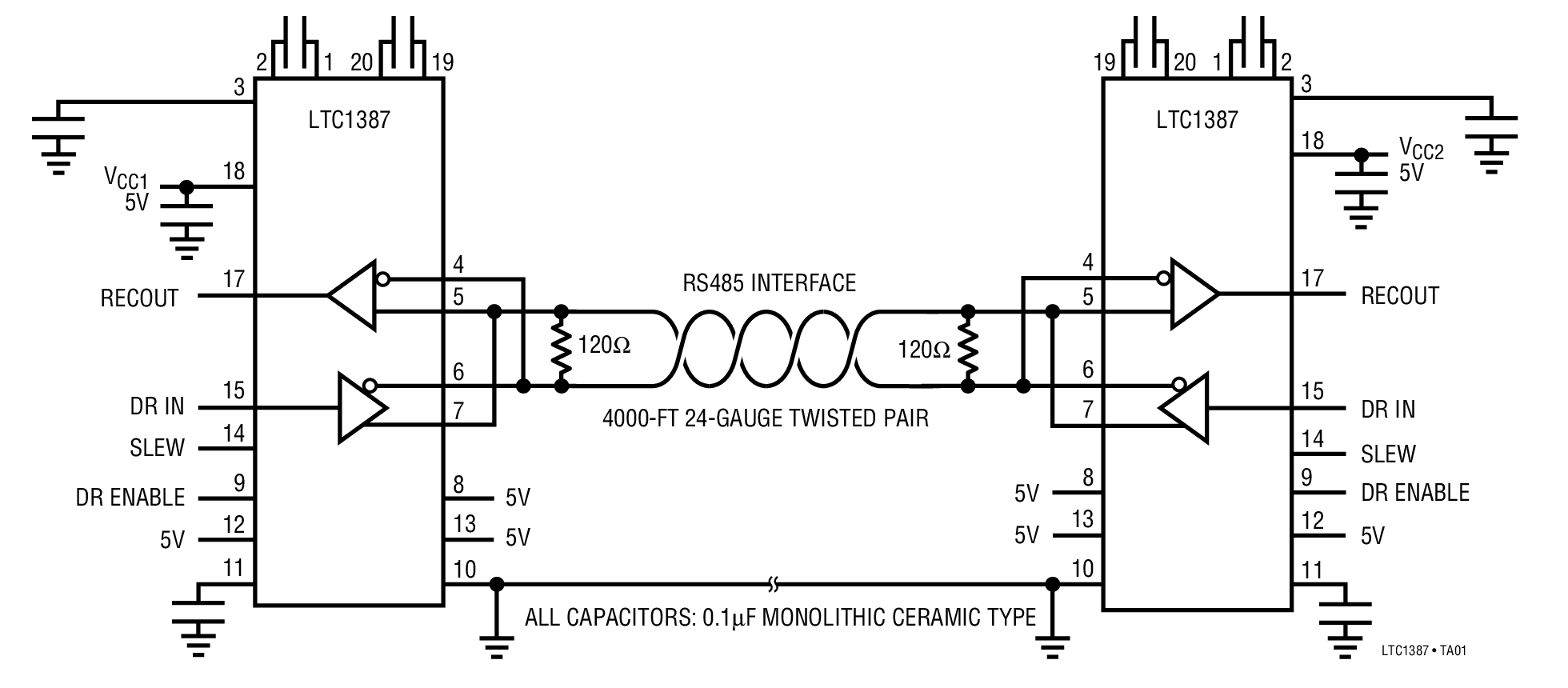

LTC1387 - 典型应用图例:
LTC1387典型应用图例一
LTC1387 - 封装图解:
LTC1387典型应用图例一
承诺原装正品
专营Linear,真正优化您的供应链
Linear产品 - LTC1387介绍
LTC1387 - LTC1387是Single 5V RS232/RS485 Multiprotocol Transceiver

LTC1387是Linear公司的一款多协议收发器产品,LTC1387是Single 5V RS232/RS485 Multiprotocol Transceiver,本站介绍了LTC1387的封装应用图解、特点和优点、功能等,并给出了与LTC1387相关的凌力尔特元器件型号供参考。

LTC1387 - Single 5V RS232/RS485 Multiprotocol Transceiver

LTC1387 - Single 5V RS232/RS485 Multiprotocol Transceiver - Linear Technology(凌力尔特)

功能描述

The LTC1387 is a low power reconfigurable CMOS bidirectional transceiver. It can be configured as an RS485 differential port or as two RS232 single-ended ports. An onboard charge pump uses four 0.1µF capacitors to generate boosted positive and negative supplies, allowing the RS232 drivers to meet ±5V output swing requirements with only a single 5V supply. A shutdown mode reduces the ICC supply current to 5µA.

The RS232 transceivers are in full compliance with RS232 specification. The RS485 transceiver is in full compliance with RS485 and RS422 specifications. The RS485 receiver assumes a known output state when the inputs are floating or shorted to ground. All interface drivers feature short-circuit and thermal shutdown protection. An enable pin allows RS485 driver outputs to be forced into high impedance which is maintained even when the outputs are forced beyond supply rails or the power is off. A loop back mode allows the driver outputs to be connected back to the receiver inputs for diagnostic self-test.

The LTC1387 is available in 20-pin plastic SSOP and SW packages.

特点
  • Two RS232 Transceivers or One RS485 Transceiver
  • Operates from a Single 5V Supply
  • Guaranteed Receiver Output with Inputs Floating or Shorted to Ground
  • Logic Selectable Fast/Slow RS485 Driver Slew Rate
  • Low Supply Current: 7mA Typical
  • 5µA Supply Current in Shutdown
  • Self-Testing Capability in Loopback Mode
  • Separate Driver and Receiver Enable Controls
  • Driver Maintains High Impedance in Three-State,Shutdown or with Power Off
  • Receiver Inputs Can Withstand ±25V
  • 应用
  • Point-of-Sale Terminals
  • Software Selectable Multiprotocol Interface Ports
  • Low Power RS485/RS422/RS232/EIA562 Interface
  • Cable Repeaters
  • Level Translators
  • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格(美元)
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1387CG SSOP-20 C $6.10 $4.80
    LTC1387CG#PBF SSOP-20 C $6.10 $4.80
    LTC1387CG#TR SSOP-20 C $4.90
    LTC1387CG#TRPBF SSOP-20 C $4.90
    LTC1387CSW SW-20 C $5.65 $4.50
    LTC1387CSW#PBF SW-20 C $5.65 $4.50
    LTC1387CSW#TR SW-20 C $4.60
    LTC1387CSW#TRPBF SW-20 C $4.60
    LTC1387IG SSOP-20 I $7.00 $5.50
    LTC1387IG#PBF SSOP-20 I $7.00 $5.50
    LTC1387IG#TR SSOP-20 I $5.60
    LTC1387IG#TRPBF SSOP-20 I $5.60
    LTC1387ISW SW-20 I $6.50 $5.20
    LTC1387ISW#PBF SW-20 I $6.50 $5.20
    LTC1387ISW#TR SW-20 I $5.30
    LTC1387ISW#TRPBF SW-20 I $5.30
