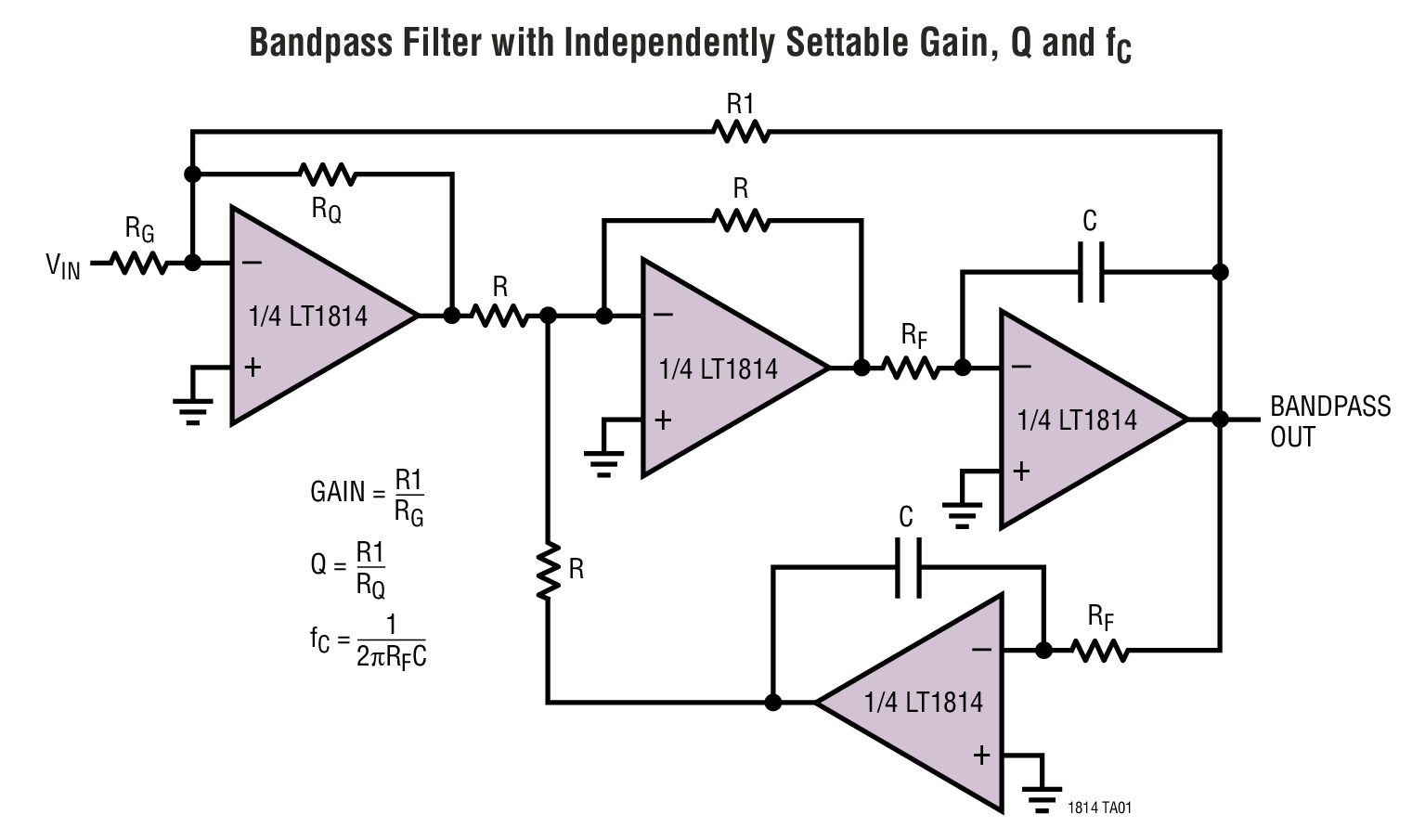

LT1814典型应用图例一

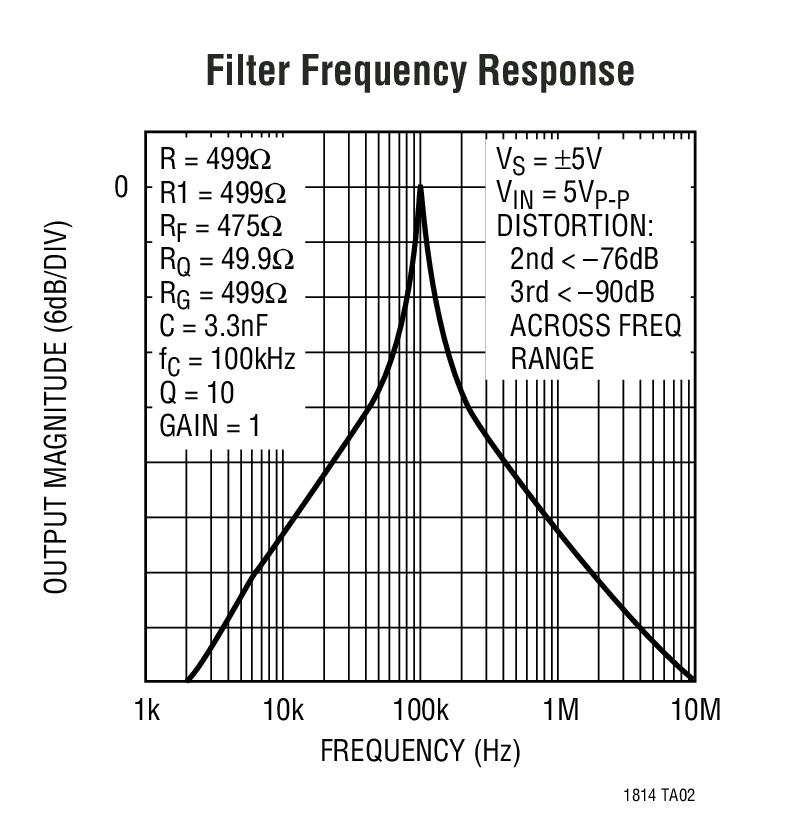

LT1814典型应用图例二

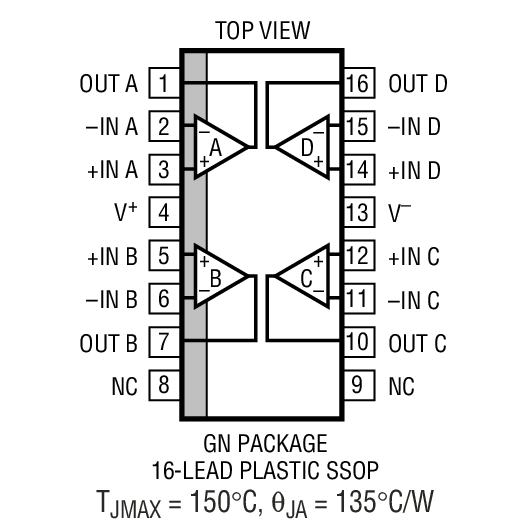

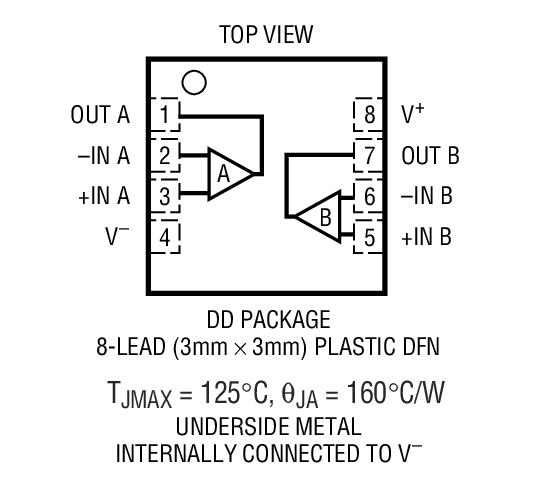

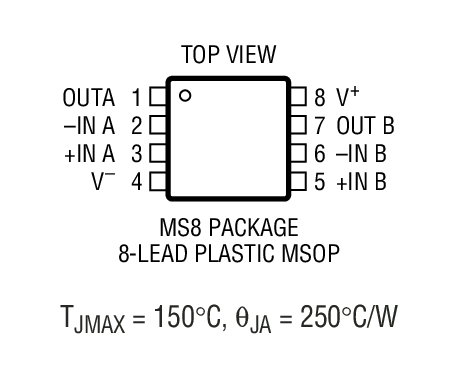

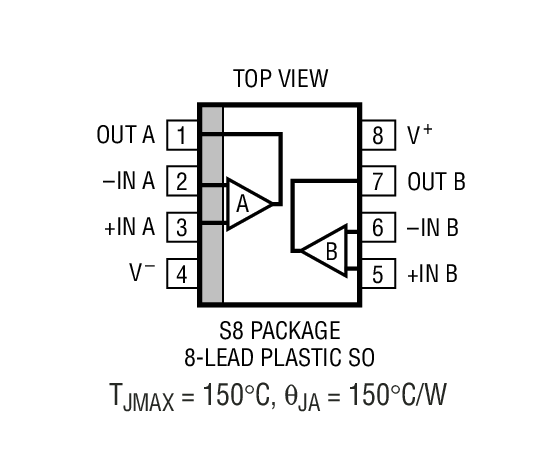

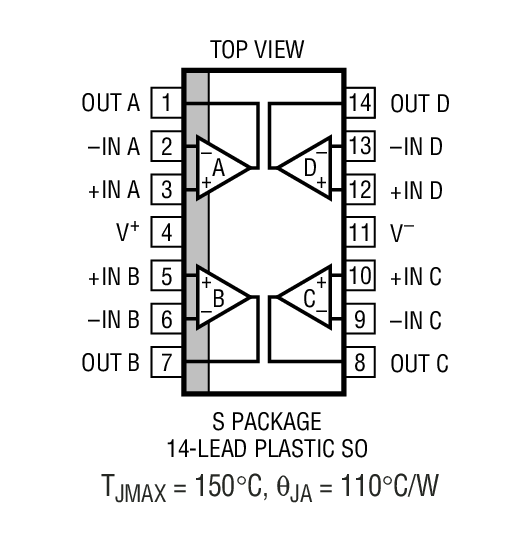

LT1814 - 封装图解：
LT1814封装图解一
LT1814封装图解二
LT1814封装图解三
LT1814封装图解四
LT1814封装图解五
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LT1814介绍

LT1814 - LT1814是Quad 3mA, 100MHz, 750V/μs Operational Amplifier

LT1814是LINEAR凌力尔特公司的一款高速放大器产品，LT1814是LT1814是Quad 3mA, 100MHz, 750V/μs Operational Amplifier，本站介绍了LT1814的封装应用图解、特点和优点、功能等，并给出了与LT1814相关的LINEAR元器件型号供参考。

LT1814 - LT1814是Quad 3mA, 100MHz, 750V/μs Operational Amplifier - 高速放大器 - 信号调理 - 凌力尔特

LT1814 - Quad 3mA, 100MHz, 750V/μs Operational Amplifier

LT1814 - Quad 3mA, 100MHz, 750V/μs Operational Amplifier - Linear Technology（凌力尔特）

功能描述

The LT1813/LT1814 are dual and quad, low power, high speed, very high slew rate operational amplifiers with excellent DC performance. The LT1813/LT1814 feature reduced supply current, lower input offset voltage, lower input bias current and higher DC gain than other devices with comparable bandwidth. The circuit topology is a voltage feedback amplifier with the slewing characteristics of a current feedback amplifier.

The output drives a 100? load to ±3.5V with ±5V supplies. On a single 5V supply, the output swings from 1.1V to 3.9V with a 100? load connected to 2.5V. The amplifiers are stable with a 1000pF capacitive load making them useful in buffer and cable driver applications.

The LT1813/LT1814 are manufactured on Linear Technology’s advanced low voltage complementary bipolar process. The LT1813 dual op amp is available in 8-pin MSOP, SO and 3mm x 3mm low profile (0.8mm) dual fine pitch leadless packages (DFN). The quad LT1814 is available in 14-pin SO and 16-pin SSOP packages. A single version, the LT1812, is also available (see separate data sheet).

特点
  • 100MHz Gain Bandwidth Product
  • 750V/μs Slew Rate
  • 3.6mA Maximum Supply Current per Amplifier
  • Tiny 3mm x 3mm x 0.8mm DFN Package
  • 8nV/rtHz Input Noise Voltage
  • Unity-Gain Stable
  • 1.5mV Maximum Input Offset Voltage
  • 4μA Maximum Input Bias Current
  • 400nA Maximum Input Offset Current
  • 40mA Minimum Output Current, VOUT = ±3V
  • ±3.5V Minimum Input CMR, VS = ±5V
  • 30ns Settling Time to 0.1%, 5V Step
  • Specified at ±5V, Single 5V Supplies
  • Operating Temperature Range: 40°C to 85°C
    • 应用
  • Wideband Amplifiers
  • Buffers
  • Active Filters
  • Video Amplification
  • Cable Drivers
  • Data Acquisition Systems
  • Communication Receivers
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT1814CGN SSOP-16 C $2.78 $1.95
    LT1814CGN#PBF SSOP-16 C $2.78 $1.95
    LT1814CGN#TR SSOP-16 C $2.01
    LT1814CGN#TRPBF SSOP-16 C $2.01
    LT1814CS SO-14 C $2.78 $1.95
    LT1814CS#PBF SO-14 C $2.78 $1.95
    LT1814CS#TR SO-14 C $2.01
    LT1814CS#TRPBF SO-14 C $2.01
    LT1814IGN SSOP-16 I $3.33 $2.34
    LT1814IGN#PBF SSOP-16 I $3.33 $2.34
    LT1814IGN#TR SSOP-16 I $2.40
    LT1814IGN#TRPBF SSOP-16 I $2.40
    LT1814IS SO-14 I $3.33 $2.34
    LT1814IS#PBF SO-14 I $3.33 $2.34
    LT1814IS#TR SO-14 I $2.40
    LT1814IS#TRPBF SO-14 I $2.40
