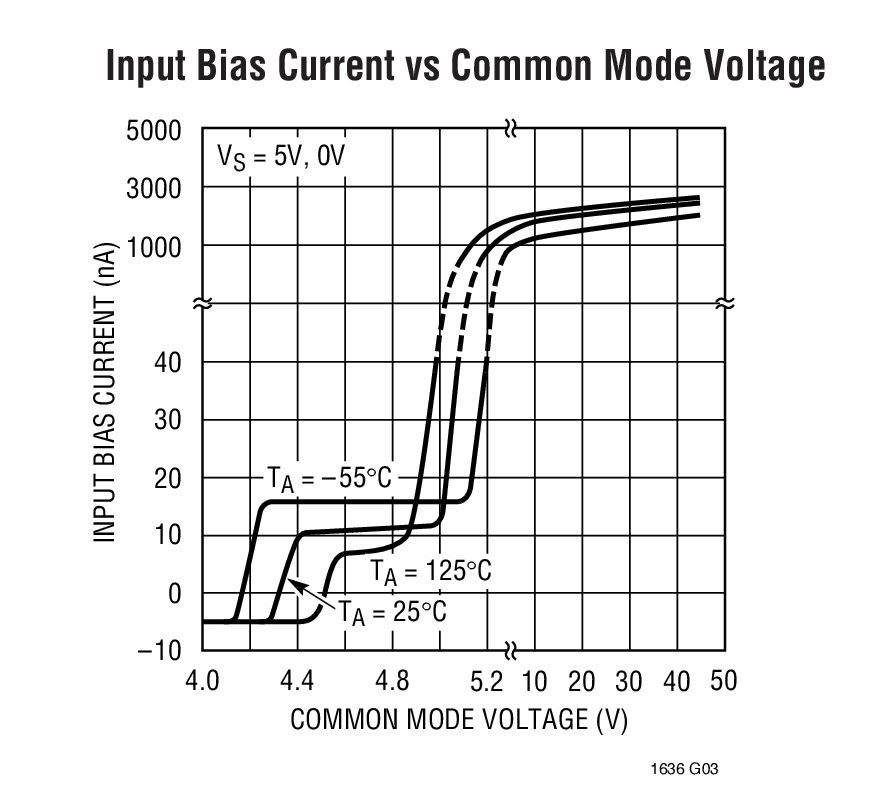

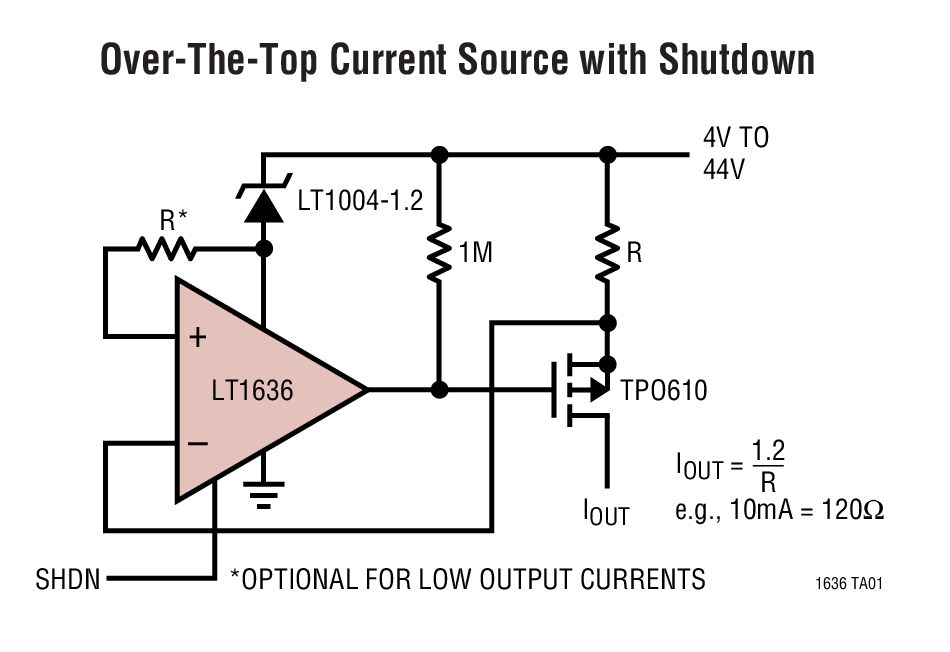

LT1636 - 典型应用图例：
LT1636典型应用图例一
LT1636典型应用图例二

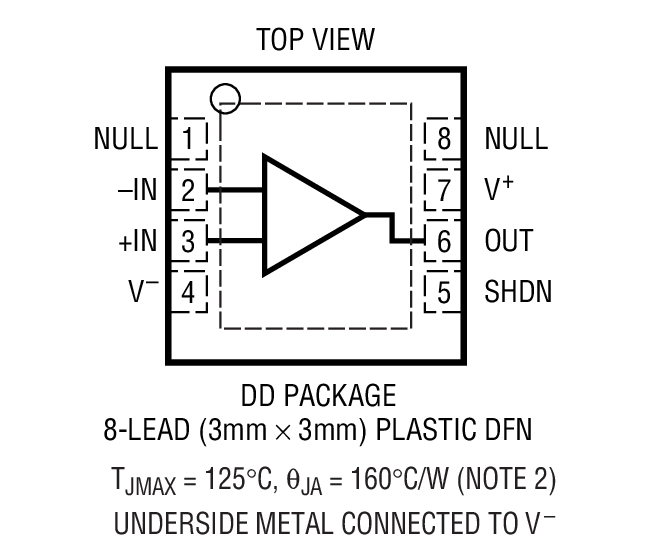

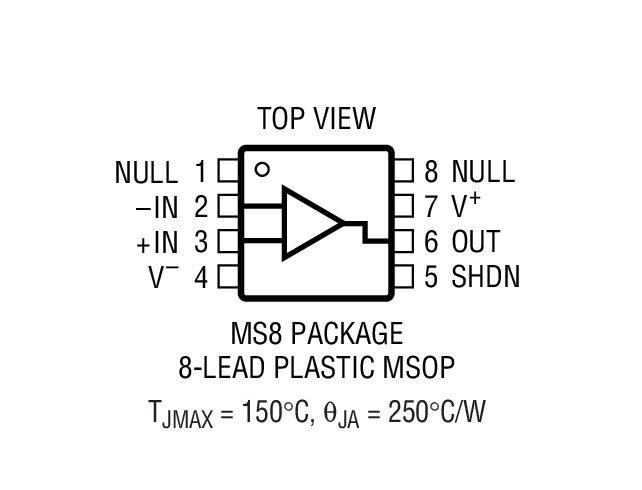

LT1636 - 封装图解：
LT1636封装图解一
LT1636封装图解二
LT1636LT1636
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LT1636介绍

LT1636 - LT1636是Over-The-Top Micropower Rail-to-Rail Input and Output Op Amp

LT1636是LINEAR凌力尔特公司的一款精准放大器产品，LT1636是LT1636是Over-The-Top Micropower Rail-to-Rail Input and Output Op Amp，本站介绍了LT1636的封装应用图解、特点和优点、功能等，并给出了与LT1636相关的LINEAR元器件型号供参考。

LT1636 - LT1636是Over-The-Top Micropower Rail-to-Rail Input and Output Op Amp - 精准放大器 - 航天和严酷环境 - 凌力尔特

LT1636 - Over-The-Top Micropower Rail-to-Rail Input and Output Op Amp

LT1636 - Over-The-Top Micropower Rail-to-Rail Input and Output Op Amp - Linear Technology（凌力尔特）

功能描述

The LT1636 op amp operates on all single and split supplies with a total voltage of 2.7V to 44V drawing less than 50μA of quiescent current. The LT1636 can be shut down, making the output high impedance and reducing the quiescent current to 4μA. The LT1636 has a unique input stage that operates and remains high impedance when above the positive supply. The inputs take 44V both differential and common mode, even when operating on a 3V supply. The output swings to both supplies. Unlike most micropower op amps, the LT1636 can drive heavy loads; its rail-to-rail output drives 18mA. The LT1636 is unity-gain stable into all capacitive loads up to 10,000pF when a 0.22μF and 150 Ohm compensation network is used.

The LT1636 is reverse supply protected: it draws no current for reverse supply up to 27V. Built-in resistors protect the inputs for faults below the negative supply up to 22V. There is no phase reversal of the output for inputs 5V below VEE or 44V above VEE, independent of VCC.

The LT1636 op amp is available in the 8-pin MSOP, PDIP and SO packages. For space limited applications the LT1636 available in a 3mm × 3mm × 0.8mm dual fine pitch leadless package (DFN).

?

特点
  • Rail-to-Rail Input and Output
  • Micropower: 50μA IQ, 44V Supply
  • Operating Temperature Range: - 40°C to 125°C
  • Over-The-Top: Input Common Mode Range Extends 44V Above VEE, Independent of VCC
  • Low Input Offset Voltage: 225μV Max
  • Specified on 3V, 5V and ±15V Supplies
  • High Output Current: 18mA
  • Output Shutdown
  • Output Drives 10,000pF with Output Compensation
  • Reverse Battery Protection to 27V
  • High Voltage Gain: 2000V/mV
  • High CMRR: 110dB
  • 220kHz Gain-Bandwidth Product
  • 8-Lead DFN, MSOP, PDIP and SO Packages
    • 应用
  • Battery- or Solar-Powered Systems???? Portable Instrumentation???? Sensor Conditioning
  • Supply Current Sensing
  • Battery Monitoring
  • MUX Amplifiers
  • 4mA to 20mA Transmitters
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT1636CDD 3x3 DFN-8 C $2.68 $1.95
    LT1636CDD#PBF 3x3 DFN-8 C $2.68 $1.95
    LT1636CDD#TR 3x3 DFN-8 C $2.00
    LT1636CDD#TRPBF 3x3 DFN-8 C $2.00
    LT1636CMS8 MS-8 C $2.25 $1.85
    LT1636CMS8#PBF MS-8 C $2.25 $1.85
    LT1636CMS8#TR MS-8 C $1.91
    LT1636CMS8#TRPBF MS-8 C $1.91
    LT1636CN8 N-8 C $1.70 $1.45
    LT1636CN8#PBF N-8 C $1.70 $1.45
    LT1636CS8 SO-8 C $1.75 $1.50
    LT1636CS8#PBF SO-8 C $1.75 $1.50
    LT1636CS8#TR SO-8 C $1.56
    LT1636CS8#TRPBF SO-8 C $1.56
    LT1636HS8 SO-8 H $2.15 $1.85
    LT1636HS8#PBF SO-8 H $2.15 $1.85
    LT1636HS8#TR SO-8 H $1.91
    LT1636HS8#TRPBF SO-8 H $1.91
    LT1636IDD 3x3 DFN-8 I $3.21 $2.34
    LT1636IDD#PBF 3x3 DFN-8 I $3.21 $2.34
    LT1636IDD#TR 3x3 DFN-8 I $2.39
    LT1636IDD#TRPBF 3x3 DFN-8 I $2.39
    LT1636IMS8 MS-8 I $2.68 $1.90
    LT1636IMS8#PBF MS-8 I $2.68 $1.90
    LT1636IMS8#TR MS-8 I $1.96
    LT1636IMS8#TRPBF MS-8 I $1.96
    LT1636IN8 N-8 I $1.95 $1.70
    LT1636IN8#PBF N-8 I $1.95 $1.70
    LT1636IS8 SO-8 I $2.05 $1.75
    LT1636IS8#PBF SO-8 I $2.05 $1.75
    LT1636IS8#TR SO-8 I $1.81
    LT1636IS8#TRPBF SO-8 I $1.81
