当前位置：凌力尔特代理 > > 凌力尔特芯片 >> LTC1390
LTC1390技术文档下载：
LTC1390技术文档产品手册下载
LTC1390 - 典型应用图例：
LTC1390典型应用图例一

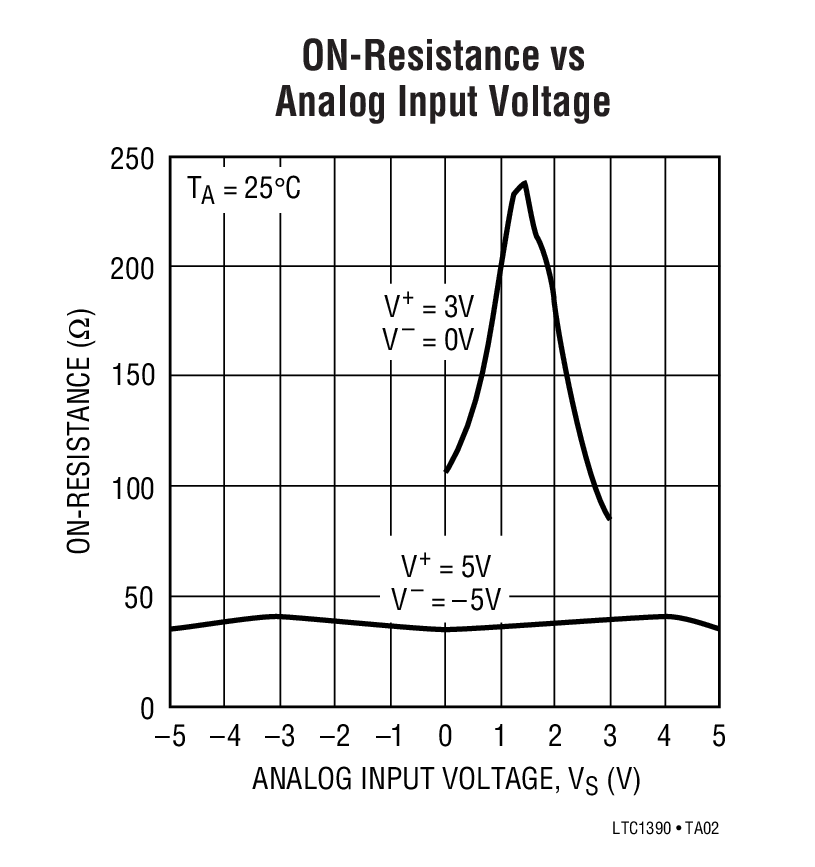

LTC1390典型应用图例二
LTC1390 - 封装图解：

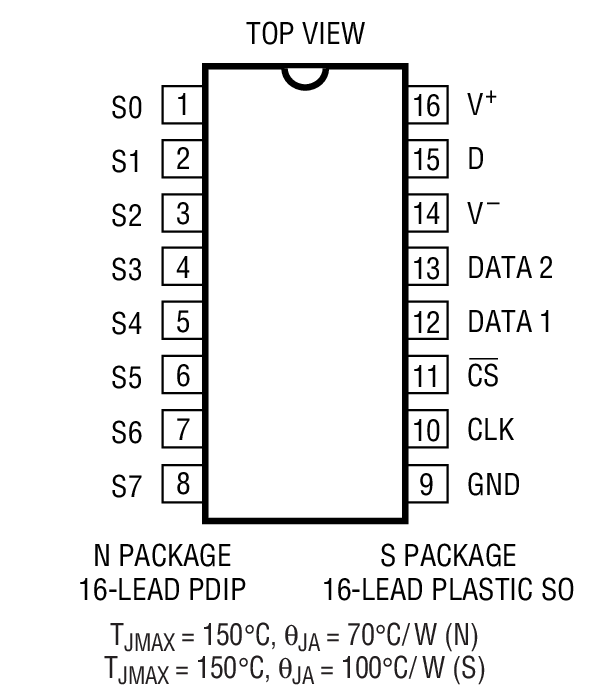

LTC1390封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1390介绍

LTC1390 - LTC1390是8-Channel Analog Multiplexer with Serial Interface

LTC1390是LINEAR凌力尔特公司的一款开关和多工器产品，LTC1390是LTC1390是8-Channel Analog Multiplexer with Serial Interface，本站介绍了LTC1390的封装应用图解、特点和优点、功能等，并给出了与LTC1390相关的LINEAR元器件型号供参考。

LTC1390 - LTC1390是8-Channel Analog Multiplexer with Serial Interface - 开关和多工器 - 数据转换 - 凌力尔特

LTC1390 - 8-Channel Analog Multiplexer with Serial Interface

LTC1390 - 8-Channel Analog Multiplexer with Serial Interface - Linear Technology（凌力尔特）

功能描述

The LTC1390 is a high performance CMOS 8-to-1 analog multiplexer. It features a 3-wire digital interface with a bidirectional data retransmission feature, allowing it to be wired in series with a serial A/D converter while using only one serial port. The interface also allows several LTC1390s to be wired in series or parallel, increasing the number of MUX channels available using only a single digital port. All the above features are also valid when LTC1390 operates as a demultiplexer such as with a D/A converter.

The LTC1390 features a typical RON of 45 Ohm, typical switch leakage of 50pA, and guaranteed break-before-make operation. Charge injection is ±10pC maximum. All digital inputs are TTL and CMOS compatible when operated from single or dual supplies. The inputs can withstand 100mA fault currents.

The LTC1390 is available in 16-pin PDIP and narrow SO packages.

特点
  • 3-Wire Serial Digital Interface
  • Data Retransmission Allows Series Connection with Serial A/D Converters
  • Single 3V to ±5V Supply Operation
  • Analog Inputs May Extend to Supply Rails
  • Low Charge Injection
  • Low RON: 75 Ohm Max
  • Low Leakage: ±5nA Max
  • Guaranteed Break-Before-Make
  • TTL/CMOS Compatible for All Digital Inputs
  • Cascadable to Allow Additional Channels
  • Can be used as a Demultiplexer
    • 应用
  • Data Acquisition Systems
  • Communication Systems
  • Signal Multiplexing/Demultiplexing
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1390CN N-16 C $2.90 $2.30
    LTC1390CN#PBF N-16 C $2.90 $2.30
    LTC1390CS SO-16 C $3.10 $2.40
    LTC1390CS#PBF SO-16 C $3.10 $2.40
    LTC1390CS#TR SO-16 C $2.46
    LTC1390CS#TRPBF SO-16 C $2.46
