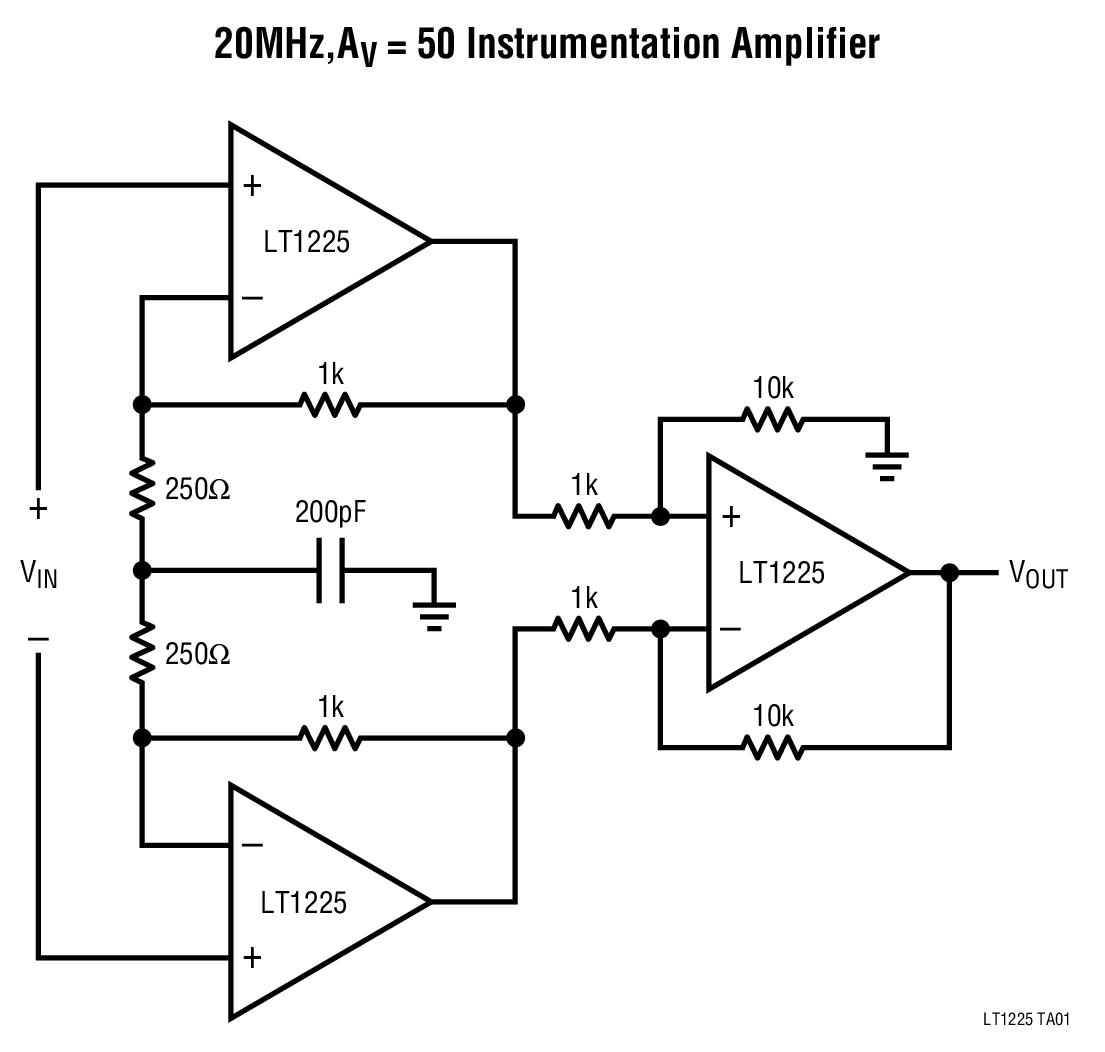

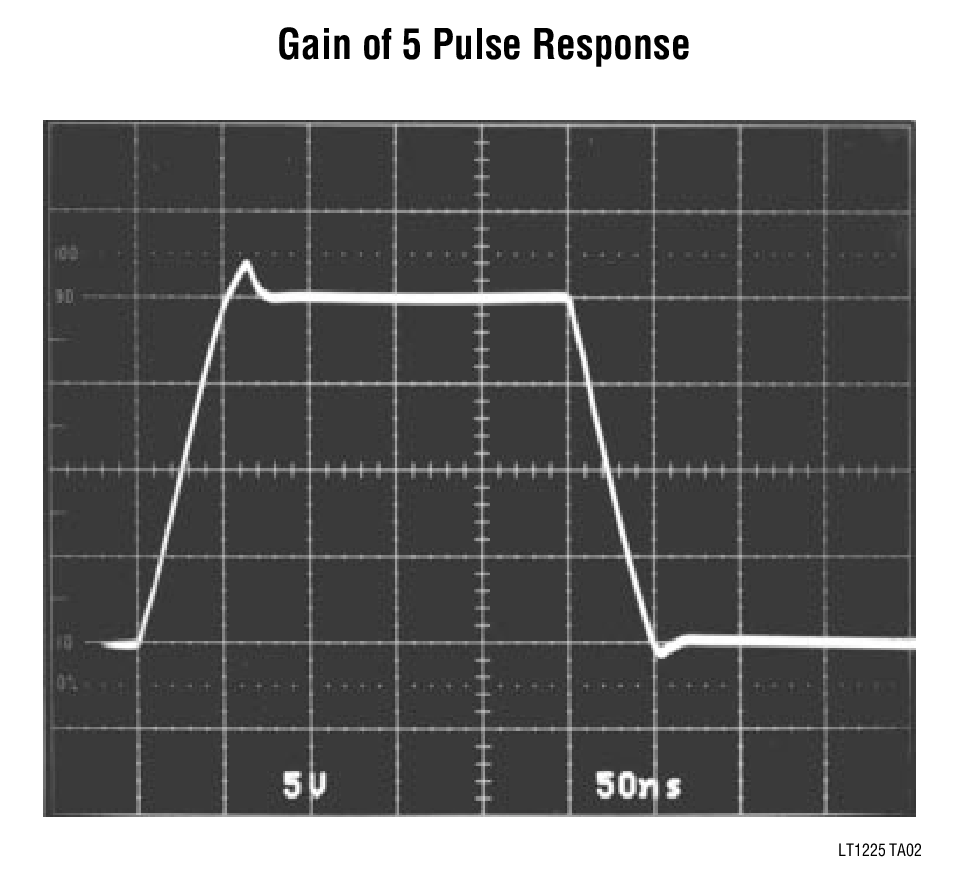

LT1225 - 典型应用图例：

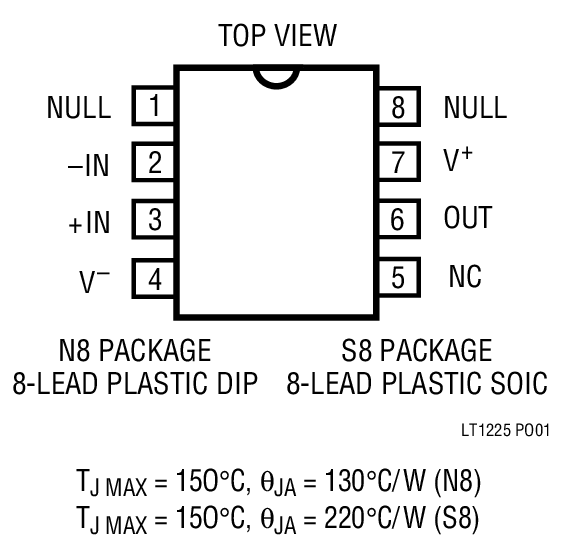

LT1225 - 封装图解：

LT1225 - LT1225是Very High Speed Operational Amplifier

LT1225是Linear公司的一款高速放大器产品，LT1225是Very High Speed Operational Amplifier，本站介绍了LT1225的封装应用图解、特点和优点、功能等，并给出了与LT1225相关的凌力尔特元器件型号供参考。

LT1225 - Very High Speed Operational Amplifier

LT1225 - Very High Speed Operational Amplifier - Linear Technology（凌力尔特）

功能描述

The LT1225 is a very high speed operational amplifier with excellent DC performance. The LT1225 features reduced input offset voltage and higher DC gain than devices with comparable bandwidth and slew rate. The circuit is a single gain stage without standing settling characteristics. The fast settling time makes the circuit an ideal choice for data acquisition systems. The output is capable of driving a 500 ohms load to ±12Vwith ±15V supplies and a 150 ohms load to ±3V on ±5V supplies. The circuit is also capable of driving large capacitive loads which makes it useful in buffer or cable driver applications.The LT1225 is a member of a family of fast, high performance amplifiers that employ Linear Technology Corporation’s advanced bipolar complementary processing.

特点

Gain of 5 Stable

150MHz Gain Bandwidth

400V/µs Slew Rate

20V/mV DC Gain, RL = 500 ohms

1mV Maximum Input Offset Voltage

±12V Minimum Output Swing into 500 ohms

Wide Supply Range: ±2.5V to ±15V

7mA Supply Current

90ns Settling Time to 0.1%, 10V Step

Drives All Capacitive Loads

应用
