LTC6911-1是Dual Matched Amplifiers with Digitally Programmable Gain in MSOP

Linear（凌力尔特）| Linear产品型号搜索

当前位置：Linear公司 > > 凌力尔特芯片 >> LTC6911-1

LTC6911-1技术文档下载：

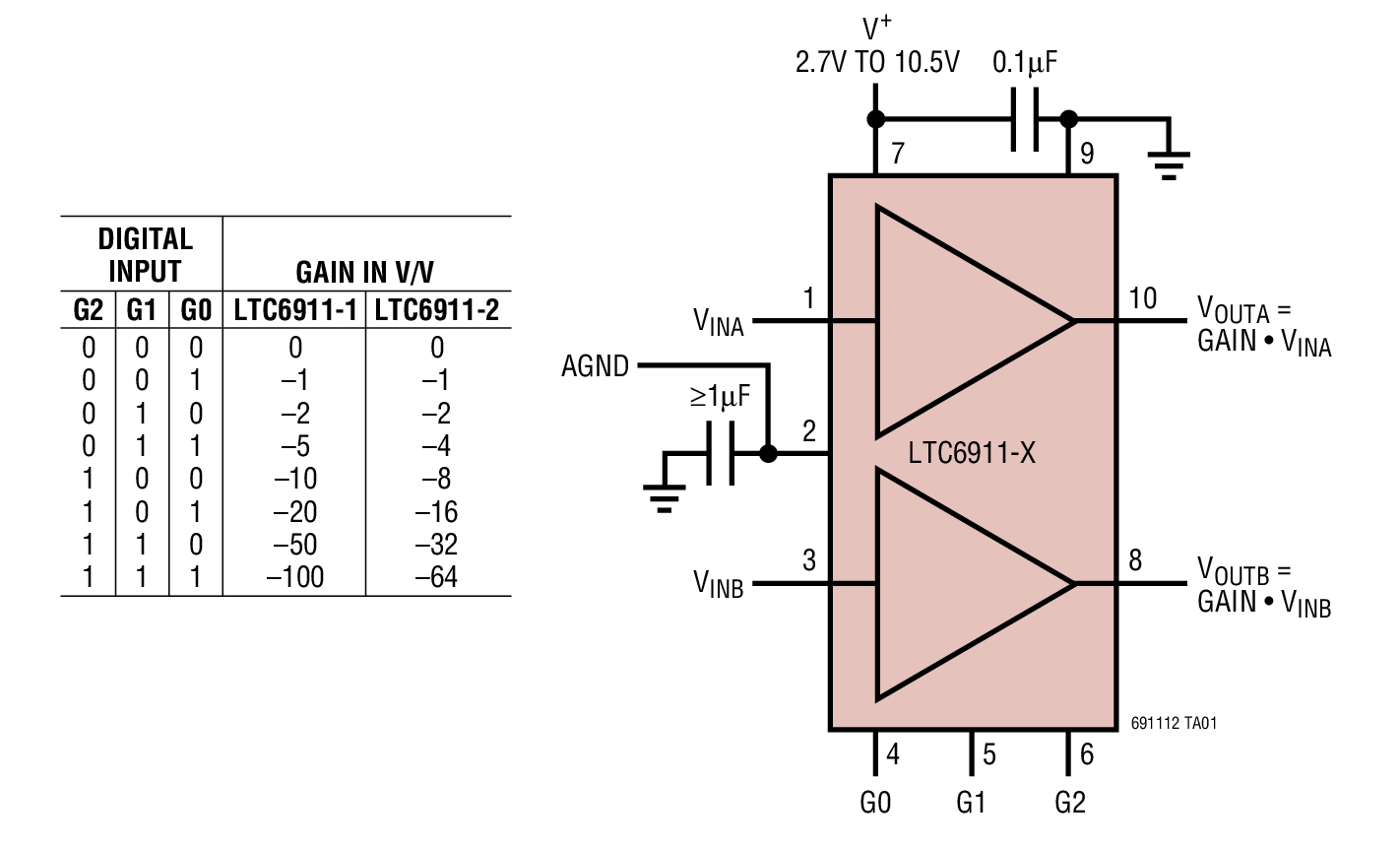

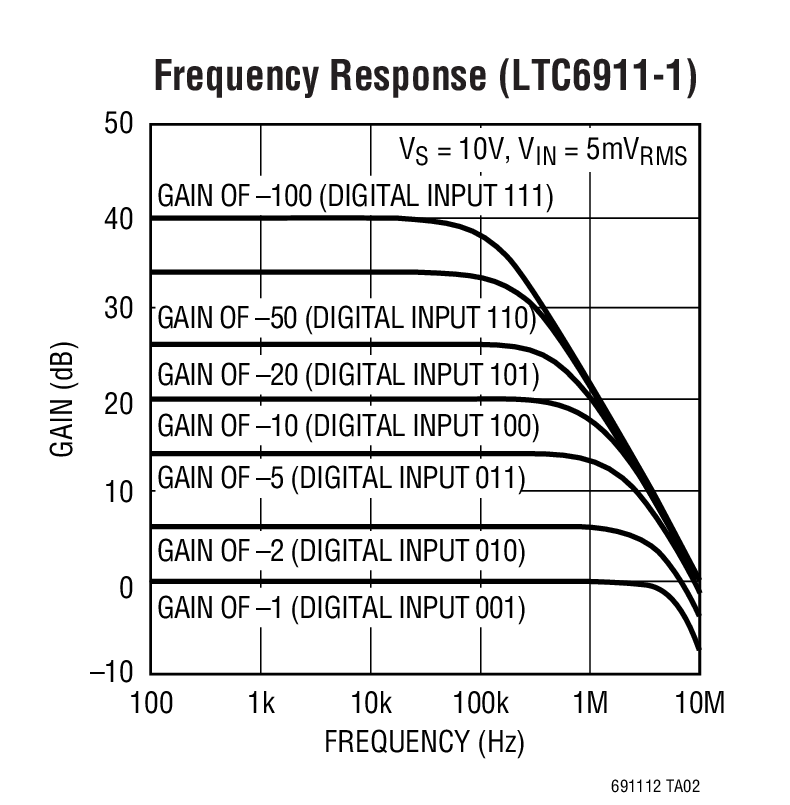

LTC6911-1 - 典型应用图例：

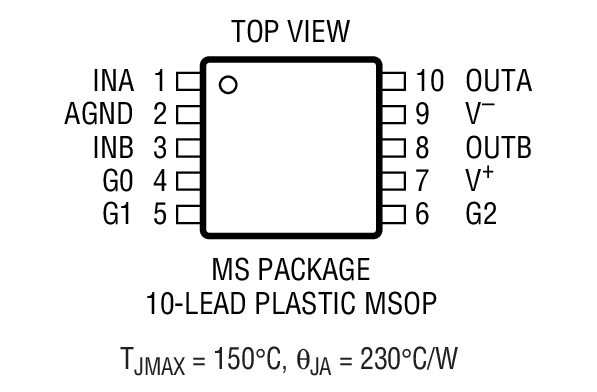

LTC6911-1 - 封装图解：

LTC6911-1 - LTC6911-1是Dual Matched Amplifiers with Digitally Programmable Gain in MSOP

LTC6911-1是Linear公司的一款可编程增益放大器产品，LTC6911-1是Dual Matched Amplifiers with Digitally Programmable Gain in MSOP，本站介绍了LTC6911-1的封装应用图解、特点和优点、功能等，并给出了与LTC6911-1相关的凌力尔特元器件型号供参考。

LTC6911-1 - Dual Matched Amplifiers with Digitally Programmable Gain in MSOP

LTC6911-1 - Dual Matched Amplifiers with Digitally Programmable Gain in MSOP - Linear Technology（凌力尔特）

功能描述

The LTC6911 is a family of low noise digitally programmable gain amplifiers (PGAs) that are easy to use and occupy very little PC board space. The matched gain of both channels is adjustable using a 3-bit parallel interface to select voltage gains of 0, 1, 2, 5, 10, 20, 50 and 100V/ V (LTC6911-1) and 0, 1, 2, 4, 8, 16, 32 and 64V/V (LTC6911-2). All gains are inverting.

The LTC6911 family consists of two matched inverting amplifiers with rail-to-rail outputs. When operated with unity gain, they will also process rail-to-rail input signals. A half-supply reference generated internally at the AGND pin supports single power supply applications. Operating from single or split supplies from 2.7V to 10.5V, the LTC6911 family is offered in a 10-lead MSOP package.

特点

3-Bit Digital Gain Control:(Inverting Gains of 0, 1, 2, 5, 10, 20, 50 and 100V/V) -1 Option(Inverting Gains of 0, 1, 2, 4, 8, 16, 32 and 64V/V) -2 Option

Two Matched Programmable Gain Amplifiers

Channel-to-Channel Gain Matching of 0.1dB (Max)

Rail-to-Rail Input Range

Rail-to-Rail Output Swing

Single or Dual Supply: 2.7V to 10.5V Total

11MHz Gain Bandwidth Product

Input Noise: 10nV/rtHz

Total System Dynamic Range to 120dB

Input Offset Voltage: 2mV, Gain of 10

Low Profile 10-Lead MSOP Package

应用

Data Acquisition Systems

Dynamic Gain Changing

Automatic Ranging Circuits

Automatic Gain Control
