LTC1699-82 - LTC1699-82是SMBus VID Voltage Programmers
LTC1699-82是Linear公司的一款VID 电压编程器产品，LTC1699-82是SMBus VID Voltage Programmers，本站介绍了LTC1699-82的封装应用图解、特点和优点、功能等，并给出了与LTC1699-82相关的凌力尔特元器件型号供参考。
LTC1699-82 - SMBus VID Voltage Programmers
LTC1699-80 - SMBus VID Voltage Programmers - Linear Technology（凌力尔特）
功能描述
The LTC1699-80, LTC1699-81 and LTC1699-82 are precision (±0.35% max), digitally programmed resistor dividers that comply with Intel 5-bit mobile (LTC1699-80), desktop VRM8.4 (LTC1699-81) and VRM9.0 (LTC1699-82) VID specifications. Each IC can switch the output of a DC/DC converter between two set voltages. A digital input pin, SEL, selects one of two divider settings stored into registers via a 2-wire SMBus interface.
The SMBus interface uses Write Word protocol to setup the registers and to turn the DC/DC converters on or off. Read Word protocol is used to verify register contents and to return the On/Off status of the converters. The LTC1699-80, LTC1699-81 and LTC1699-82 incorporate safeguards against errors due to bus conflicts.
Three open-drain N-channel outputs (CPU_ON, IO_ON and CLK_ON) are provided to turn DC/DC converter supplies on or off via their RUB/SS inputs. A global control pin, VRON is used to turn the converters on or off simultaneously. An internal timer pulls the PGOOD pin low for 50µs if the divider setting changes or the converters are turned on via the SMBus and the VRON pin.
特点

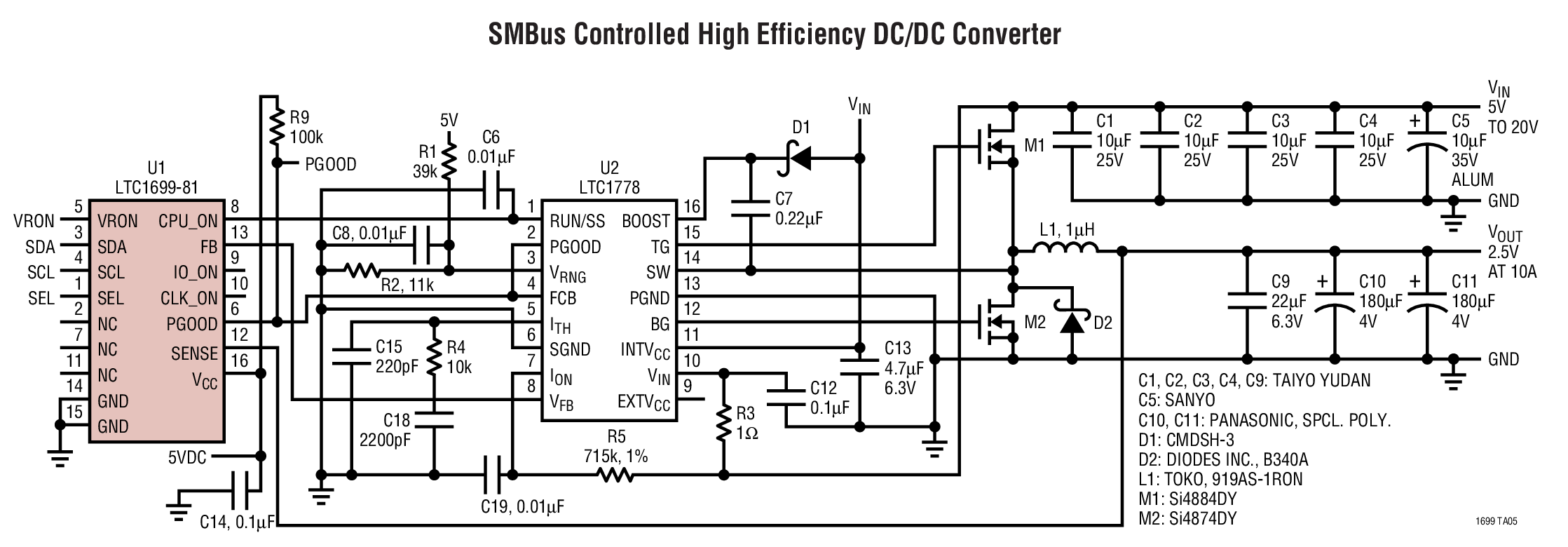

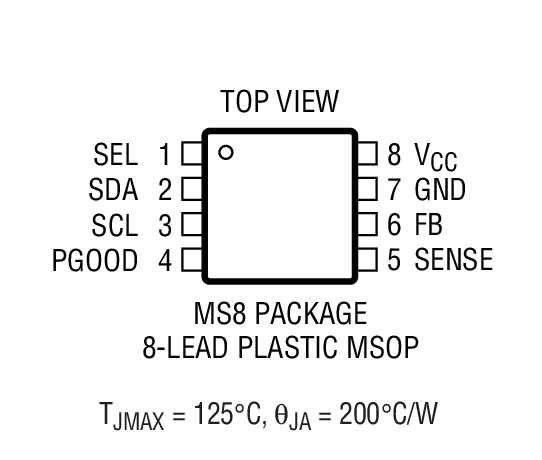

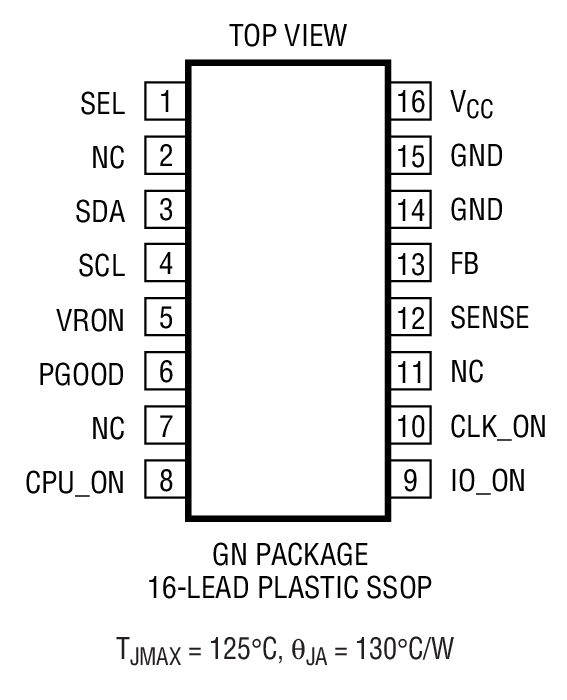

Fully Compliant with Intel 5-Bit Mobile (LTC1699-80) and Desktop VRM8.4 (LTC1699-81) and VRM9.0 (LTC1699-82) VID Specificatio Precision ±0.35% Programmable Resistor Divider for Use with 0.8V Referenced DC/DC Converters Two Different Divider Settings Can Be Stored Using a 2-Wire SMBus Serial Interface (Rev 1.1) Built-In Safeguards Minimize Misprogramming Due to Bus Conflicts Three Open-Drain Pins (CPU_ON, IO_ON, CLK_ON) and a Global Control Pin (VRON) to Shutdown or Soft-Start 3 DC/DC Converters Simul PGOOD Pin and 50µs PGOOD Timer Available in MSOP-8 and SSOP-16 Package应用
Intel Desktop Pentium® III Power Supply Intel Mobile Pentium® Power Supply with Intel SpeedStep™ Technology Desktop AMD Athlon™ Power Supply Software Programmable Remote Power Supply Power Supplies with Voltage Margining以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) |
| LTC1699EGN-80 | SSOP-16 | E | $2.80 | $2.50 |
| LTC1699EGN-80#PBF | SSOP-16 | E | $2.80 | $2.50 |
| LTC1699EGN-80#TR | SSOP-16 | E | | $2.61 |
| LTC1699EGN-80#TRPBF | SSOP-16 | E | | $2.61 |
| LTC1699EGN-81 | SSOP-16 | E | $2.80 | $2.50 |
| LTC1699EGN-81#PBF | SSOP-16 | E | $2.80 | $2.50 |
| LTC1699EGN-81#TR | SSOP-16 | E | | $2.61 |
| LTC1699EGN-81#TRPBF | SSOP-16 | E | | $2.61 |
| LTC1699EGN-82 | SSOP-16 | E | $2.80 | $2.50 |
| LTC1699EGN-82#PBF | SSOP-16 | E | $2.80 | $2.50 |
| LTC1699EGN-82#TR | SSOP-16 | E | | $2.61 |
| LTC1699EGN-82#TRPBF | SSOP-16 | E | | $2.61 |
| LTC1699EMS8-80 | MS-8 | E | $2.40 | $2.15 |
| LTC1699EMS8-80#PBF | MS-8 | E | $2.40 | $2.15 |
| LTC1699EMS8-80#TR | MS-8 | E | | $2.21 |
| LTC1699EMS8-80#TRPBF | MS-8 | E | | $2.21 |
| LTC1699EMS8-81 | MS-8 | E | $2.40 | $2.15 |
| LTC1699EMS8-81#PBF | MS-8 | E | $2.40 | $2.15 |
| LTC1699EMS8-81#TR | MS-8 | E | | $2.21 |
| LTC1699EMS8-81#TRPBF | MS-8 | E | | $2.21 |
| LTC1699EMS8-82 | MS-8 | E | $2.40 | $2.15 |
| LTC1699EMS8-82#PBF | MS-8 | E | $2.40 | $2.15 |
| LTC1699EMS8-82#TR | MS-8 | E | | $2.21 |
| LTC1699EMS8-82#TRPBF | MS-8 | E | | $2.21 |
