LTC1697 - High Efficiency Low Power 1W CCFL Switching Regulator

LTC1697 - High Efficiency Low Power 1W CCFL Switching Regulator - Linear Technology（凌力尔特）

功能描述

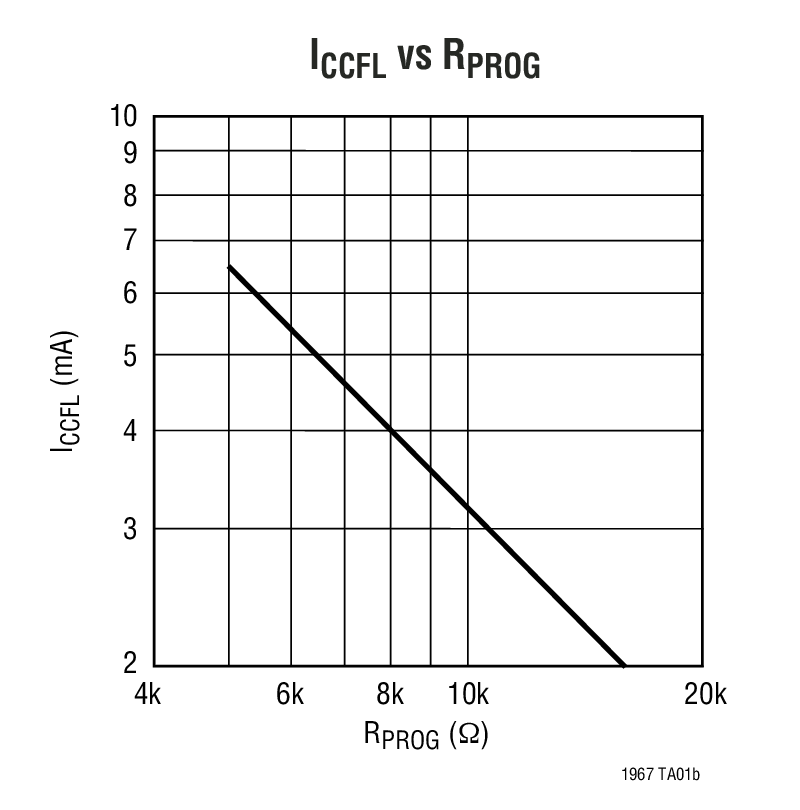

The LTC1697 is designed to control a single 1W cold cathode fluorescent lamp (CCFL). An internal PWM dimming system maximizes efficiency and dimming range. Accurate lamp currents can be set with a single external resistor.

The LTC1697 includes a synchronous current mode PWM controller with internal 1A MOSFET switches. It contains a 300kHz oscillator, 0.8V reference, and internal current sense. It operates from a 2.8V to 5.5V input voltage. The LTC1697 also has a thermal limit and a shutdown that reduces supply current to <2µA.

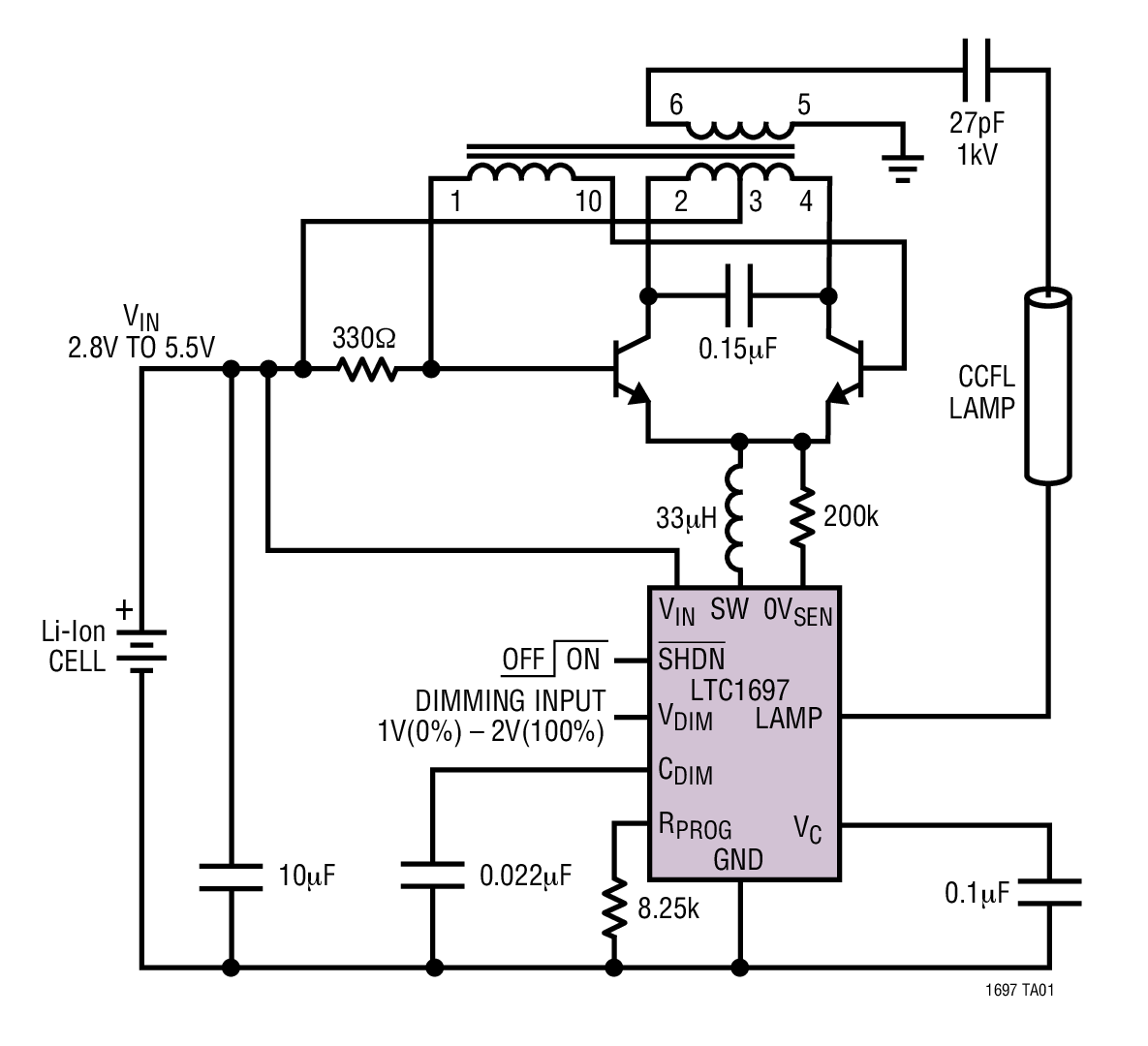

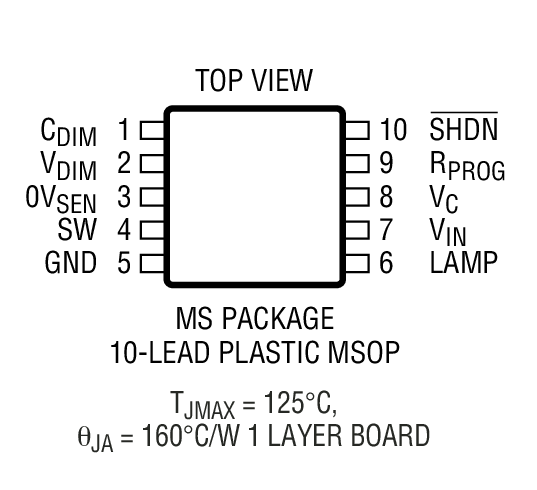

The LTC1697 is available in the MSOP-10 package.

特点

Operates from Single Li-Ion Battery

2.8V to 5.5V Input Voltage Range

Very Low Shutdown Current: <2µA

Synchronous Buck Architecture for High Efficiency

PWM Dimming Frequency Adjustable with a Single Capacitor

Accurate Lamp Current Maximizes Lamp Lifetime

Fixed Frequency Operation at 300kHz

Internal or External PWM Dimming

Small 10-Pin MSOP Package
