LTC1693-5 - High Speed Single P-Channel MOSFET Driver

LTC1693-5 - High Speed Single P-Channel MOSFET Driver - Linear Technology（凌力尔特）

功能描述

The LTC1693-5 drives power P-channel MOSFETs at high speed. The 1.5A peak output current reduces switching losses in MOSFETs with high gate capacitance.

The LTC1693-5 is a single driver with an output polarity select pin. The MOSFET driver offers VCC independent CMOS input thresholds with 1.2V of typical hysteresis. It can level-shift the input logic signal up or down to the rail-to-rail VCC drive for the external MOSFET.

The LTC1693-5 contains an undervoltage lockout circuit and a thermal shutdown circuit that disables the external P-channel MOSFET gate drive if activated.

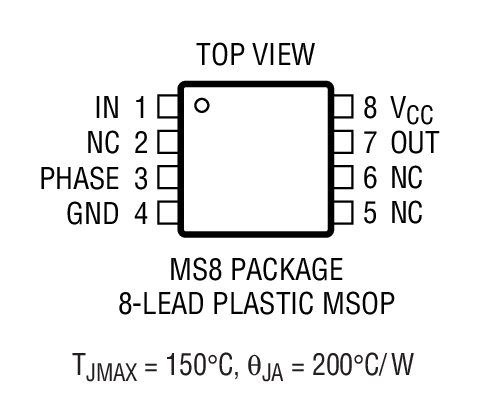

The LTC1693-5 comes in an 8-lead MSOP package.

特点

Single MOSFET Driver in MSOP Package

1.5A Peak Output Current

16ns Rise/Fall Times at VCC = 12V, CL = 1nF

CMOS Compatible Input with Hysteresis

Input Threshold Is Independent of VCC

Driver Input Can Be Driven Above VCC

Undervoltage Lockout

Thermal Shutdown

应用

Power Supplies
