LTC1658技术文档下载：

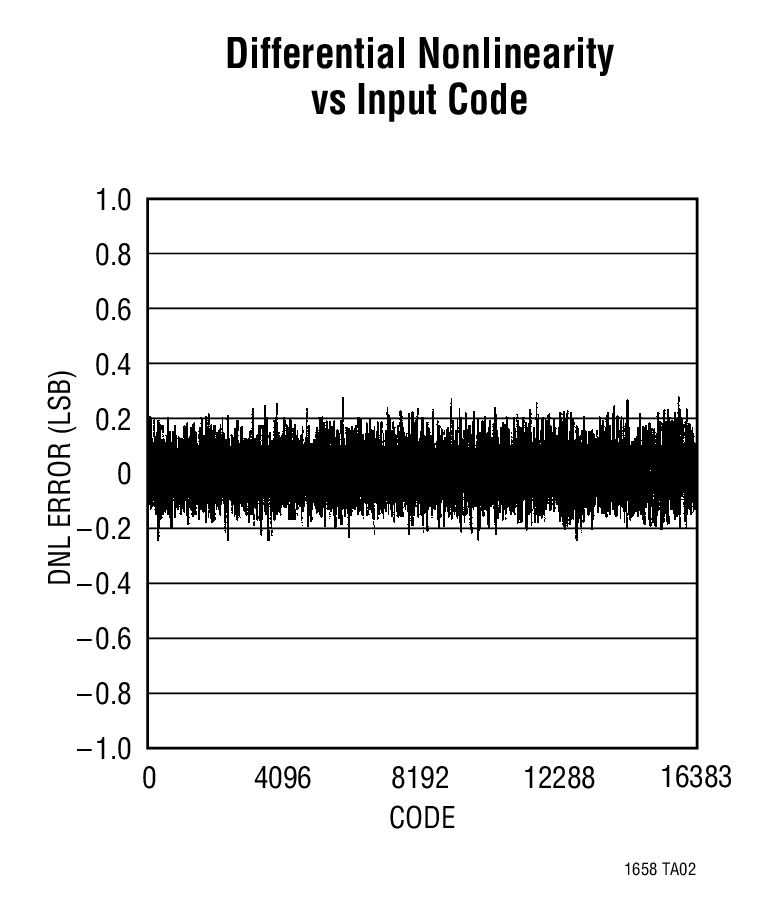

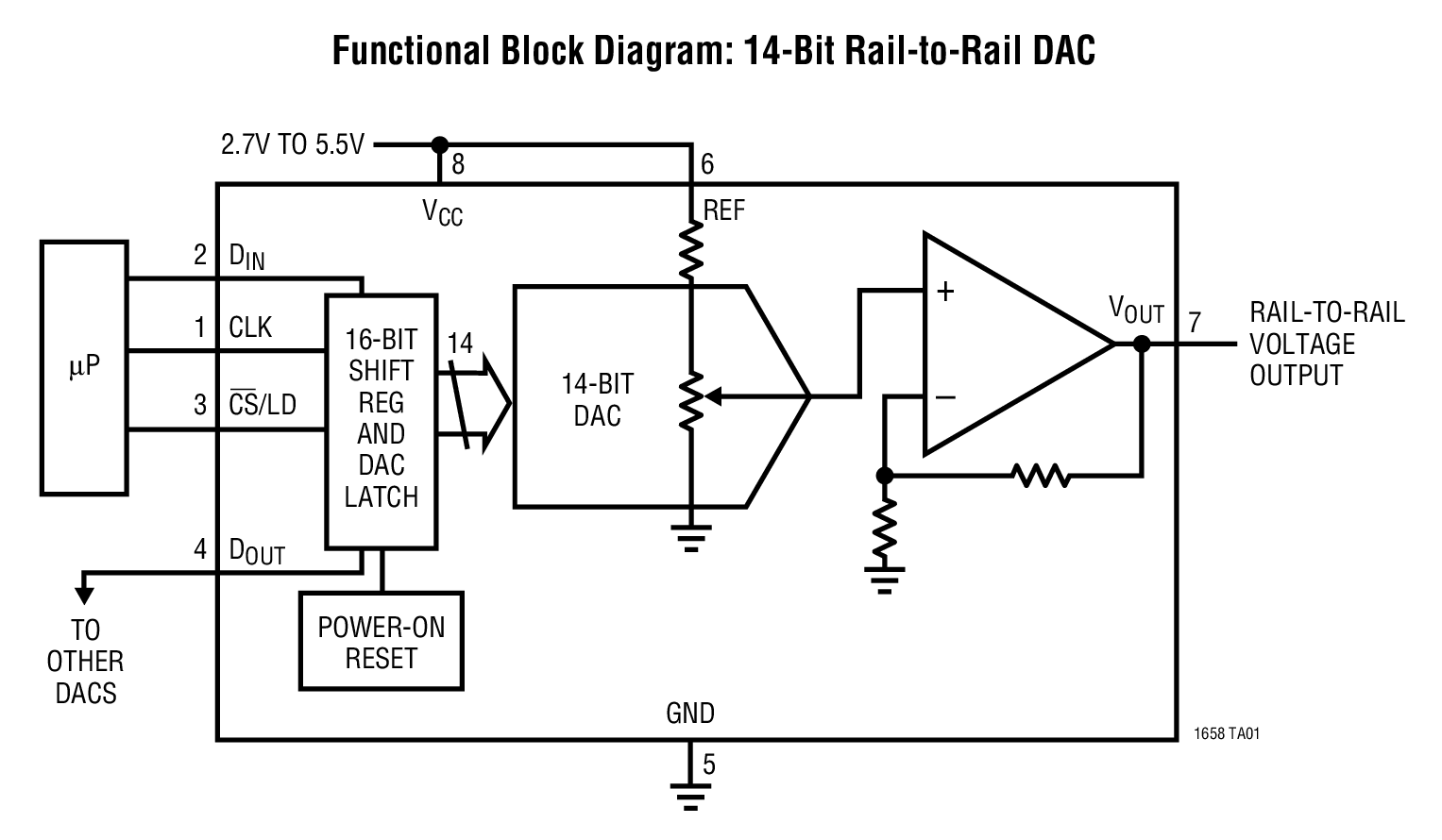

LTC1658 - 典型应用图例：

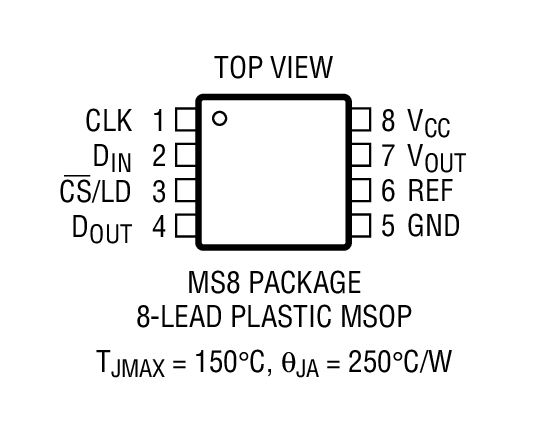

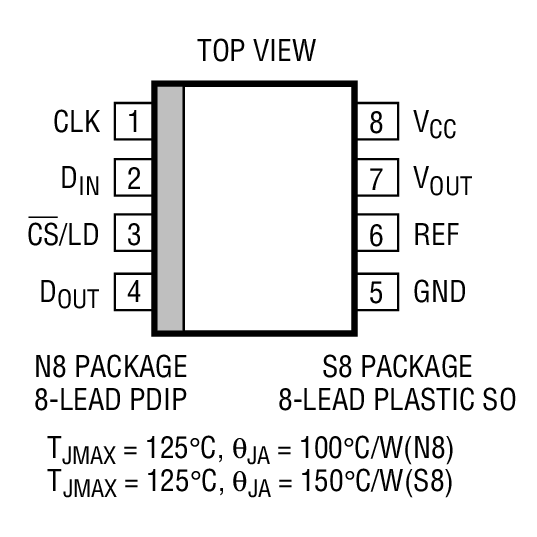

LTC1658 - 封装图解：
LTC1658 - LTC1658是14-Bit Rail-to-Rail Micropower DAC
LTC1658是Linear公司的一款电压输出 DAC产品，LTC1658是14-Bit Rail-to-Rail Micropower DAC，本站介绍了LTC1658的封装应用图解、特点和优点、功能等，并给出了与LTC1658相关的凌力尔特元器件型号供参考。
LTC1658 - 14-Bit Rail-to-Rail Micropower DAC
LTC1658 - 14-Bit Rail-to-Rail Micropower DAC - Linear Technology（凌力尔特）
功能描述
The LTC?1658 is a single supply, rail-to-rail voltage output, 14-bit digital-to-analog converter (DAC) in an 8-lead MSOP package. It includes an output buffer amplifier and an easy-to-use 3-wire cascadable serial interface.The LTC1658 output swings from 0V to VREF. The REF pin can be tied to Vcc for rail-to-rail output swing. The LTC1658 operates from a single 2.7V to 5.5V supply. The typical power supply current is 270μA.The low power supply current makes the LTC1658 ideal for battery-powered applications. The space saving MSOP provides the smallest 14-bit DAC system available. 特点
应用
以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) |
|---|---|---|---|---|
| LTC1658CMS8 | MS-8 | C | $6.05 | $5.10 |
| LTC1658CMS8#PBF | MS-8 | C | $6.05 | $5.10 |
| LTC1658CMS8#TR | MS-8 | C | $5.16 | |
| LTC1658CMS8#TRPBF | MS-8 | C | $5.16 | |
| LTC1658CN8 | N-8 | C | $5.70 | $4.80 |
| LTC1658CN8#PBF | N-8 | C | $5.70 | $4.80 |
| LTC1658CS8 | SO-8 | C | $5.70 | $4.80 |
| LTC1658CS8#PBF | SO-8 | C | $5.70 | $4.80 |
| LTC1658CS8#TR | SO-8 | C | $4.86 | |
| LTC1658CS8#TRPBF | SO-8 | C | $4.86 | |
| LTC1658IMS8 | MS-8 | I | $7.20 | $6.10 |
| LTC1658IMS8#PBF | MS-8 | I | $7.20 | $6.10 |
| LTC1658IMS8#TR | MS-8 | I | $6.16 | |
| LTC1658IMS8#TRPBF | MS-8 | I | $6.16 | |
| LTC1658IN8 | N-8 | I | $6.80 | $5.75 |
| LTC1658IN8#PBF | N-8 | I | $6.80 | $5.75 |
| LTC1658IS8 | SO-8 | I | $6.80 | $5.75 |
| LTC1658IS8#PBF | SO-8 | I | $6.80 | $5.75 |
| LTC1658IS8#TR | SO-8 | I | $5.81 | |
| LTC1658IS8#TRPBF | SO-8 | I | $5.81 |
