LT1216 - LT1216是23MHz, 50V/μs, Single Supply Quad Precision Op Amps
LT1216是Linear公司的一款精准放大器产品，LT1216是23MHz, 50V/μs, Single Supply Quad Precision Op Amps，本站介绍了LT1216的封装应用图解、特点和优点、功能等，并给出了与LT1216相关的凌力尔特元器件型号供参考。
LT1216 - 23MHz, 50V/μs, Single Supply Quad Precision Op Amps
LT1216 - 23MHz, 50V/μs, Single Supply Quad Precision Op Amps - Linear Technology（凌力尔特）
功能描述
Most H (Metal Can), J (Ceramic), and K (Metal Can) Packages from Linear Technology Are Now Obsolete
Download complete datasheet for Details
The LT1215 is a dual, single supply precision op amp with a 23MHz gain-bandwidth product and a 50V/µs slew rate. The LT1216 is a quad version of the same amplifier. The DC precision of the LT1215/LT1216 eliminates trims in most systems while providing high frequency performance not usually found in single supply amplifiers.
The LT1215/LT1216 will operate on any supply greater than 2.5V and less than 36V total. These amplifiers are specified on single 3.3V, single 5V and ±15V supplies, and only require 5mA of quiescent supply current per amplifier. The inputs can be driven beyond the supplies without damage or phase reversal of the output. The minimum output drive is 30mA, ideal for driving low impedance loads.
特点

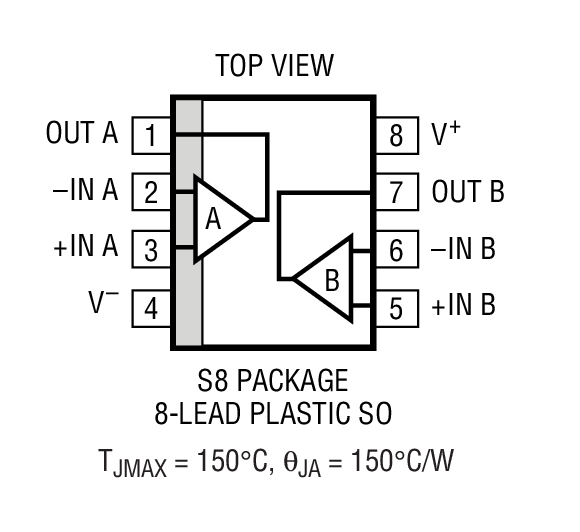

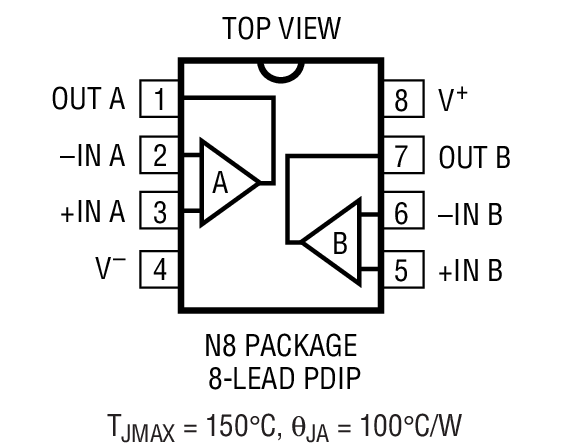

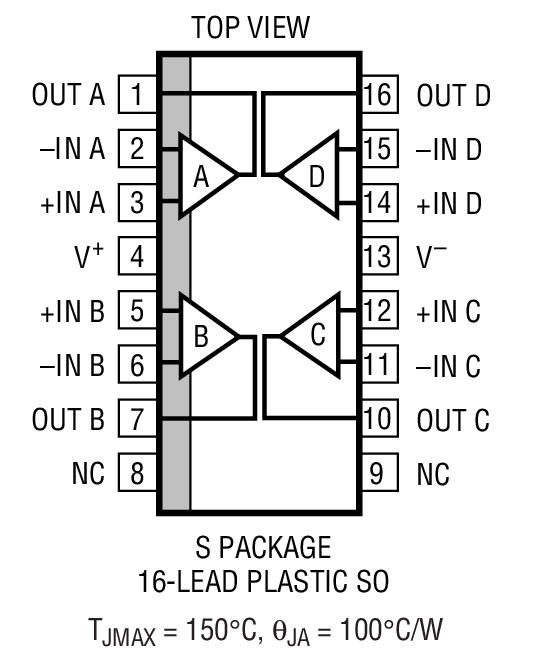

Slew Rate: 50V/µs Typ Gain-Bandwidth Product: 23MHz Typ Fast Settling to 0.01%2V Step to 200µV: 250ns Typ10V Step to 1mV: 480ns Typ Excellent DC Precision in All PackagesInput Offset Voltage: 450µV MaxInput Offset Voltage Drift: 10µV/°C Single Supply OperationInput Voltage Range Includes GroundOutput Swings to Ground While Sinking Current Low Input Noise Voltage: 12.5nV/rtHz Typ Low Input Noise Current: 0.5pA/rtHz Typ Specified on 3.3V, 5V and ±15V Large Output Drive Current: 30mA Min Low Supply Current per Amplifier: 6.6mA Max Dual in 8-Pin DIP and SO-8 Quad in 14-Pin DIP and NARROW SO-16应用
2.5V Full-Scale 12-Bit Systems:VOS </=0.75 LSB 10V Full-Scale 16-Bit Systems:VOS </=3 LSB Active Filters Photo Diode Amplifiers DAC Current to Voltage Amplifiers Battery-Powered Systems以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) |
| LT1216CN | N-14 | C | $5.85 | $5.10 |
| LT1216CN#PBF | N-14 | C | $5.85 | $5.10 |
| LT1216CS | SO-16 | C | $6.33 | $5.40 |
| LT1216CS#PBF | SO-16 | C | $6.33 | $5.40 |
| LT1216CS#TR | SO-16 | C | | $5.46 |
| LT1216CS#TRPBF | SO-16 | C | | $5.46 |
