当前位置：凌力尔特代理 > > 凌力尔特芯片 >> LTC1598L
LTC1598L技术文档下载：
LTC1598L技术文档产品手册下载
LTC1598L - 典型应用图例：

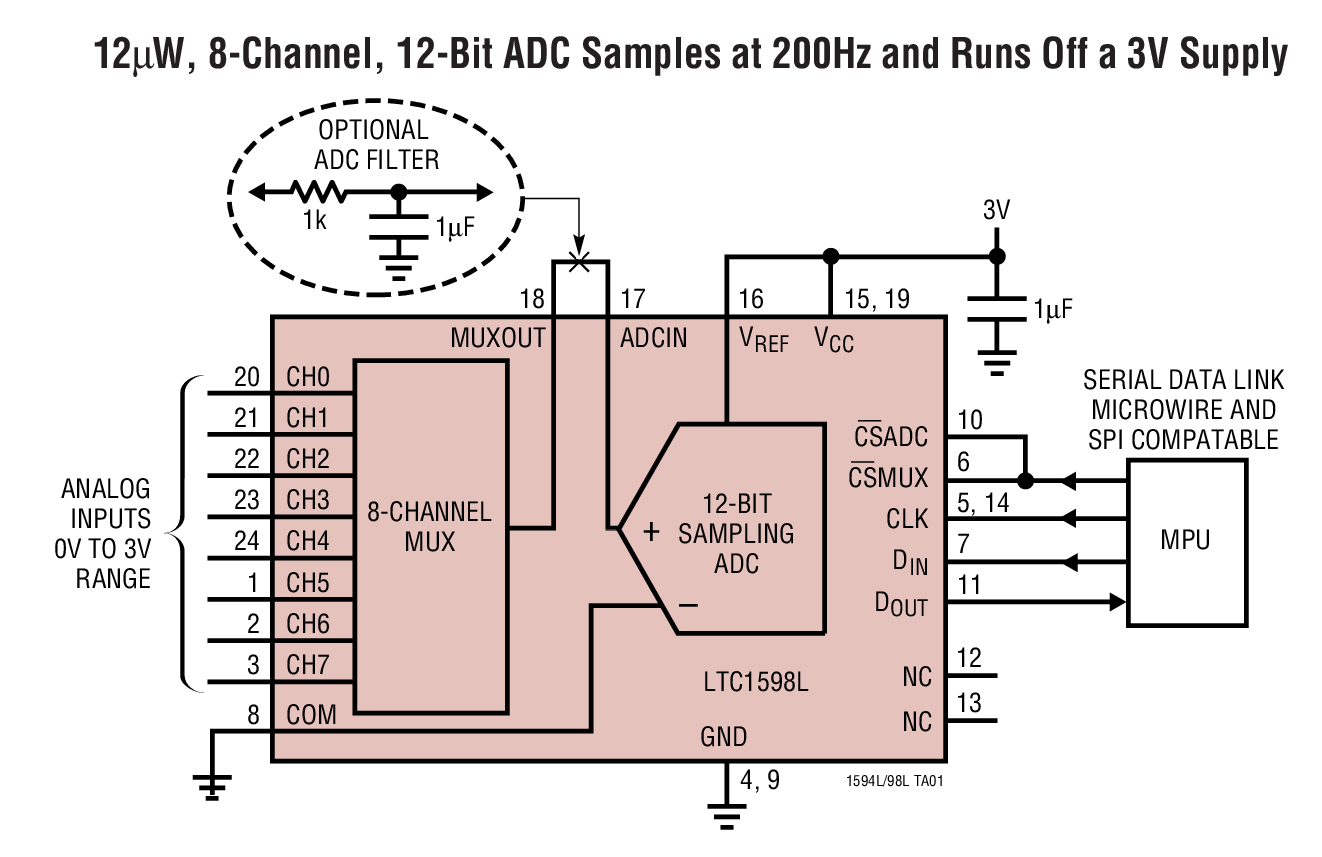

LTC1598L典型应用图例一

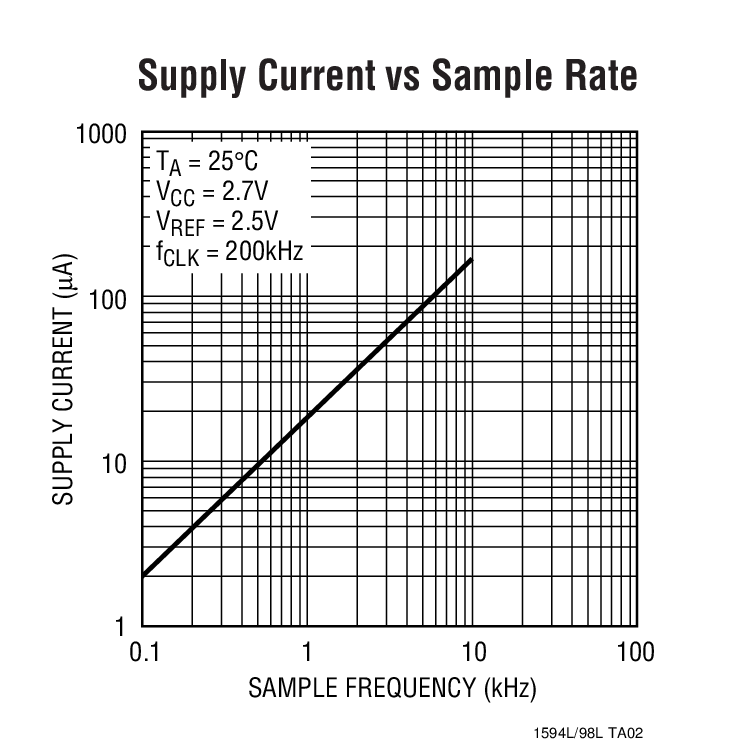

LTC1598L典型应用图例二
LTC1598L - 封装图解：

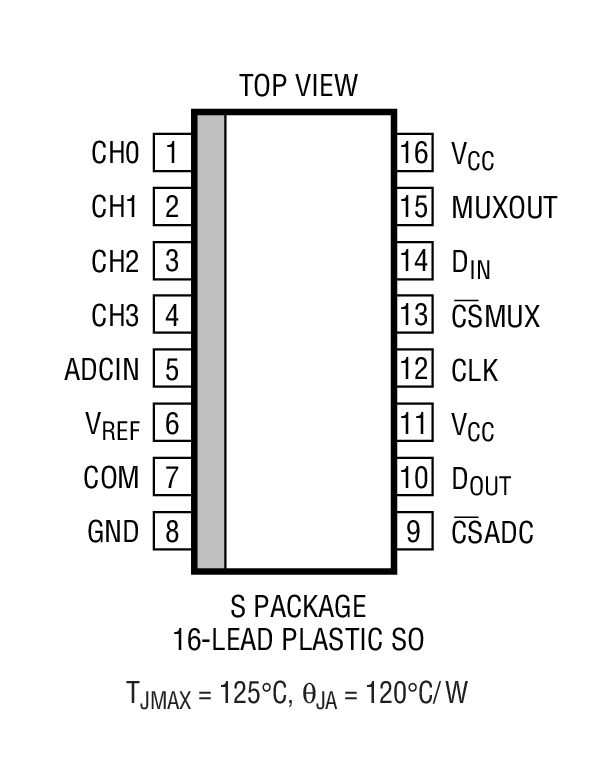

LTC1598L封装图解一

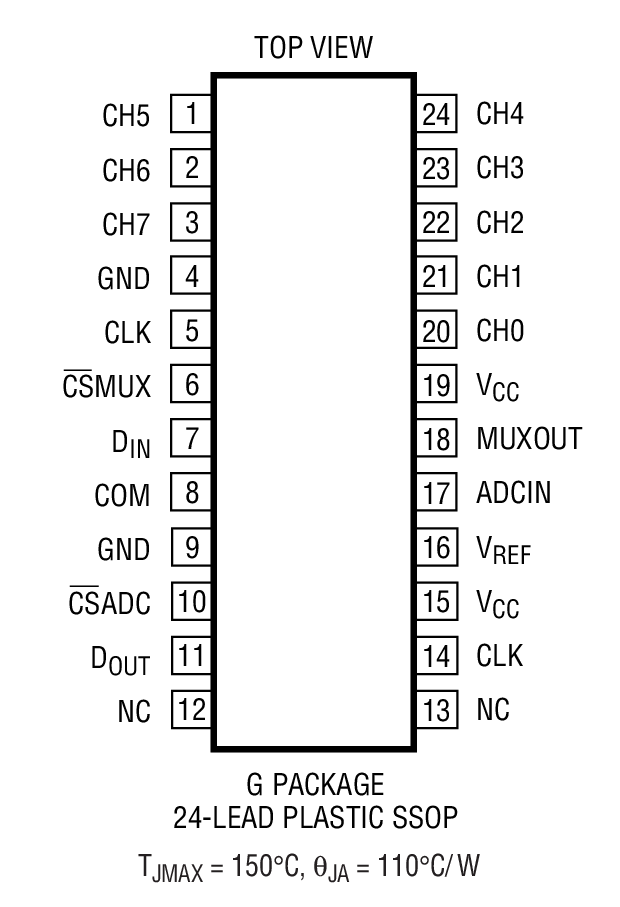

LTC1598L封装图解二
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1598L介绍

LTC1598L - LTC1598L是8-Channel, 3V Micropower Sampling 12-Bit Serial I/O A/D Converter

LTC1598L是LINEAR凌力尔特公司的一款通用型 SAR ADC产品，LTC1598L是LTC1598L是8-Channel, 3V Micropower Sampling 12-Bit Serial I/O A/D Converter，本站介绍了LTC1598L的封装应用图解、特点和优点、功能等，并给出了与LTC1598L相关的LINEAR元器件型号供参考。

LTC1598L - LTC1598L是8-Channel, 3V Micropower Sampling 12-Bit Serial I/O A/D Converter - 通用型 SAR ADC - 数据转换 - 凌力尔特

LTC1598L - 8-Channel, 3V Micropower Sampling 12-Bit Serial I/O A/D Converter

LTC1598L - 8-Channel, 3V Micropower Sampling 12-Bit Serial I/O A/D Converter - Linear Technology（凌力尔特）

功能描述

The LTC1594L/LTC1598L are 3V micropower, 12-bit sampling A/D converters that feature 4- and 8-channel multiplexers, respectively. They typically draw only 160µA of supply current when converting and automatically power down to a typical supply current of 1nA between conversions. The LTC1594L is available in a 16-pin SO package and the LTC1598L is packaged in a 24-pin SSOP. Both operate on a 3V supply. The 12-bit, switched capacitor, successive approximation ADCs include a sample-and-hold.

On-chip serial ports allow efficient data transfer to a wide range of microprocessors and microcontrollers over three or four wires. This, coupled with micropower consumption, makes remote location possible and facilitates transmitting data through isolation barriers.

The circuit can be used in ratiometric applications or with an external reference. The high impedance analog inputs and the ability to operate with reduced spans (to 1.5V full scale) allow direct connection to sensors and transducers in many applications, eliminating the need for gain stages.

特点
  • 12-Bit Resolution on 3V Supply
  • Low Supply Current: 160µA Typ
  • Auto Shutdown to 1nA
  • Guaranteed ±3/4LSB Max DNL
  • Guaranteed 2.7V Operation (5V Versions Available: LTC1594/LTC1598)
  • Multiplexer: 4-Channel MUX (LTC1594L) 8-Channel MUX (LTC1598L)
  • Separate MUX Output and ADC Input Pins
  • MUX and ADC May Be Controlled Separately
  • Sampling Rate: 10.5ksps
  • I/O Compatible with QSPI, SPI and MICROWIRE™, etc.
  • Small Package: 16-Pin Narrow SO (LTC1594L) 24-Pin SSOP (LTC1598L)
    • 应用
  • Pen Screen Digitizing
  • Battery-Operated Systems
  • Remote Data Acquisition
  • Isolated Data Acquisition
  • Battery Monitoring
  • Temperature Measurement
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1598LCG SSOP-24 C $7.75 $5.80
    LTC1598LCG#PBF SSOP-24 C $7.75 $5.80
    LTC1598LCG#TR SSOP-24 C $5.90
    LTC1598LCG#TRPBF SSOP-24 C $5.90
    LTC1598LIG SSOP-24 I $8.80 $6.65
    LTC1598LIG#PBF SSOP-24 I $8.80 $6.65
    LTC1598LIG#TR SSOP-24 I $6.75
    LTC1598LIG#TRPBF SSOP-24 I $6.75
