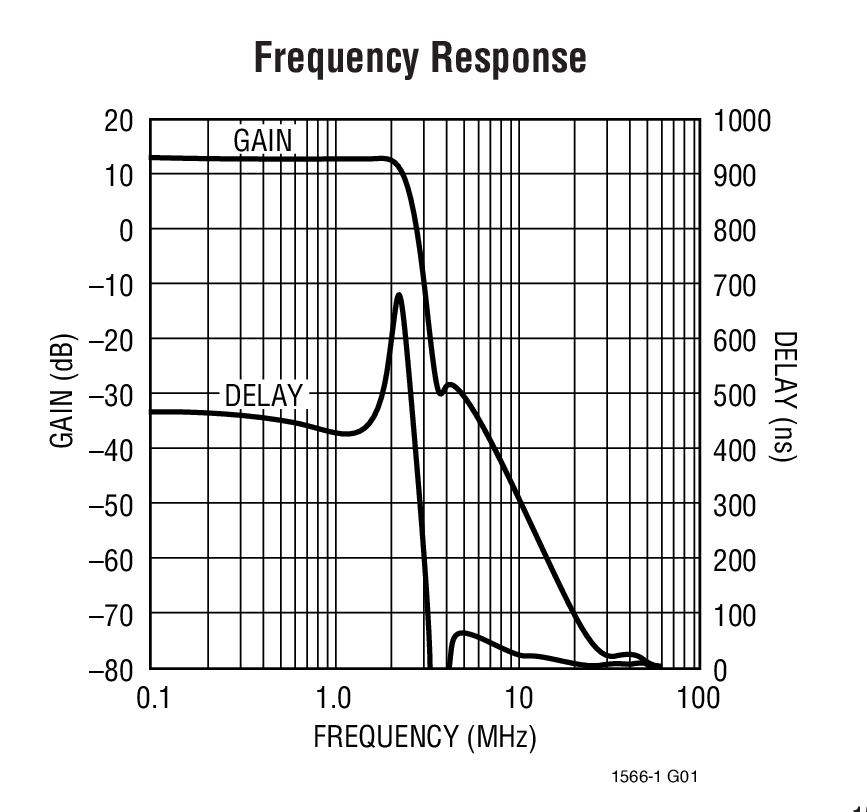

LTC1566-1典型应用图例一

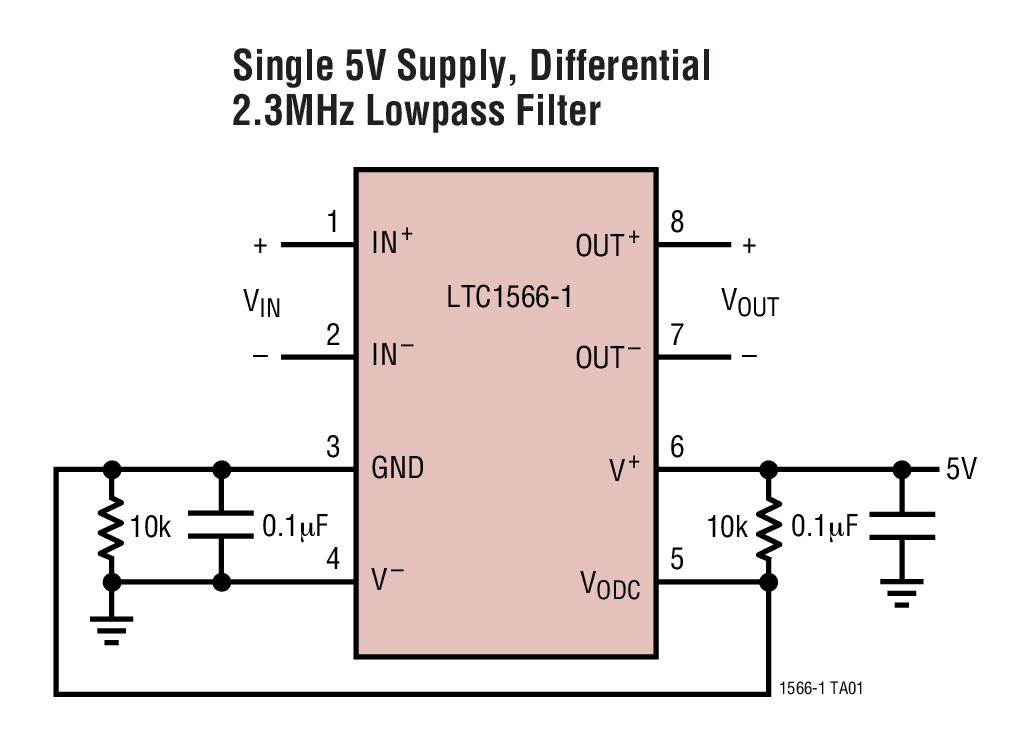

LTC1566-1典型应用图例二
LTC1566-1 - 封装图解：

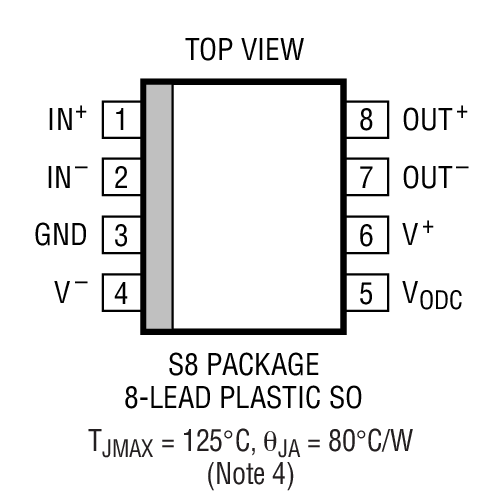

LTC1566-1封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1566-1介绍

LTC1566-1 - LTC1566-1是Low Noise 2.3MHz Continuous Time Lowpass Filter

LTC1566-1是LINEAR凌力尔特公司的一款低通滤波器产品，LTC1566-1是LTC1566-1是Low Noise 2.3MHz Continuous Time Lowpass Filter，本站介绍了LTC1566-1的封装应用图解、特点和优点、功能等，并给出了与LTC1566-1相关的LINEAR元器件型号供参考。

LTC1566-1 - LTC1566-1是Low Noise 2.3MHz Continuous Time Lowpass Filter - 低通滤波器 - 信号调理 - 凌力尔特

LTC1566-1 - Low Noise 2.3MHz Continuous Time Lowpass Filter

LTC1566-1 - Low Noise 2.3MHz Continuous Time Lowpass Filter - Linear Technology（凌力尔特）

功能描述

The LTC1566-1 is a 7th order continuous time lowpass filter with 12dB of passband gain. The selectivity, linearity and dynamic range makes the LTC1566-1 suitable for filtering in data communications or data acquisition systems. The filter attenuation is 40dB at 1.5 × fCUTOFF and at least 60dB for frequencies above 10MHz.

The LTC1566-1 has an input referred noise of 62µVRMS in a 2MHz bandwidth. In receiver applications where the signal levels are small, the filter features 71dB of spurious free dynamic range.

With 5% accuracy of the cutoff frequency, the LTC1566-1 can be used in applications requiring pairs of matched filters, such as transceiver I and Q channels.

The differential inputs and outputs provide a simple interface for wireless systems. The high impedance inputs are easily coupled to differential demodulators or D/A converters. The output DC common mode voltage and output DC offset voltage are adjustable so the signal path can be optimized for driving an A/D converter or differential modulator.

Other cutoff frequencies and single-ended I/O can be provided upon request. Please contact LTC Marketing.

特点
  • 7th Order, 2.3MHz Lowpass Filter in an SO-8
  • 62µVRMS Input Referred Noise
  • Operates on a Single 5V or a ±5V Supply
  • Differential Inputs and Outputs
  • Low Offset (3mV typical, 10mVMAX)
  • Adjustable Output Common Mode Voltage
  • 40dB Attenuation at 1.5 x fCUTOFF
  • Requires No External Components
    • 应用
  • WCDMA Basestations
  • Communication Filters
  • Antialiasing Filters
  • Smoothing or Reconstruction Filters
  • Matched Filter Pairs
  • Replacement for LC Filters
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1566-1CS8 SO-8 C $7.05 $5.95
    LTC1566-1CS8#PBF SO-8 C $7.05 $5.95
    LTC1566-1CS8#TR SO-8 C $6.01
    LTC1566-1CS8#TRPBF SO-8 C $6.01
    LTC1566-1IS8 SO-8 I $7.30 $6.15
    LTC1566-1IS8#PBF SO-8 I $7.30 $6.15
    LTC1566-1IS8#TR SO-8 I $6.21
    LTC1566-1IS8#TRPBF SO-8 I $6.21
