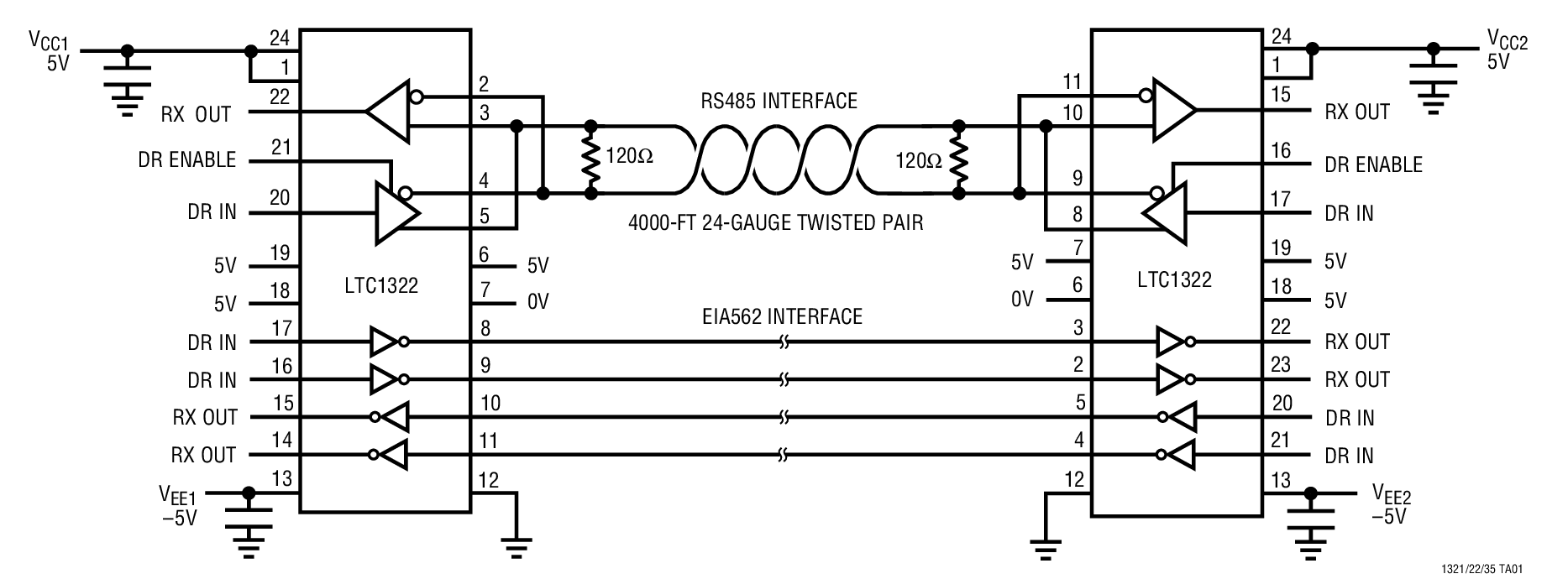

LTC1322 - 典型应用图例：
LTC1322典型应用图例一

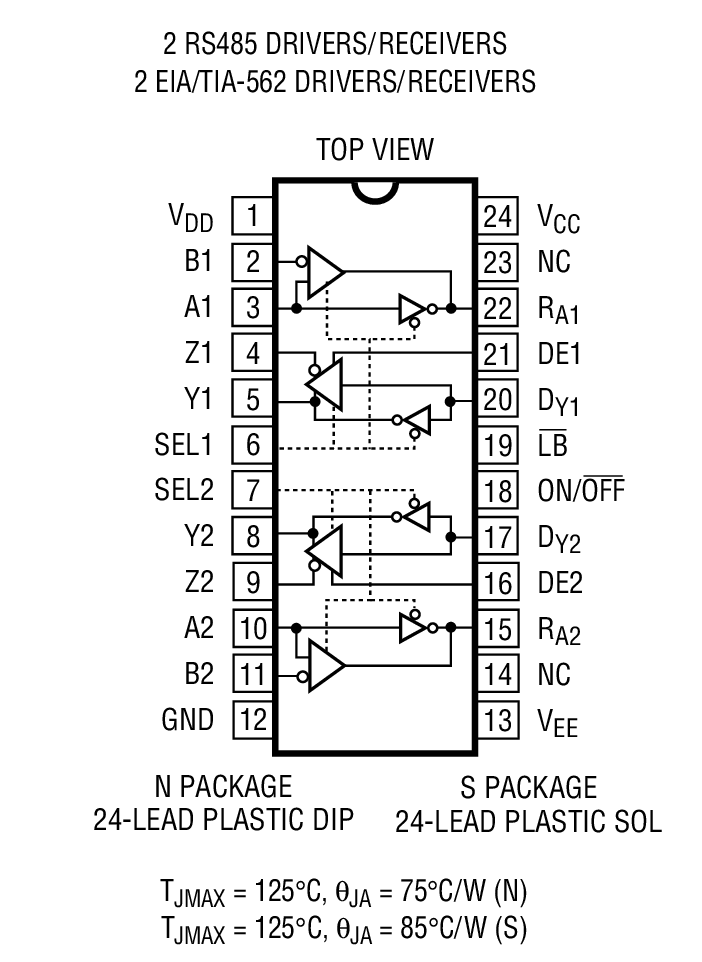

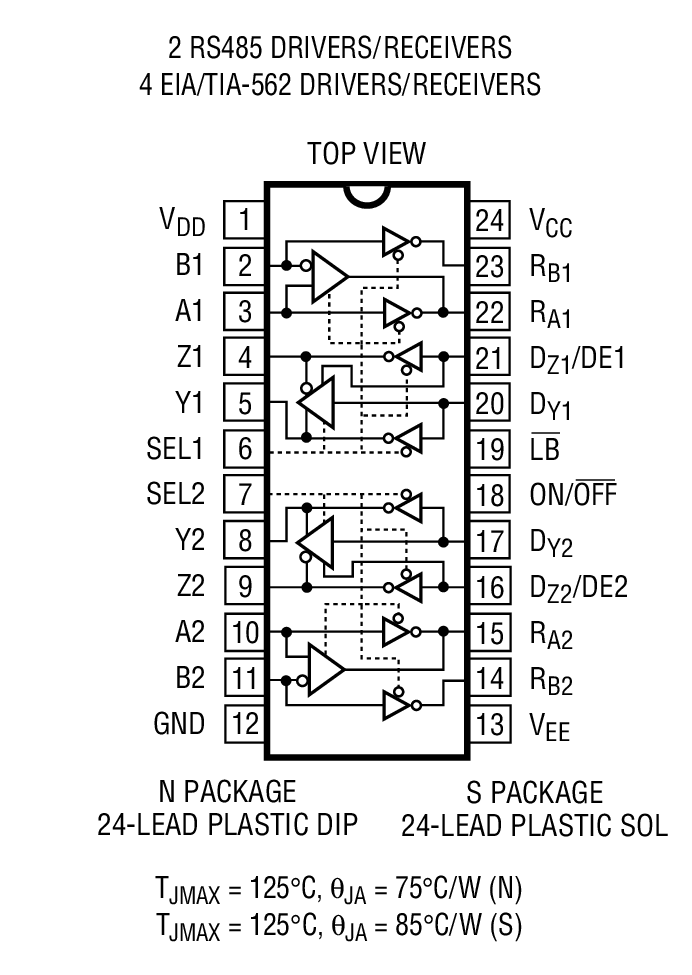

LTC1322 - 封装图解：
LTC1322封装图解一
LTC1322封装图解二
LTC1322LTC1322
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1322介绍

LTC1322 - LTC1322是RS232/EIA562/RS485 Transceivers

LTC1322是LINEAR凌力尔特公司的一款多协议收发器产品，LTC1322是LTC1322是RS232/EIA562/RS485 Transceivers，本站介绍了LTC1322的封装应用图解、特点和优点、功能等，并给出了与LTC1322相关的LINEAR元器件型号供参考。

LTC1322 - LTC1322是RS232/EIA562/RS485 Transceivers - 多协议收发器 - 接口器件 - 凌力尔特

LTC1322 - RS232/EIA562/RS485 Transceivers

LTC1322 - RS232/EIA562/RS485 Transceivers - Linear Technology（凌力尔特）

功能描述
The LTC1321/LTC1322/LTC1335 are low power CMOS bidirectional transceivers, each featuring two reconfigurable interface ports. Each can be configured as two RS485 differential ports, as two single-ended ports, or as one RS485 differential port and one single-ended port. The LTC1321/LTC1322 can provide RS232 or EIA562 compatible single-ended outputs; the LTC1335 provides EIA562 compatible outputs and additionally includes an output enable pin, allowing the receiver logic level outputs to be three-stated.

The RS232/EIA562 transceivers operate to 120kbaud and are in full compliance with EIA/TIA-562 specification. The RS485 transceivers operate to 10Mbaud and are in full compliance with RS485 and RS422 specifications. All interface drivers feature short-circuit and thermal shutdown protection. An enable pin allows RS485 driver outputs to be forced into high impedance which is maintained even when the outputs are forced beyond supply rails or power is off. Both driver outputs and receiver inputs feature ±10kV ESD protection. A loopback mode connects the driver outputs back to the receiver inputs for diagnostic self-test.

The LTC1321/LTC1322 can support RS232 voltage levels when 6.5V DDEE>/= –10V. The LTC1335 supports receiver output enable but not RS232 levels. A shutdown mode reduces the IMCC supply current to 15µA.

特点
  • LTC1321: 2-EIA562/RS232 Transceivers/2-RS485 Transceivers
  • LTC1322: 4-EIA562/RS232 Transceivers/2-RS485 Transceivers
  • LTC1335: 4-EIA562 Transceivers/2-RS485 Transceivers with OE
  • LTC1321/LTC1322 Have the Same Pinout as SP301/SP302
  • LTC1335 Features Receiver Three-State Outputs
  • Low Supply Current: 1mA Typical
  • 15µA Supply Current in Shutdown
  • 120kBaud in EIA/TIA-562 or RS232 Mode
  • 10MBaud in RS485/RS422 Mode
  • Self-Testing Capability in Loopback Mode
  • Power-Up/Down Glitch-Free Outputs
  • Driver Maintains High Impedance in Three-State, Shutdown or With Power Off
  • Thermal Shutdown Protection
  • I/O Lines Can Withstand ±25V
  • Withstands Repeated 10kV ESD Pulses
    • 应用
  • Low Power RS485/RS422/EIA562/RS232 Interface
  • Cable Repeater
  • Level Translator
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1322CN N-24 C $6.65 $5.25
    LTC1322CN#PBF N-24 C $6.65 $5.25
    LTC1322CSW SW-24 C $6.65 $5.25
    LTC1322CSW#PBF SW-24 C $6.65 $5.25
    LTC1322CSW#TR SW-24 C $5.35
    LTC1322CSW#TRPBF SW-24 C $5.35
    LTC1322IN N-24 I $8.00 $6.30
    LTC1322IN#PBF N-24 I $8.00 $6.30
    LTC1322ISW SW-24 I $8.00 $6.30
    LTC1322ISW#PBF SW-24 I $8.00 $6.30
    LTC1322ISW#TR SW-24 I $6.40
    LTC1322ISW#TRPBF SW-24 I $6.40
