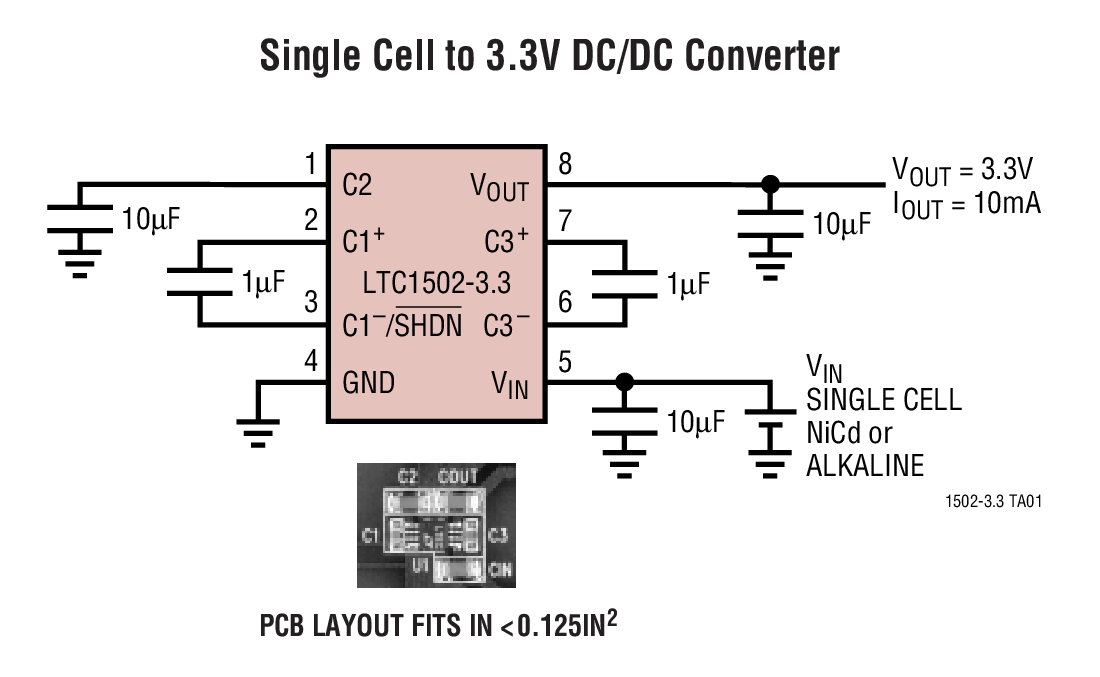

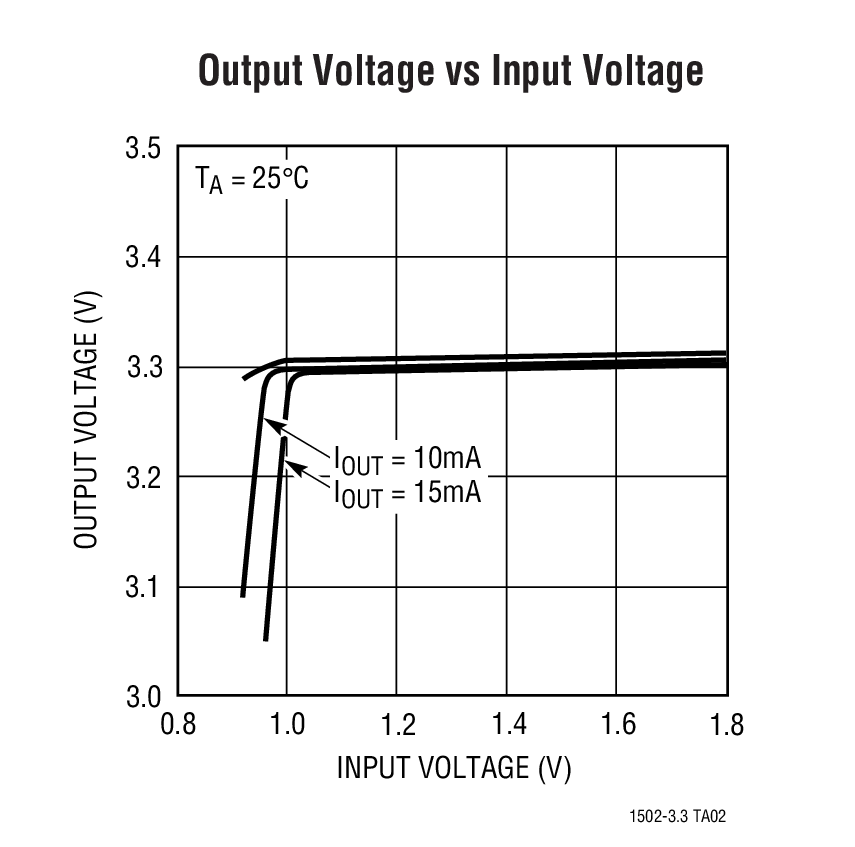

LTC1502-3.3 - 典型应用图例：
LTC1502-3.3典型应用图例一
LTC1502-3.3典型应用图例二

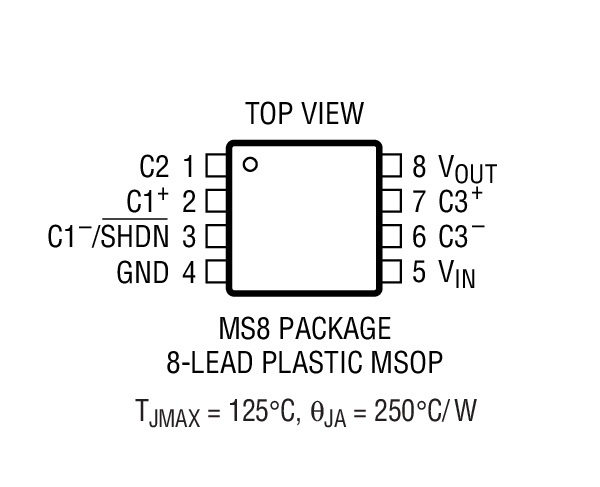

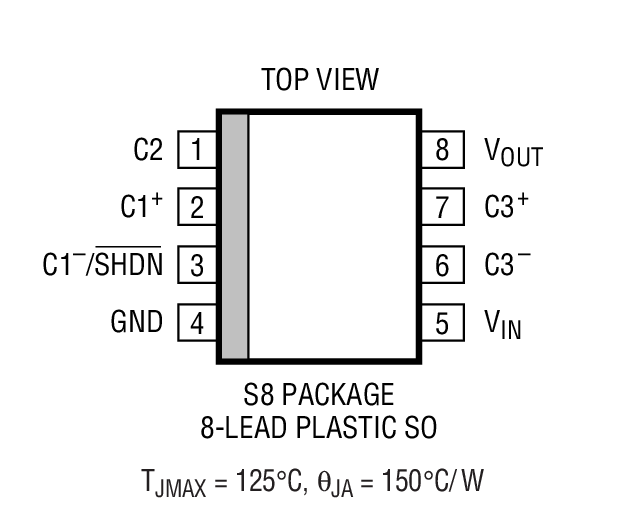

LTC1502-3.3 - 封装图解：
LTC1502-3.3封装图解一
LTC1502-3.3封装图解二
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1502-3.3介绍

LTC1502-3.3 - LTC1502-3.3是Single Cell to 3.3V Regulated Charge Pump DC/DC Converter

LTC1502-3.3是LINEAR凌力尔特公司的一款稳压的升压型充电泵产品，LTC1502-3.3是LTC1502-3.3是Single Cell to 3.3V Regulated Charge Pump DC/DC Converter，本站介绍了LTC1502-3.3的封装应用图解、特点和优点、功能等，并给出了与LTC1502-3.3相关的LINEAR元器件型号供参考。

LTC1502-3.3 - LTC1502-3.3是Single Cell to 3.3V Regulated Charge Pump DC/DC Converter - 稳压的升压型充电泵 - 电源管理 - 凌力尔特

LTC1502-3.3 - Single Cell to 3.3V Regulated Charge Pump DC/DC Converter

LTC1502-3.3 - Single Cell to 3.3V Regulated Charge Pump DC/DC Converter - Linear Technology（凌力尔特）

功能描述

The LTC1502-3.3 is a quadrupler charge pump DC/DC converter that produces a regulated 3.3V output from a single alkaline cell input. It requires only five small external capacitors-no inductors are required. Low supply current (40μA typical, 5μA in shutdown) and minimal external components make the LTC1502-3.3 ideal for space and power conscious single-cell applications. The total printed circuit board area of the circuit shown below is less than 0.125in2. Forcing the C1-/SHDN pin through an external resistive pull-down puts the part into shutdown mode. During shutdown, the internal oscillator is stopped and the load is disconnected from VIN. An internal pull-up current on the C1-/SHDN pin forces the part back into normal operation once the pull-down resistance is removed. The LTC1502-3.3 is short-circuit protected and survives an indefinite Vout short to ground. The LTC1502-3.3 is available in 8-pin MSOP and SO packages.

?

特点
  • Input Voltage Range: 0.9V to 1.8V
  • 0.9V Guaranteed Start-Up Voltage
  • Regulated Output Voltage: 3.3V ±4%
  • Output Current: 10mA (VIN >/= 1V)
  • No Inductors
  • Shutdown Disconnects Load from VIN
  • Low Operating Current: 40μA
  • Low Shutdown Current: 5μA
  • Short-Circuit and Overtemperature Protected
  • Application Circuit Fits in <0.125in2 PCB Area
  • Available in 8-Pin MSOP and SO Packages
    • 应用
  • Pagers
  • Battery Backup Supplies
  • Portable Electronic Equipment
  • Handheld Medical Instruments
  • Glucose Meters
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1502CMS8-3.3 MS-8 C $2.30 $1.95
    LTC1502CMS8-3.3#PBF MS-8 C $2.30 $1.95
    LTC1502CMS8-3.3#TR MS-8 C $2.01
    LTC1502CMS8-3.3#TRPBF MS-8 C $2.01
    LTC1502CS8-3.3 SO-8 C $2.10 $1.75
    LTC1502CS8-3.3#PBF SO-8 C $2.10 $1.75
    LTC1502CS8-3.3#TR SO-8 C $1.81
    LTC1502CS8-3.3#TRPBF SO-8 C $1.81
    LTC1502IS8-3.3 SO-8 I $2.50 $2.10
    LTC1502IS8-3.3#PBF SO-8 I $2.50 $2.10
    LTC1502IS8-3.3#TR SO-8 I $2.16
    LTC1502IS8-3.3#TRPBF SO-8 I $2.16
