当前位置：凌力尔特代理 > > 凌力尔特芯片 >> LTC1688
LTC1688技术文档下载：
LTC1688技术文档产品手册下载
LTC1688 - 典型应用图例：

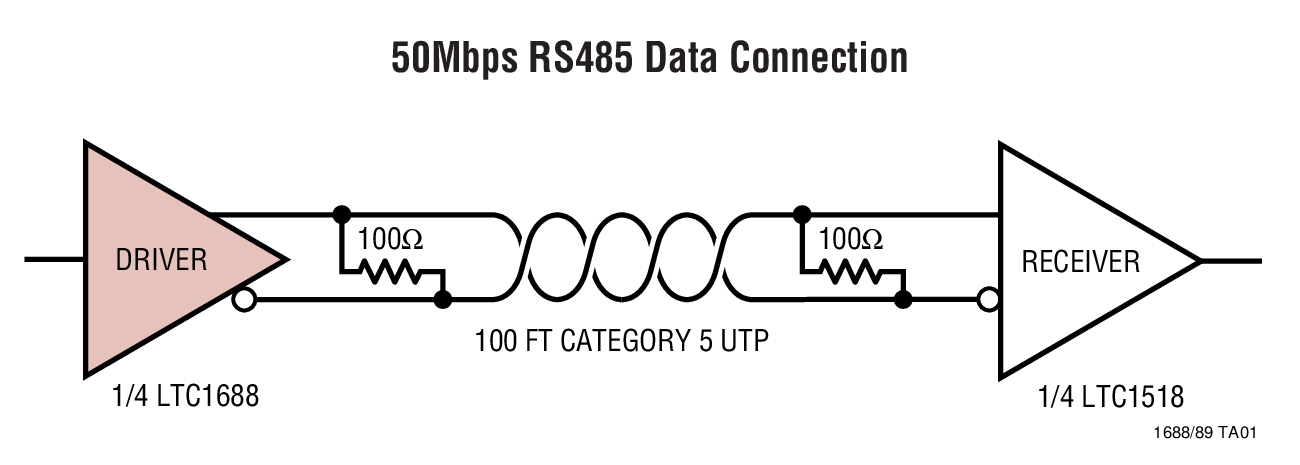

LTC1688典型应用图例一

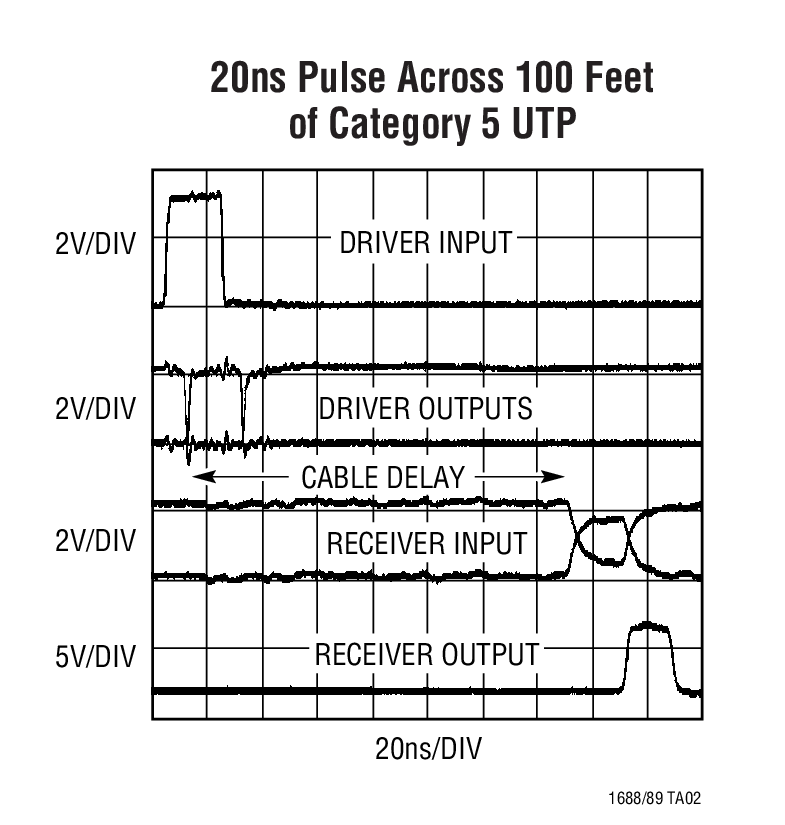

LTC1688典型应用图例二
LTC1688 - 封装图解：

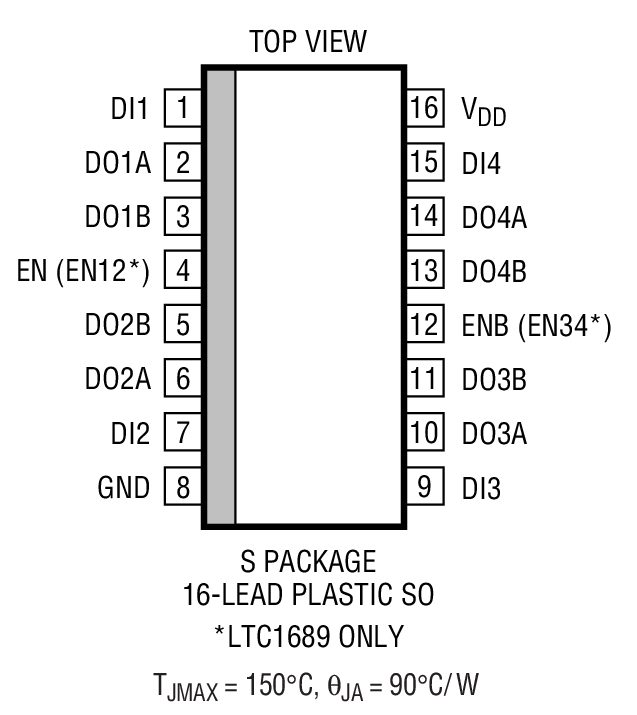

LTC1688封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1688介绍

LTC1688 - LTC1688是100Mbps RS485 Hot Swapable Quad Drivers

LTC1688是LINEAR凌力尔特公司的一款RS485 / RS422 收发器产品，LTC1688是LTC1688是100Mbps RS485 Hot Swapable Quad Drivers，本站介绍了LTC1688的封装应用图解、特点和优点、功能等，并给出了与LTC1688相关的LINEAR元器件型号供参考。

LTC1688 - LTC1688是100Mbps RS485 Hot Swapable Quad Drivers - RS485 / RS422 收发器 - 接口器件 - 凌力尔特

LTC1688 - 100Mbps RS485 Hot Swapable Quad Drivers

LTC1688 - 100Mbps RS485 Hot Swapable Quad Drivers - Linear Technology（凌力尔特）

功能描述

The LTC1688/LTC1689 are ultrahigh speed, differential bus/line drivers that can operate at data rates up to 100Mbps. Propagation delay is guaranteed at 8ns ±4ns over the full operating temperature range. These devices operate over the full RS485 common mode range (–7V to 12V), and also meet RS422 requirements.

The driver outputs are Hot Swap capable, maintaining backplane data integrity during board insertion and removal. The drivers feature three-state outputs, maintaining high impedance over the entire common mode range (– 7V to 12V). Outputs also remain high impedance during power-up and with the power off. A short-circuit feature detects bus contention and substantially reduces driver output current. Thermal shutdown circuitry protects the parts from excessive power dissipation.

The LTC1688 allows all four drivers to be enabled together, while the LTC1689 allows two drivers at a time to be enabled.

The LTC1688/LTC1689 operate from a single 5V or 3V supply and draw only 9mA of supply current.

特点
  • Ultrahigh Speed:100Mbps
  • Guaranteed Propagation Delay: 8ns ±4ns Over Temperature
  • Low Channel-to-Channel Skew: 500ps Typ
  • Hot Swap™ Capable
  • 50Mbps Operation with VDD = 3V
  • Low tPLH/tPHL Skew: 500ps Typ
  • Driver Outputs Maintain High Impedance in Three-State or with Power Off
  • Short-Circuit Protected: 3mA Typ Output Current for an Indefinite Short
  • Thermal Shutdown Protected
  • Single 5V or 3V Supply
  • Pin Compatible with LTC486/LTC487
    • 应用
  • High Speed RS485 Twisted-Pair Drivers
  • High Speed Backplane Drivers
  • Complementary Clock Drivers
  • STS-1/OC-1 Data Drivers
  • SCSI Drivers
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1688CS SO-16 C $5.80 $4.95
    LTC1688CS#PBF SO-16 C $5.80 $4.95
    LTC1688CS#TR SO-16 C $5.01
    LTC1688CS#TRPBF SO-16 C $5.01
    LTC1688IS SO-16 I $7.75 $5.65
    LTC1688IS#PBF SO-16 I $7.75 $5.65
    LTC1688IS#TR SO-16 I $5.71
    LTC1688IS#TRPBF SO-16 I $5.71
