LTC1454L是Dual 12-Bit Rail-to-Rail Micropower DACs

Linear（凌力尔特）| Linear产品型号搜索

当前位置：Linear公司 > > 凌力尔特芯片 >> LTC1454L

LTC1454L技术文档下载：

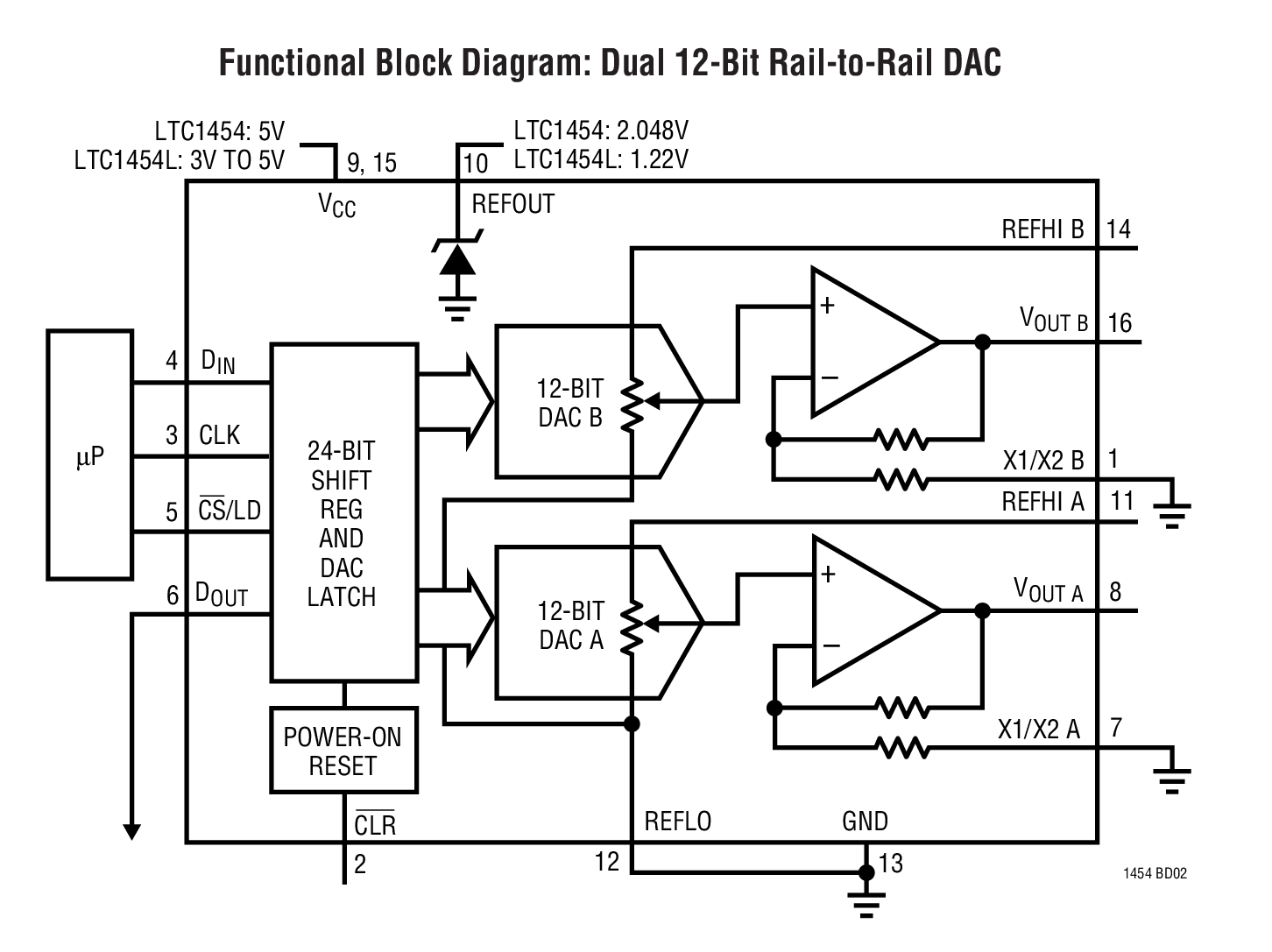

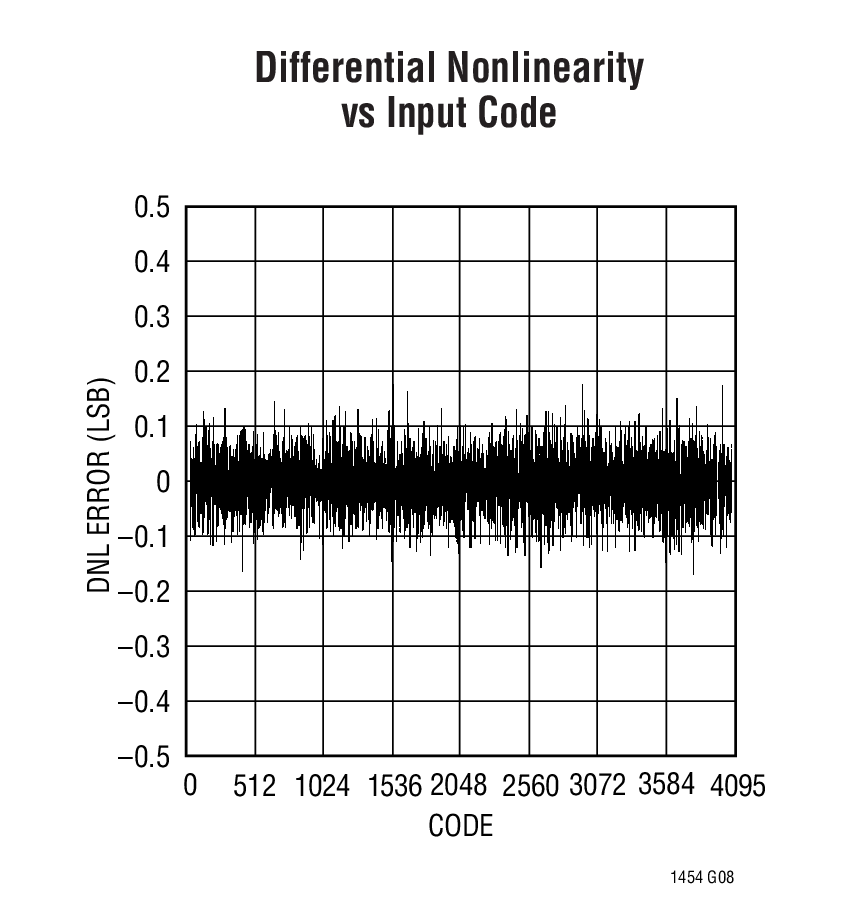

LTC1454L - 典型应用图例：

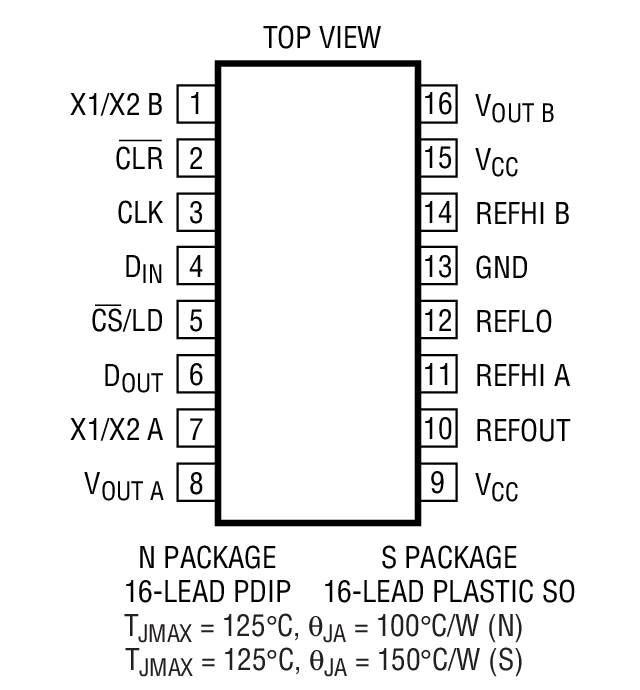

LTC1454L - 封装图解：

LTC1454L - LTC1454L是Dual 12-Bit Rail-to-Rail Micropower DACs

LTC1454L是Linear公司的一款电压输出 DAC产品，LTC1454L是Dual 12-Bit Rail-to-Rail Micropower DACs，本站介绍了LTC1454L的封装应用图解、特点和优点、功能等，并给出了与LTC1454L相关的凌力尔特元器件型号供参考。

LTC1454L - Dual 12-Bit Rail-to-Rail Micropower DACs

LTC1454 - Dual 12-Bit Rail-to-Rail Micropower DACs - Linear Technology（凌力尔特）

功能描述

The LTC?1454/LTC1454L are complete single supply, dual rail-to-rail voltage output, 12-bit digital-to-analog converters (DACs) in a 16-lead SO package. They include an output buffer amplifier with variable gain (x1 or x2) and an easy-to-use 3-wire cascadable serial interface.The LTC1454 has an onboard reference of 2.048V and a full-scale output of 4.095V in a x2 gain configuration. It operates from a single 4.5V to 5.5V supply.The LTC1454L has an onboard 1.22V reference and a full-scale output of 2.5V in a x2 gain configuration. It operates from a single 2.7V to 5.5V supply.Low power supply current, excellent DNL and small size allow these parts to be used in a host of applications where size, DNL and single supply operation are important.

特点

12-Bit Resolution

Buffered True Rail-to-Rail Voltage Output

5V Operation, ICC: 700µA Typ (LTC1454)

3V Operation, ICC: 450µA Typ (LTC1454L)

Built-In Reference: 2.048V (LTC1454)

1.220V (LTC1454L)

CLR Pin

Power-On Reset

16-Lead SO Package

3-Wire Cascadable Serial Interface

Maximum DNL Error: 0.5LSB

Low Cost

应用

Digital Calibration

Industrial Process Control

Automatic Test Equipment

Cellular Telephones

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC1454CN	N-16	C	$8.25	$6.60
LTC1454CN#PBF	N-16	C	$8.25	$6.60
LTC1454CS	SO-16	C	$8.35	$6.70
LTC1454CS#PBF	SO-16	C	$8.35	$6.70
LTC1454CS#TR	SO-16	C		$6.76
LTC1454CS#TRPBF	SO-16	C		$6.76
LTC1454IN	N-16	I	$9.25	$7.40
LTC1454IN#PBF	N-16	I	$9.25	$7.40
LTC1454IS	SO-16	I	$9.35	$7.50
LTC1454IS#PBF	SO-16	I	$9.35	$7.50
LTC1454IS#TR	SO-16	I		$7.56
LTC1454IS#TRPBF	SO-16	I		$7.56
LTC1454LCN	N-16	C	$9.10	$7.25
LTC1454LCN#PBF	N-16	C	$9.10	$7.25
LTC1454LCS	SO-16	C	$9.15	$7.35
LTC1454LCS#PBF	SO-16	C	$9.15	$7.35
LTC1454LCS#TR	SO-16	C		$7.41
LTC1454LCS#TRPBF	SO-16	C		$7.41
LTC1454LIN	N-16	I	$10.15	$8.15
LTC1454LIN#PBF	N-16	I	$10.15	$8.15
LTC1454LIS	SO-16	I	$10.05	$8.25
LTC1454LIS#PBF	SO-16	I	$10.05	$8.25
LTC1454LIS#TR	SO-16	I		$8.31
LTC1454LIS#TRPBF	SO-16	I		$8.31
