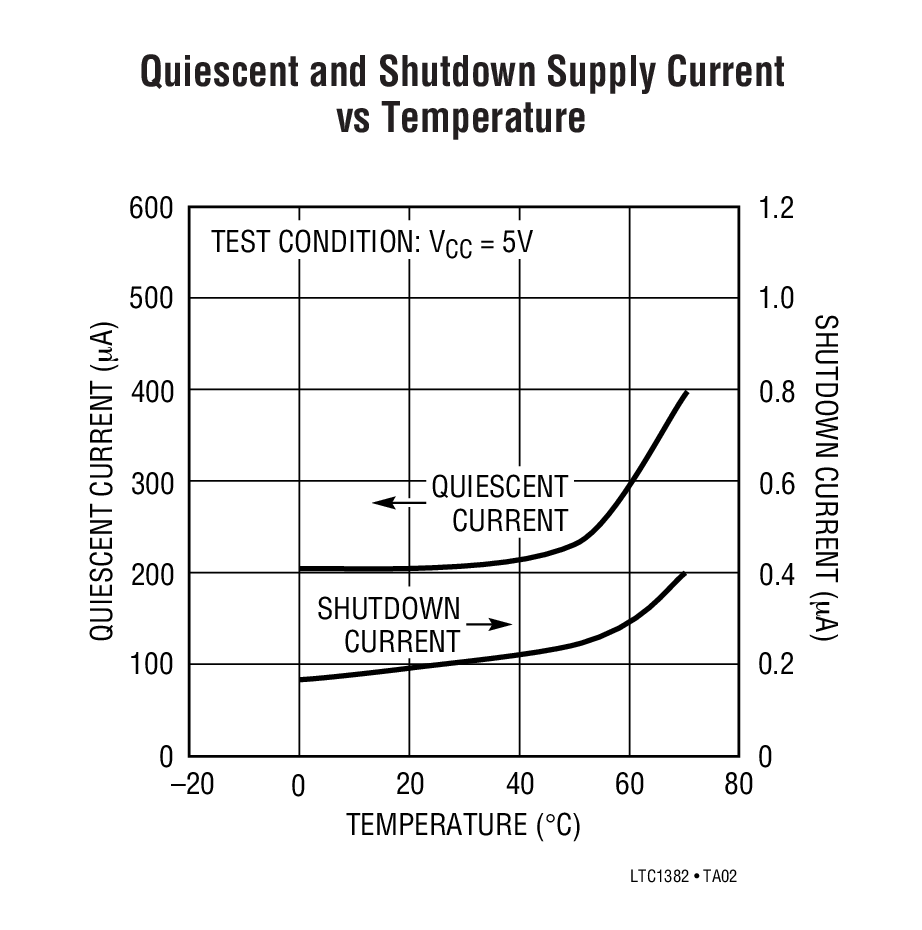

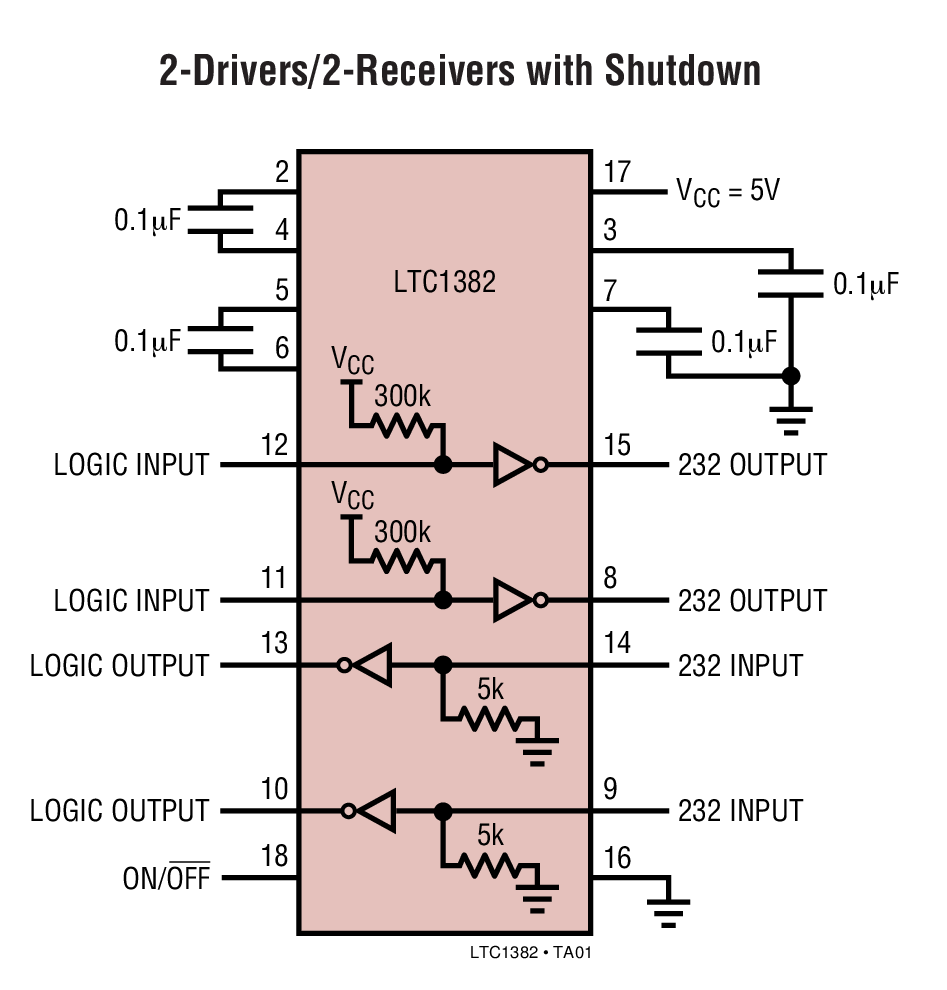

LTC1382 - 典型应用图例：
LTC1382典型应用图例一
LTC1382典型应用图例二

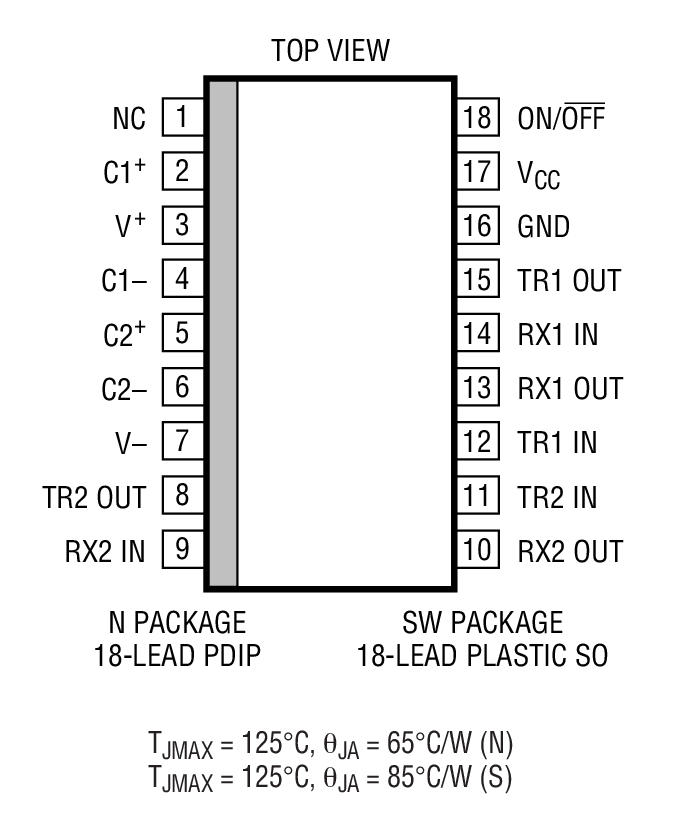

LTC1382 - 封装图解：
LTC1382封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1382介绍

LTC1382 - LTC1382是5V Low Power RS232 Transceiver with Shutdown

LTC1382是LINEAR凌力尔特公司的一款RS232 / RS562 收发器产品，LTC1382是LTC1382是5V Low Power RS232 Transceiver with Shutdown，本站介绍了LTC1382的封装应用图解、特点和优点、功能等，并给出了与LTC1382相关的LINEAR元器件型号供参考。

LTC1382 - LTC1382是5V Low Power RS232 Transceiver with Shutdown - RS232 / RS562 收发器 - 接口器件 - 凌力尔特

LTC1382 - 5V Low Power RS232 Transceiver with Shutdown

LTC1382 - 5V Low Power RS232 Transceiver with Shutdown - Linear Technology（凌力尔特）

功能描述

The LTC?1382 is an ultra-low power 2-driver/2-receiver RS232 transceiver that operates from a single 5V supply. The charge pump requires only four space saving 0.1μF capacitors.

The transceiver operates in one of two modes, Normal and Shutdown. In the Normal mode, ICC is only 220μAwith the driver outputs unloaded. In the Shutdown mode,the charge pump is turned off,the driver outputs are forced into three-state, both receivers are off and ICC drops to 0.2μA.

The LTC1382 is fully compliant with all data rate and overvoltage RS232 specifications. The transceiver canoperate up to 120kbaud with a 2500pF, 3k Ω load. Both driver outputs and receiver inputs can be forced to ?25V without damage and can survive multiple ±10kV ESD strikes.

特点
  • Operates from a Single 5V Supply
  • Low Supply Current: ICC = 220μA
  • ICC = 0.2µA in Shutdown Mode
  • ESD Protection Over ±10kV
  • Uses Small Capacitors: 0.1µF
  • Operates to 120kBaud
  • Output Overvoltage Does Not Force Current Back into Supplies
  • RS232 I/O Lines Can Be Forced to ±25V Without Damage
  • Pin Compatible with LT1180A
    • 应用
  • Notebook Computers
  • Palmtop Computers
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1382CN N-18 C $4.35 $3.40
    LTC1382CN#PBF N-18 C $4.35 $3.40
    LTC1382CSW SW-18 C $4.35 $3.40
    LTC1382CSW#PBF SW-18 C $4.35 $3.40
    LTC1382CSW#TR SW-18 C $3.50
    LTC1382CSW#TRPBF SW-18 C $3.50
    LTC1382IN N-18 I $5.00 $3.90
    LTC1382IN#PBF N-18 I $5.00 $3.90
    LTC1382ISW SW-18 I $5.00 $3.90
    LTC1382ISW#PBF SW-18 I $5.00 $3.90
    LTC1382ISW#TR SW-18 I $4.00
    LTC1382ISW#TRPBF SW-18 I $4.00
